At a Glance
Material
Plastic
For Use On
Copper
Application
Electrical
Description
Description

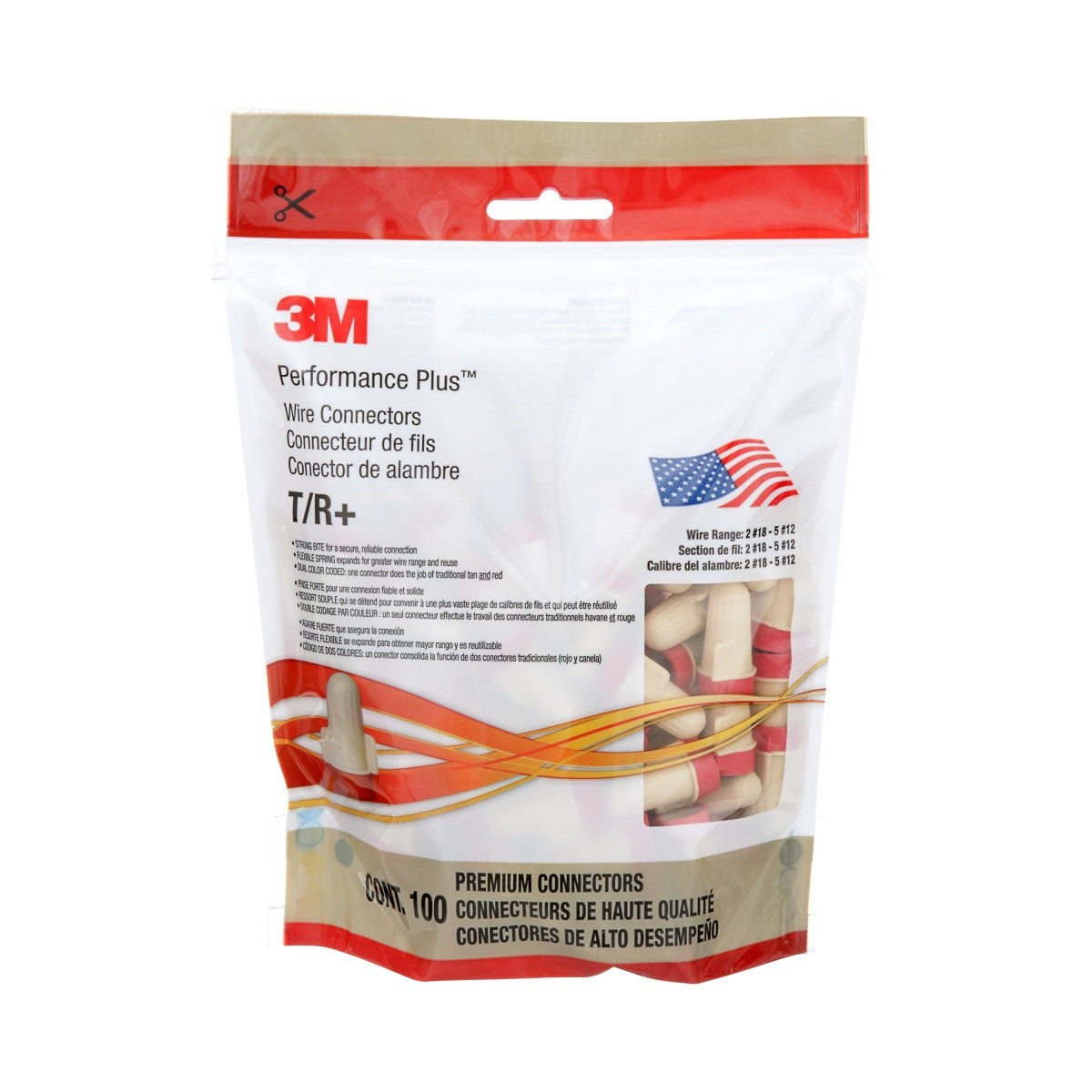

3M 7100127165 Description

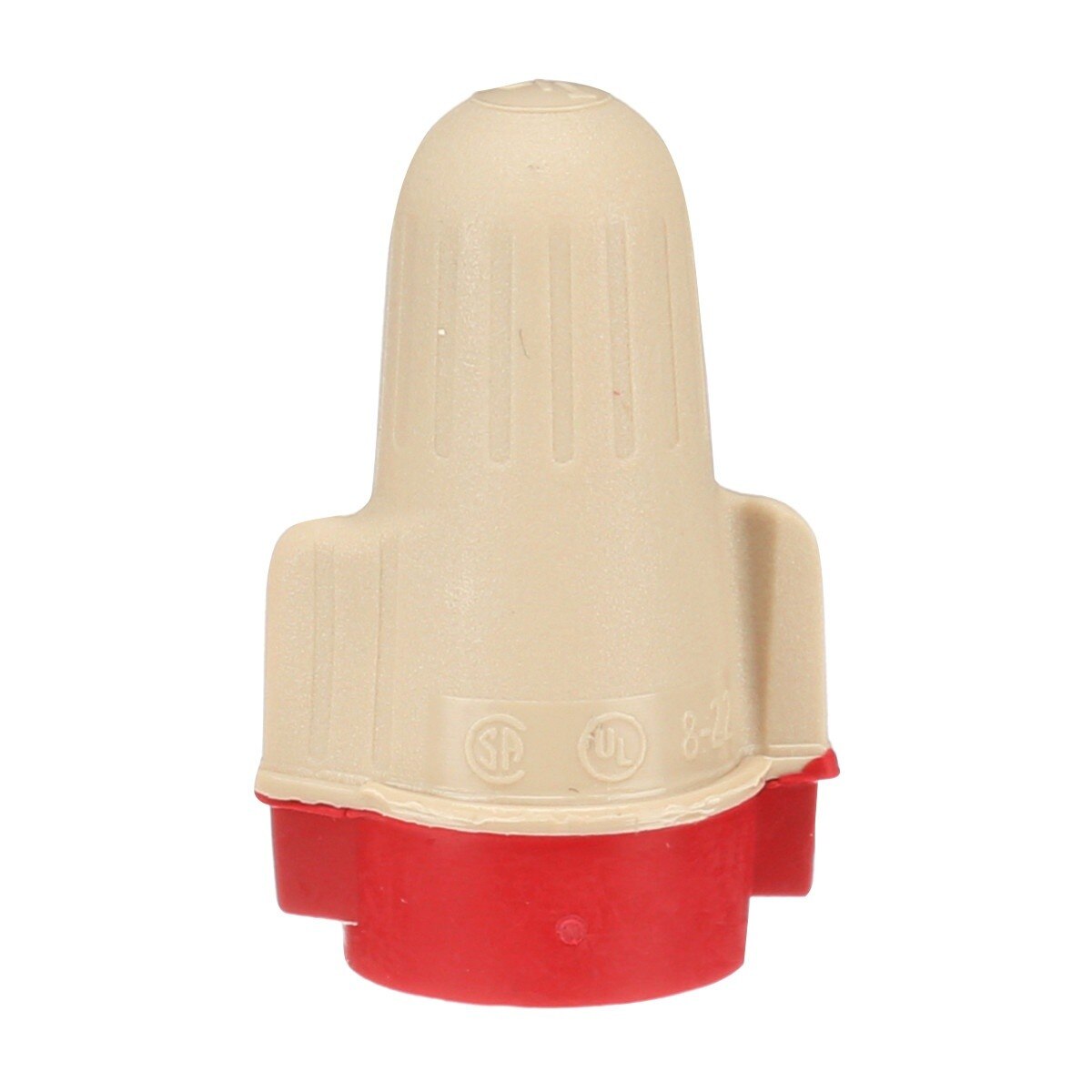

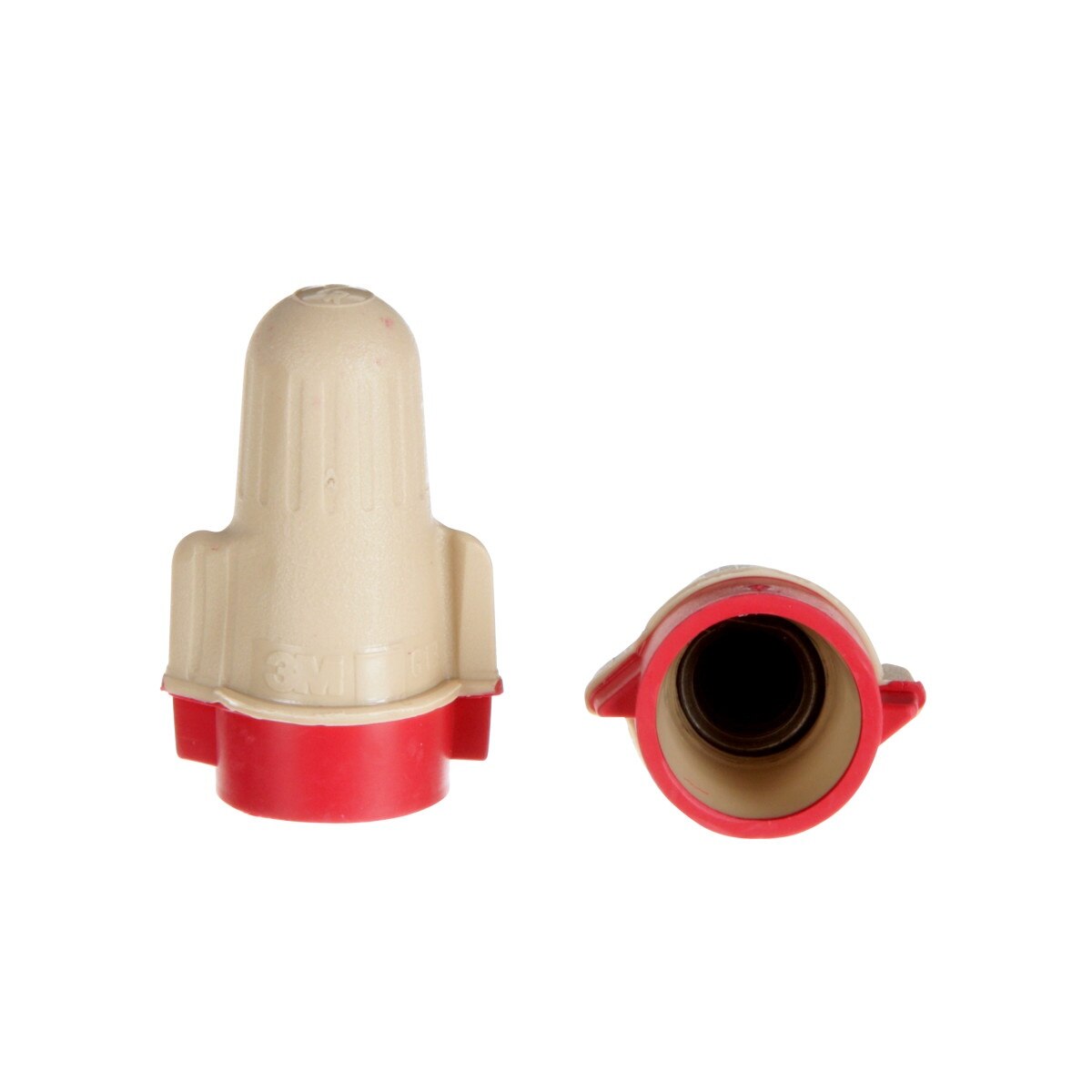

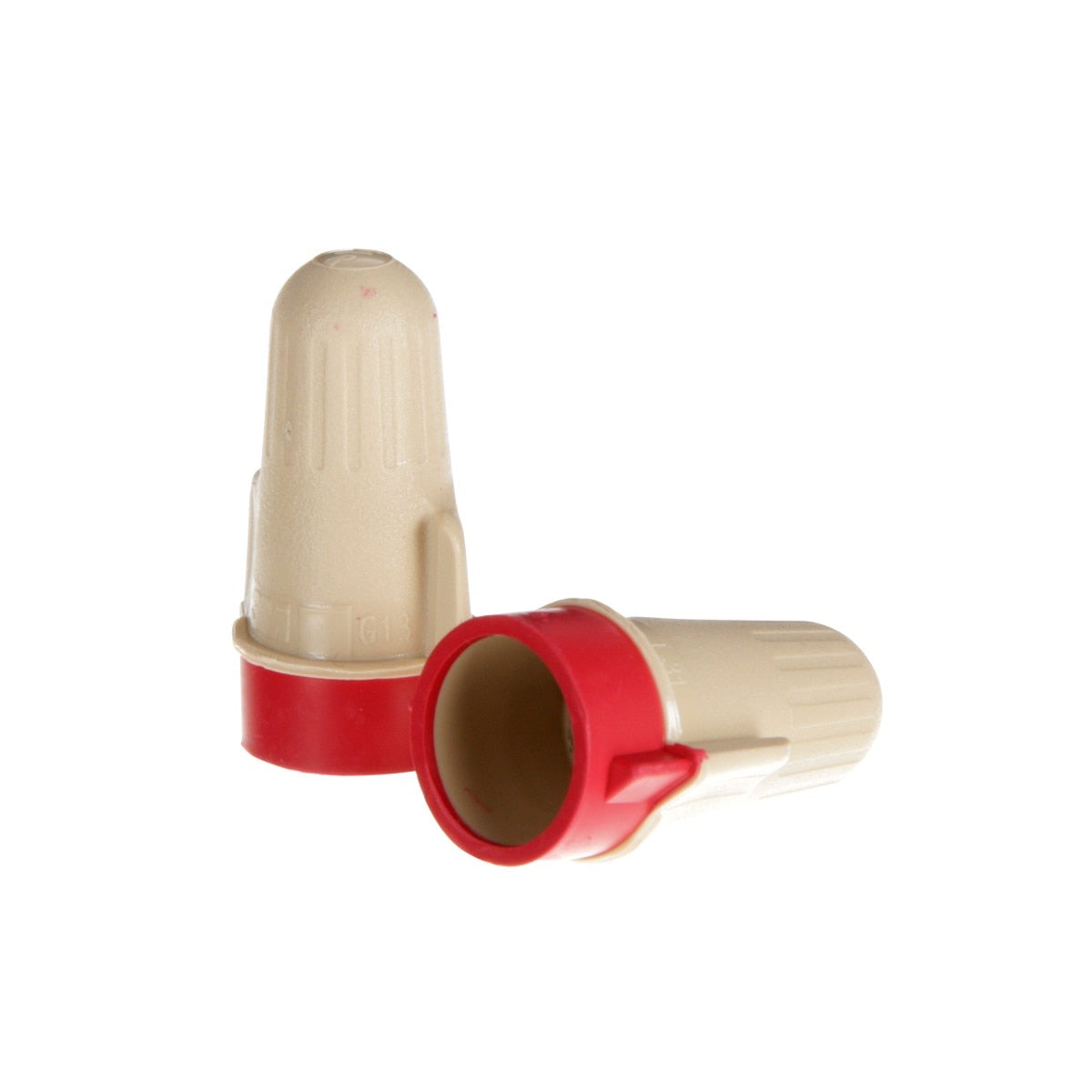

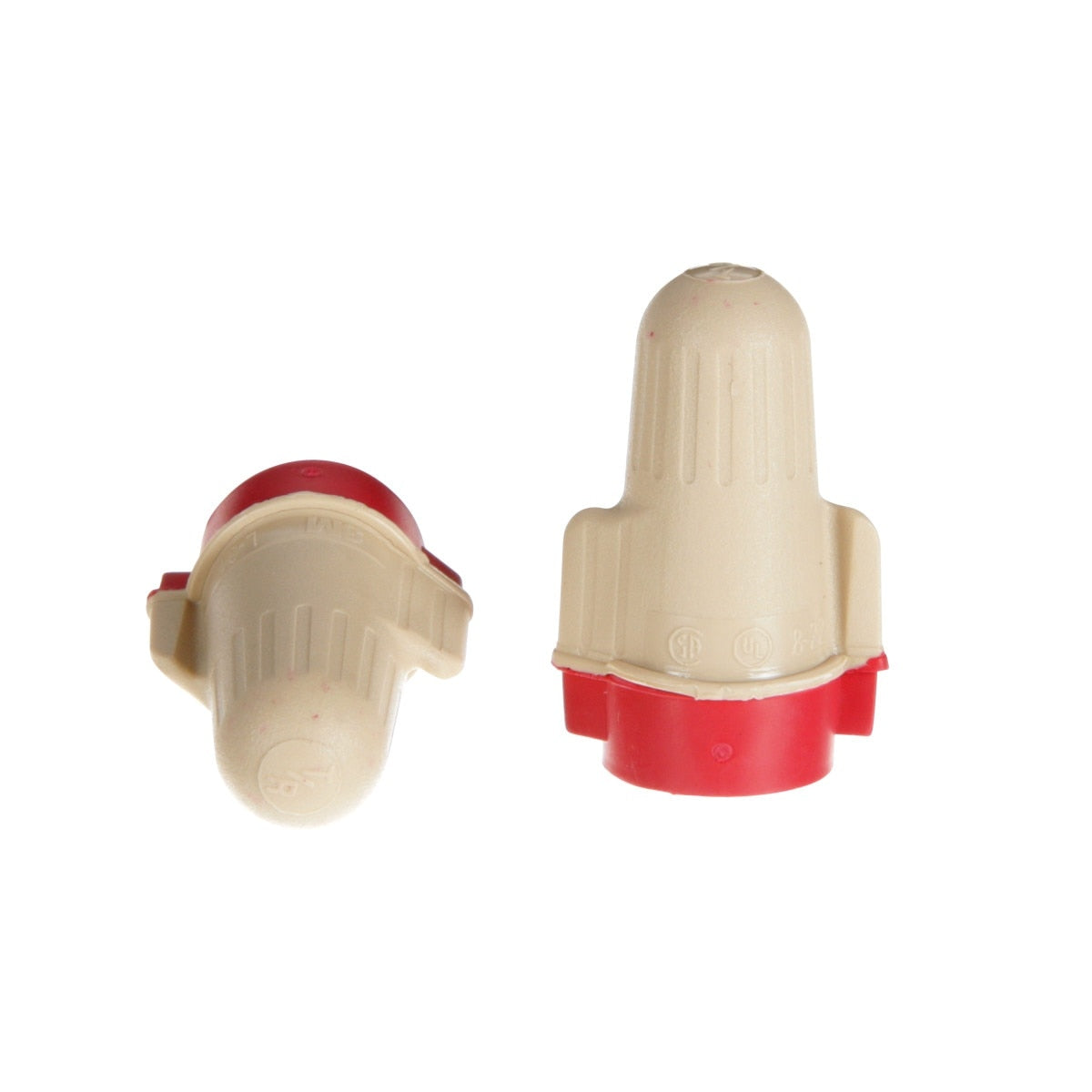

3M Performance Plus twist-on wire connectors feature a uniquely flexible spring that provides expansion room and a strong bite for secure connections on solid and stranded copper conductors. The flexible skirt helps reduce copper exposure, and the connector is UL listed and CSA certified for dependable electrical splicing.
3M 7100127165 Includes
- (1000) - 3M 7100127165 Performance Plus Wire Connector T/R+POUCH, Tan/Red, Flexible Steel Spring Connectors, Copper, CSA Certified, UL Listed, Pouch of 100, 22-8 AWG
3M 7100127165 Features
- Twist-on wire connector for splicing copper conductors
- Flexible steel spring design provides expansion room and strong bite for a secure connection
- Flexible skirt helps prevent copper exposure for enhanced safety

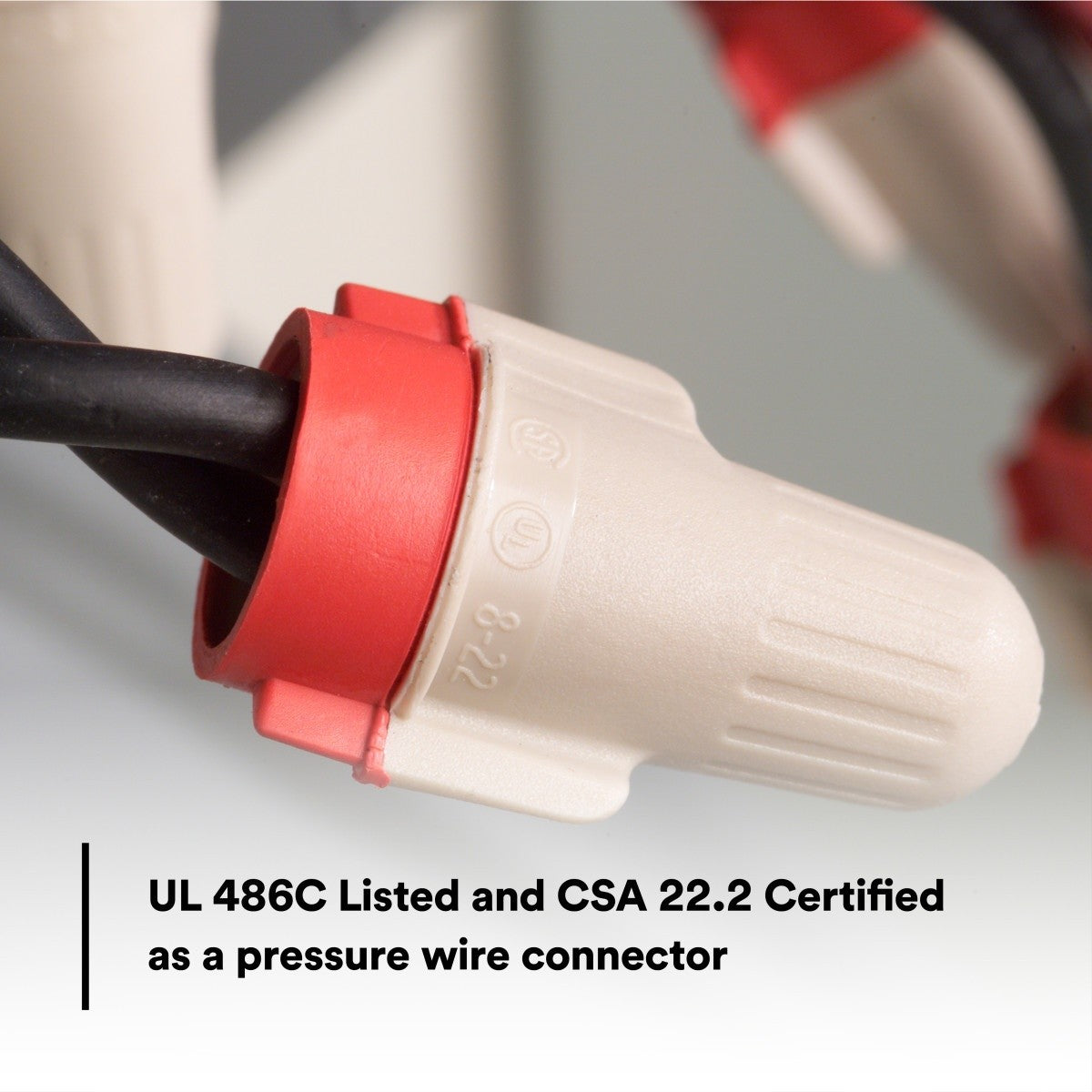

- UL listed (UL 486C) and CSA 22.2 certified as a pressure wire connector
- Rated up to 600 V on copper wire
- Wide conductor size range: 22-8 AWG
- Flame retardant housing
- Suitable for pigtail applications (connect two or more wires)
- Tan/Red color coding for quick identification

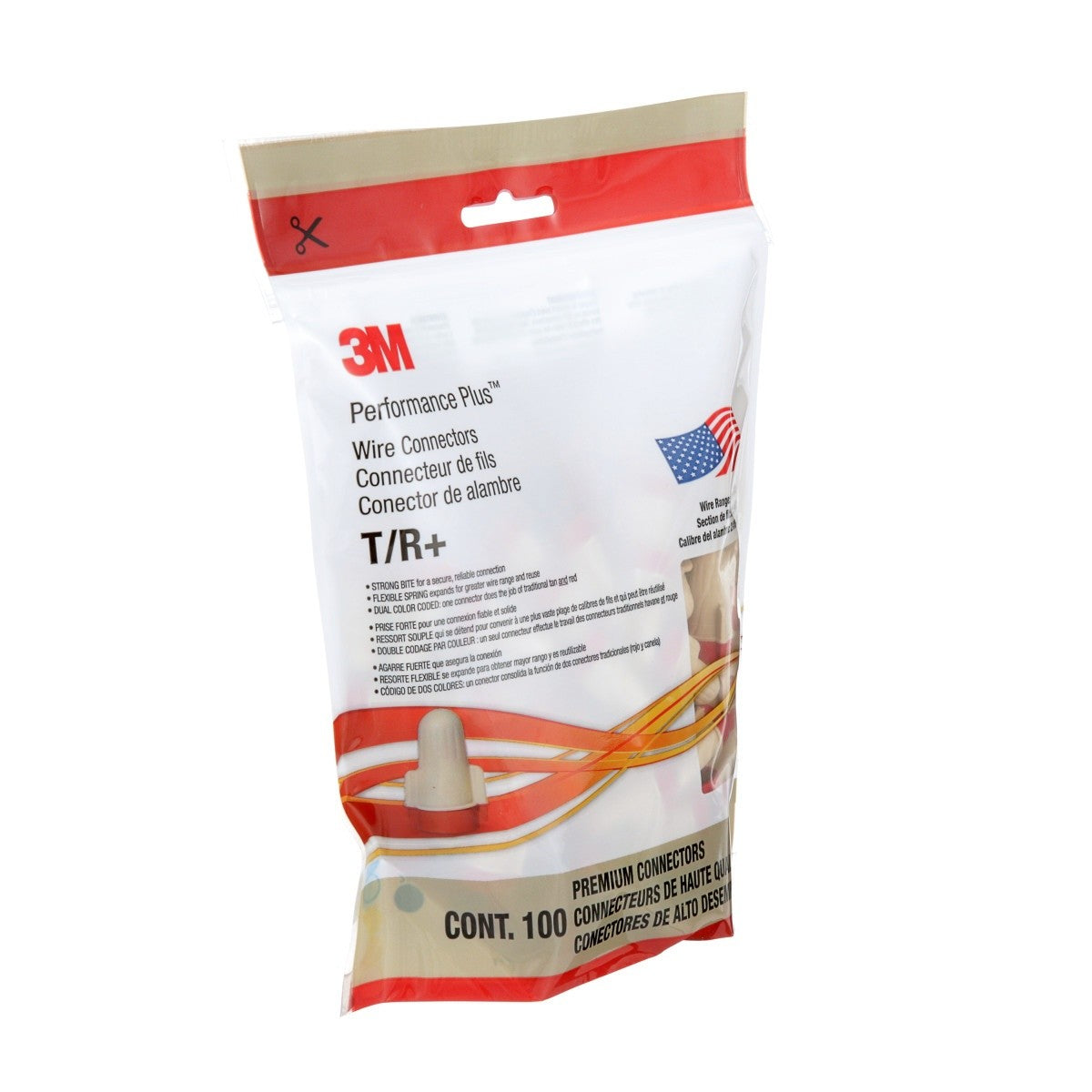

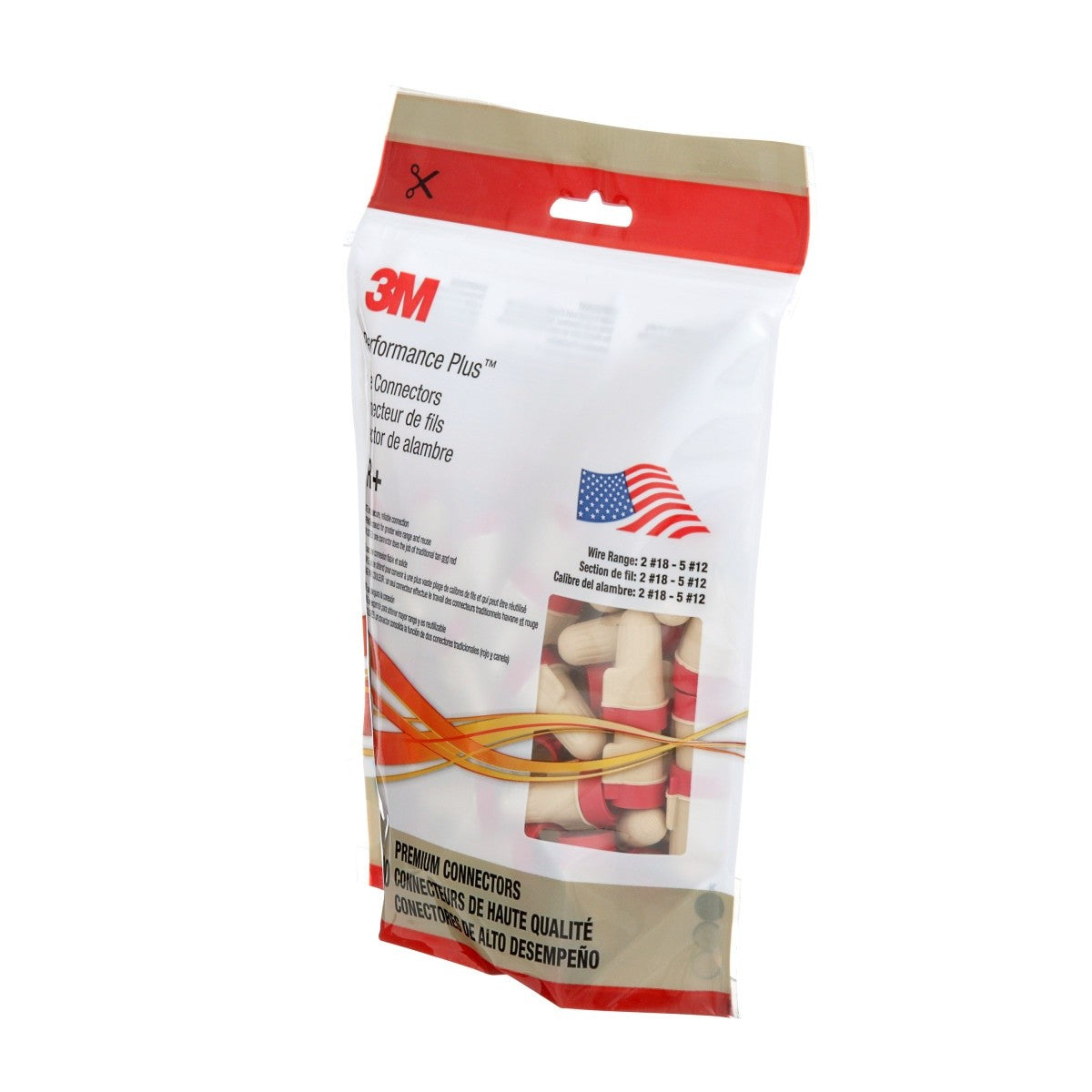

- Packaged as a pouch of 100 connectors
3M 7100127165 Specifications
| Brand | 3M Performance Plus |
| Product Type | Wire Connector |
| Connector Style | Twist On |
| Wire Connector Type | Twist-on Wire Connectors |
| Conductor Material | Copper |
| Conductor Size Range | 22 - 8 AWG |
| Voltage Rating | 600 V |
| Material | Plastic |
| Flame Retardant | Yes |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Maximum Insulation Outside Diameter | 0.145 in |
| Specifications Met | CSA |
| Color | Tan/Red |
| Package Quantity | 100 per Pouch |
Toolup Part # :
859279
