Description
Description

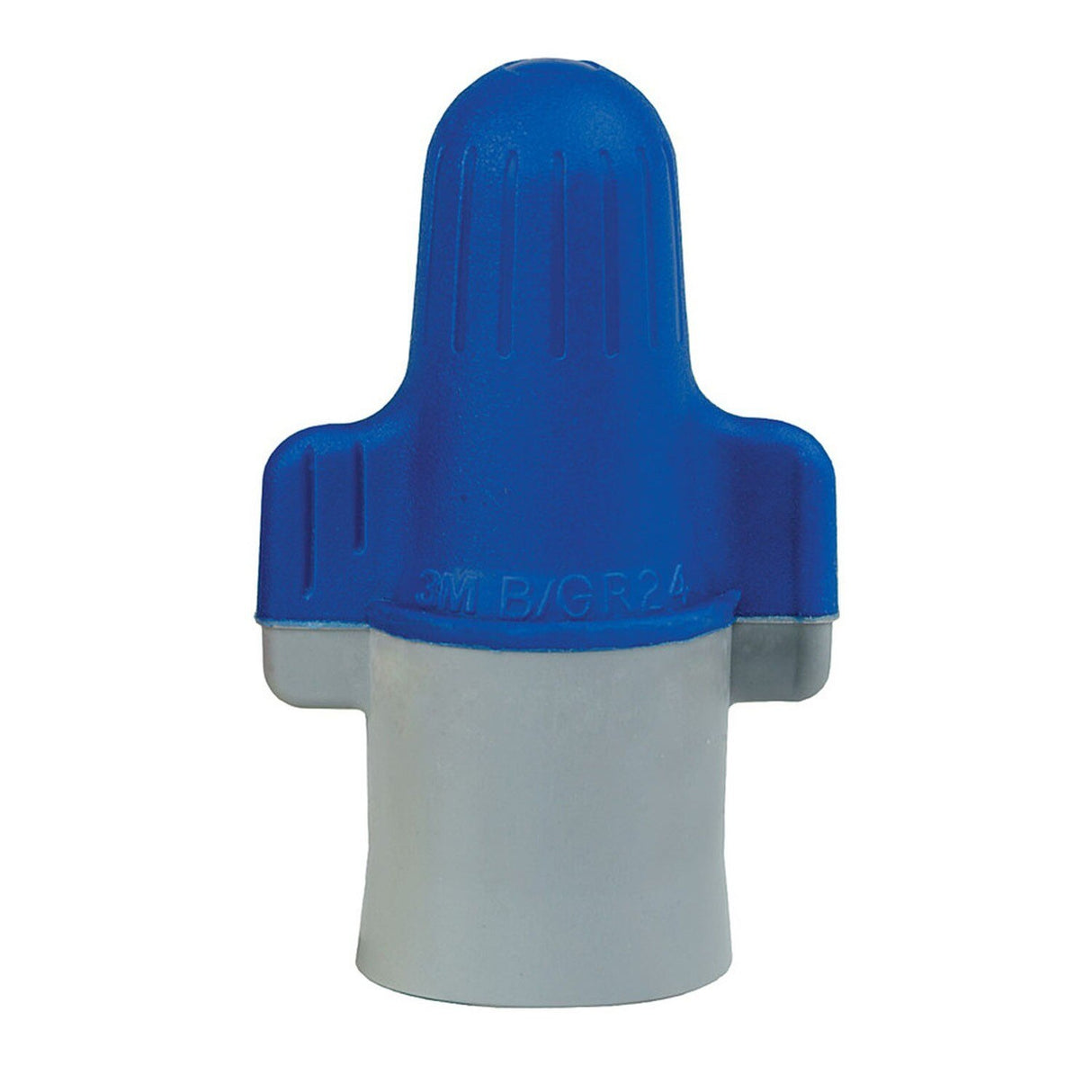

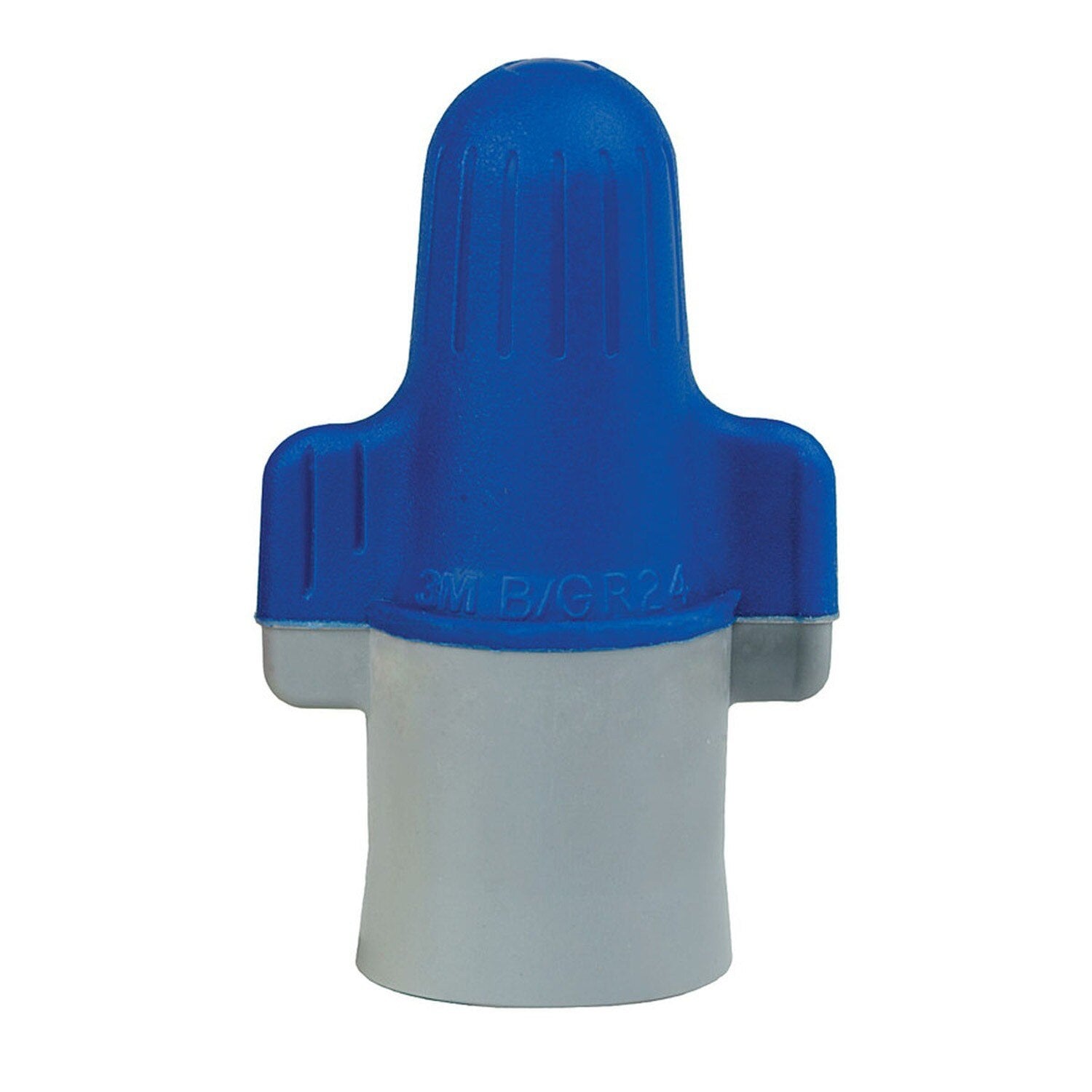

3M 7100127167 Description
3M Performance Plus twist-on wire connectors feature a flexible steel spring and skirt design to deliver a strong, reliable connection while helping reduce copper exposure. Designed for copper conductors, these blue/gray connectors cover a 14 to 6 AWG wire range and are UL Listed and CSA certified.
3M 7100127167 Includes

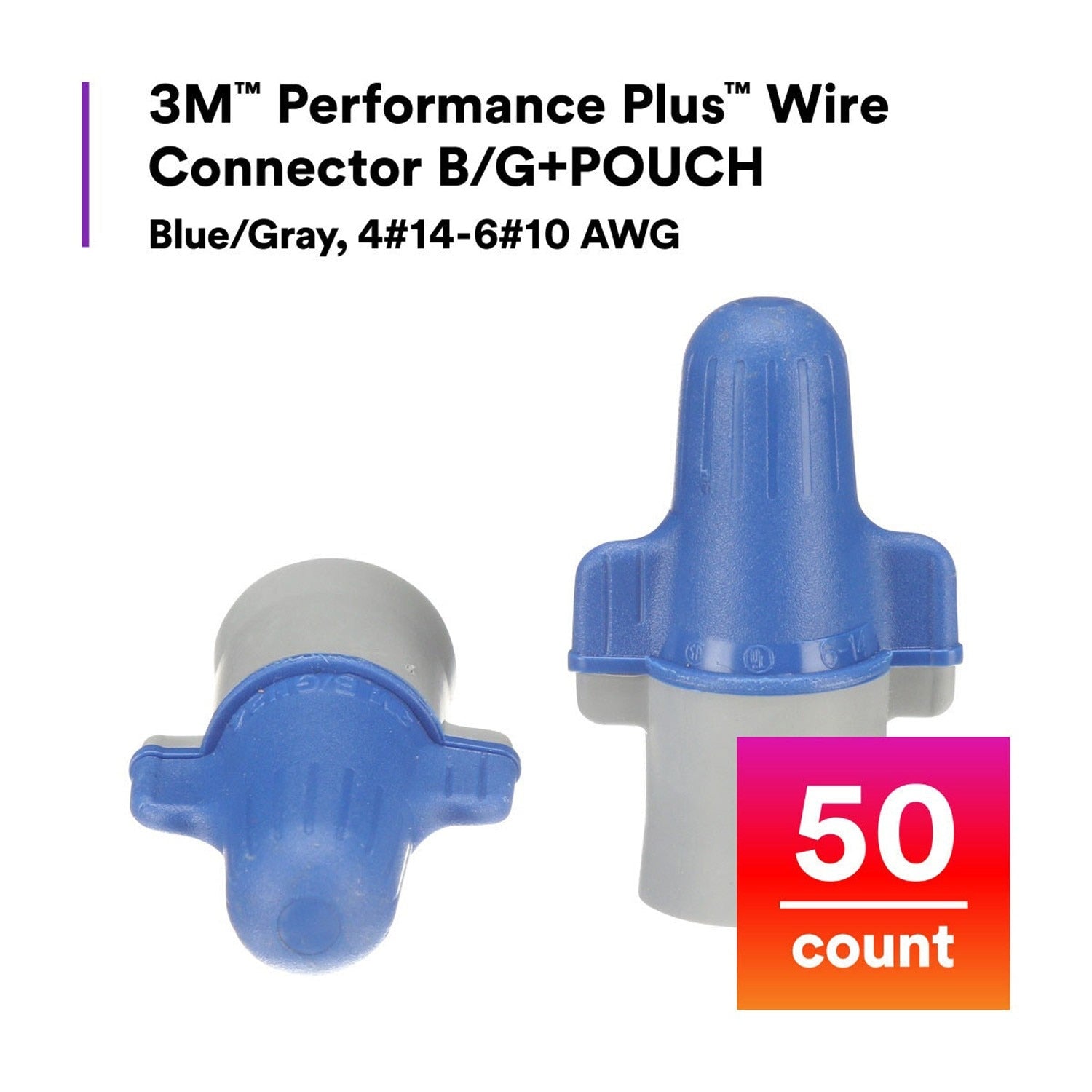

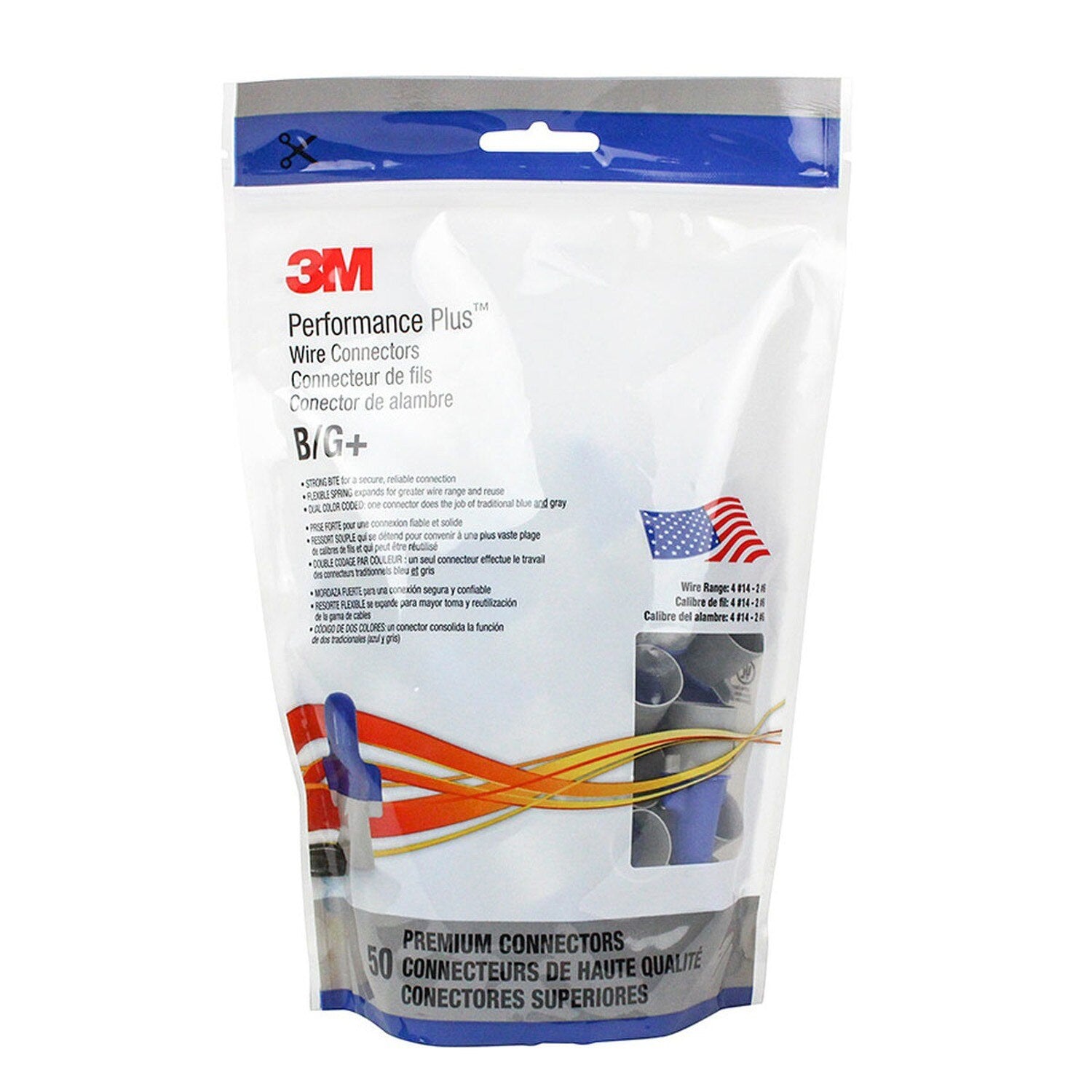

- (500) - 3M 7100127167 Performance Plus Wire Connector, B/G+POUCH, Blue/Gray, Flexible Steel Spring Connectors, Copper, CSA Certified, UL Listed, Pouch of 50, 14-6 AWG
3M 7100127167 Features

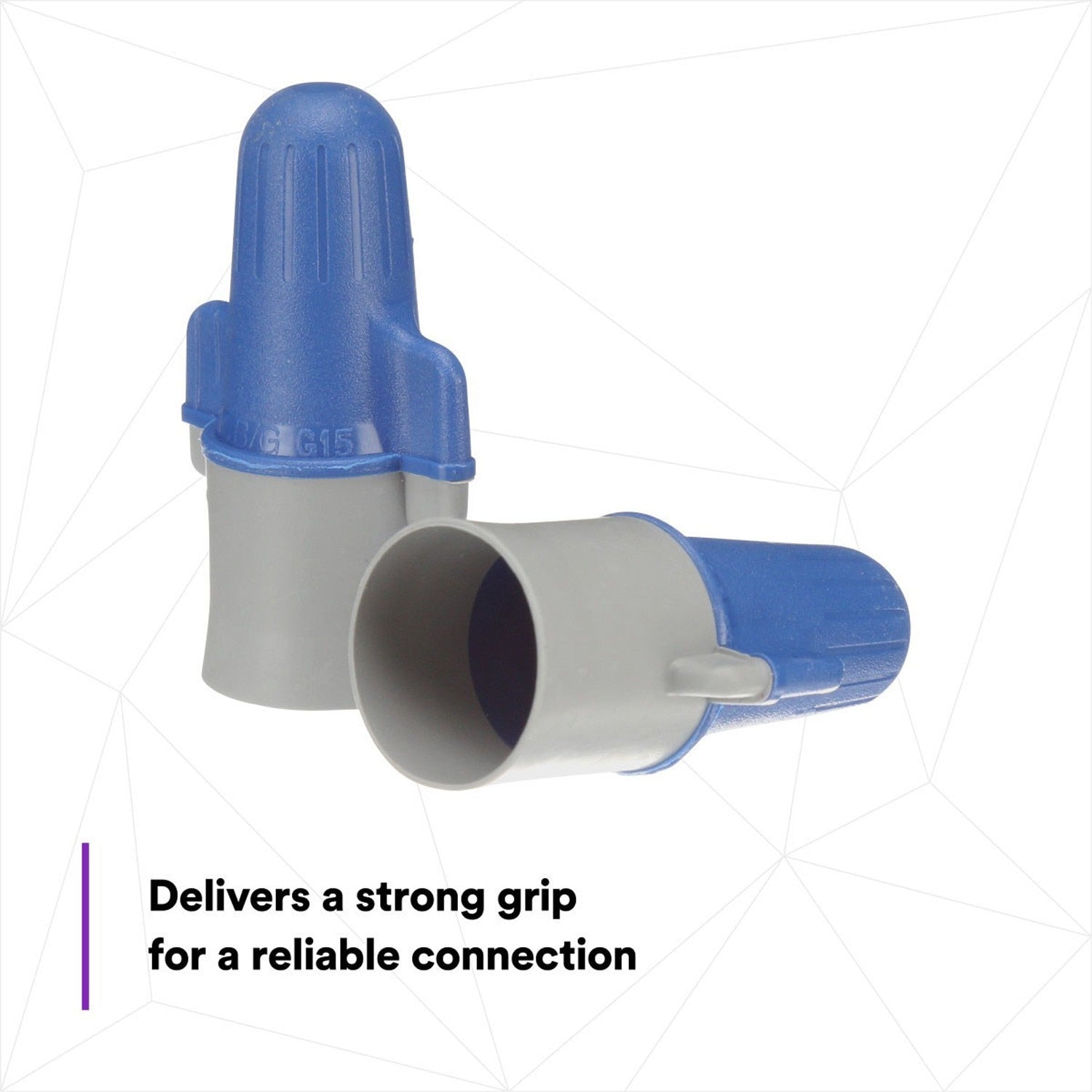

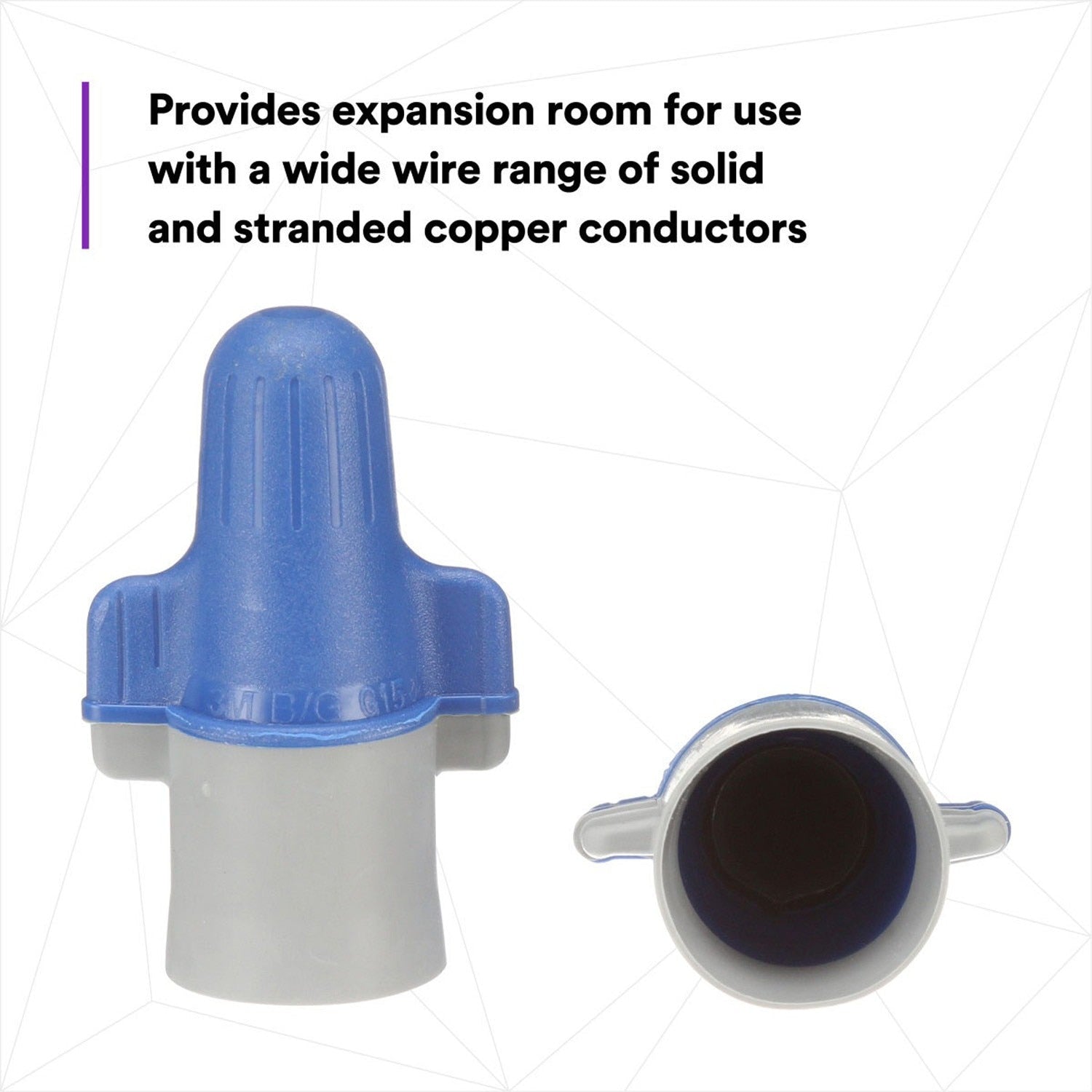

- Flexible spring provides expansion room and a strong bite for a secure connection
- Twist-on connector style for joining copper conductors
- Wide copper wire range: 14 to 6 AWG

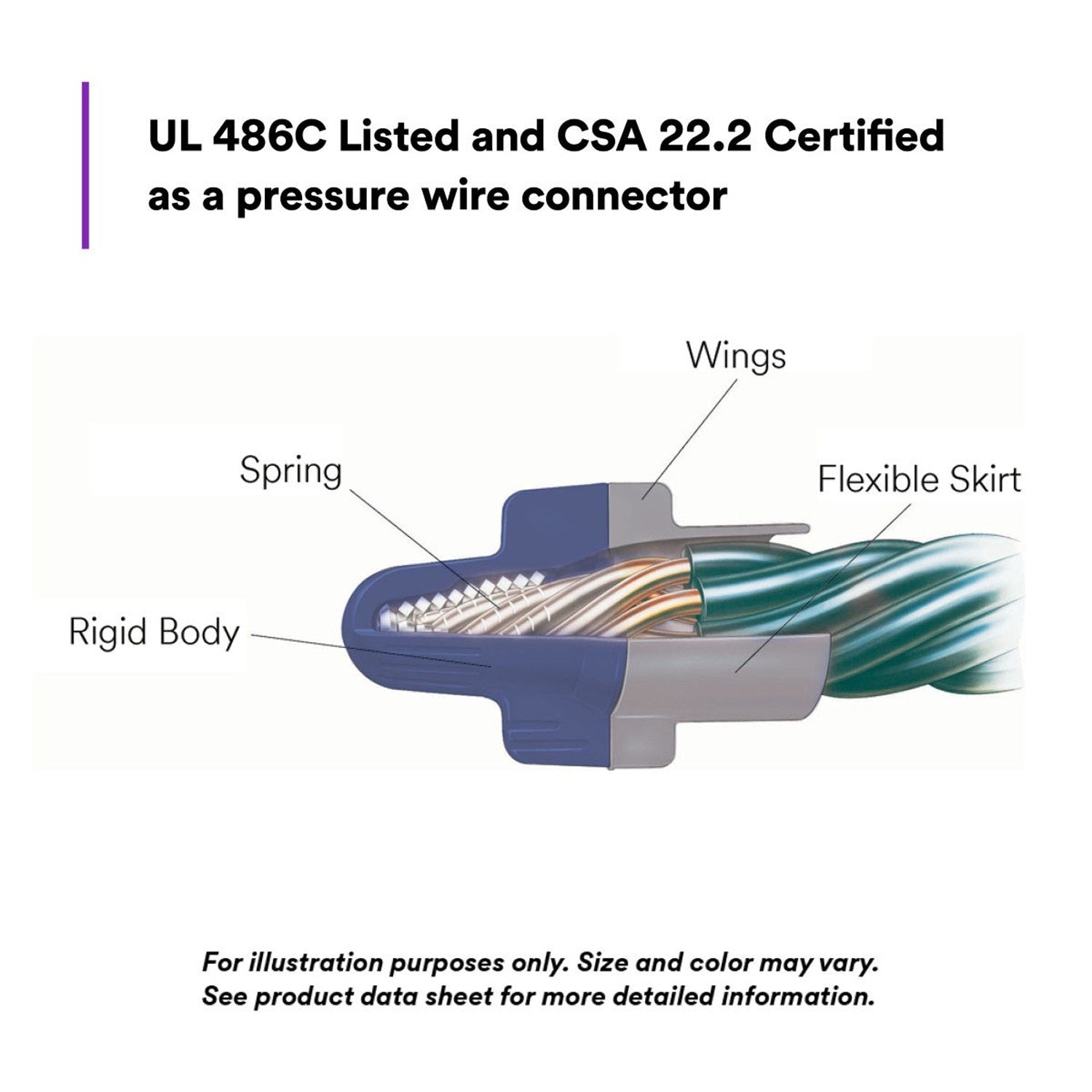

- Flexible skirt helps prevent copper exposure for enhanced safety
- Winged design helps with grip during installation
- Flame-retardant construction (UL94 V-2)
- UL Listed (UL 486C)
- CSA 22.2 certified as a pressure wire connector
- Rated up to 600 V on copper wire
- Maximum operating temperature: 105 Degree Celsius (221 Degree Fahrenheit)

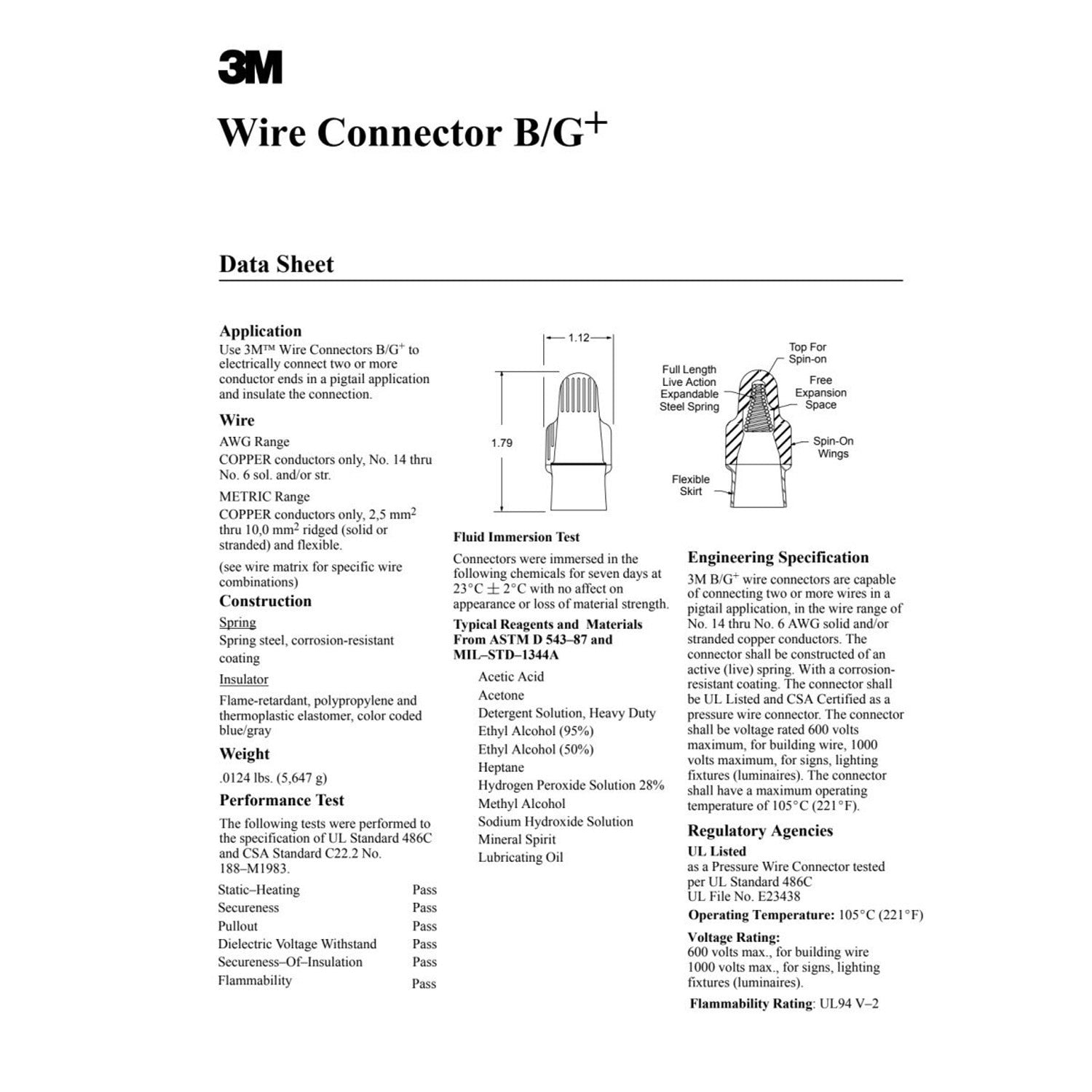

3M 7100127167 Specifications
| Brand | 3M |
| Series | Performance Plus |
| Part Number | B/G+POUCH |
| Product Type | Connector |
| Connector Style | Twist On |
| Wire Connector Type | Twist-on Wire Connectors |
| Conductor Material | Copper |
| Conductor Size Range (Imperial) | 14 - 6 AWG |
| Insulation Color | Blue/Gray |
| Flame Retardant | Yes |
| Flammability Rating | UL94 V-2 |
| Voltage Rating | 600 V |
| Maximum Operating Temperature | 105.0 Degree Celsius |
| Specifications Met | CSA |
| Product Height (in) | 10.0 |
| Product Length (in) | 6.496062992125984 |
| Product Width (in) | 2.9921259842519685 |
| Product Weight (lbs) | 0.7101089464974907 |
Toolup Part # :
859945
