3M 7100127164 Description

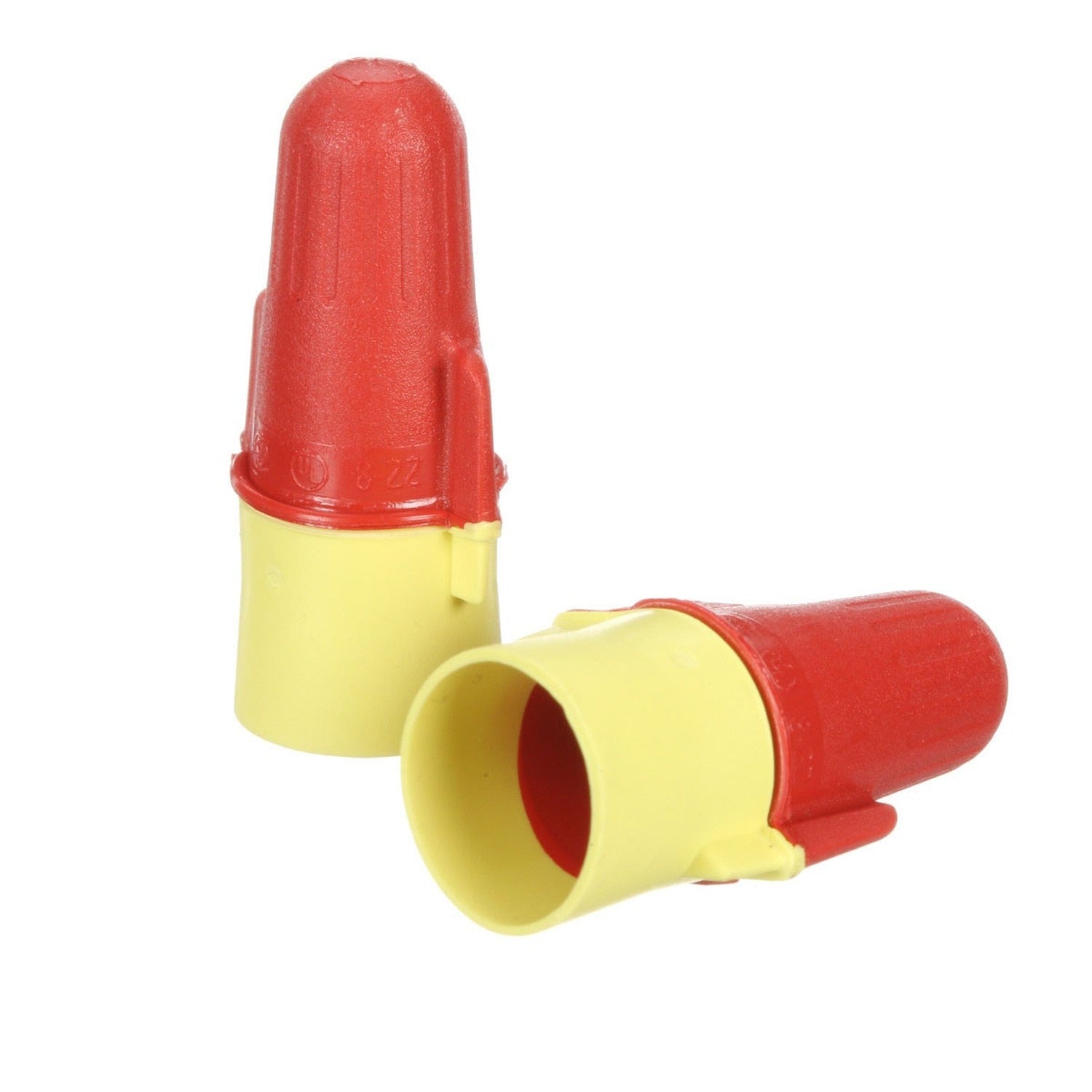

3M Performance Plus twist-on wire connectors feature a uniquely flexible steel spring that delivers a strong bite for secure connections while accommodating a wide wire range. The flexible skirt helps reduce copper exposure for enhanced safety, and the connectors are UL Listed and CSA certified for use on copper conductors.
3M 7100127164 Includes
- (1000) - 3M 7100127164 Performance Plus Wire Connector R/Y+POUCH, Red/Yellow, Flexible Steel Spring Connectors, Copper, CSA Certified, UL Listed, Pouch of 100, 22-8 AWG
3M 7100127164 Features
- Uniquely flexible steel spring provides a strong bite for secure, reliable connections
- Wide wire range: 22-8 AWG
- Flexible skirt helps prevent copper exposure for enhanced safety
- Twist-on connector style for quick splices and pigtails

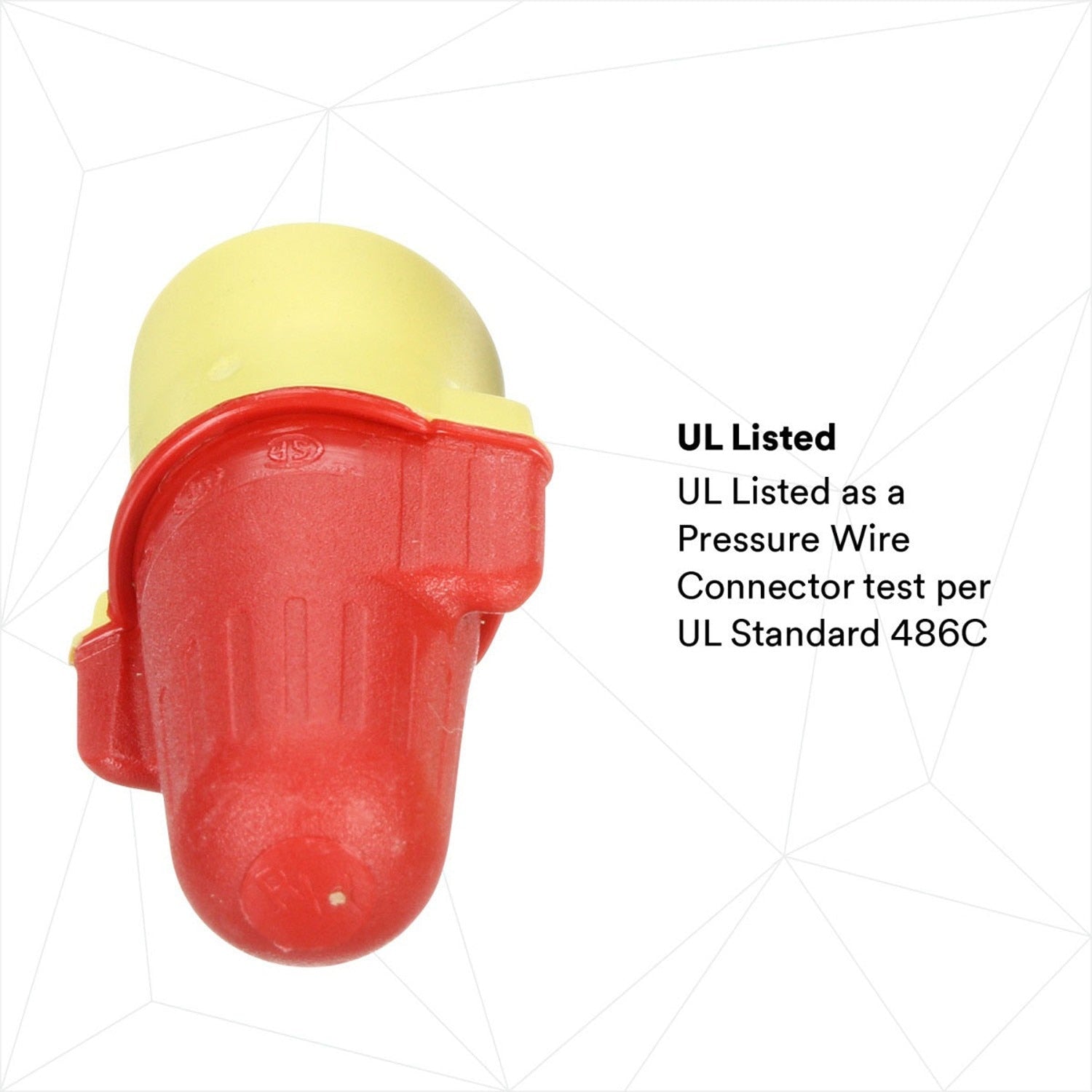

- UL Listed for use up to 600V on copper wire
- CSA certified
- Flame retardant design
3M 7100127164 Specifications
| Product Type | Wire Connector |
| Wire Connector Type | Twist-on Wire Connectors |
| Connector Style | Twist On |
| Conductor Material | Copper |
| Conductor Sizes (Imperial) | 22 - 8 AWG |
| Voltage Rating | 600 V |
| Flame Retardant | Yes |
| Material | Plastic |
| Maximum Operating Temperature | 105 Degree Celsius |
| Maximum Insulation Outside Diameter | 0.145 in |
| Specifications Met | CSA |
| Product Color | Red/Yellow |

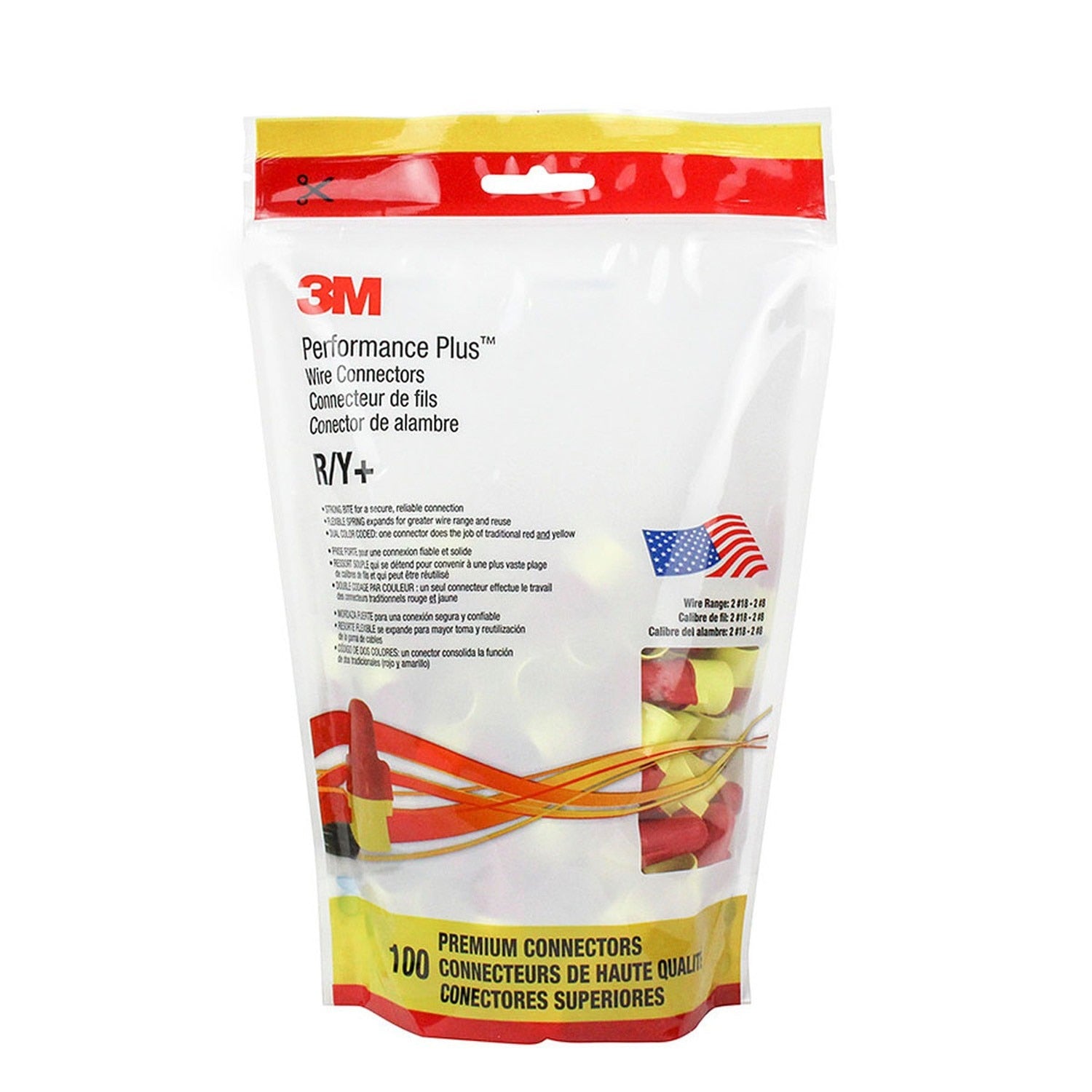

| Package Quantity | 100 per pouch |
