At a Glance
Length
36 yd
Max Temperature
500�F
Container Type
Roll
Min Temperature
-100�F
Material
Fiberglass Fabric
For Use On
Metal
Description
Description
3M 7000144794 Description

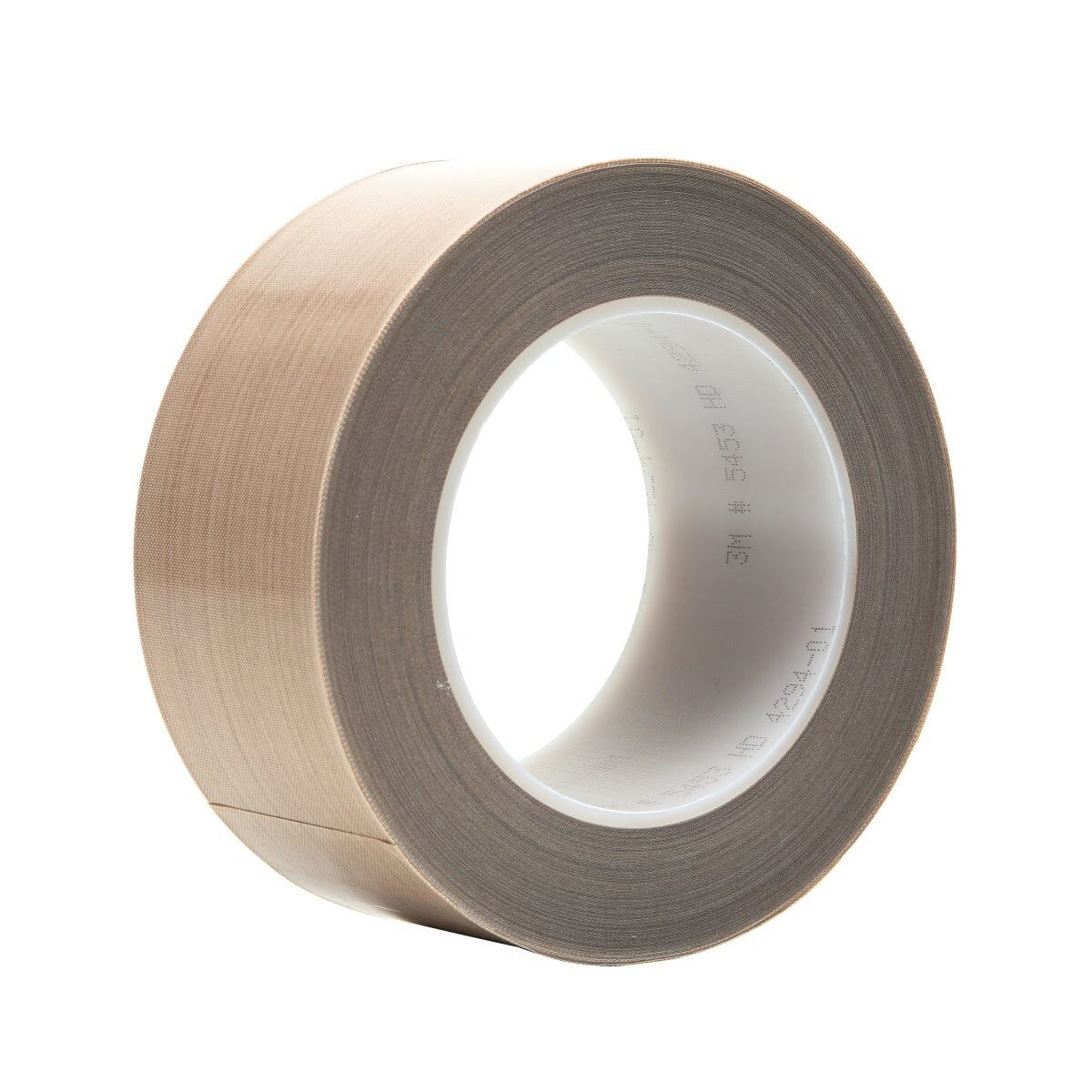

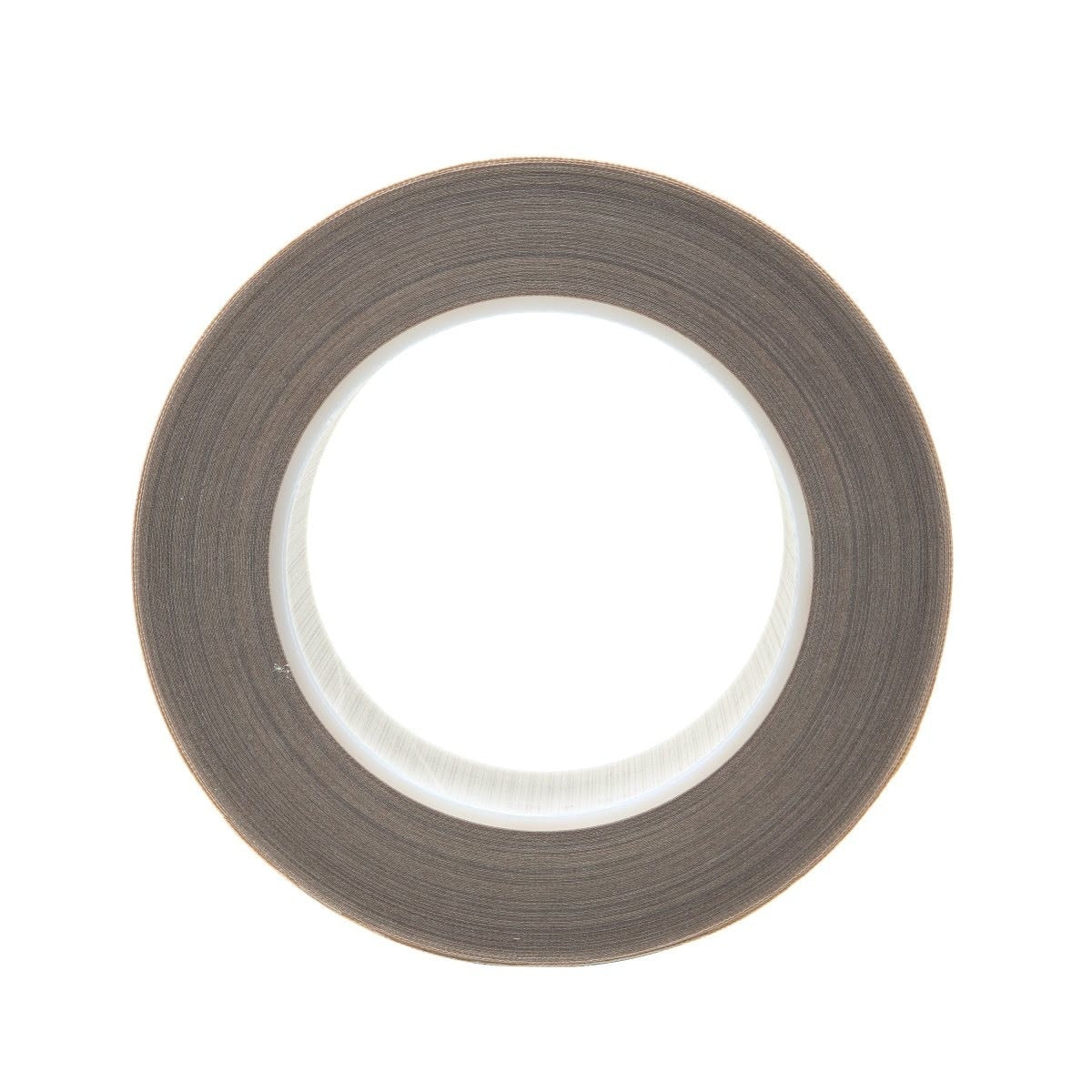

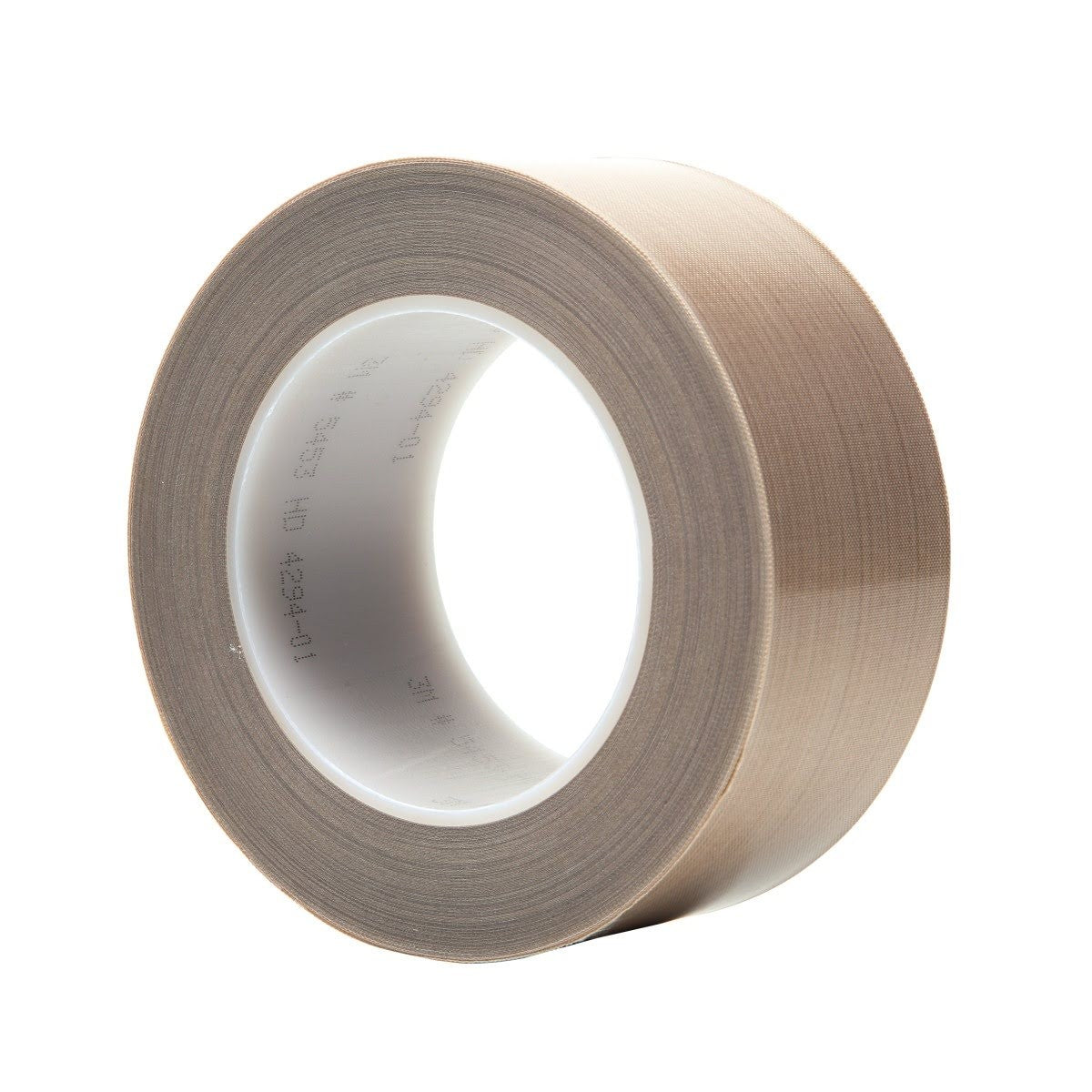

3M PTFE Glass Cloth Tape 5453 is a premium brown glass cloth tape impregnated with PTFE and coated with a pressure sensitive silicone adhesive to deliver a low friction non stick surface for high temperature industrial applications such as heat sealing and packaging equipment.
3M 7000144794 Includes
- (6) - 3M 7000144794 PTFE Glass Cloth Tape 5453, Brown, 2 in x 36 yd, 8.2 mil, 6 Rolls per case, Boxed (5453)
3M 7000144794 Features
- Premium glass cloth reinforced backing helps resist tears and punctures
- Silicone adhesive provides high temperature performance and long aging
- Creates a non stick low friction surface on process machinery
- Thicker backing helps extend service life in abrasion and wear applications
- Wide operating temperature range up to 500 Degree Fahrenheit
- Very low moisture absorption for performance in humid environments
- Excellent chemical resistance for demanding applications
3M 7000144794 Specifications
| Part Number | 5453 |
| Tape Type | PTFE glass cloth tape |
| Color | Brown |
| Overall Width | 2.0 in |
| Overall Length | 36.0 yd |
| Total Tape Thickness without Liner | 8.2 mil |
| Adhesive Type | Silicone |
| Backing Material | Glass Cloth |
| Core Size | 3.0 in |
| Maximum Operating Temperature | 500.0 Degree Fahrenheit |
| Minimum Operating Temperature | -100.0 Degree Fahrenheit |
| Elongation at Break | 5% |
| Tensile Strength | 2800.0 oz/in |
| Shelf Life | 24.0 Month |
| Specifications Met | ASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a) |
Toolup Part # :
859657
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
