At a Glance
Length
0.9 in
Sub-Brand
Highland
Material
Copper
Application
Electrical
Description
Description
3M 7000133676 Description

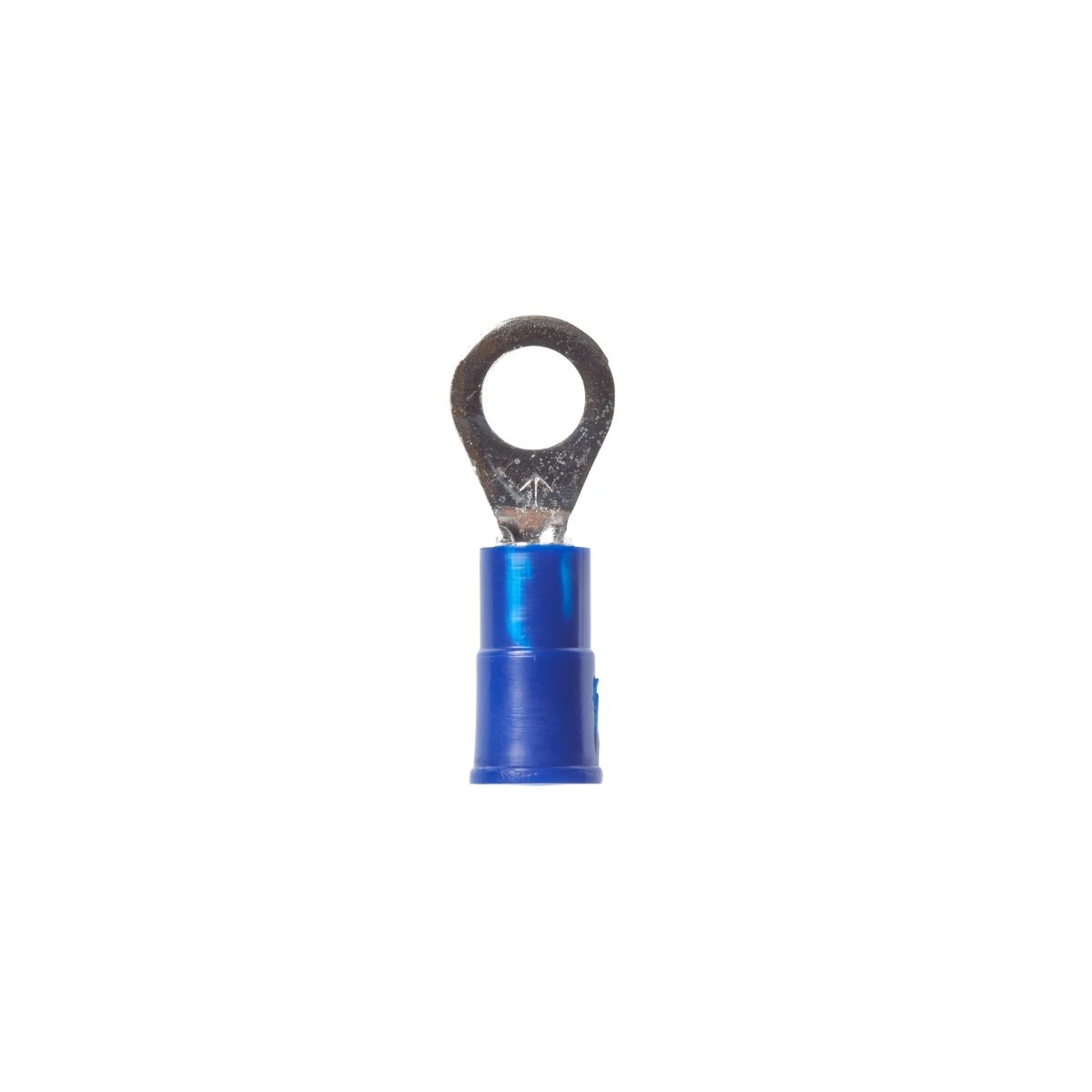

3M Highland vinyl insulated ring terminal with a butted seam barrel for crimp connections on 16 to 14 AWG wire. Features electrolytic copper construction with tin plating for corrosion resistance and a standard ring tongue for a #10 stud.
3M 7000133676 Includes
- (10) - 3M 7000133676 Highland Vinyl Insulated Ring Terminal RV14-10Q, AWG 16-14
3M 7000133676 Features
- Vinyl insulated butted seam barrel for secure crimp connections
- Standard ring tongue fits #10 stud
- Designed for 16 to 14 AWG wire
- Electrolytic copper construction for good conductivity
- Tin plated finish helps resist corrosion
- Funnel designed PVC sleeve helps with easy wire insertion
- Temperature range -40 to 221 Degree F (-40 to 105 Degree C)
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
- 25 per bag
3M 7000133676 Specifications
| Part Number | RV14-10Q |
| Terminal Type | Ring |
| Ring Type | Standard |
| Stud Size | #10 |
| Connection Type | Crimp |
| Wire Size Range | 16 to 14 AWG |
| Insulation Material | Vinyl |
| Barrel Style | Butted |
| Maximum Operating Temperature | 105 Degree Celsius |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Maximum Recommended Voltage Rating | 600 V |
| Barrel Inside Diameter | 0.09 Inch |
| Barrel Length | 0.25 Inch |
| Overall Length | 0.9 in |
| Overall Width | 0.33 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
| Color | Blue |
| Quantity | 25 per bag |
Toolup Part # :
858384
