At a Glance
Length
0.93 in
Sub-Brand
Highland
Material
Copper
For Use On
Metal
Application
Electrical
Description
Description

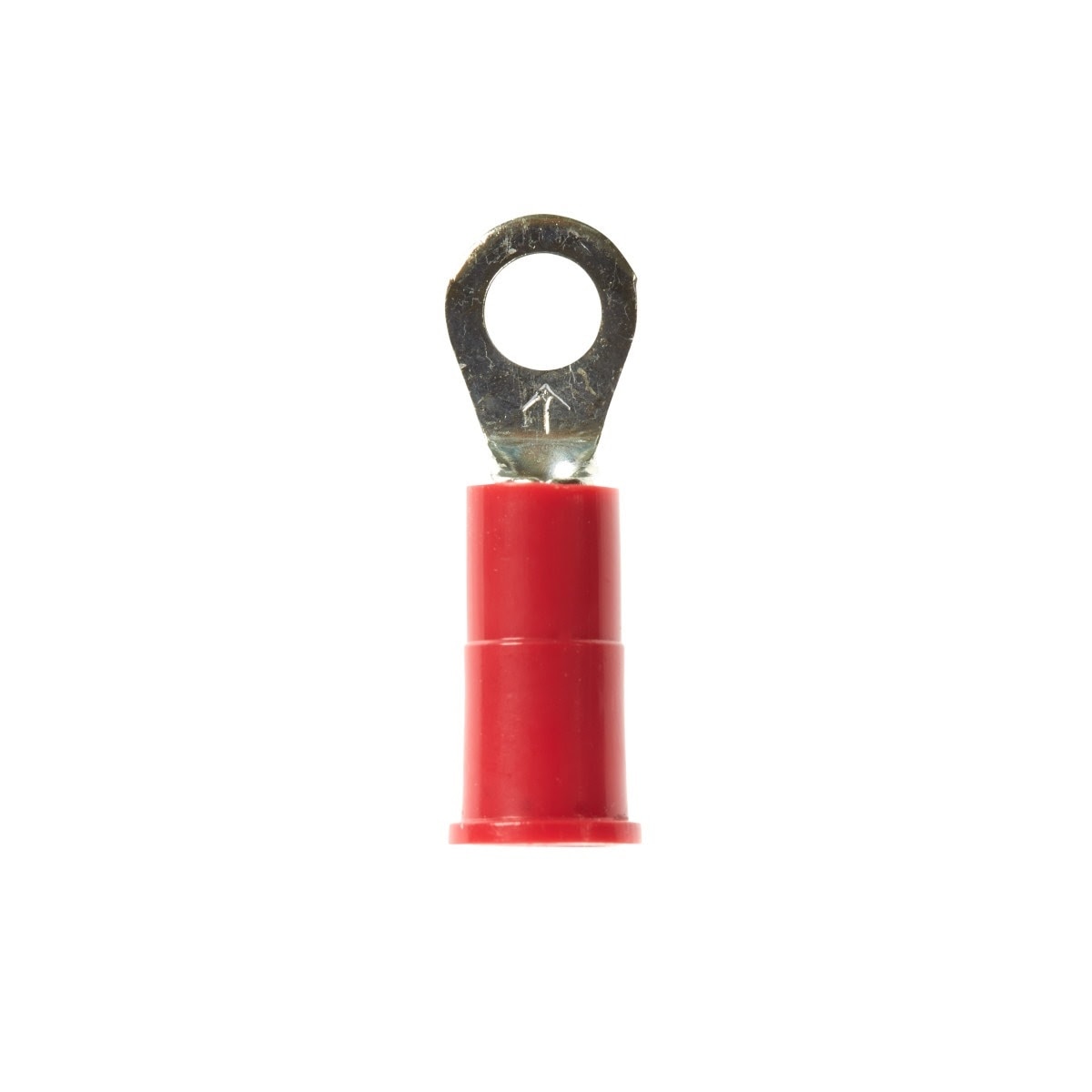

3M 7000133683 Description
3M Highland vinyl insulated butted seam ring tongue terminals help deliver reliable connections. The vinyl insulated barrel supports safe performance across a temperature range of -40 to 221 degrees F. Electrolytic copper construction provides good conductivity and the tin plated finish helps resist corrosion.
3M 7000133683 Includes
- (10) - 3M 7000133683 Highland Vinyl Insulated Ring Terminal RV18-8Q, AWG 22-18
3M 7000133683 Features
- Vinyl insulated butted seam barrel helps provide a secure fit
- Funnel designed polyvinyl chloride sleeve helps enable easy wire insertion
- Standard style ring tongue fits around the stud
- Electrolytic copper construction supports good conductivity
- Tin plated finish helps resist corrosion
- Temperature range -40 to 221 degrees F
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS compliant
3M 7000133683 Specifications
| Part Number | RV18-8Q |
| Terminal Type | Ring |
| Ring Type | Standard |
| Stud Size | 8 |
| Wire Gauge Range | 22 to 18 AWG |
| Insulation Material | Vinyl |
| Barrel Style | Butted |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Barrel Inside Diameter | 0.07 Inch |
| Overall Length | 0.93 in |
| Overall Width | 0.31 in |
| Maximum Insulation Outside Diameter | 0.145 in |
Toolup Part # :
859071
