At a Glance
Length
0.83 in
Sub-Brand
Scotchlok
Material
Copper
For Use On
Copper
Application
Electrical
Description
Description
3M 7000133427 Description

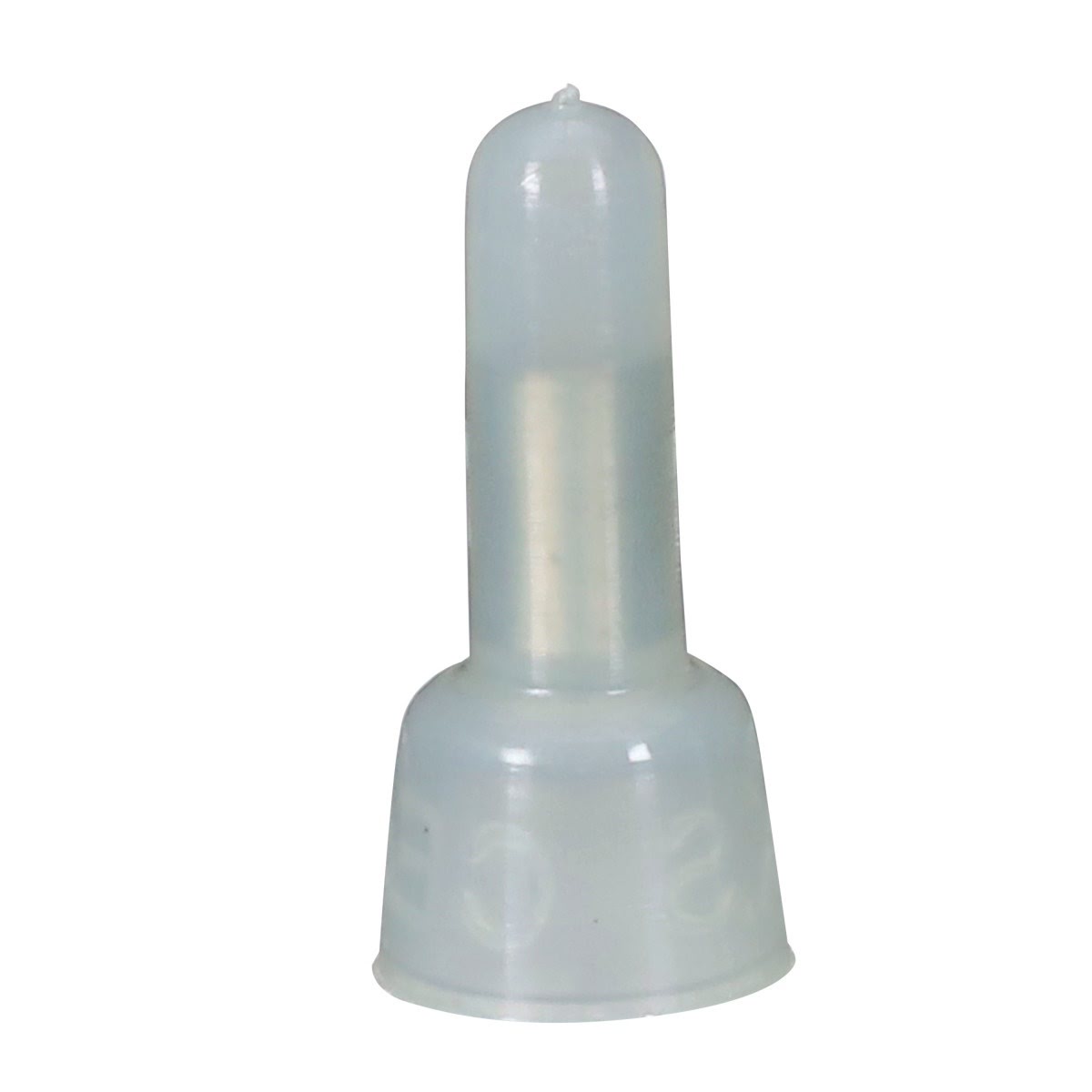

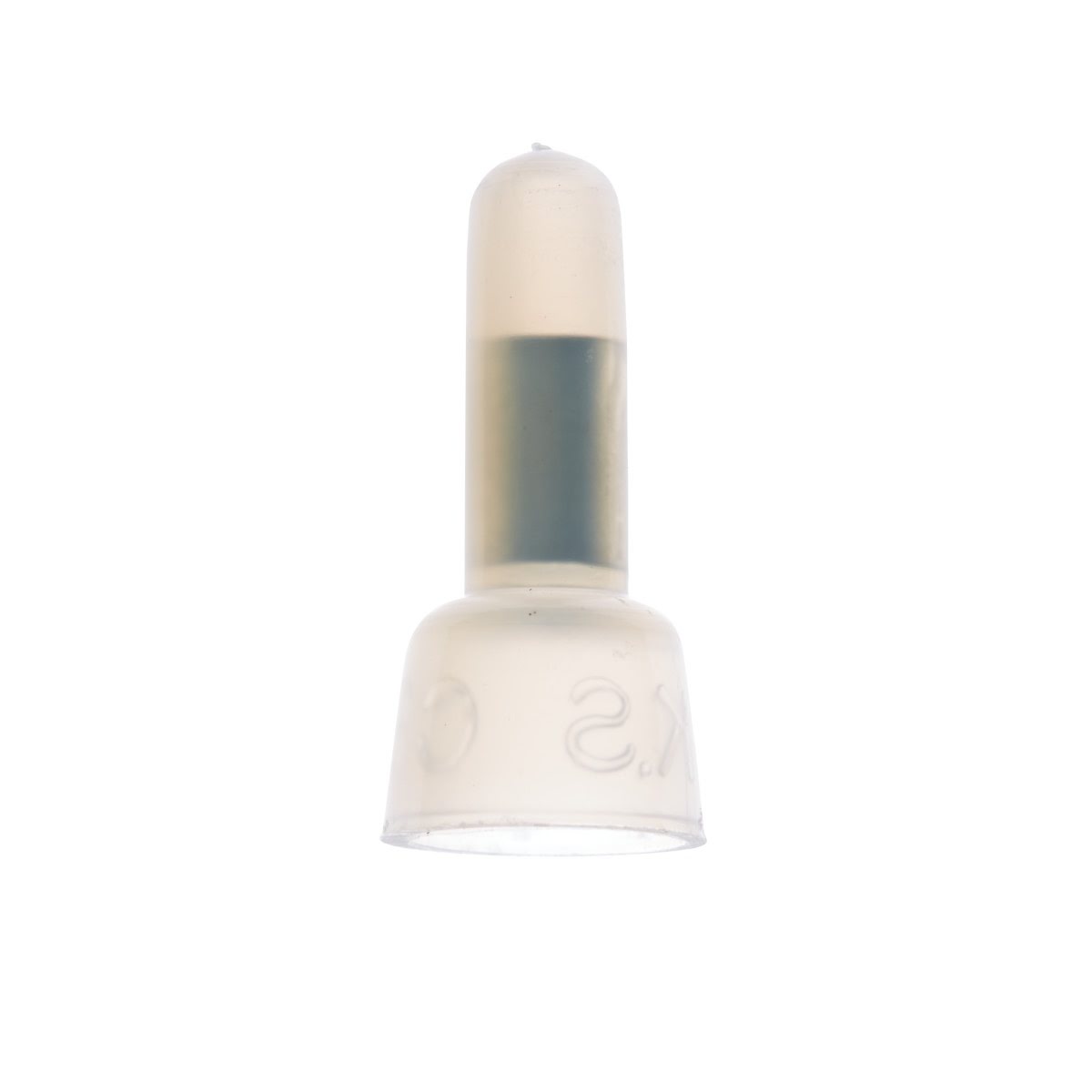

3M Scotchlok closed-end connectors provide fast reliable crimp splices for copper conductors. The nylon insulated butted seam design supports 22 to 16 AWG wire and is rated up to 600V for building wire and 1000V for signs fixtures or luminaires.
3M 7000133427 Includes

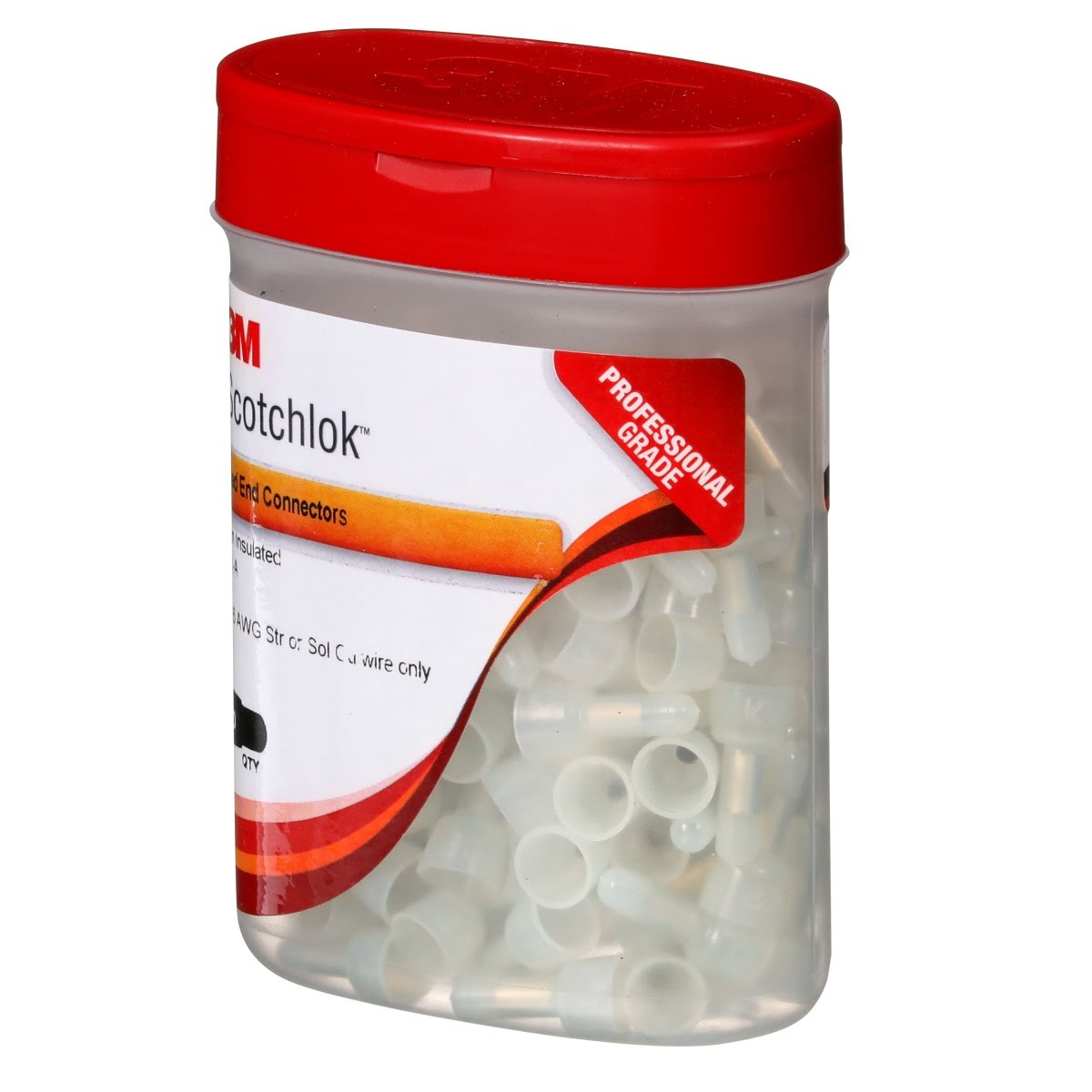

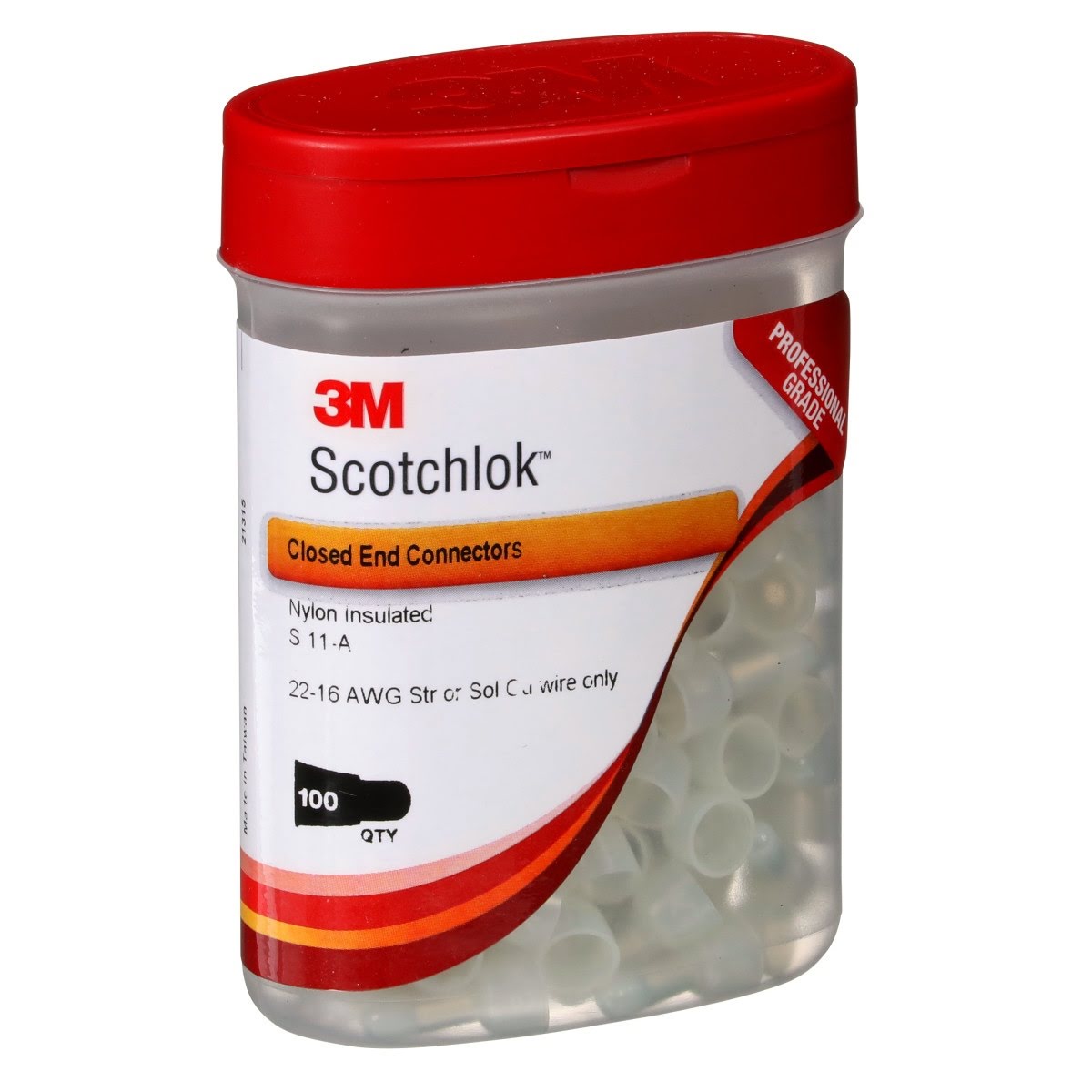

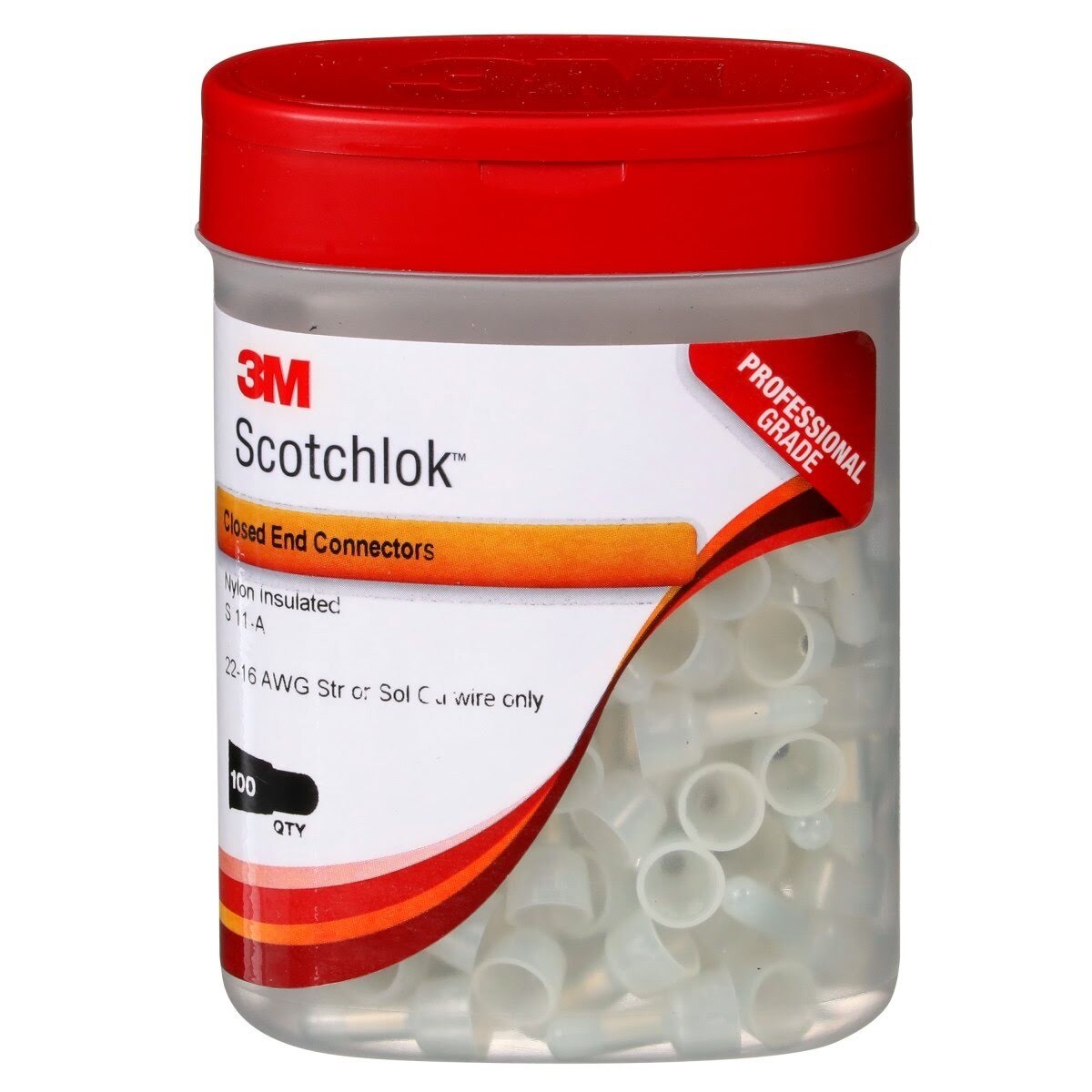

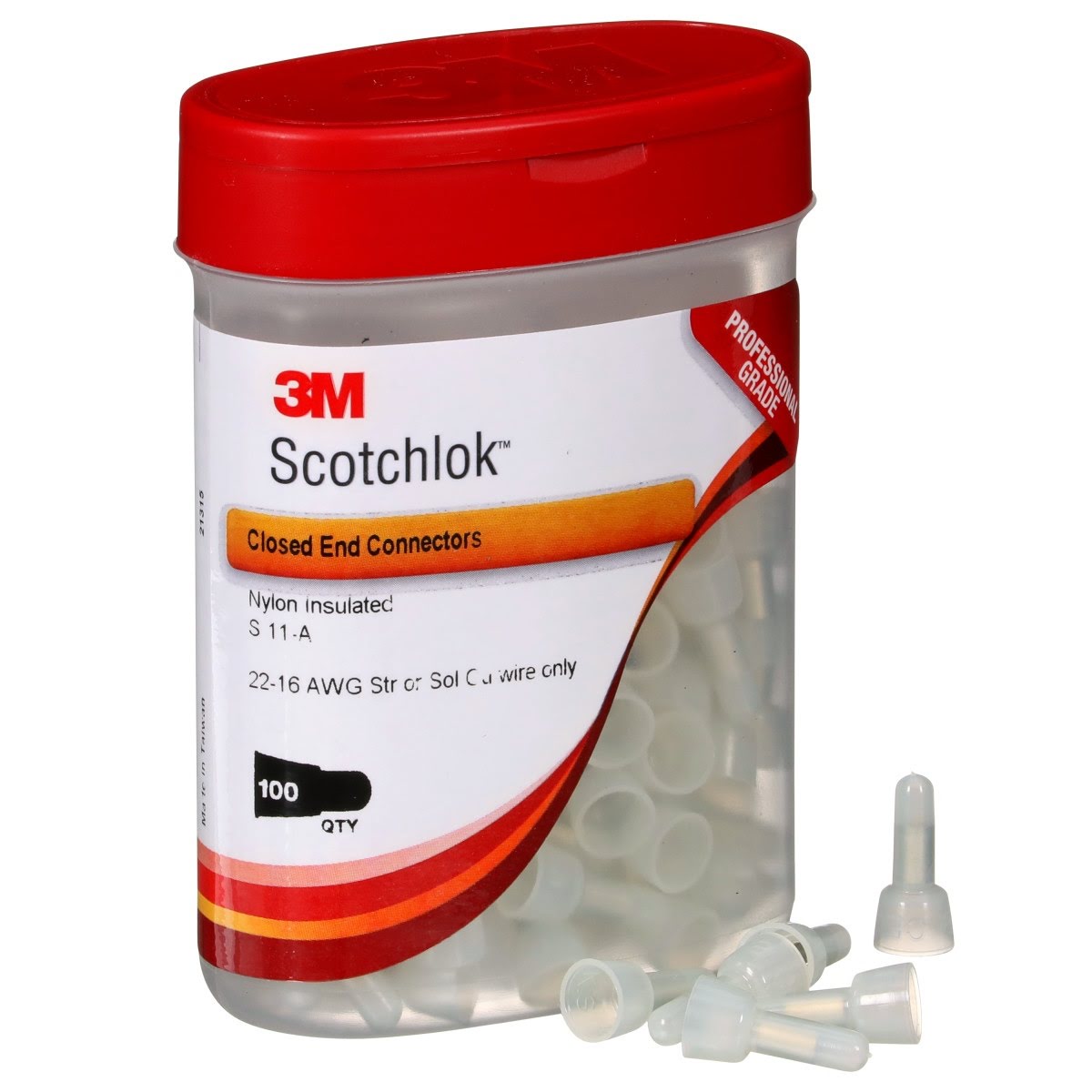

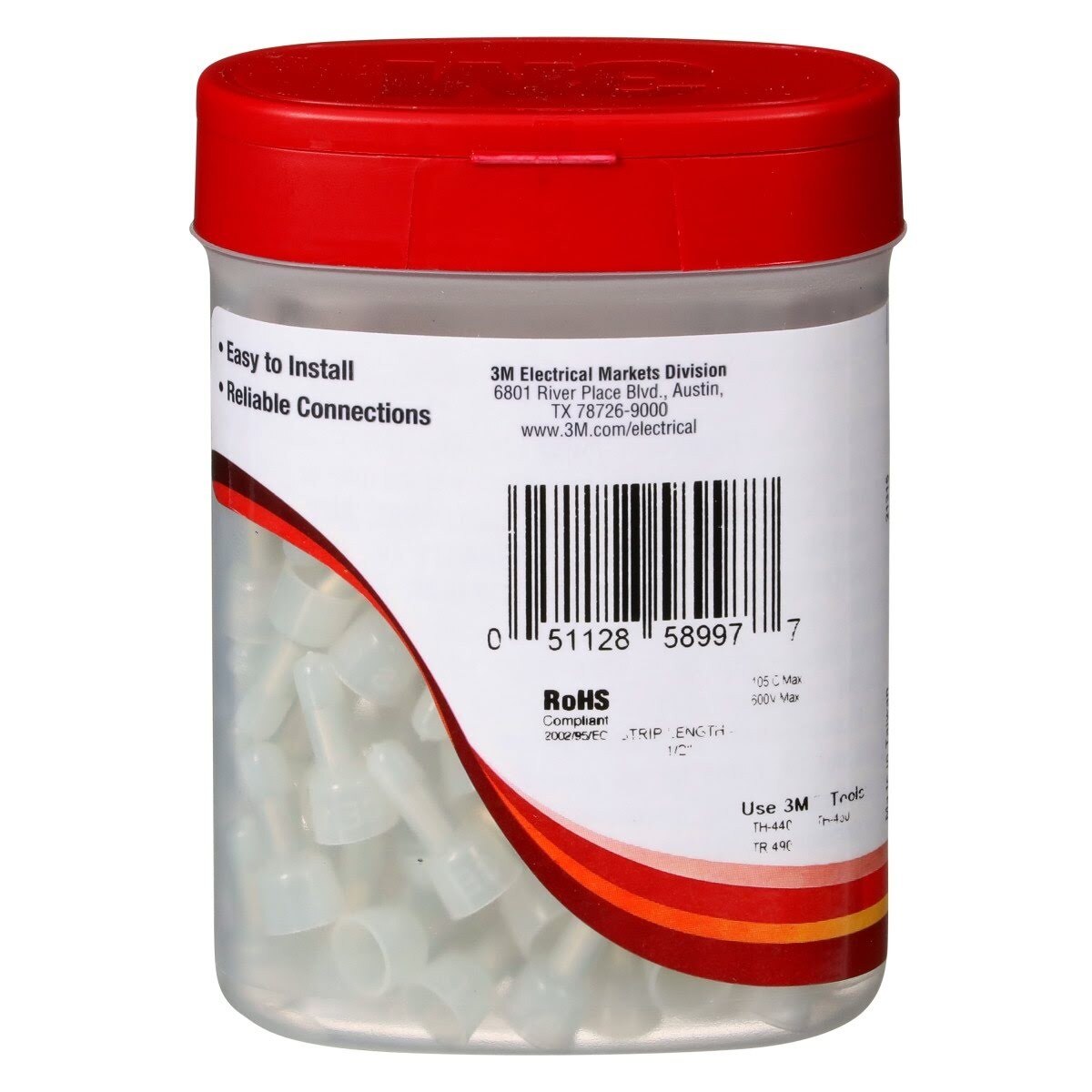

- (100) Nylon Insulated Closed End Connectors
3M 7000133427 Features
- Nylon insulated butted seam closed end connector for copper conductors

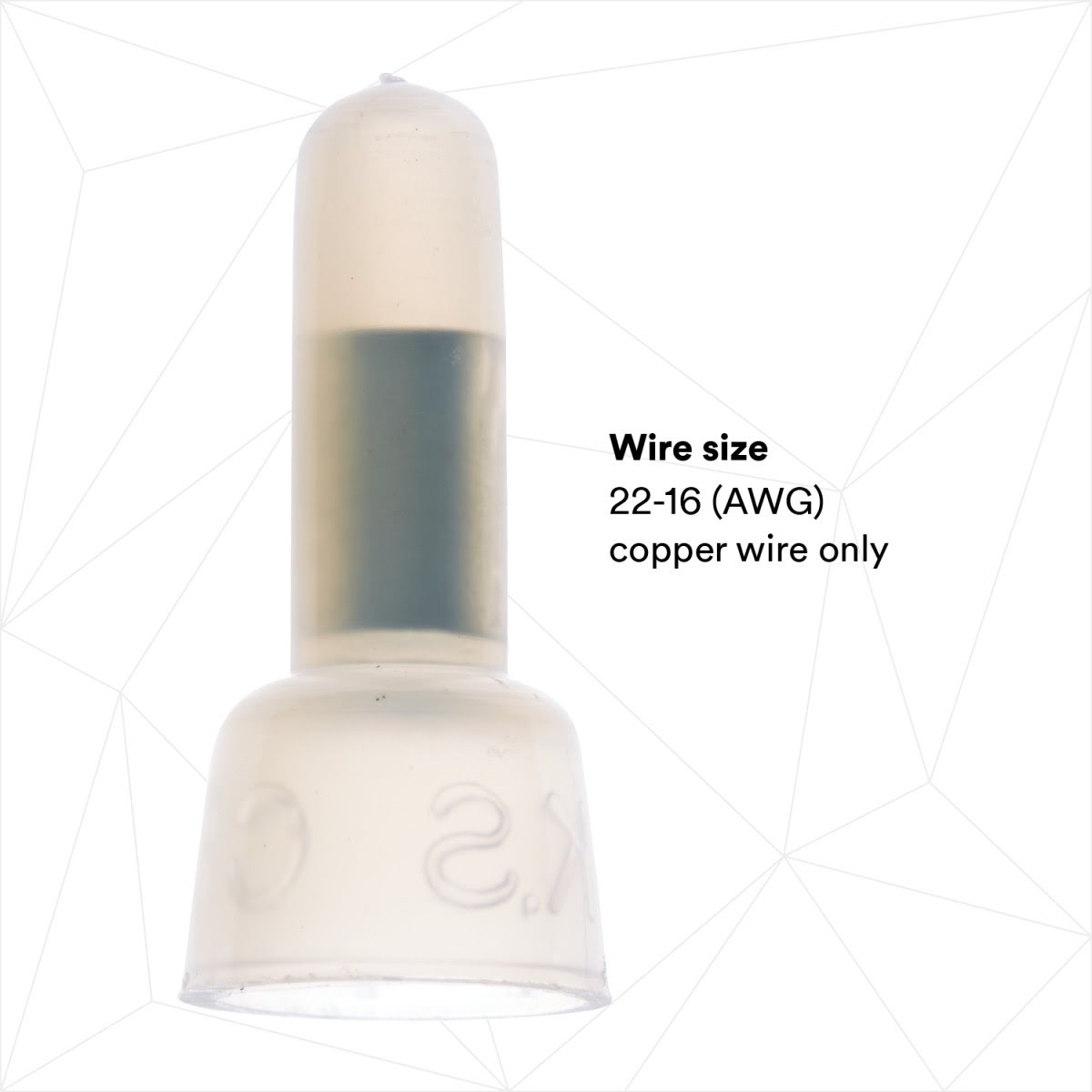

- Wire range 22 to 16 AWG
- Smooth flared entry for quick wire insertion
- Built in wire stop for correct positioning

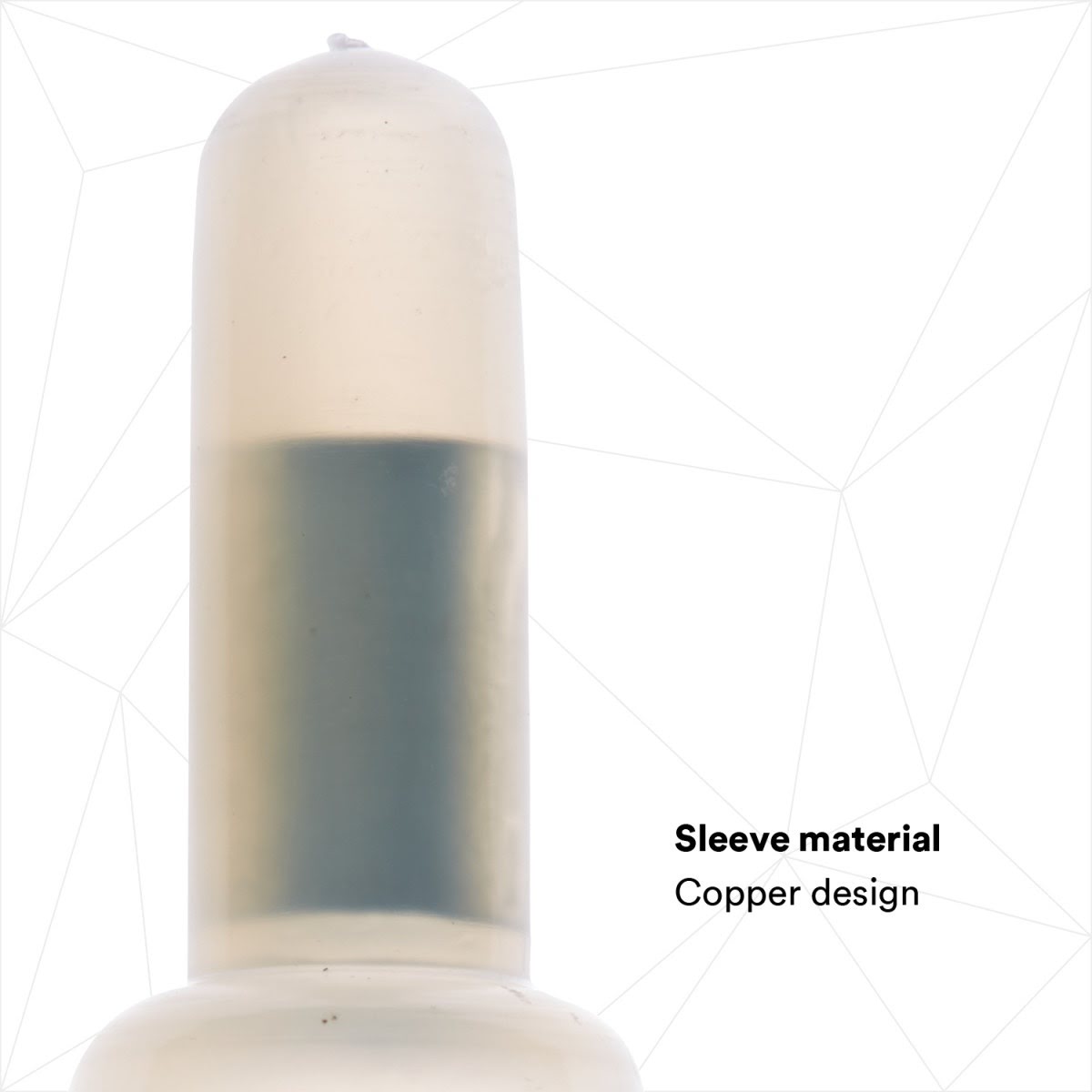

- Copper insert for good conductivity
- Withstands temperatures from minus 40 Degree F to 221 Degree F
- Rated 600V for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011 65 EU Compliant
3M 7000133427 Specifications
| Brand | 3M |
| Series | Scotchlok |
| Part Number | S-11-A |
| Connector Type | Closed End Connector |

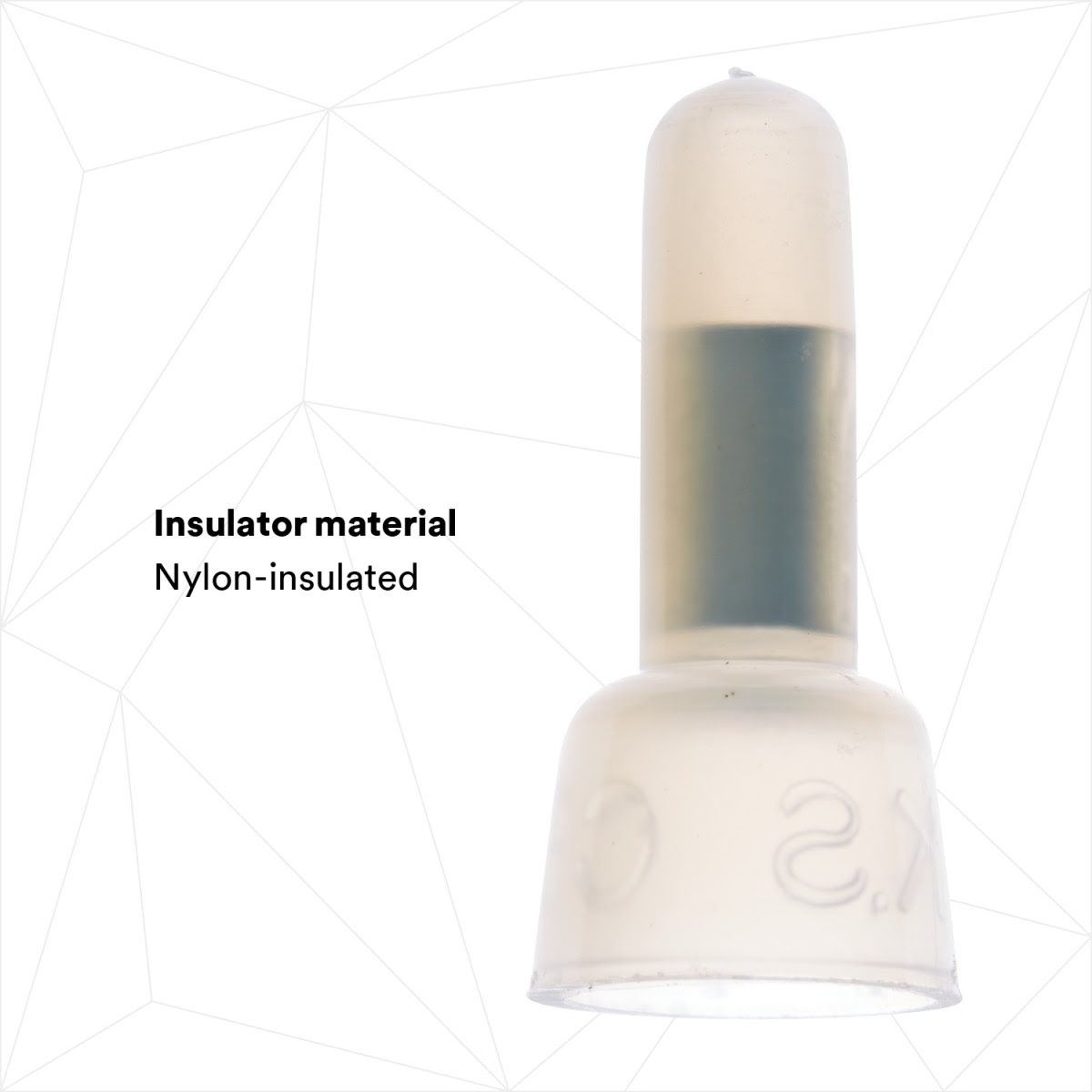

| Insulation Material | Nylon |
| Body Material | Copper |
| Wire Size Range | 22-16 AWG |
| Product Color | Translucent White |
| Overall Length | 0.83 in |
| Connection Width | 0.25 in |
| Maximum Operating Temperature | 105 Degree Celsius |
| Voltage Rating | 600V building wire 1000V signs fixtures luminaires |
| Certifications | UL Listed CSA Certified RoHS 2011 65 EU Compliant |
| Quantity | 100 per pack |
Toolup Part # :
850752
