At a Glance
Length
22 yd
Thickness
7 mil
Adhesive Type
Rubber
Max Temperature
302�F
Min Temperature
32�F
Tape Type
Electrical
Material
Fiberglass Fabric
Description
Description
3M 7000005814 Description

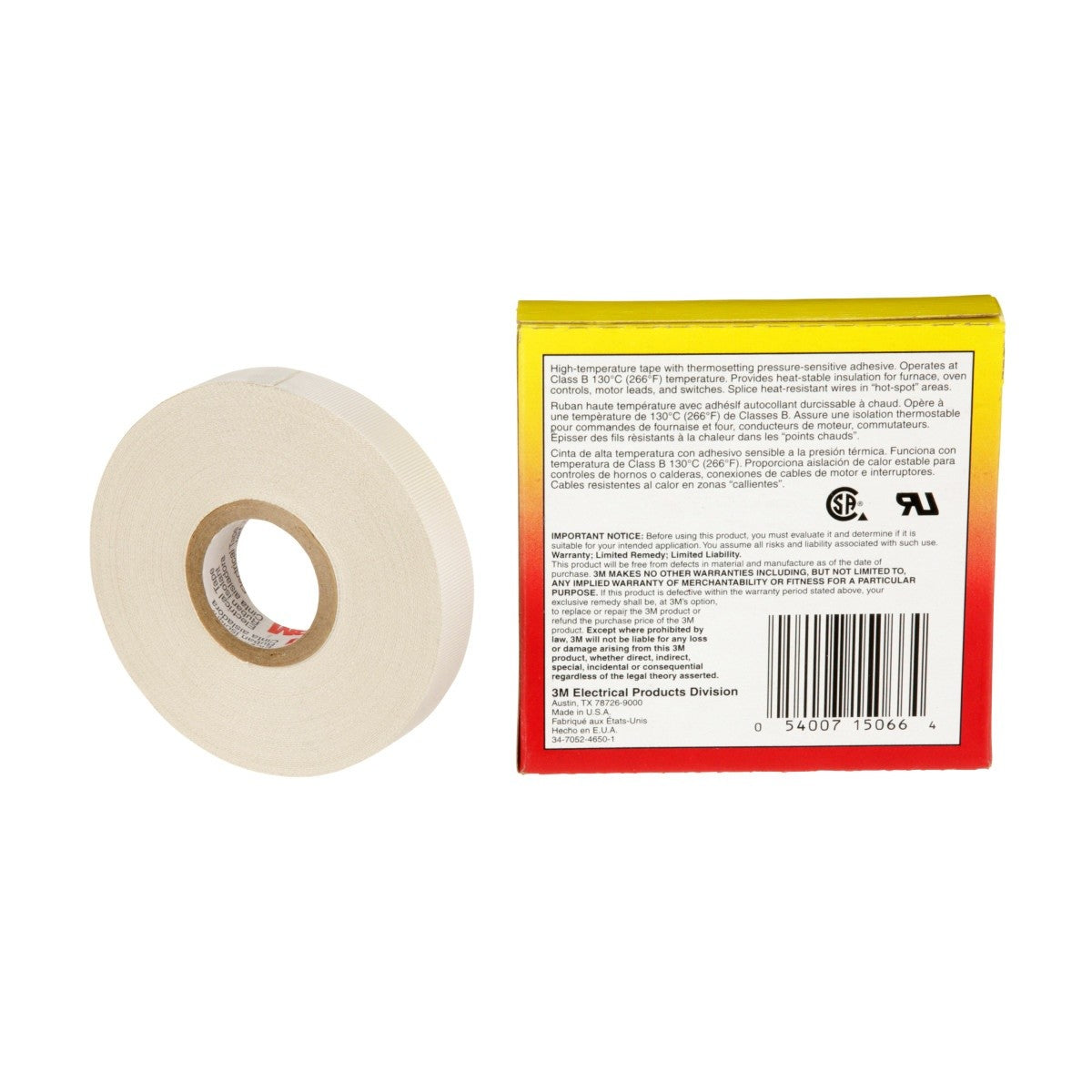

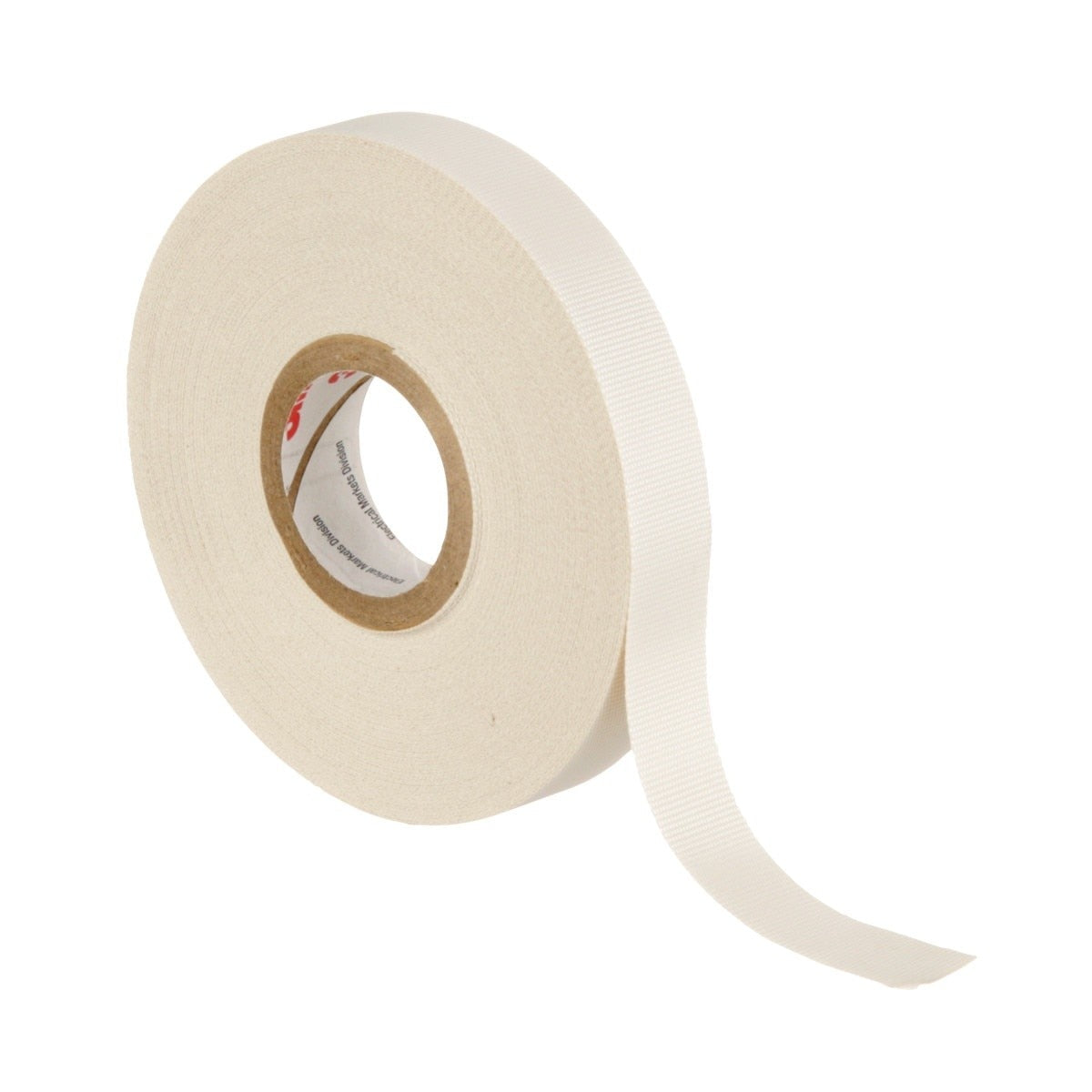

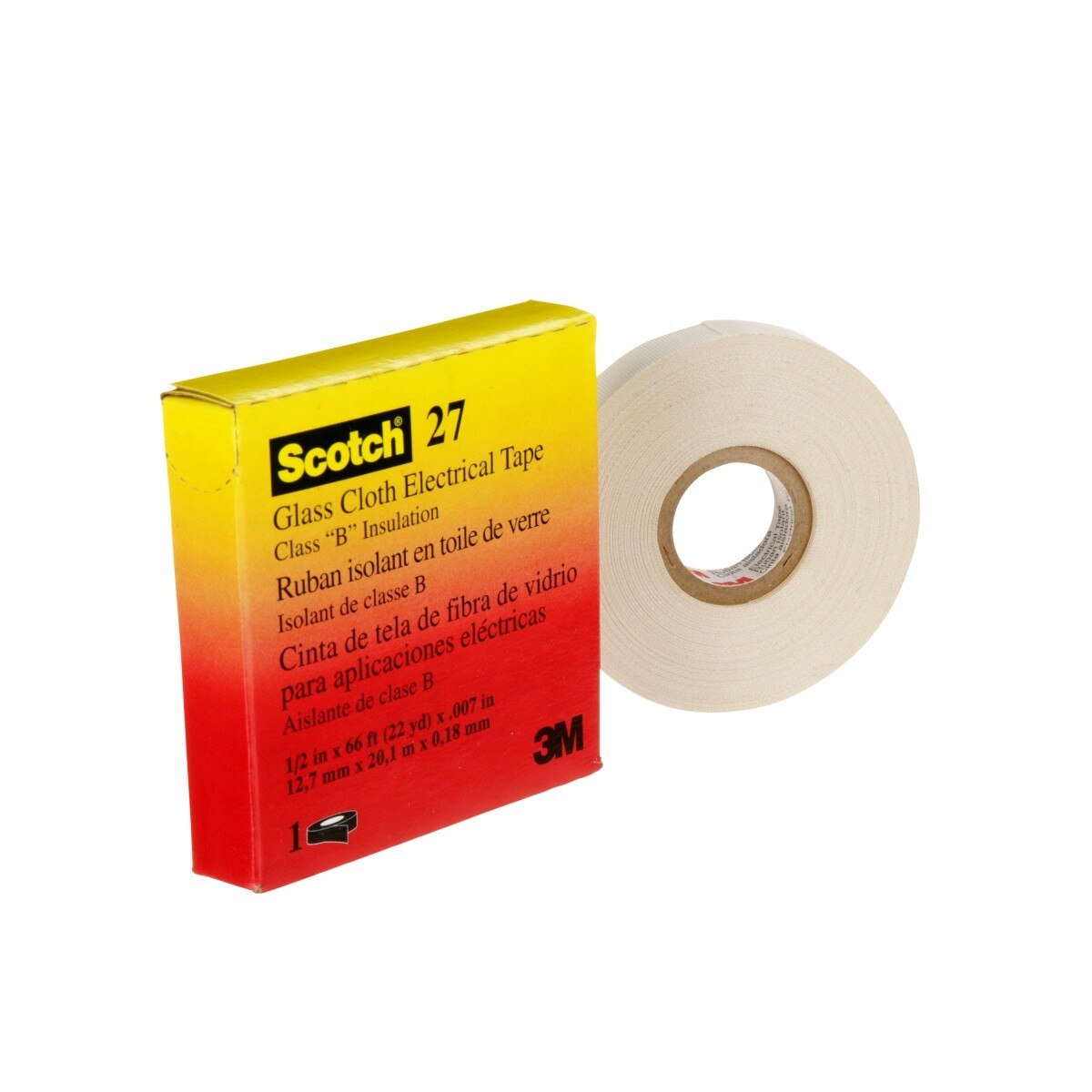

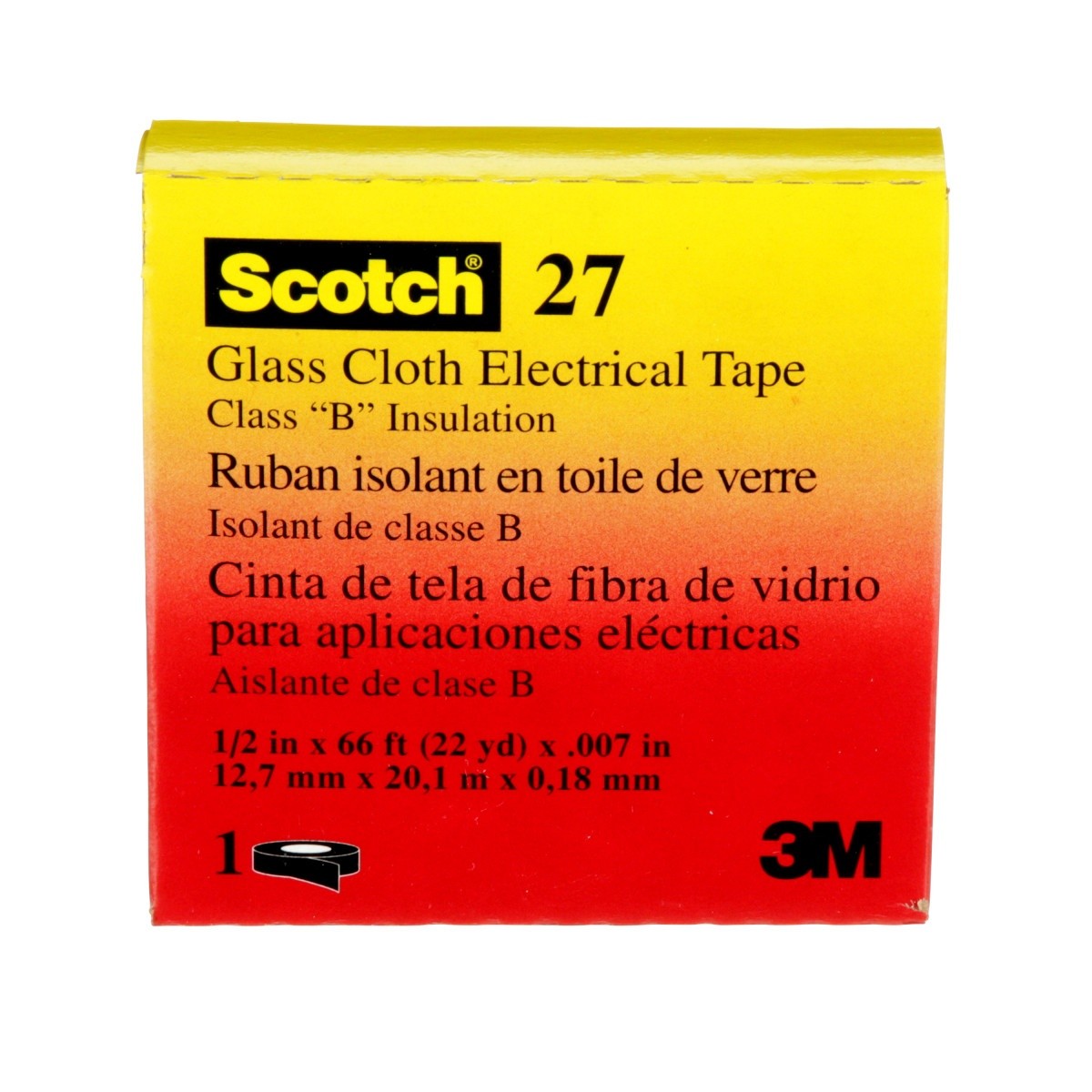

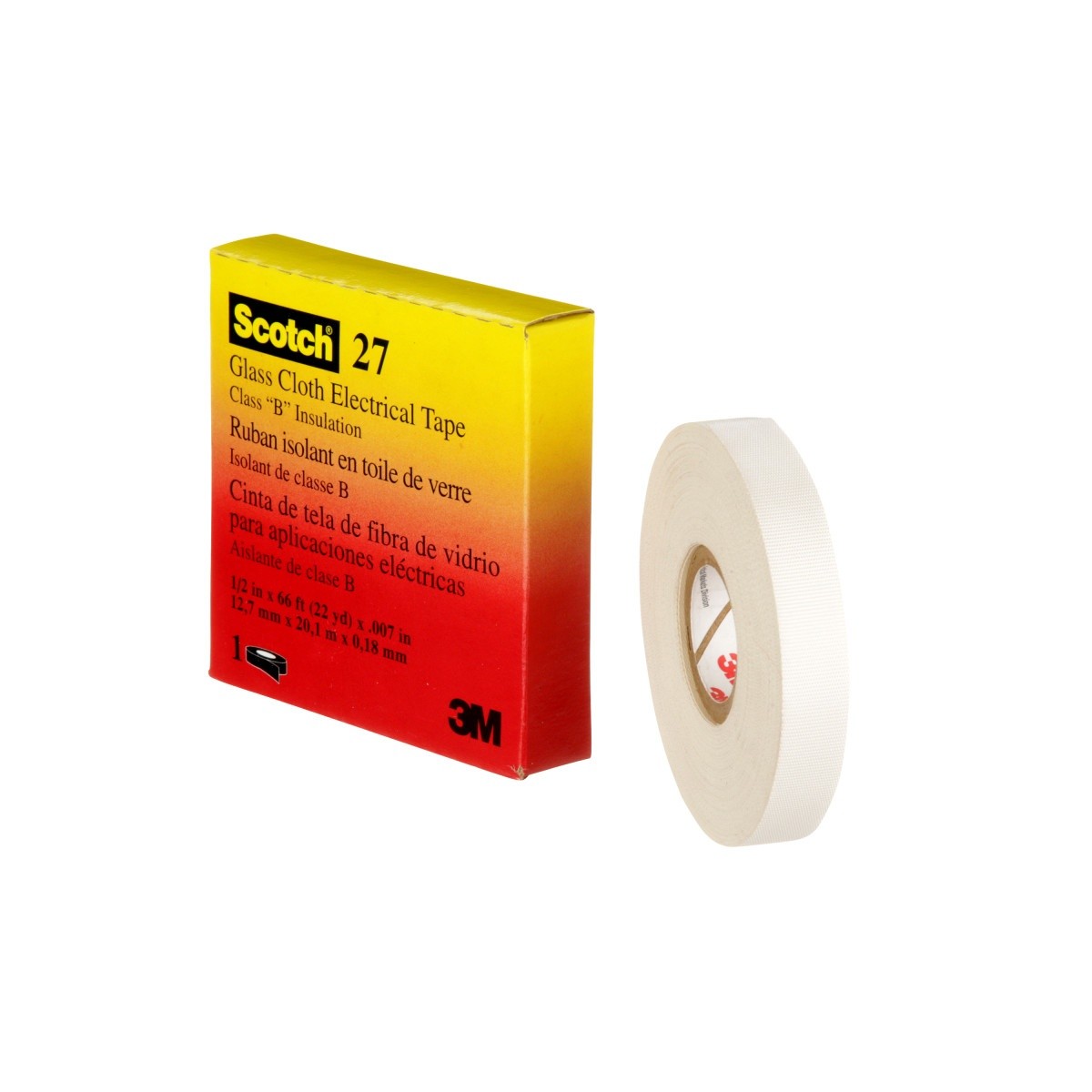

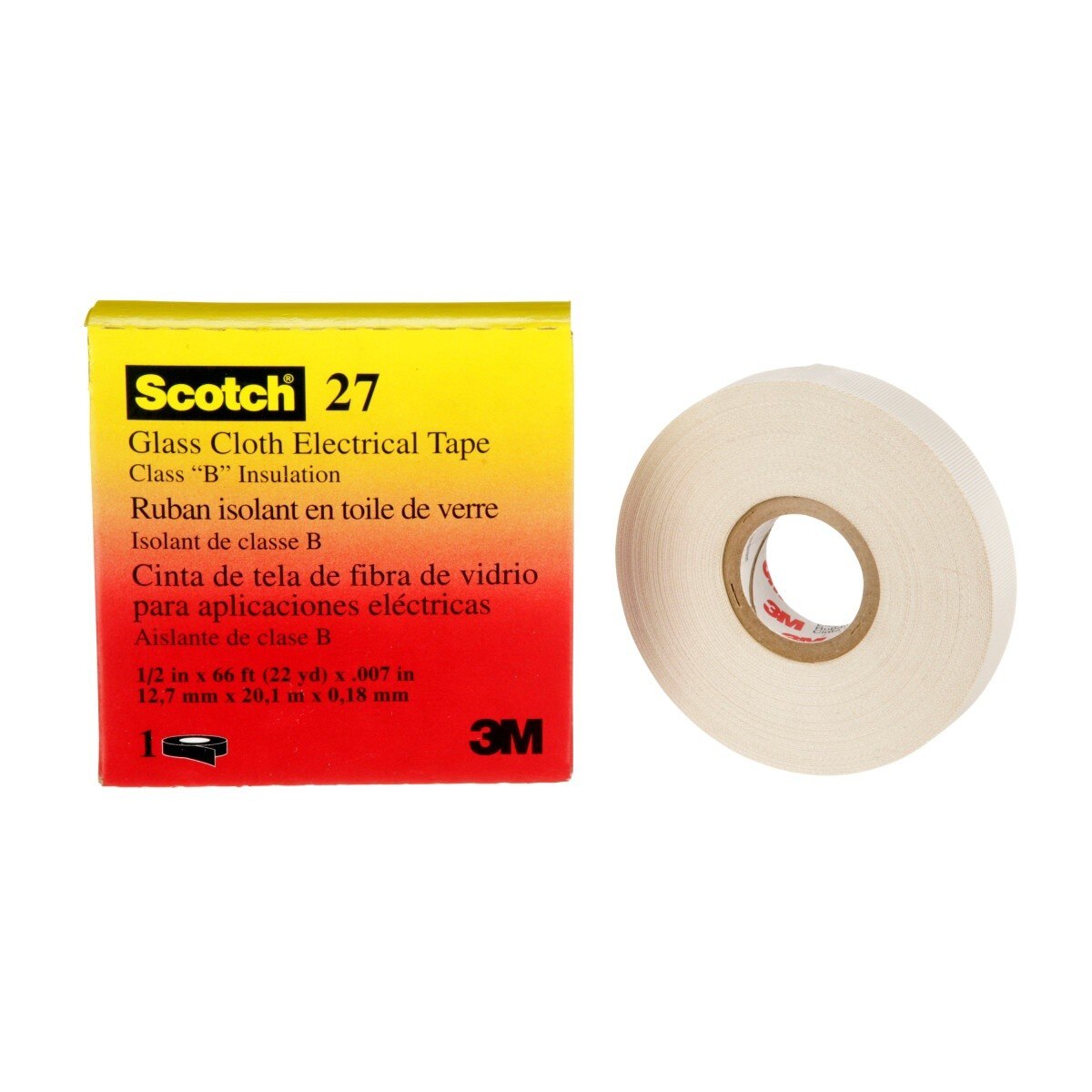

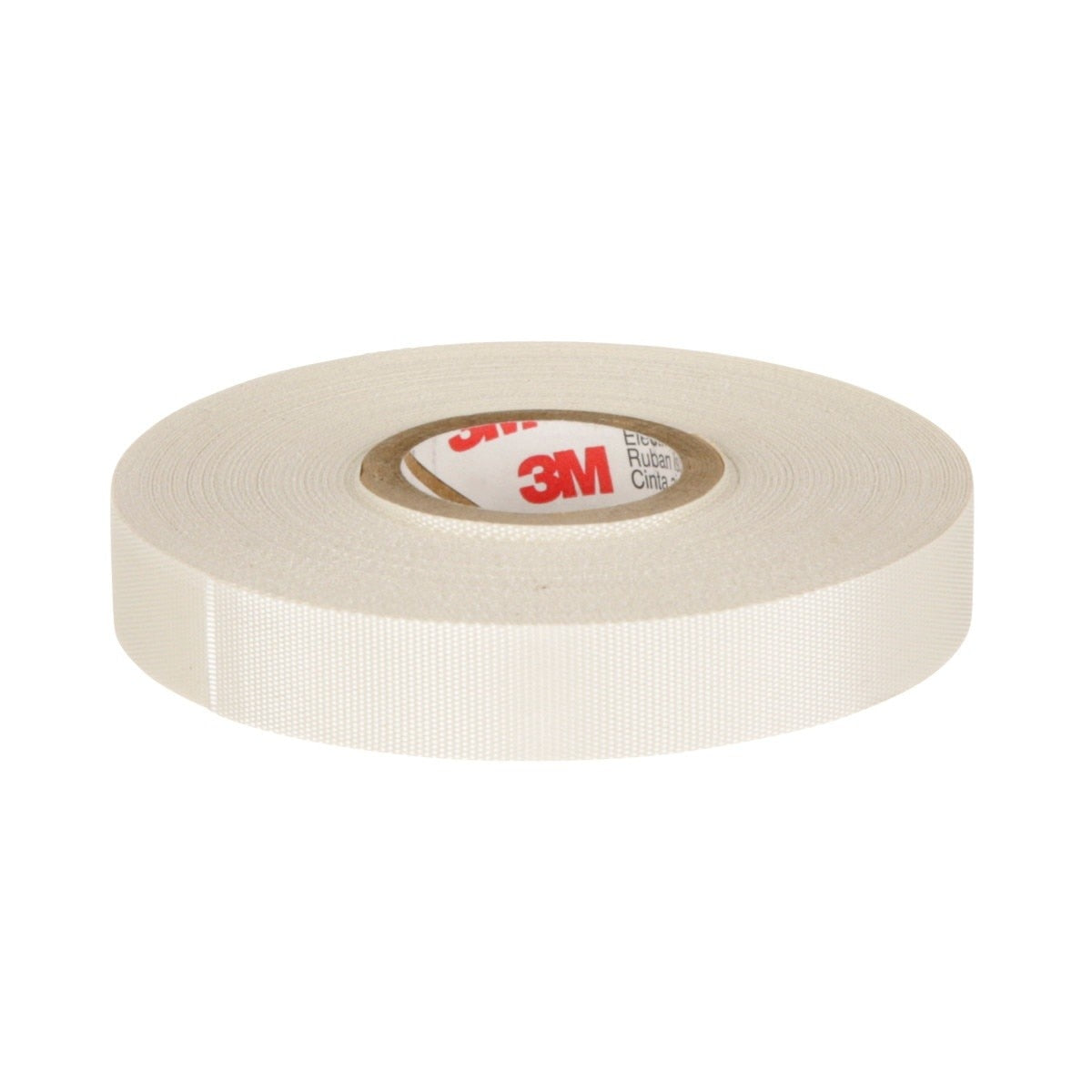

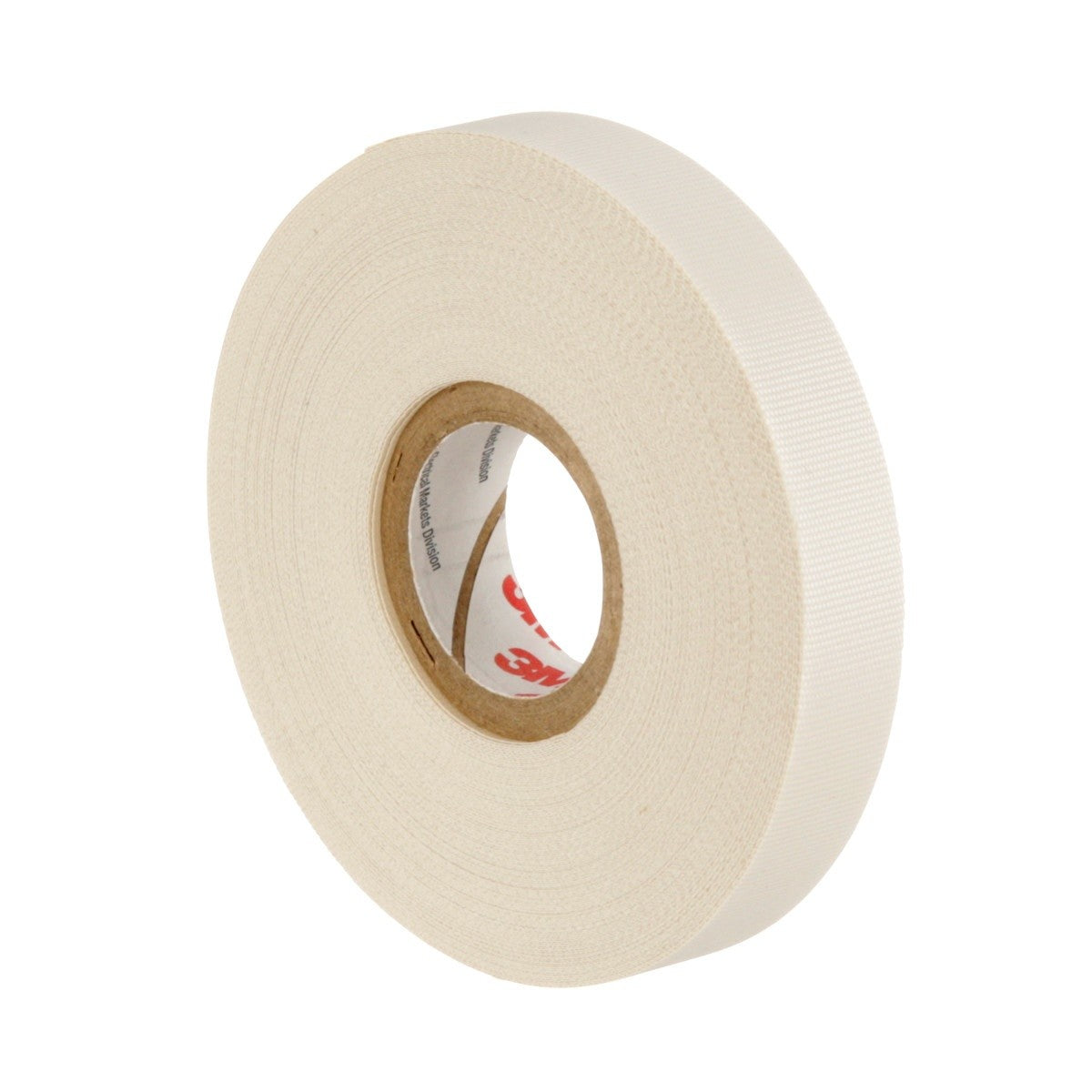

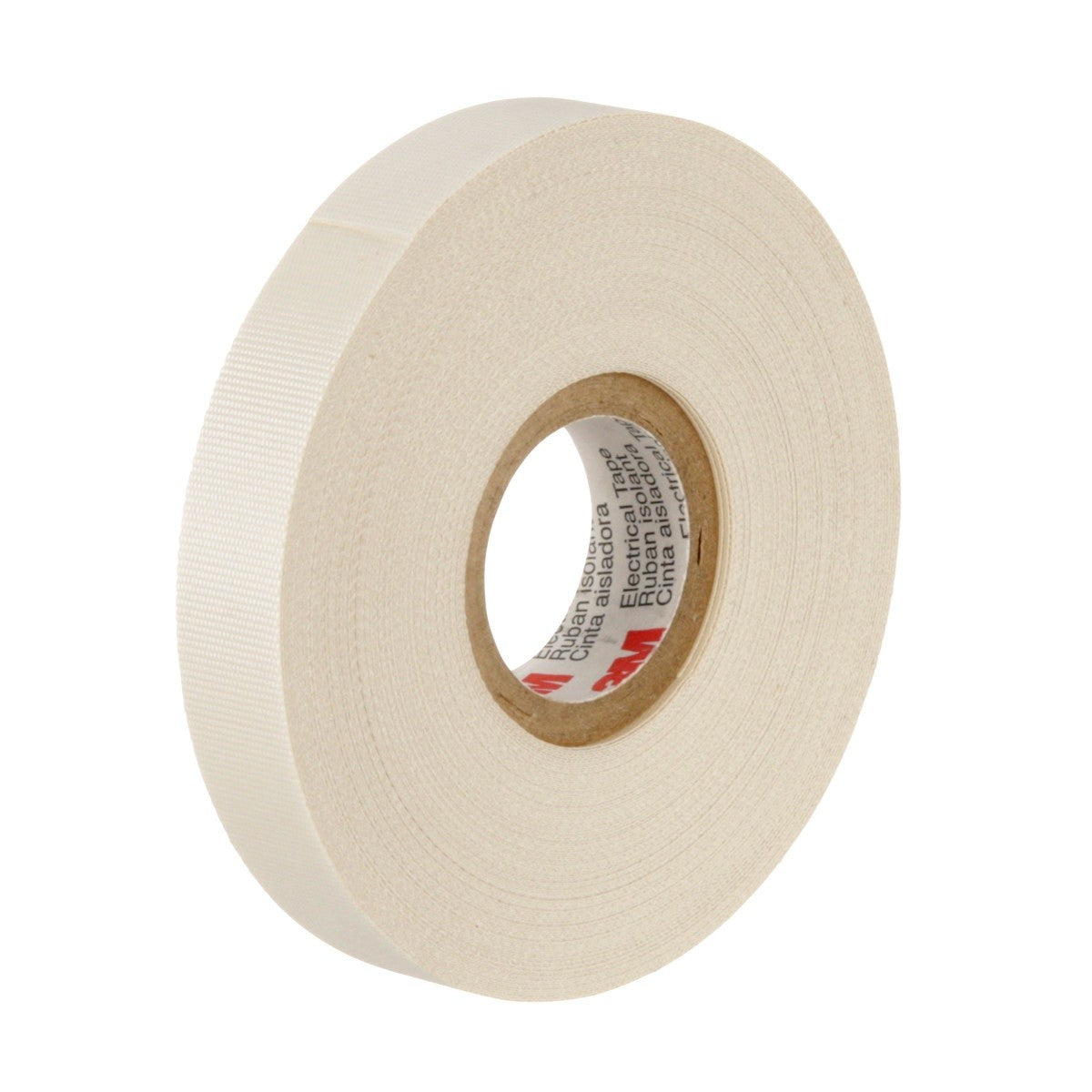

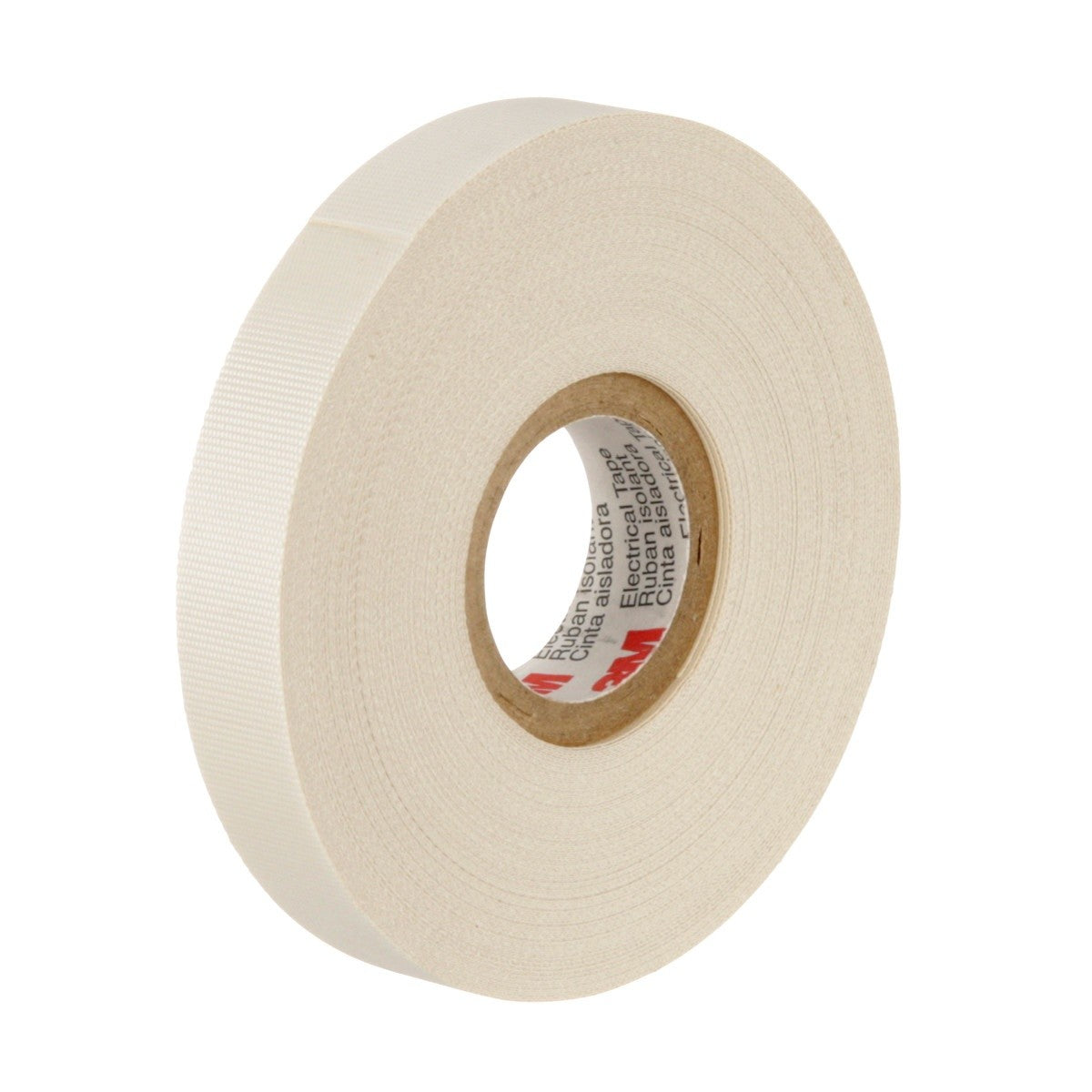

3M Scotch Glass Cloth Electrical Tape 27 is a 7 mil woven glass cloth insulating tape with pressure-sensitive rubber thermosetting adhesive, designed for dry electrical applications requiring high mechanical strength and high temperature resistance while helping provide corrosion protection.
3M 7000005814 Includes
- (10) - 3M 7000005814 Glass Cloth Electrical Tape 27, 1/2 in x 66 ft, 1 Roll, Non-Corrosive Adhesive, Pressure Sensitive, High Temperature, Corrosion Protection, 7-mil Woven (27-1/2"X66')
3M 7000005814 Features
- Woven glass cloth backing with pressure-sensitive rubber thermosetting adhesive
- Designed for 600 volt dry applications requiring high mechanical strength and high temperature resistance
- Helps provide corrosion protection
- Edge tear resistant, conformable, and abrasion resistant
- For use as coil cover, anchor, banding and core, layer and crossover insulation
- Used for heat-stable insulation for furnace and oven controls, motor leads, and switches
- UL Recognized
- Printable
3M 7000005814 Specifications
| Product Type | Glass Cloth Electrical Tape |
| Series | 27 |
| Color | White |
| Backing Material | Glass Cloth |
| Adhesive Type | Rubber |
| Application | Insulation |
| Overall Width | 0.5 in |
| Overall Length | 66 ft |
| Total Thickness (without liner) | 7 mil |
| Maximum Operating Temperature | 150 Degree Celsius |
| Dielectric Strength | 2725 V |
| Electrolytic Corrosion Factor | 0.9 |
| Shelf Life | 5 Year |
| Specifications Met | CSA Certified |
| Tape Grade | Professional |
Toolup Part # :
860299
