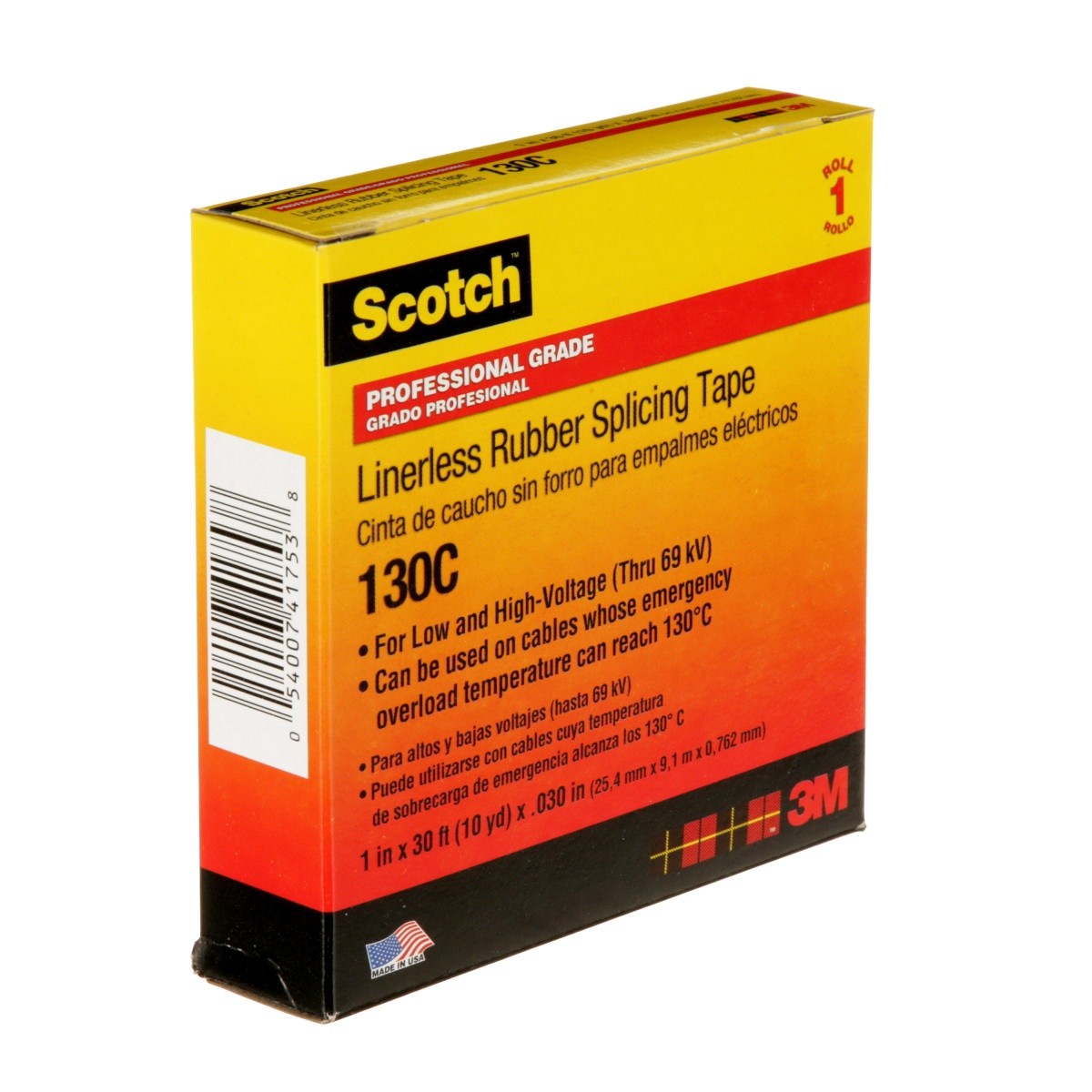

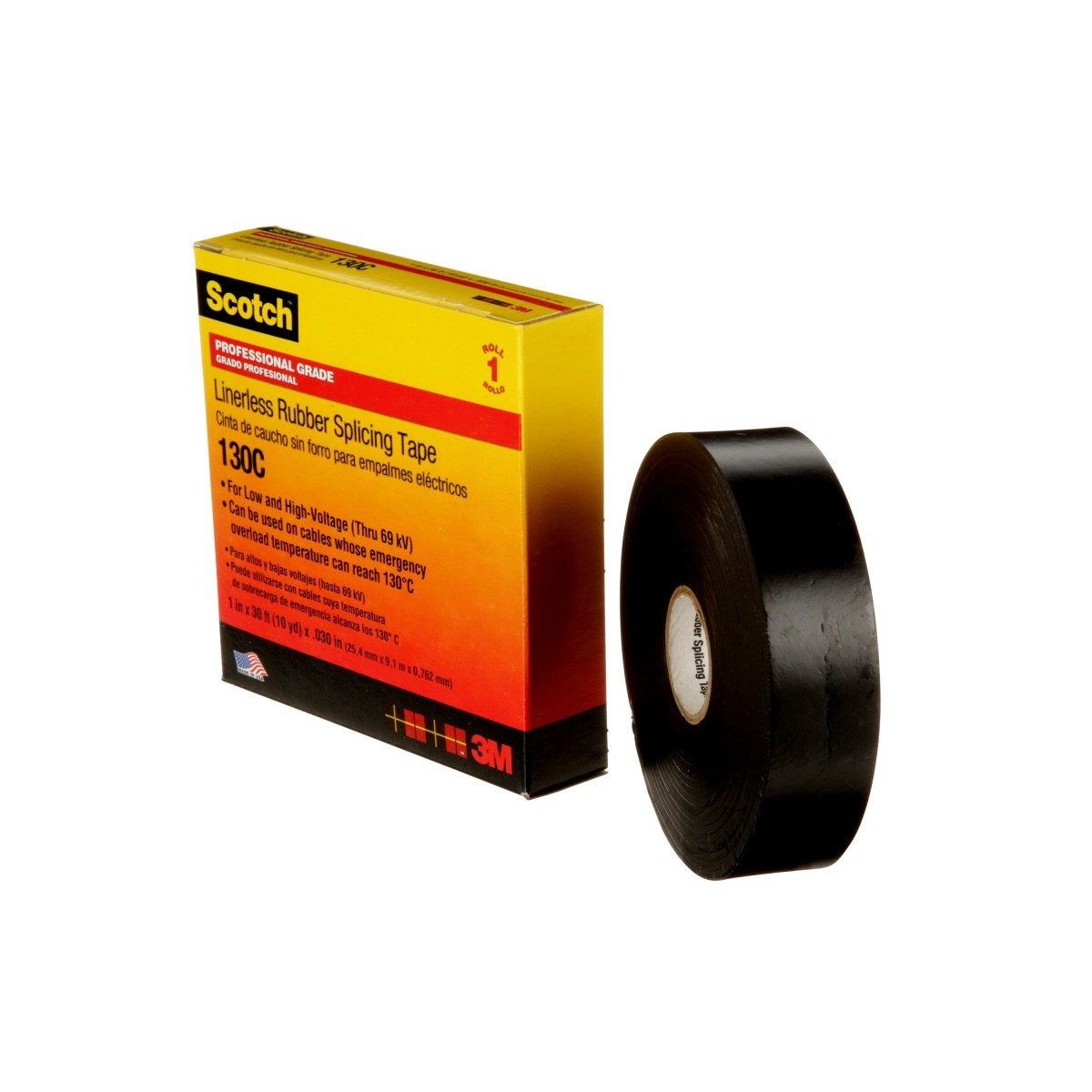

3M 7000006090 Description

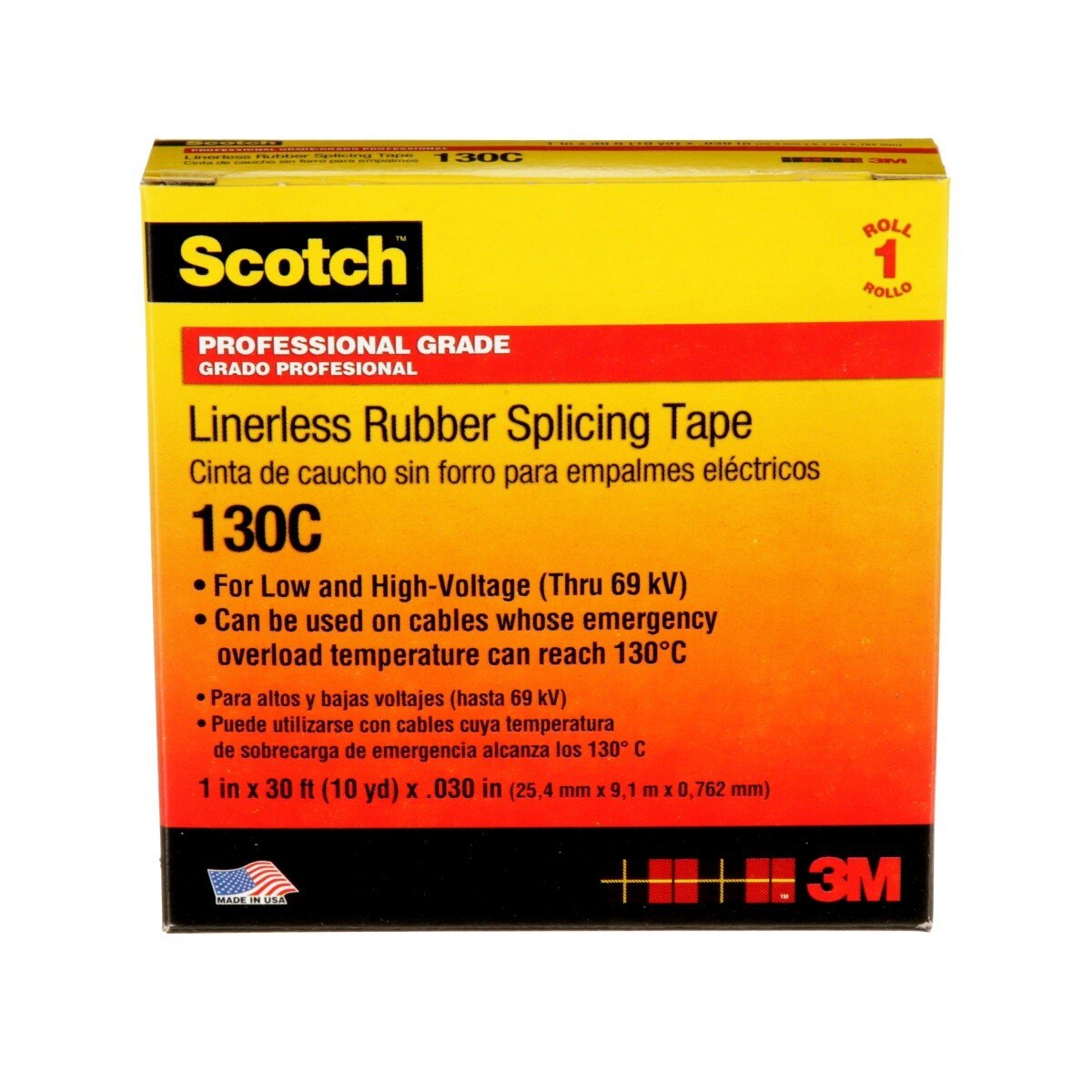

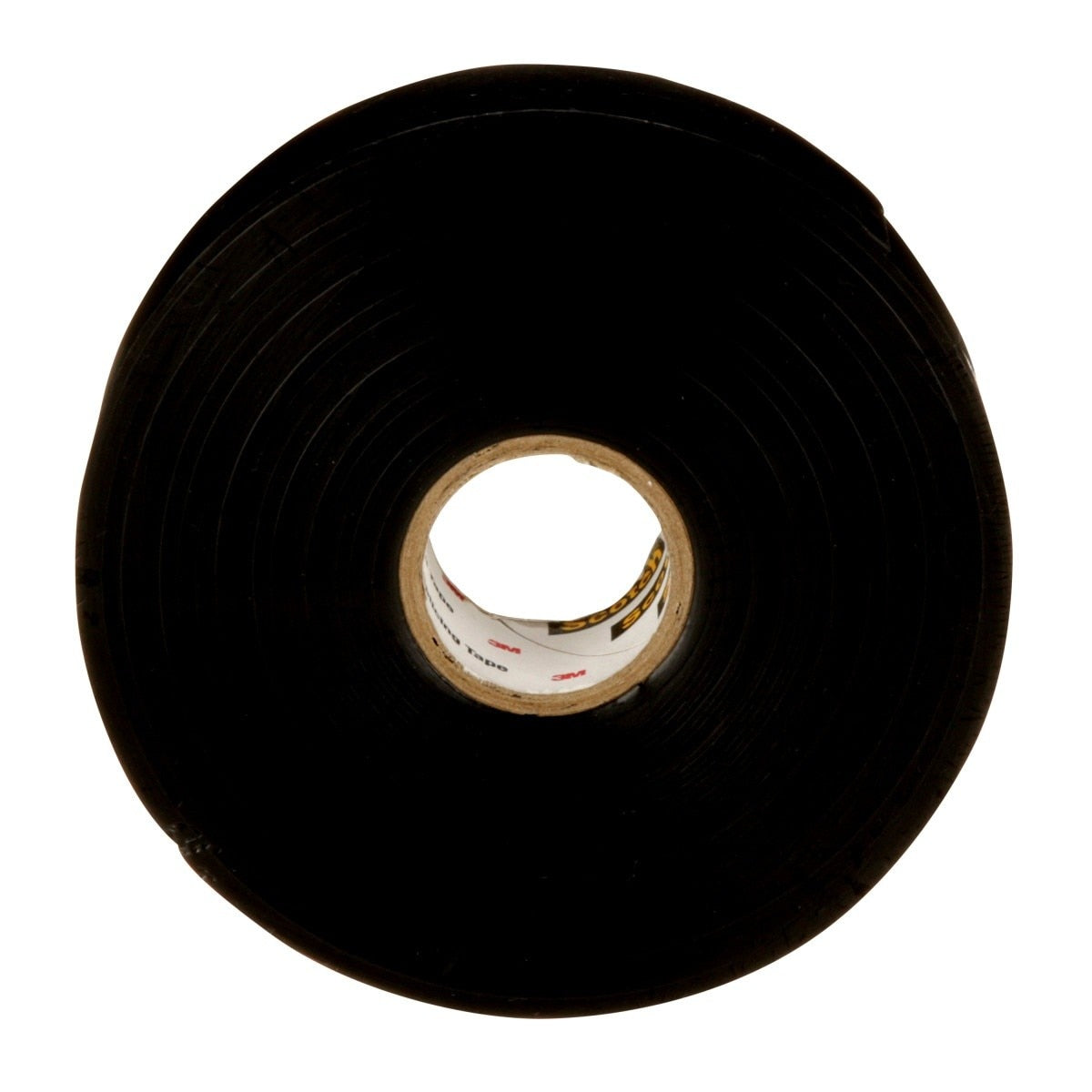

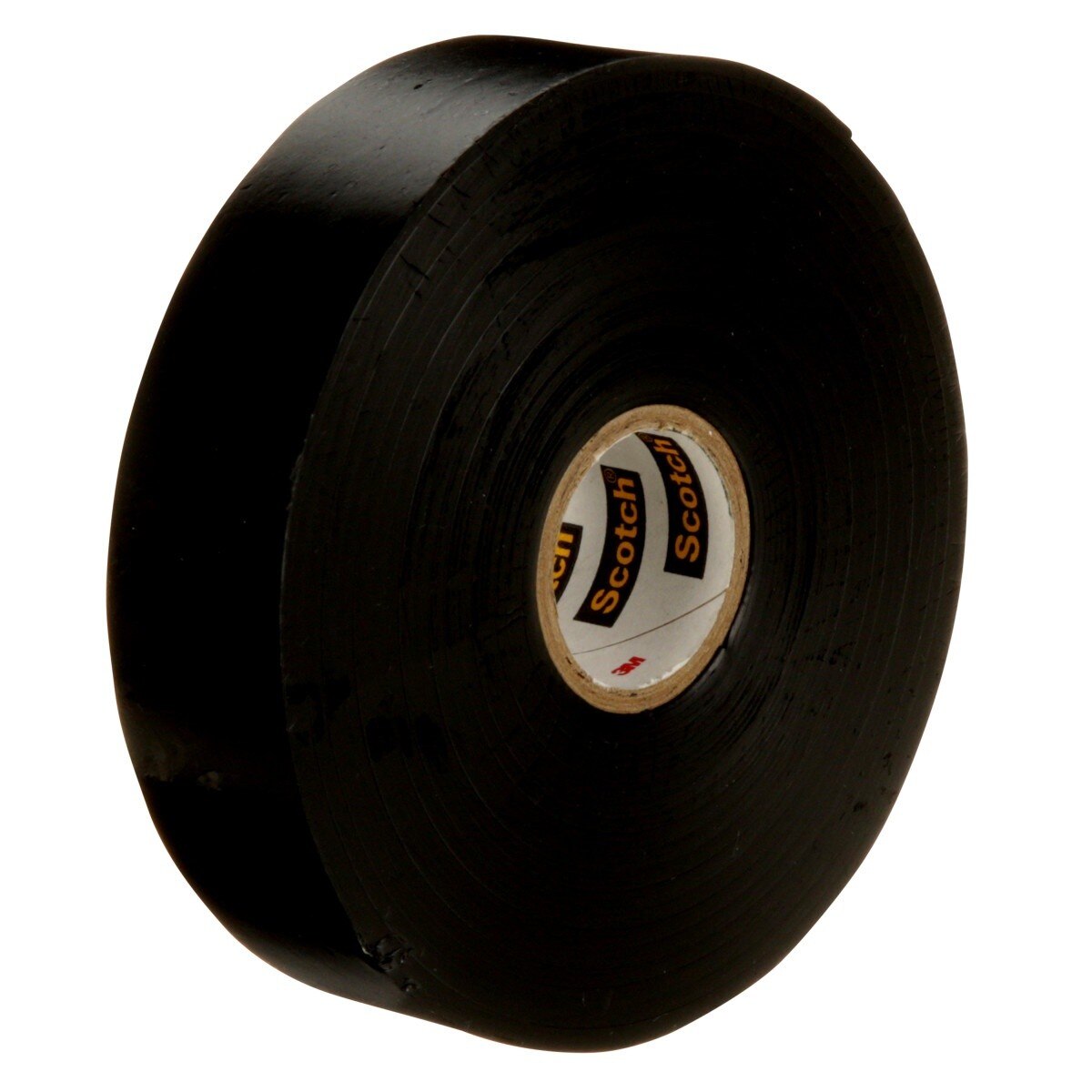

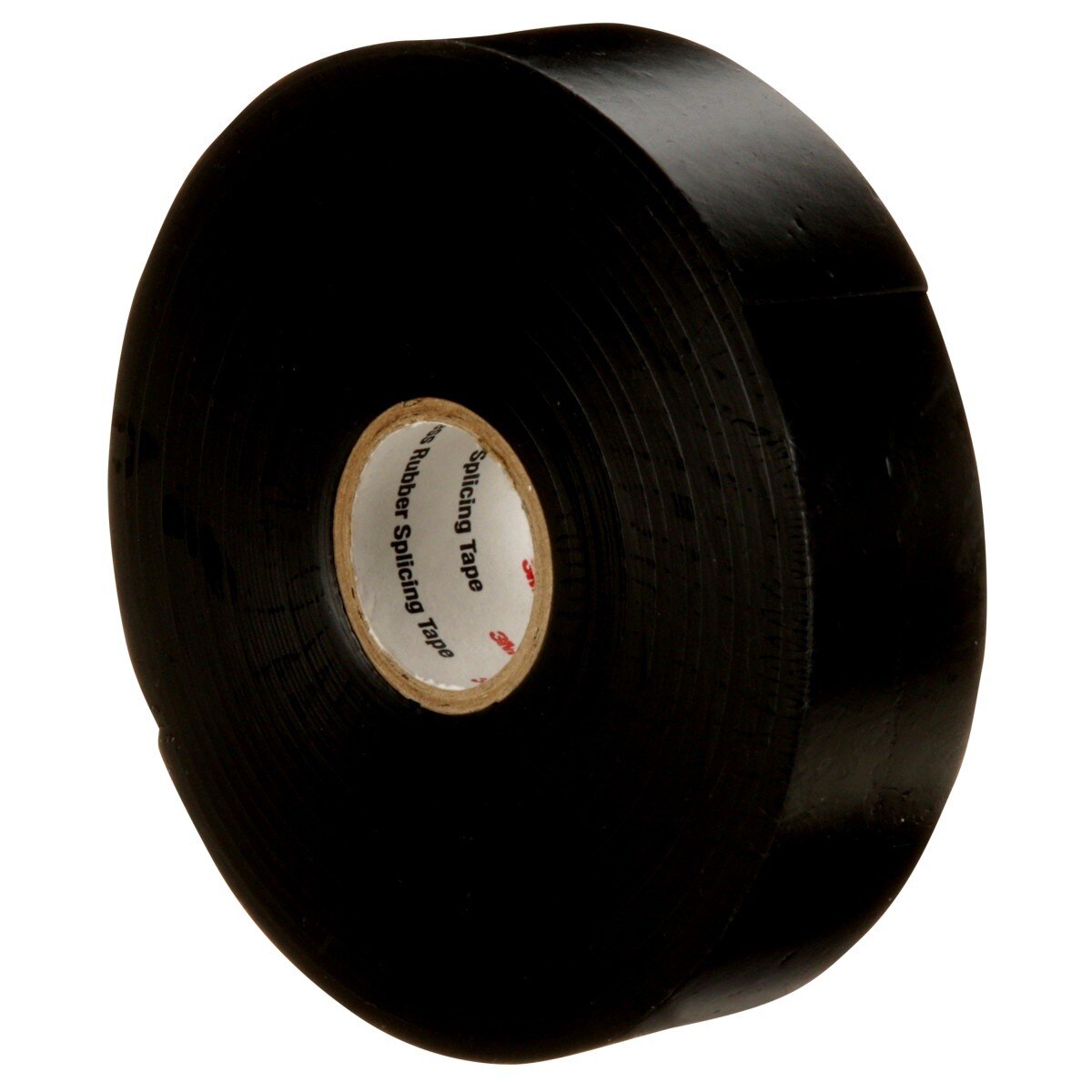

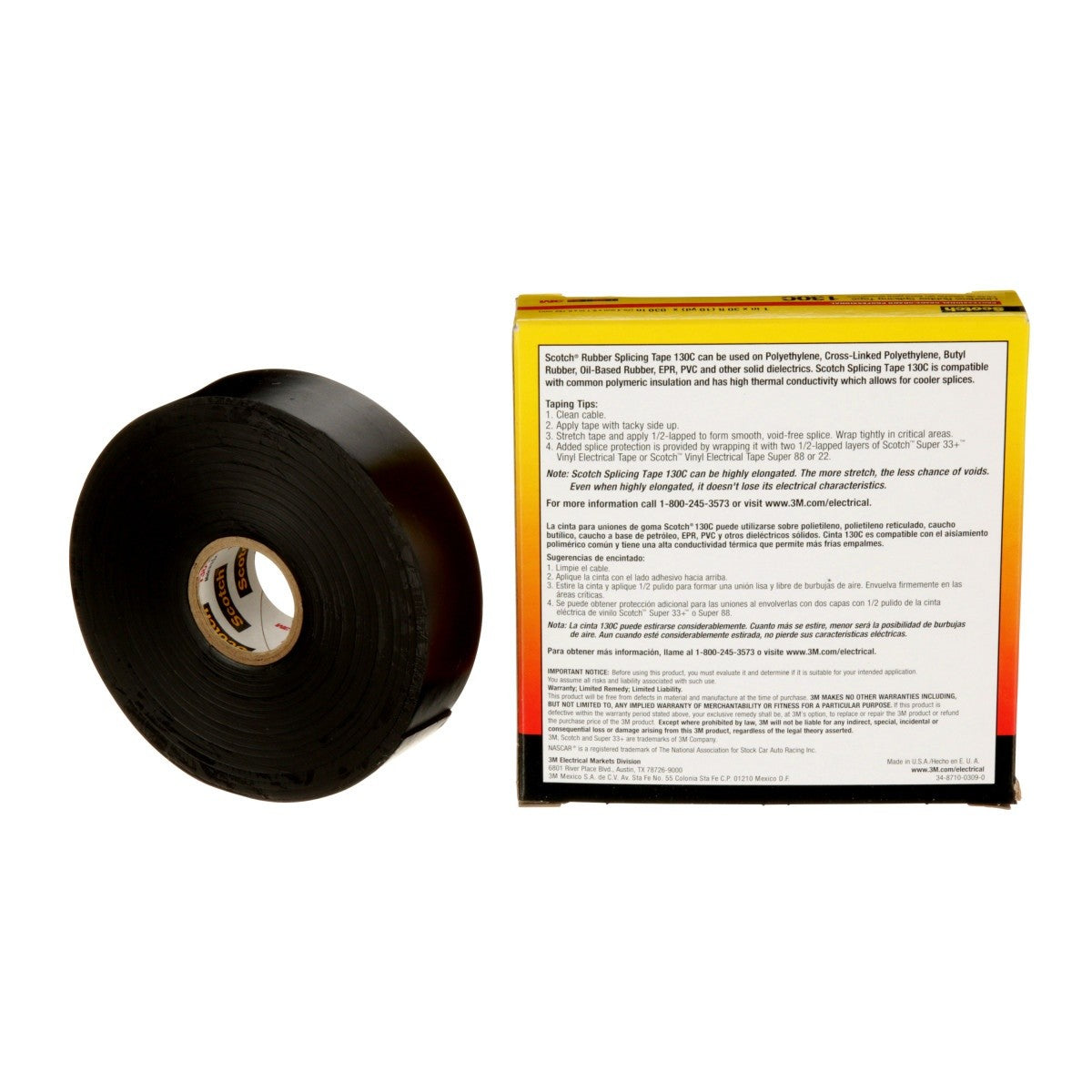

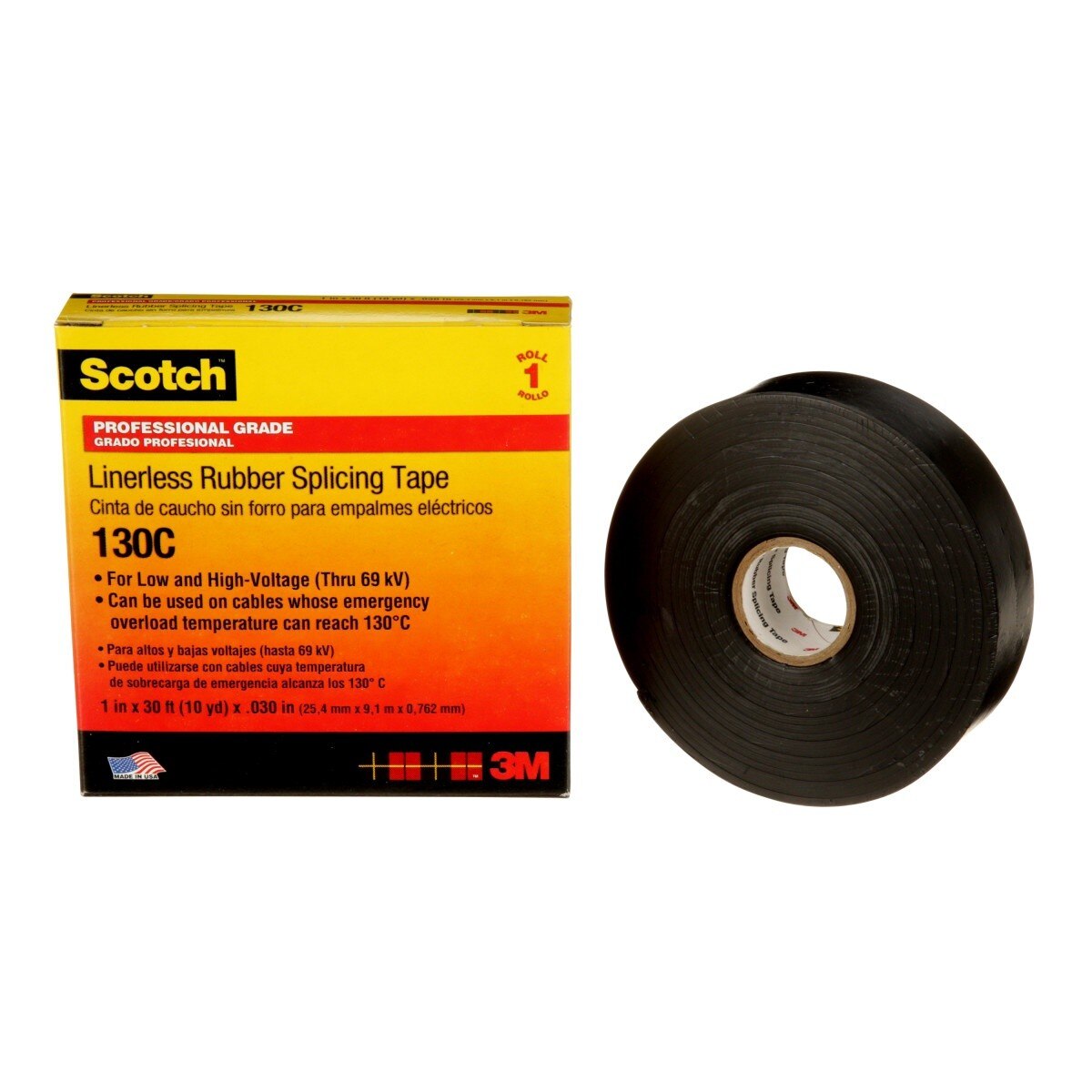

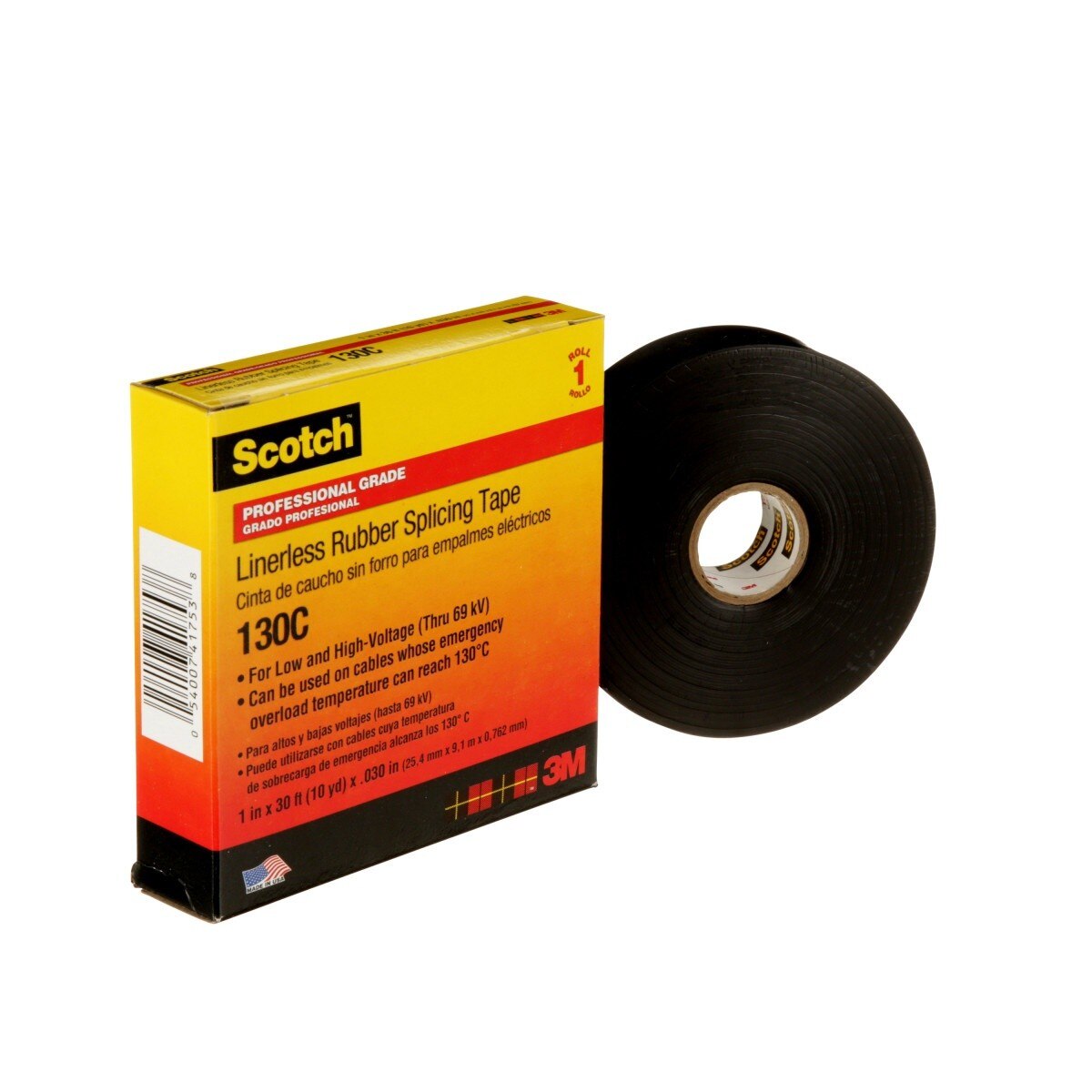

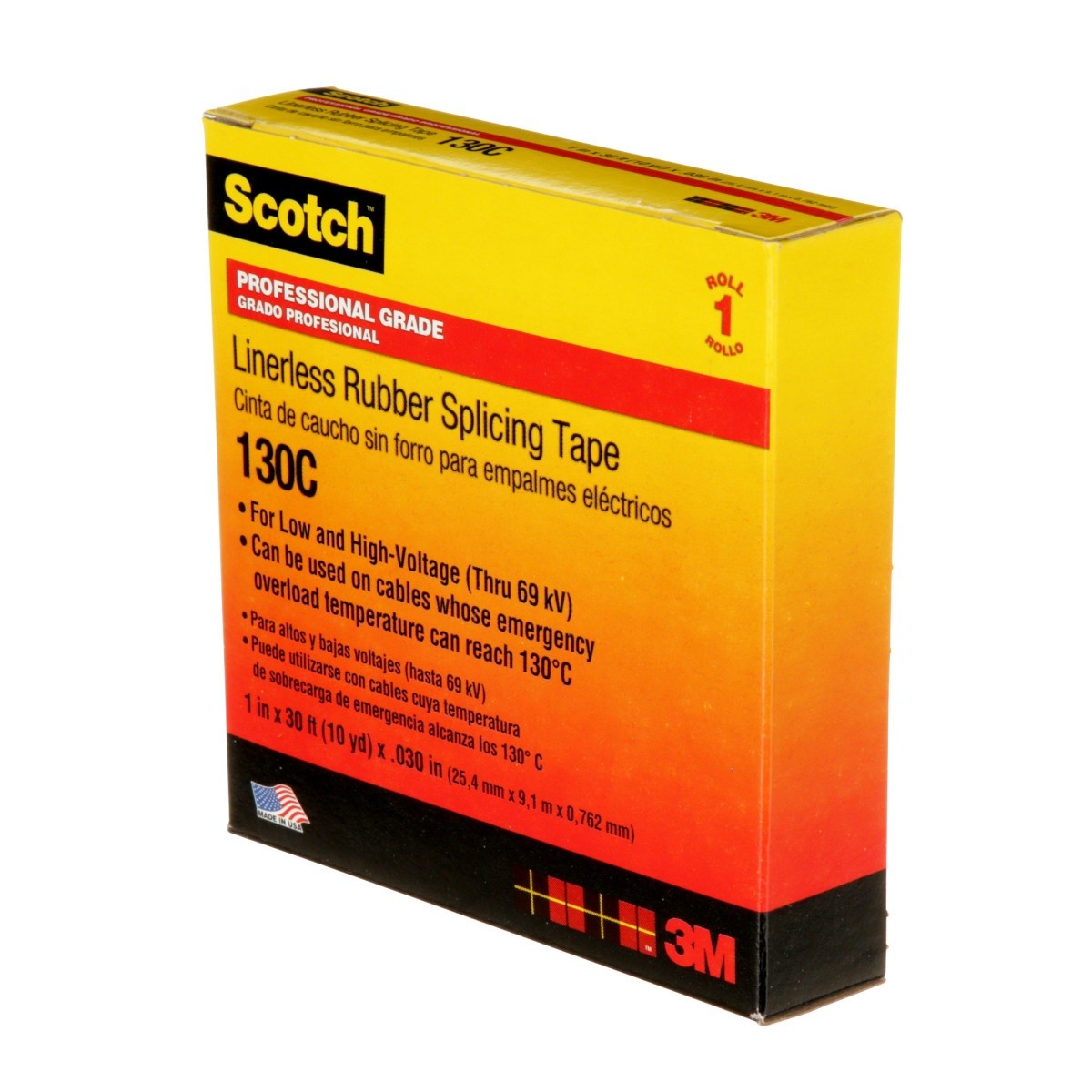

Premium-grade Scotch linerless rubber splicing tape 130C for insulating and terminating cables and wires; 30 mil thickness, highly conformable self-fusing EPR backing with rubber adhesive, UV resistant, moisture sealing; rated for primary insulation up to 69 kV and continuous operation to 194 F (90 C).
3M 7000006090 Includes
- (24) - 3M 7000006090 Scotch Linerless Electrical Splicing Tape 130C for Wires and Cables, 1 in x 30 ft, Rubber Backing, Self Fusing, UV Resistance, Highly Conformable, Moisture Seal, Black, 1 Roll (130C-1X30FT)
3M 7000006090 Features
- Premium-grade linerless rubber splicing tape
- 30 mil thickness for robust insulation
- Self-fusing ethylene propylene rubber backing
- Rubber adhesive with high conformability
- UV resistant and moisture sealing
- Primary insulation for solid dielectric cables up to 69 kV
- Continuous operating temperature up to 194 F (90 C)
- Emergency overload temperature up to 266 F (130 C)
- ASTM D-4325 and RoHS compliant
- Black color, 1 in x 30 ft roll
3M 7000006090 Specifications
| Brand | Scotch |
| Model | 130C |
| Secondary Part Number | 130C-1X30FT |
| Color | Black |
| Length | 30 ft |
| Width | 1 in |
| Thickness | 30 mil |
| Backing Material | Ethylene Propylene Rubber (EPR) |
| Adhesive Type | Rubber |
| Dielectric Strength | 750 V/mil |
| Elongation at Break | 850% |
| Insulation Resistance | >10^15 ohms |
| Voltage Rating | 69 kV |
| Maximum Operating Temperature | 194 F (90 C) |
| Emergency Overload Temperature | 266 F (130 C) |
| Minimum Operating Temperature | 0 C |
| Shelf Life | 5 Year |
Toolup Part # :
860287
