At a Glance
Form
Roll
Length
36 in
Width
2 in
Thickness
65 mil
Adhesive Type
Mastic
Max Temperature
266�F
Sub-Brand
Scotch
Material
Rubber
Performance
Electrically Insulating
Description
Description

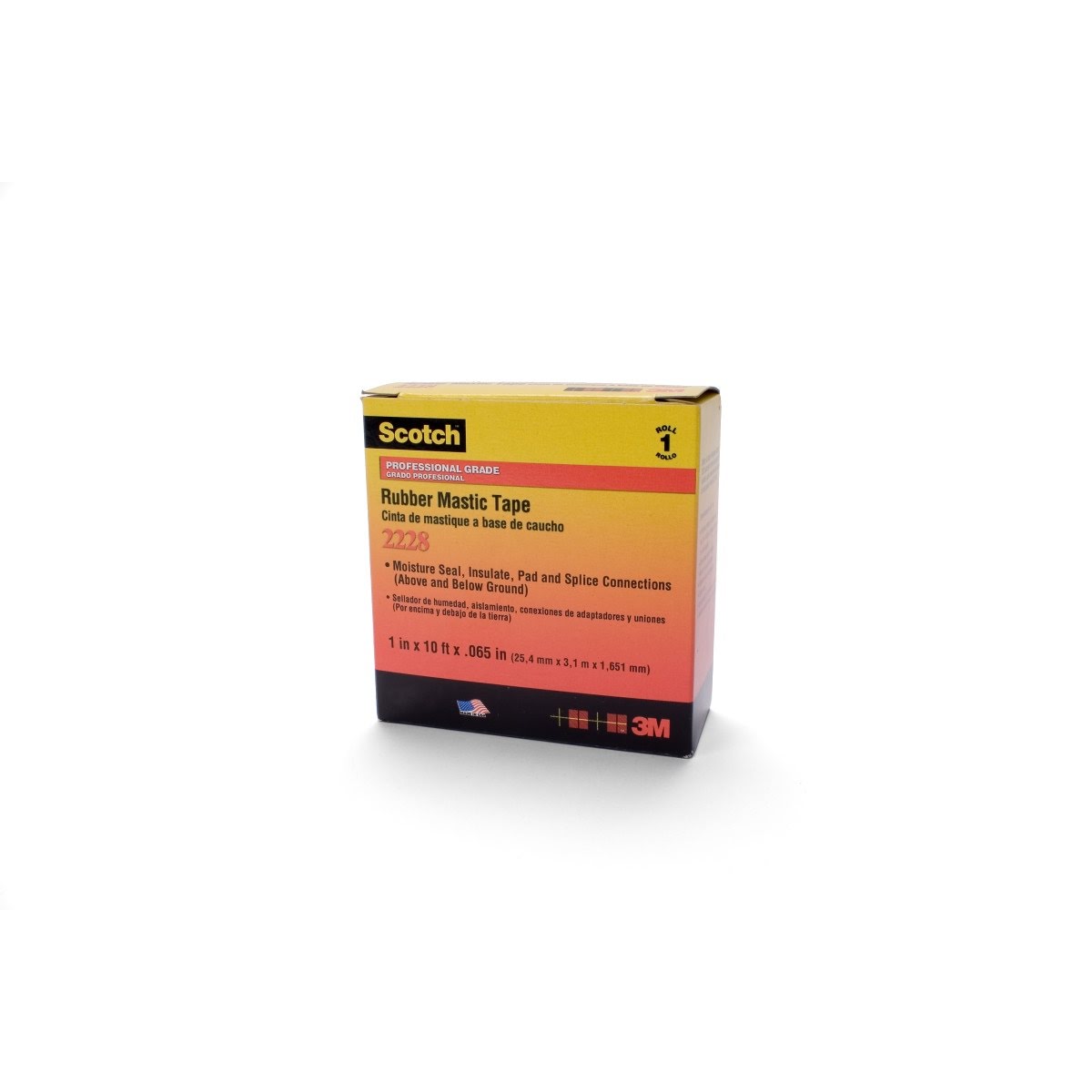

3M 7100005959 Description

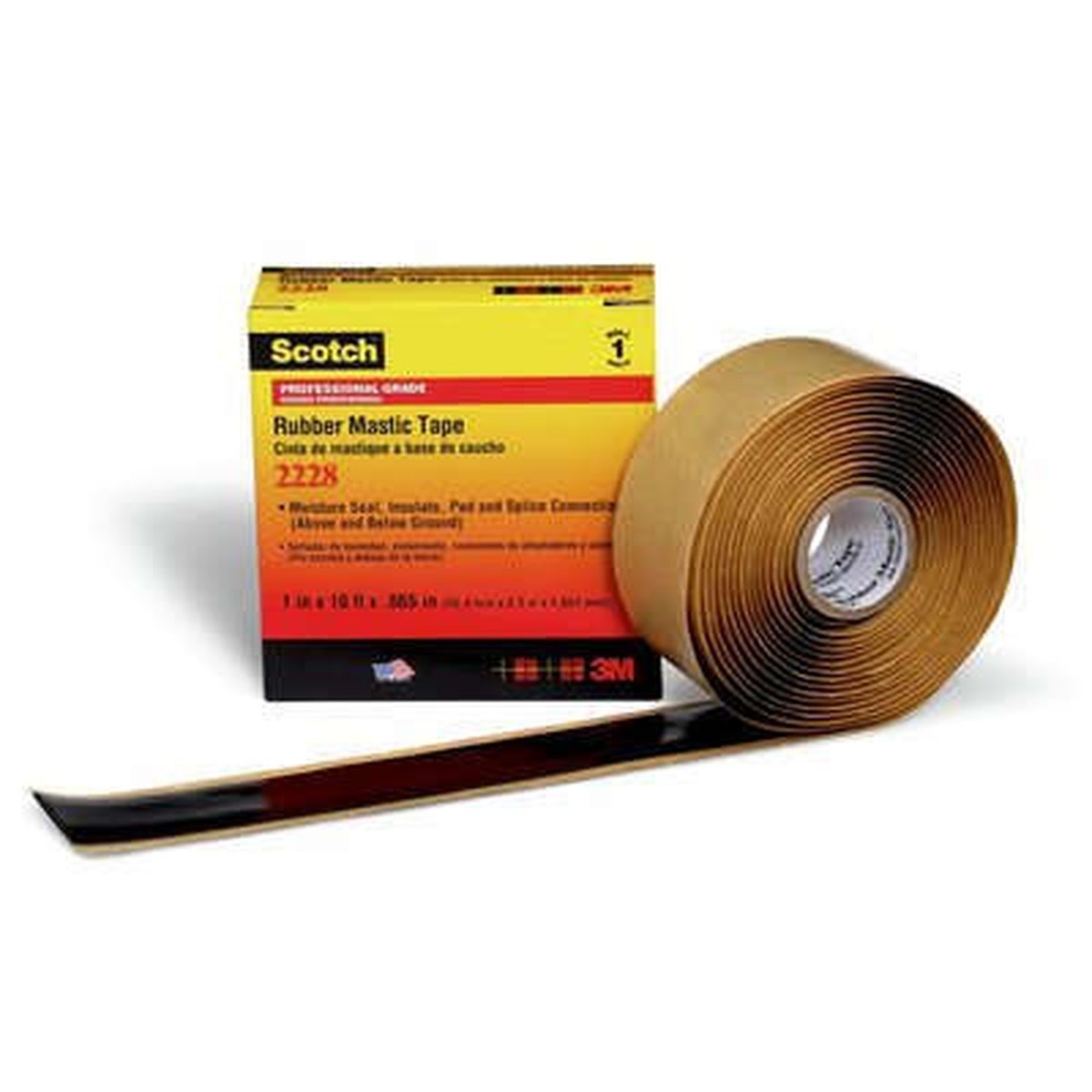

3M Scotch Rubber Mastic Tape 2228 is a 65 mil thick, premium grade, highly conformable self fusing rubber mastic electrical tape designed for electrical insulation and moisture sealing for indoor and weather exposed outdoor applications, including UV exposure resistance.
3M 7100005959 Includes
- (48) - 3M 7100005959 Scotch Rubber Mastic Tape 2228, 2 in x 3 ft, Black, Conformable, Self-Fusing, Electrical Insulating, Moisture Sealing, Indoor and Outdoor Applications, 65 mil thick, 1 Roll (2228-2X3FT)
3M 7100005959 Features
- 65 mil thick premium grade rubber mastic tape
- Highly conformable and self fusing for reliable sealing
- Designed for electrical insulation and moisture sealing
- Suitable for indoor and weather exposed outdoor applications with UV resistance
- UL recognized component for applications up to 130 Degree C 266 Degree F
- Primary electrical insulation and vibration padding for cable and wire connections rated up to 1000 volts
- Thick construction helps build up and pad over irregular connections
- Applicable over a temperature range of 32 to 100 Degree F 0 to 38 Degree C
- RoHS 2011 65 EU compliant
3M 7100005959 Specifications
| Brand | 3M |
| Sub Brand | Scotch |
| Product Type | Rubber mastic electrical tape |
| Application | Insulation, Sealing |
| Backing Material | Rubber |
| Color | Black |
| Overall Width | 2 in |
| Overall Length | 3 ft |
| Tape Thickness Without Liner | 65 mil |
| Dielectric Strength | 500 V/mil |
| Maximum Operating Temperature | 130 Degree Celsius 266 Degree Fahrenheit |
| Secondary Part Number | 2228-2X3FT |
Toolup Part # :
859509
