At a Glance
Form
Roll
Length
22 yd
Width
3/4 in
Thickness
7 mil
Adhesive Type
Rubber
Max Temperature
221�F
Min Temperature
14�F
Sub-Brand
Scotch
Material
PVC
Performance
Flame Retardant
Description
Description
3M 7010411602 Description

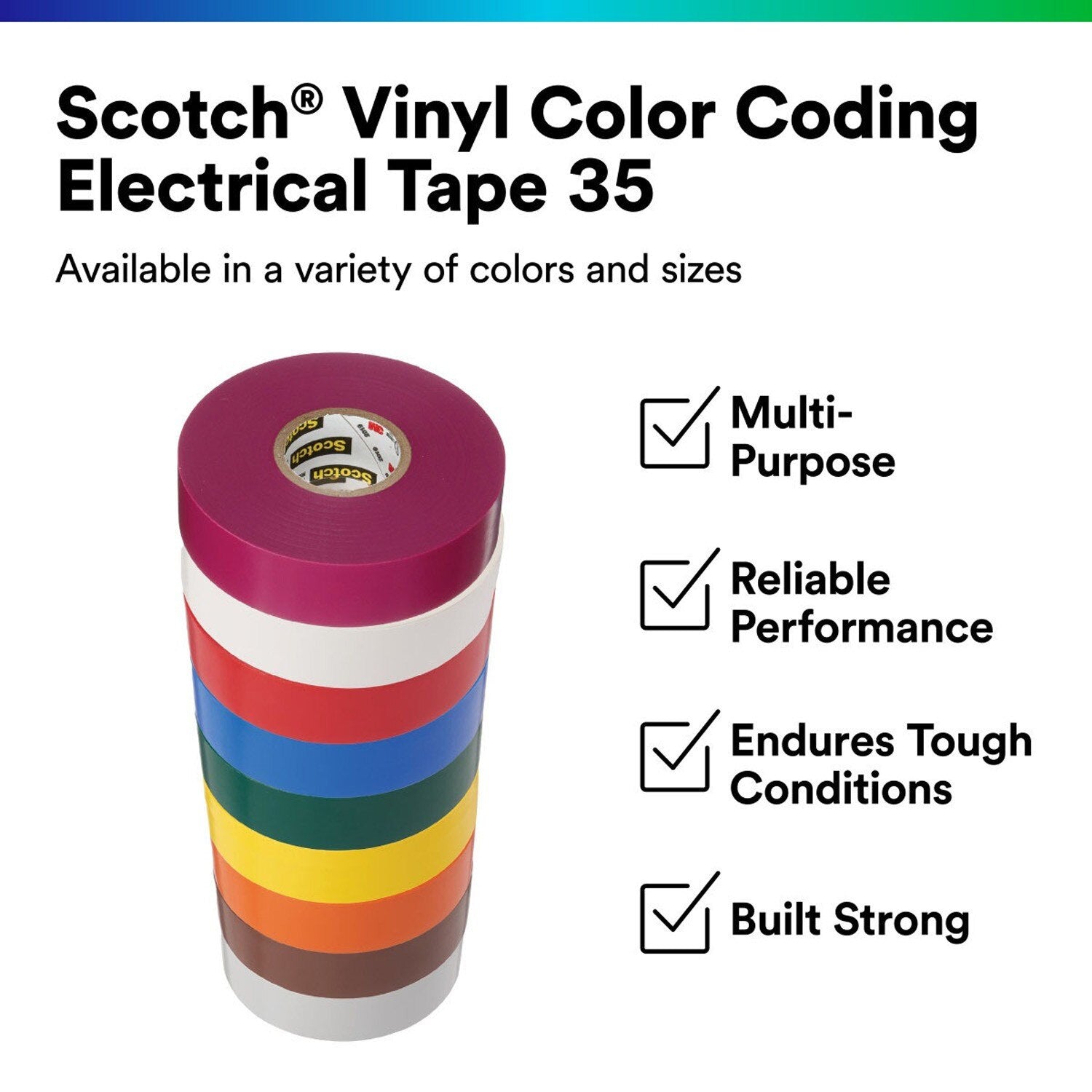

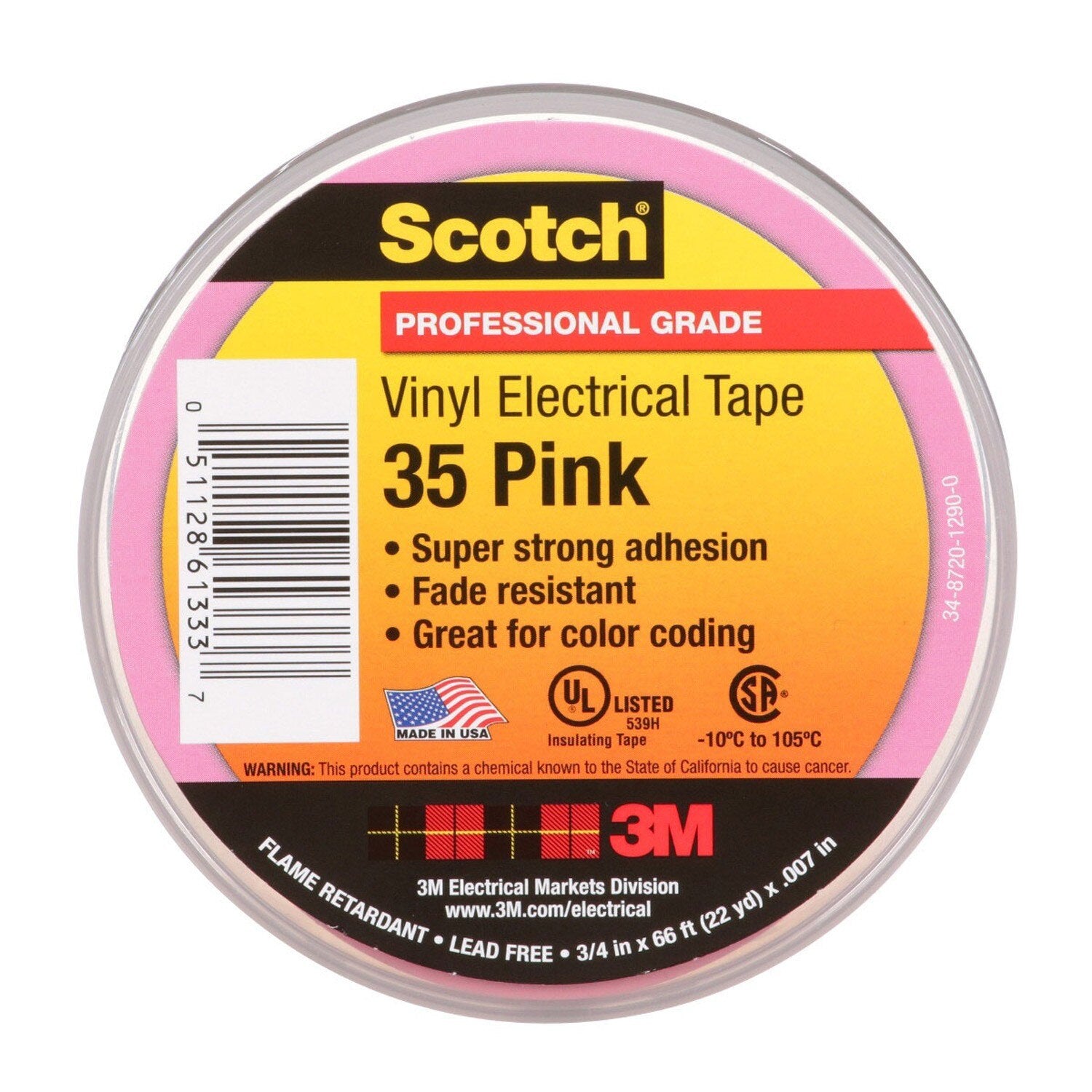

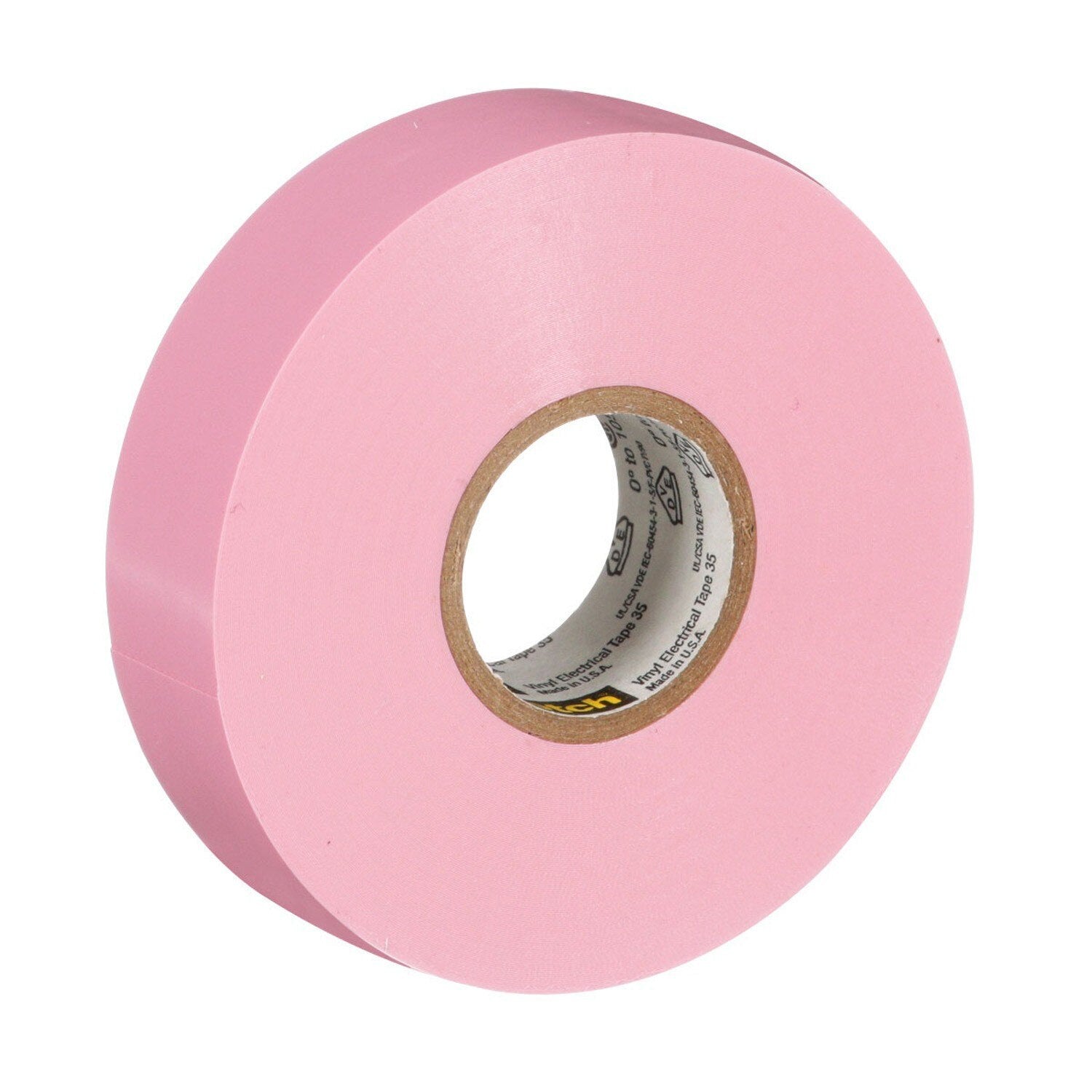

Scotch Vinyl Color Coding Electrical Tape 35 is a premium-grade, flame-retardant PVC electrical tape for color coding and primary insulation. This pink 7 mil tape offers strong adhesion, fade resistance, and reliable performance in demanding environments from 14°F to 221°F and up to 600V applications.
3M 7010411602 Includes
- (10) - 3M 7010411602 Scotch Vinyl Color Coding Electrical Tape 35, Premium Grade, Flame Retardant, UV Resistant, Electrical and Mechanical Protection, Pink, 7 mil, 3/4 in x 66 ft (35-3/4X66FT-PK)
3M 7010411602 Features
- Premium-grade vinyl electrical tape for color coding and insulation

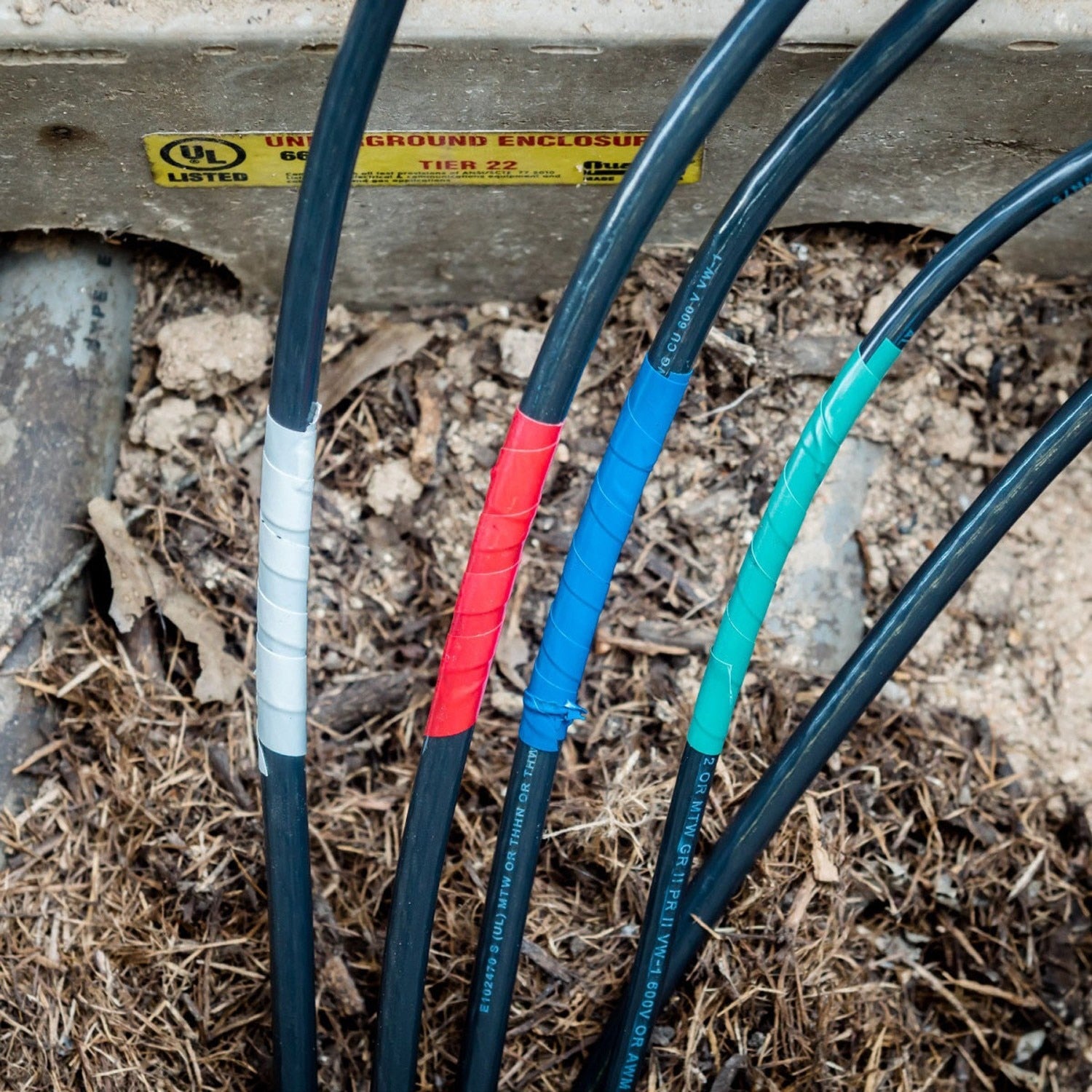

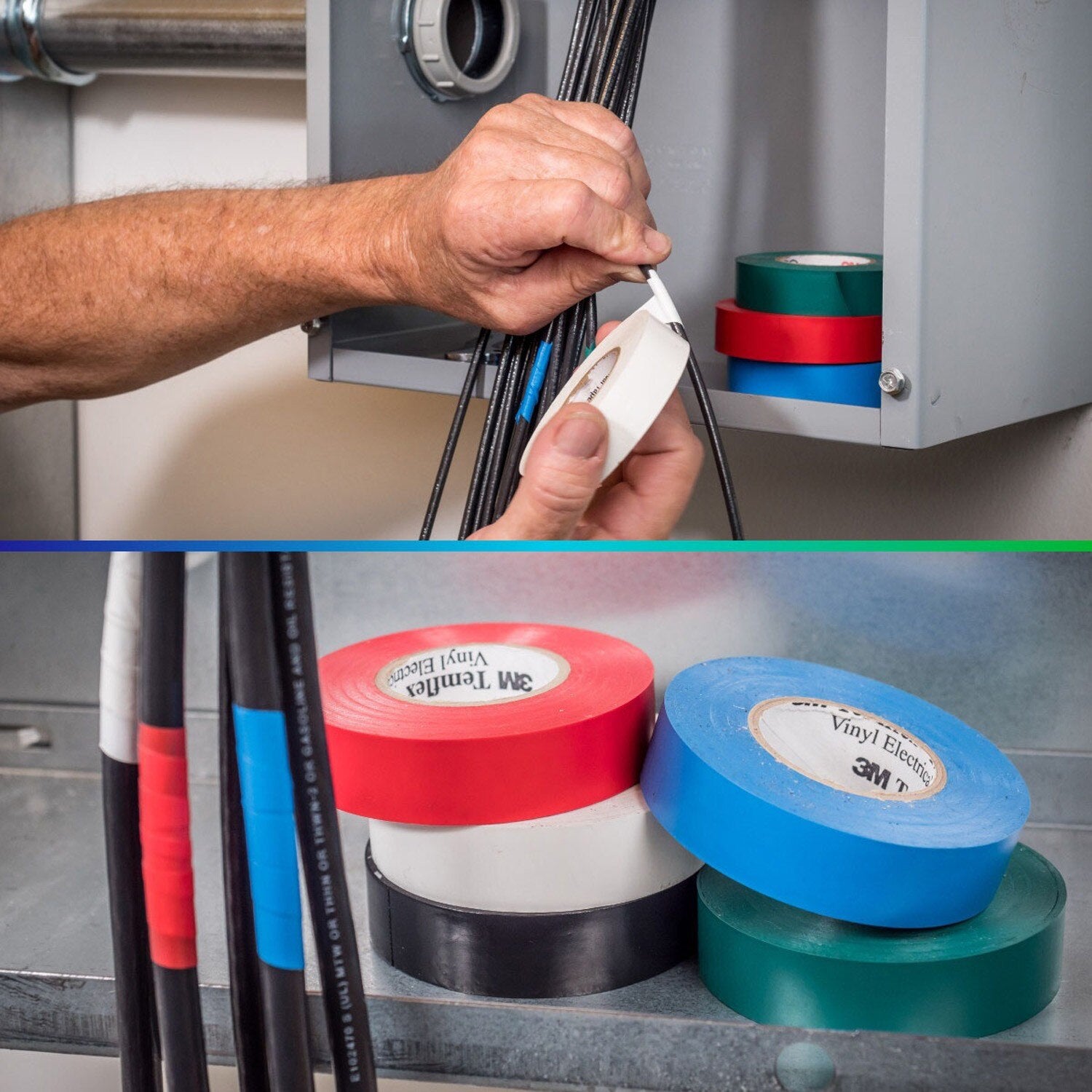

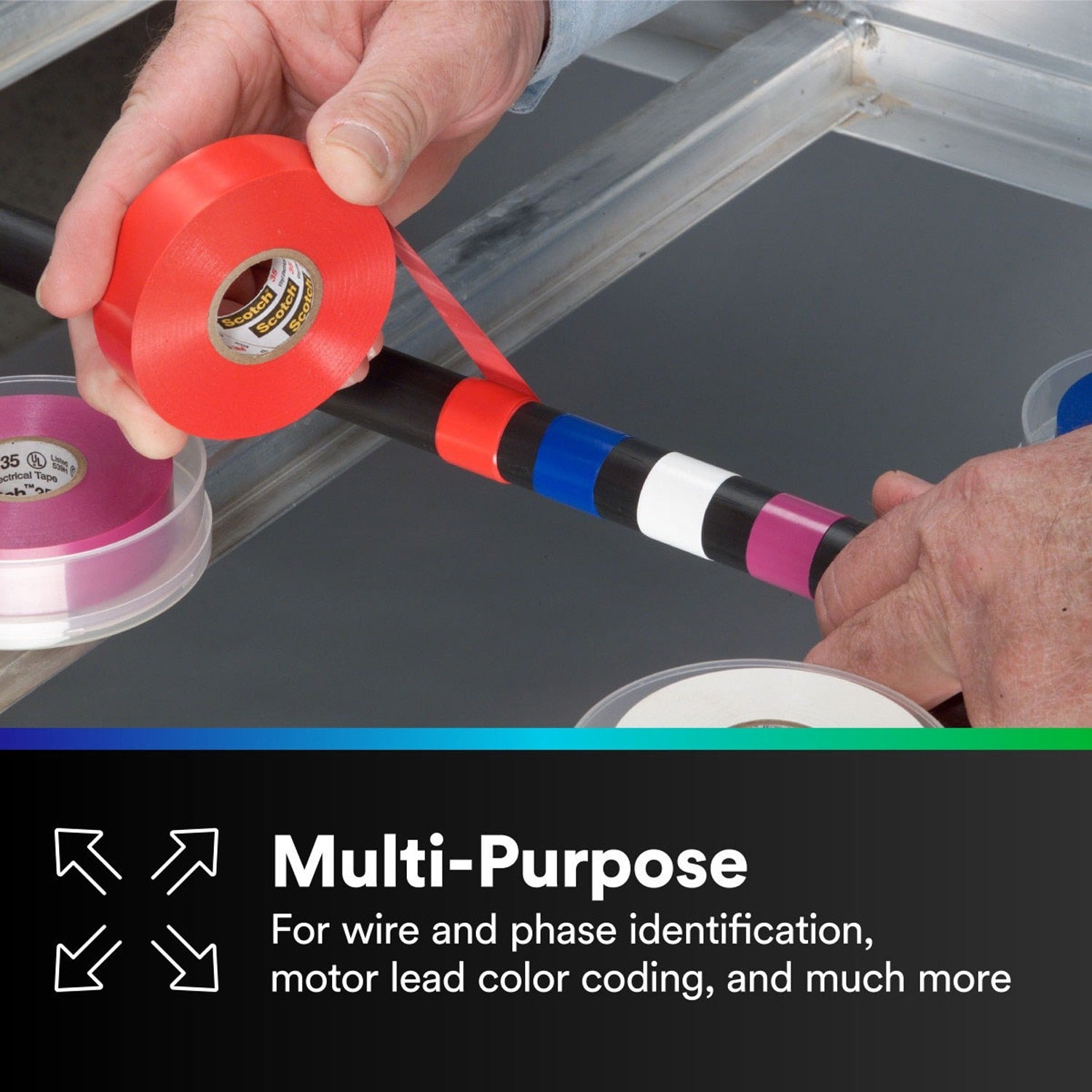

- Pink color for clear wire and phase identification
- 7 mil thickness for durable coverage
- Size: 3/4 in x 66 ft

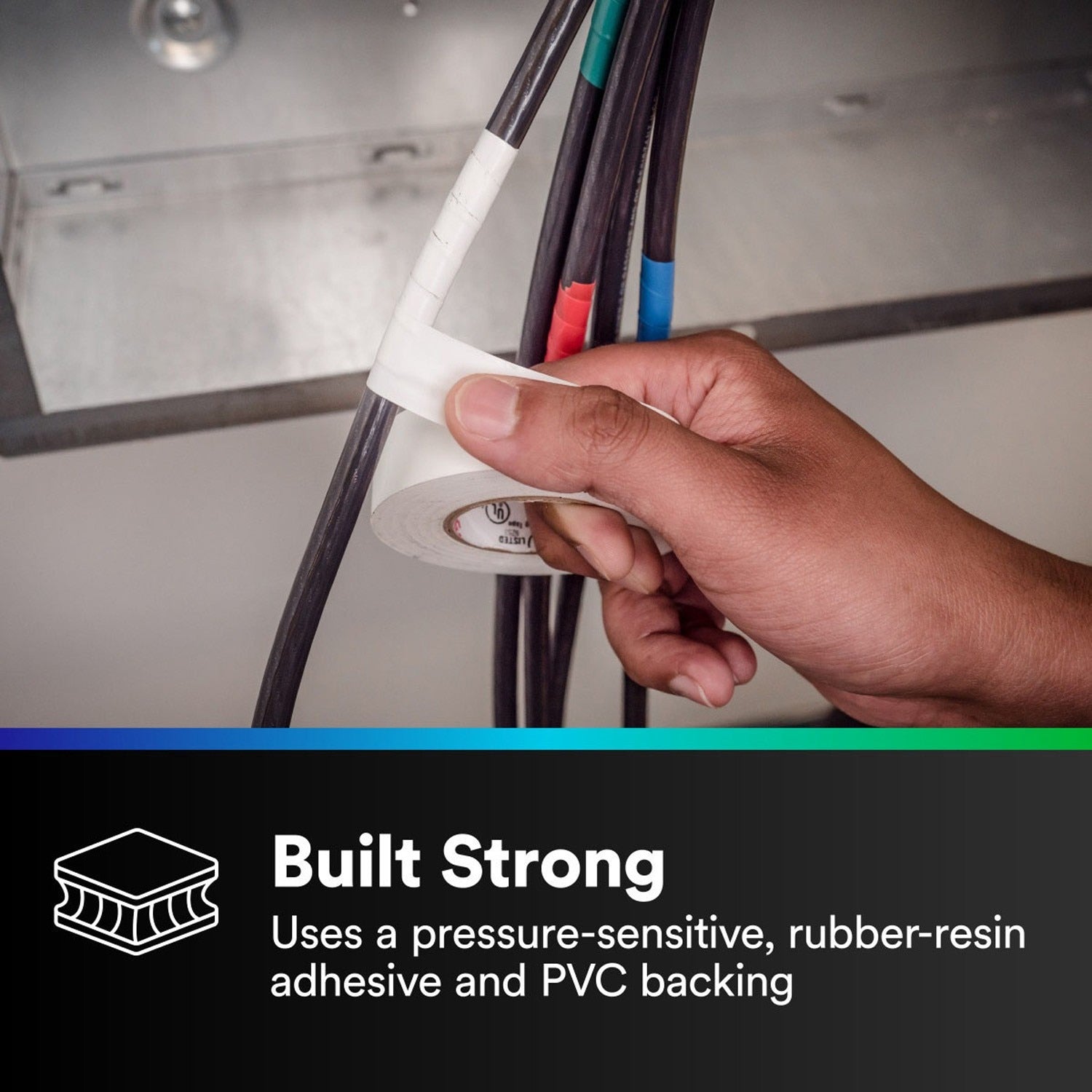

- Pressure-sensitive rubber-resin adhesive with flexible PVC backing
- Provides primary electrical insulation for splices up to 600V
- Operating temperature range: 14°F to 221°F (-10°C to 105°C)
- Flame retardant; UL 510 Listed and CSA C22.2 No.197

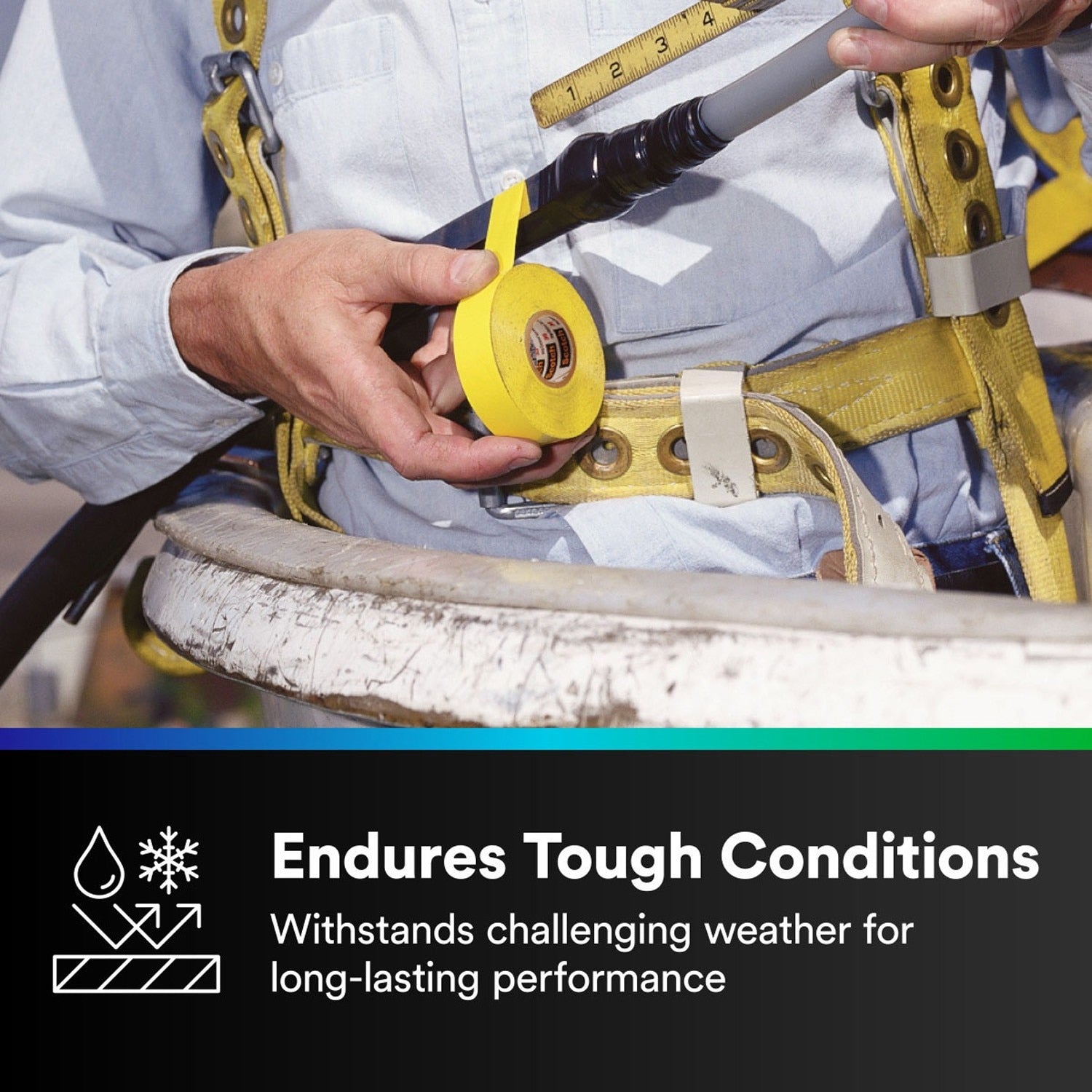

- Fade resistant and moisture-tight for long-lasting performance
- Dielectric strength: 1250 V/mil
- Elongation at break: 225% for excellent conformability
- Compatible with synthetic cable insulations, jackets, and splicing compounds
- RoHS compliant
- Professional grade
3M 7010411602 Specifications
| Color | Pink |
| Tape Size | 3/4 in x 66 ft |
| Total Thickness | 7 mil (0.178 mm) |
| Backing Material | PVC |
| Adhesive Type | Rubber-resin |
| Voltage Rating | 600 V |
| Operating Temperature Range | 14°F to 221°F (-10°C to 105°C) |
| Flame Retardant | Yes |
| Dielectric Strength | 1250 V/mil |
| Elongation at Break | 225% |
| Insulation Resistance | > 10^6 megohms |
| Tape Grade | Professional |
| Shelf Life | 5 Years |
| Package Dimensions (H x W x L) | 3.5 in x 3.5 in x 0.85 in |
| Shipping Weight | 0.24 lb |
| Country of Origin | USA |
