3M 7100127061 Description

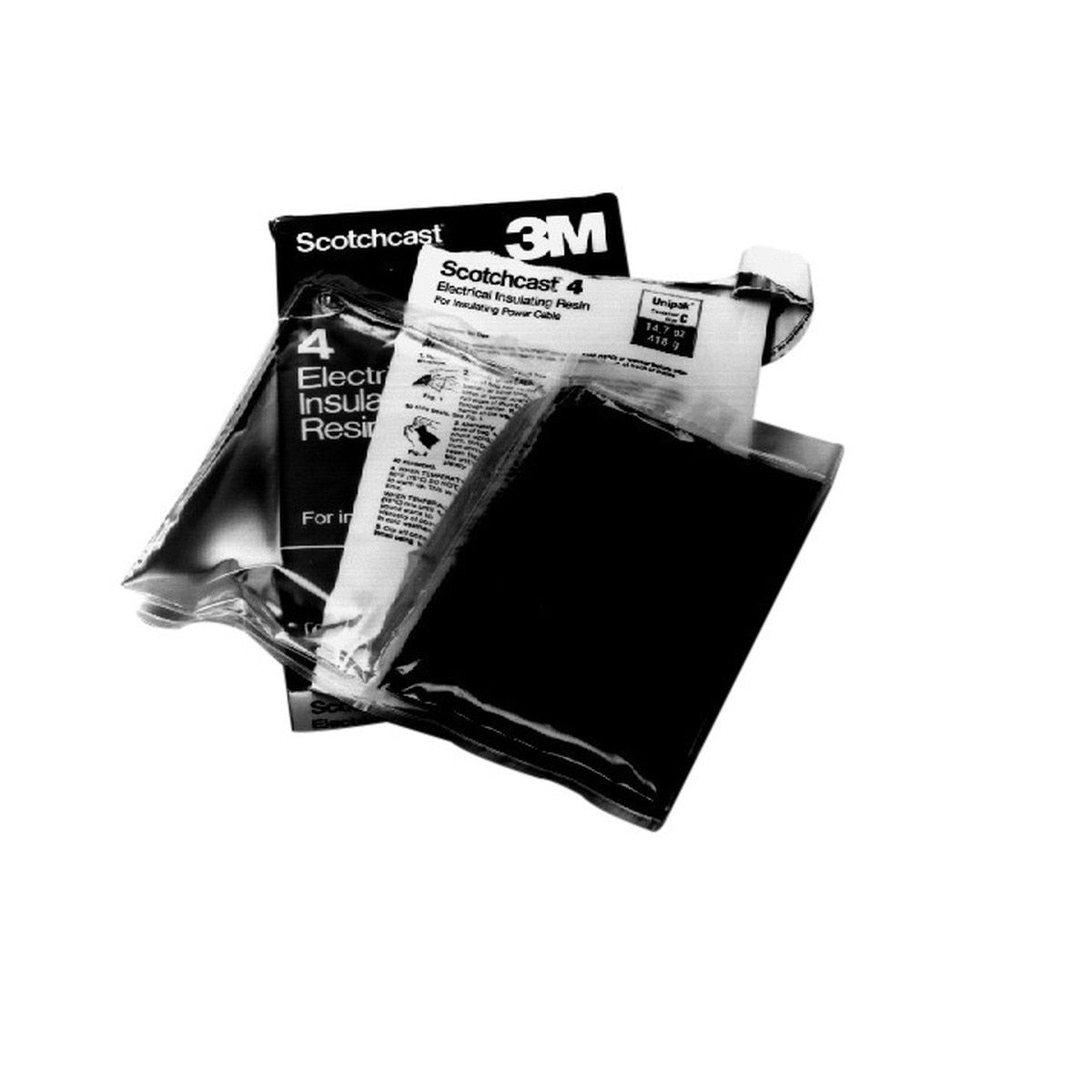

3M Scotchcast Electrical Insulating Resin 4N-B is a two-part epoxy liquid resin supplied in a closed mixing pouch for insulating, encapsulating, and moisture sealing cable splices. It bonds to itself and to most modern cable jackets and generates its own heat to cure at room temperature.
3M 7100127061 Includes
- (10) - 03M 7100127061 Scotchcast Electrical Insulating Resin 4N-B, (7.4 oz), ASTM Approved and RoHS 2011/65/EU Compliant
3M 7100127061 Features
- Two-part epoxy insulating and encapsulating resin
- Closed mixing pouch simplifies mixing and pouring
- Multi-purpose moisture sealing resin for cable splicing
- Bonds to itself and to most modern cable jackets
- Thermal setting resin designed not to melt or run once cured
- Generates its own heat to cure at room temperature
- Tough and oil resistant cured resin
- Rigid cured material with Shore D hardness
- Useful for splicing solid dielectric and oil-filled cables up to 8 kV
- ASTM approved and RoHS 2011/65/EU compliant
3M 7100127061 Specifications
| Part Number | 4N-B |
| Net Contents | 7.4 oz |
| Material | Epoxy |
| Product Color | Black |
| Cure Method | Room |
| Flexibility | Rigid |
| Gel Time | 16 min @ 73 F (23 C) |
| Hardness | 80 Shore D |
| Tensile Strength | 4900 Pound-Force Per Square Inch |
| Minimum Operating Temperature | 0 Degree Celsius |
| Maximum Operating Temperature | 130 Degree Celsius |
| Shelf Life | 1080 days |
