3M 7100123072 Description

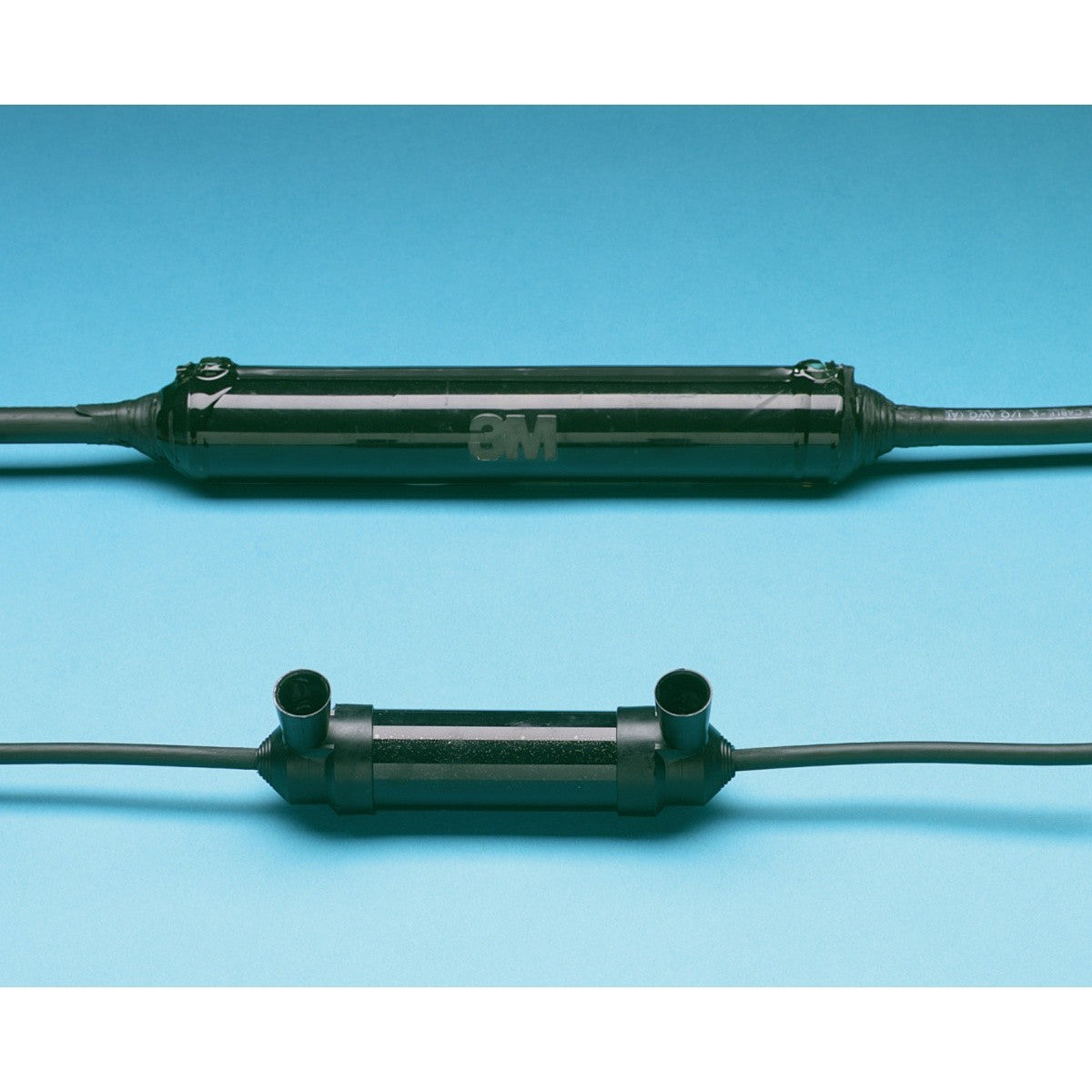

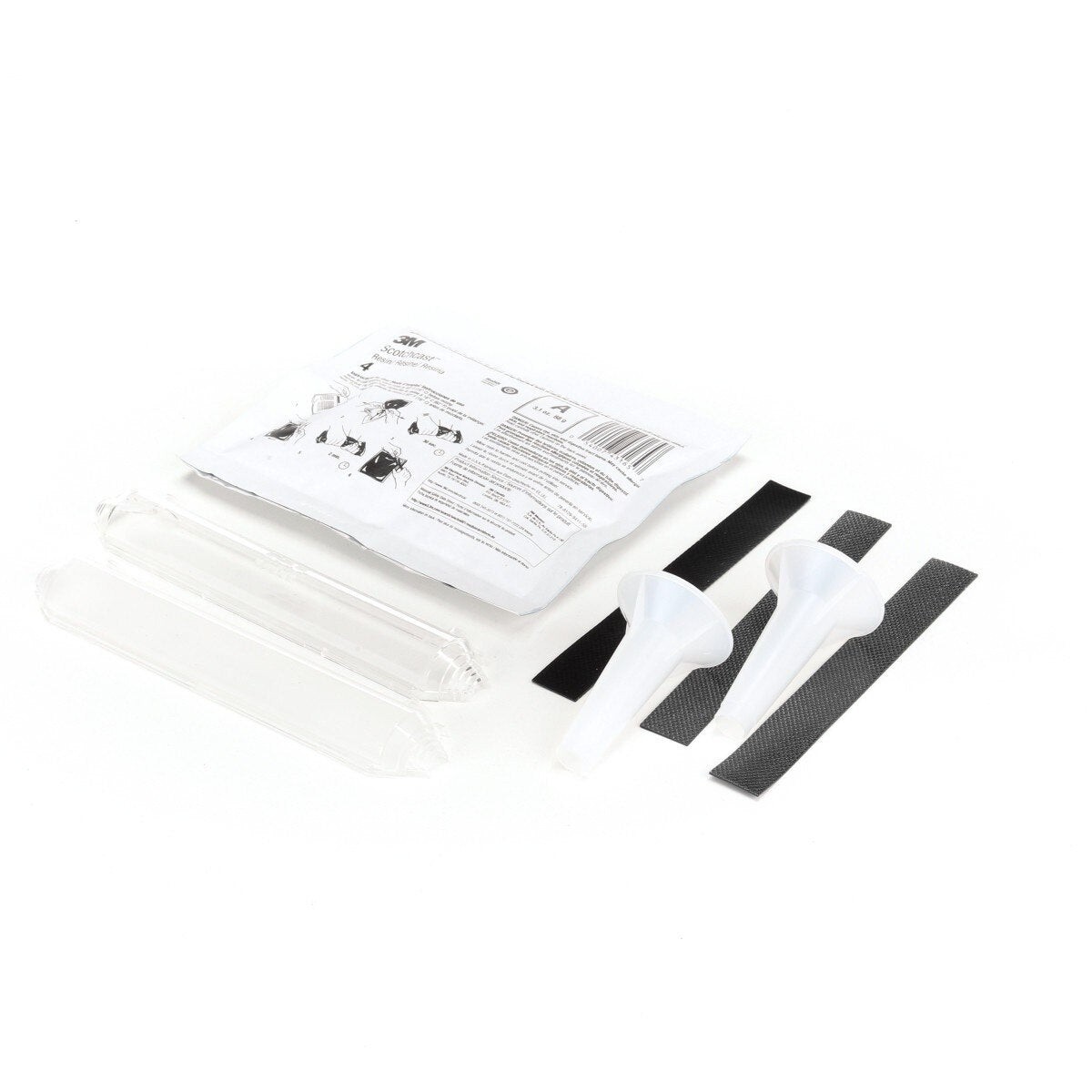

3M Scotchcast 82-AN inline resin power cable splice kit is designed to insulate and seal unshielded single conductor and multiple conductor cable splices, creating a permanent watertight seal for weather exposed or direct burial locations.

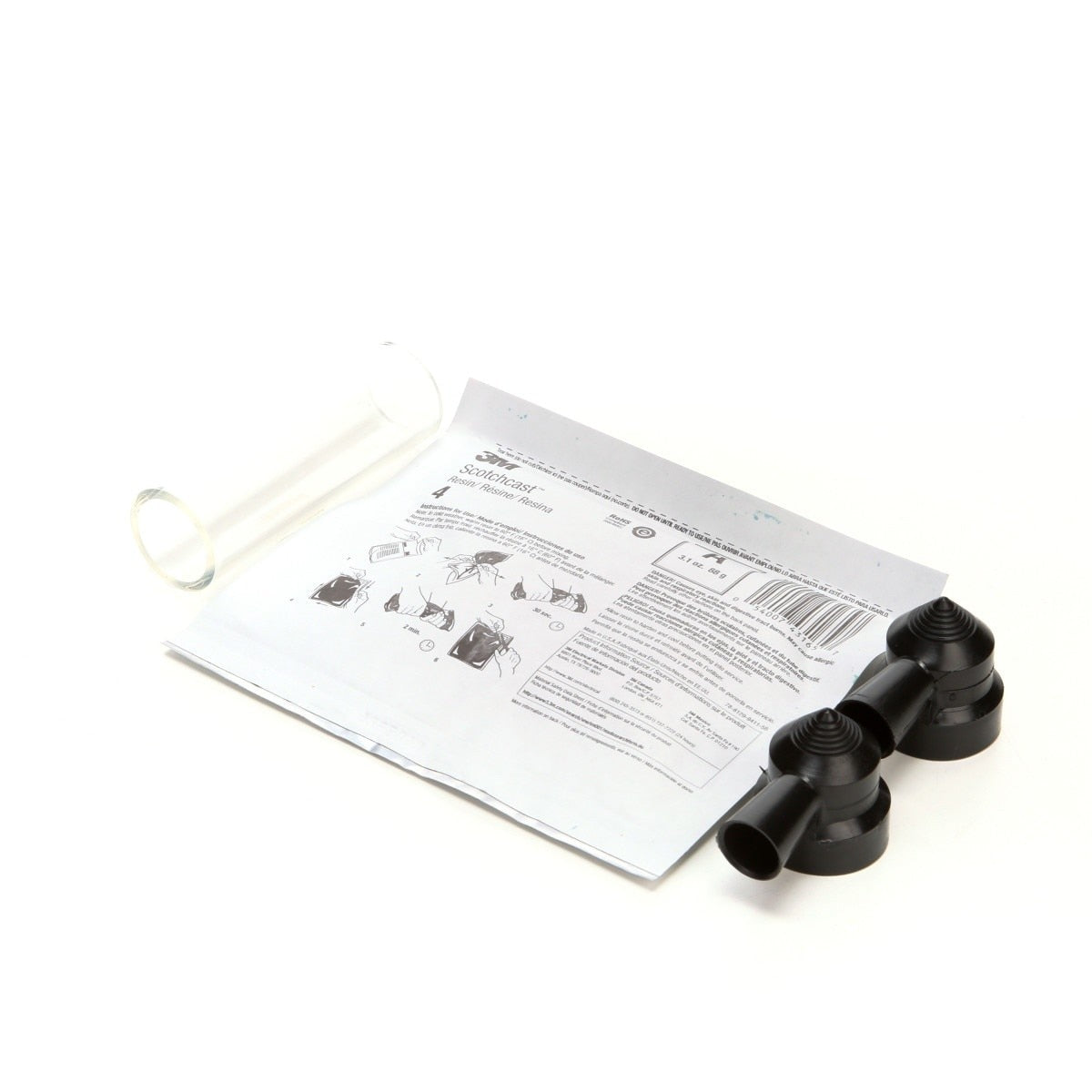

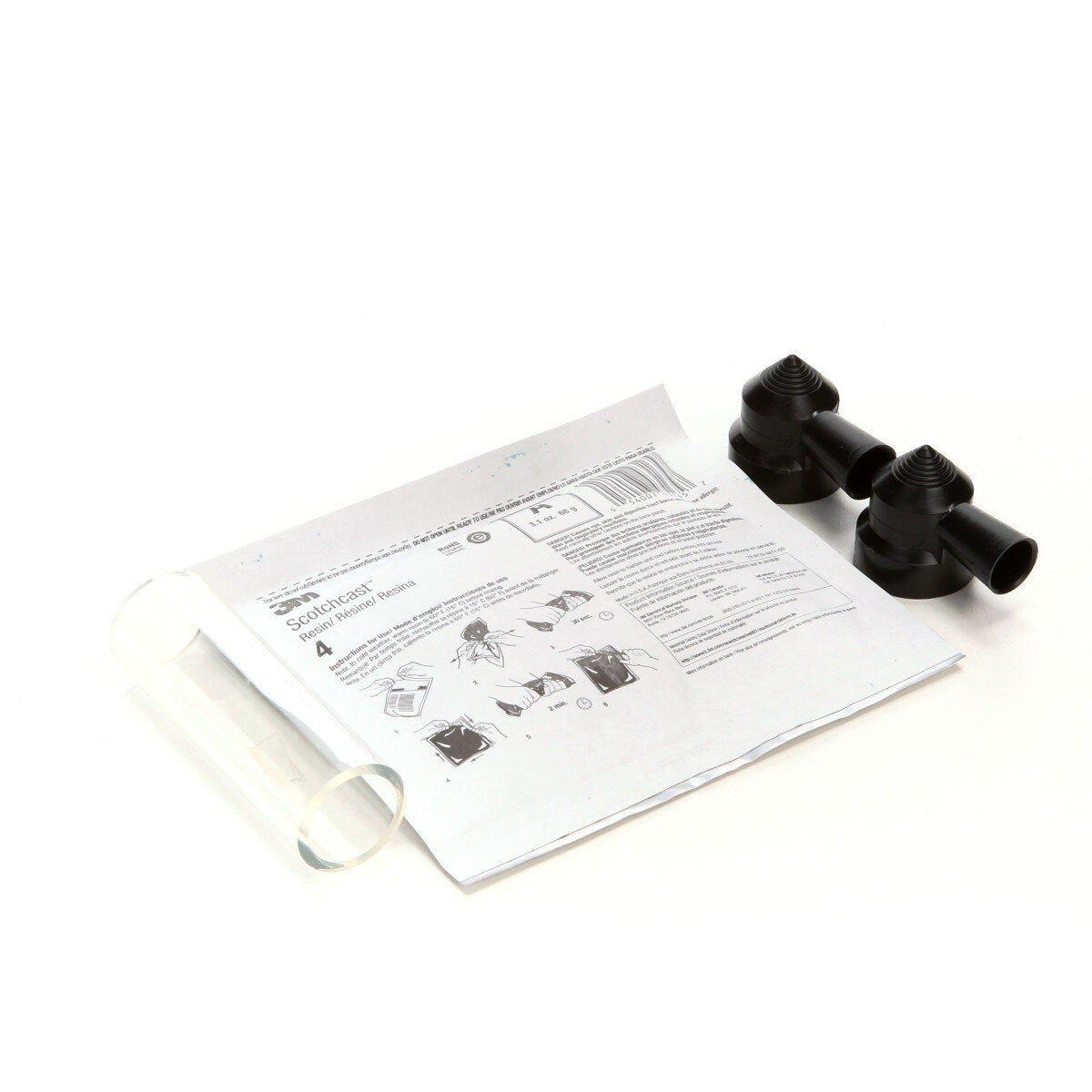

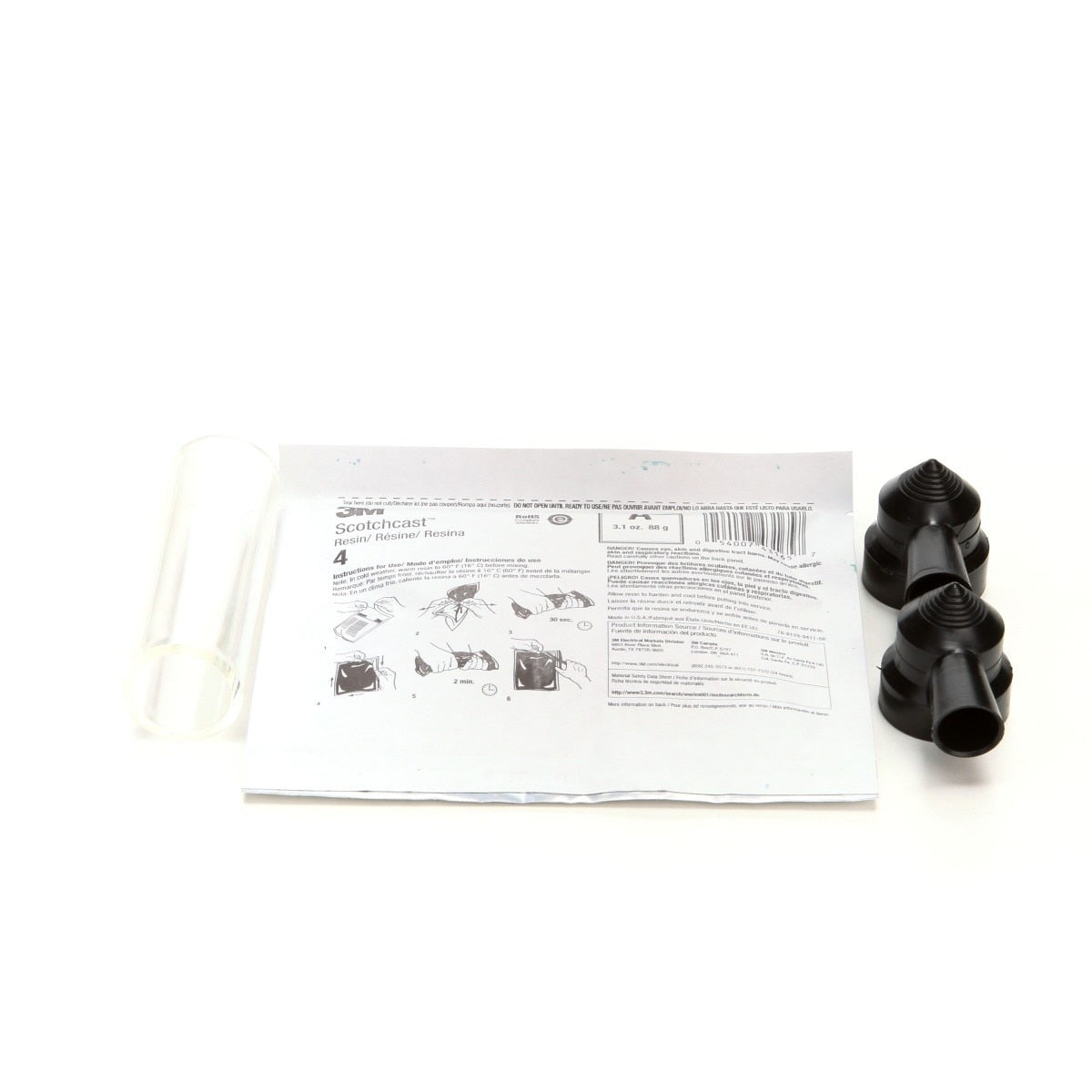

3M 7100123072 Includes
- (10) - 3M 7100123072 Inline Resin Power Cable Splice Kit 82-AN, 10-2 AWG, UL Listed, Permanent Watertight Seal, Designed for Weather Exposed or Direct Burial Locations
3M 7100123072 Features
- Designed for sealing, electrical insulation, and mechanical protection

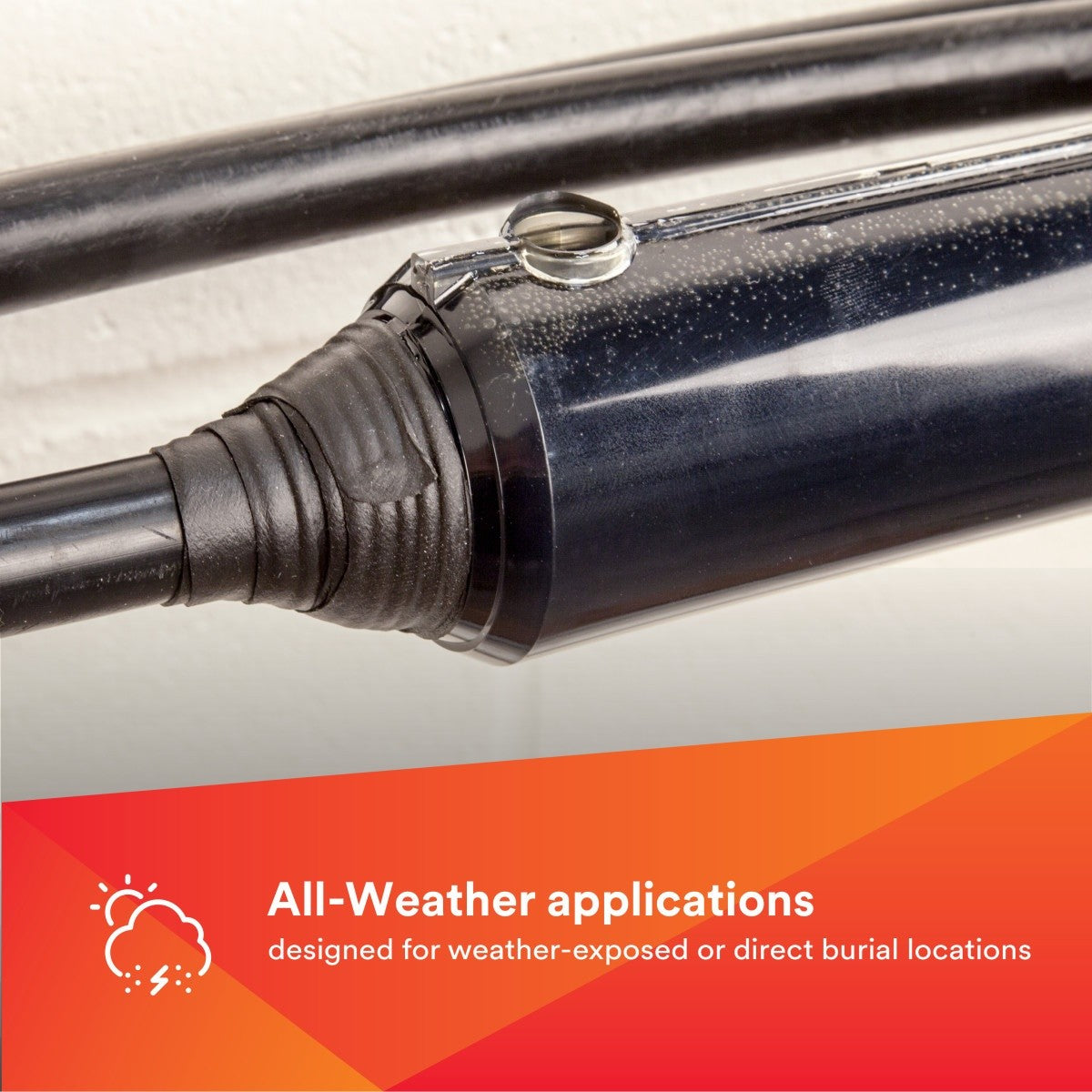

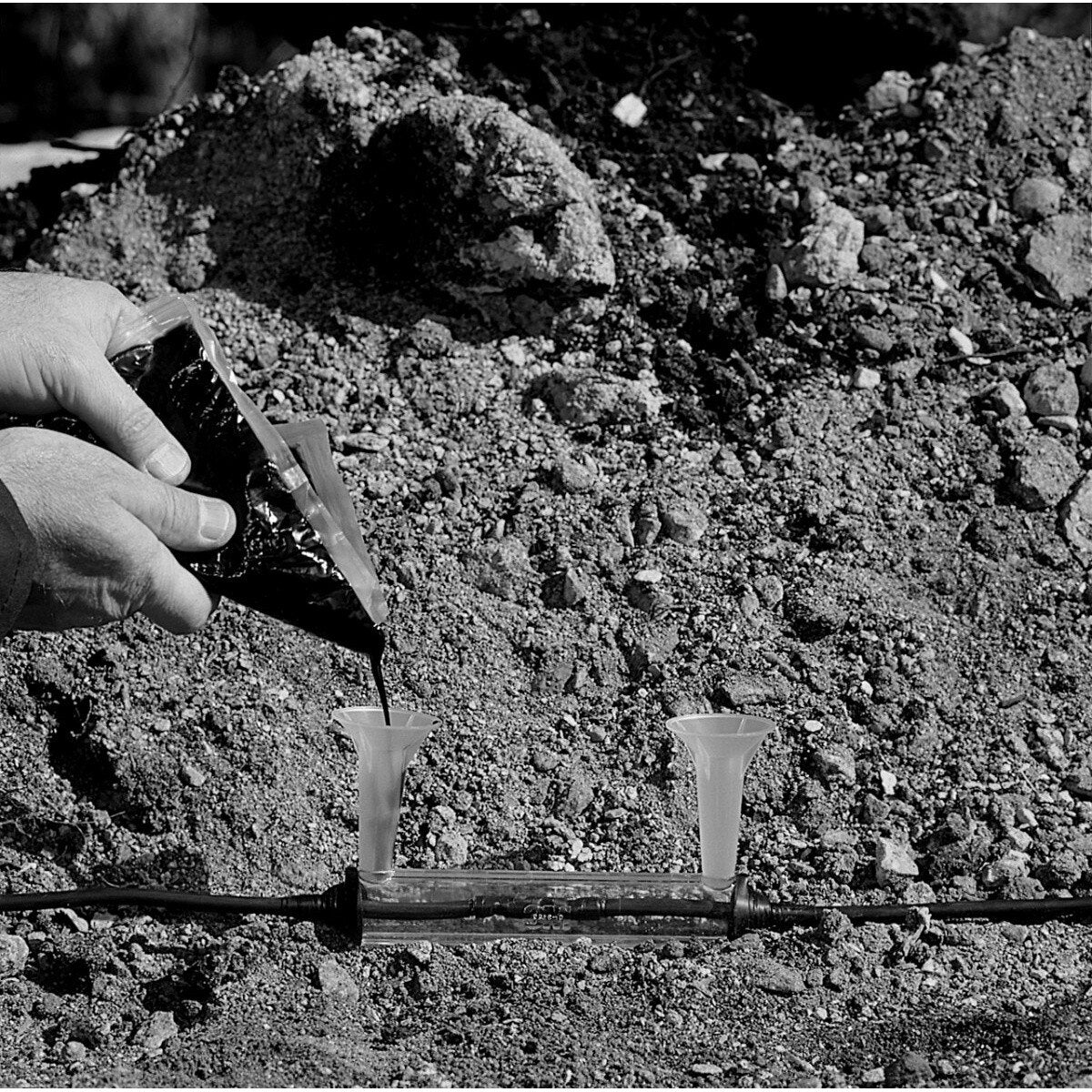

- Creates a permanent watertight seal for weather exposed or direct burial locations

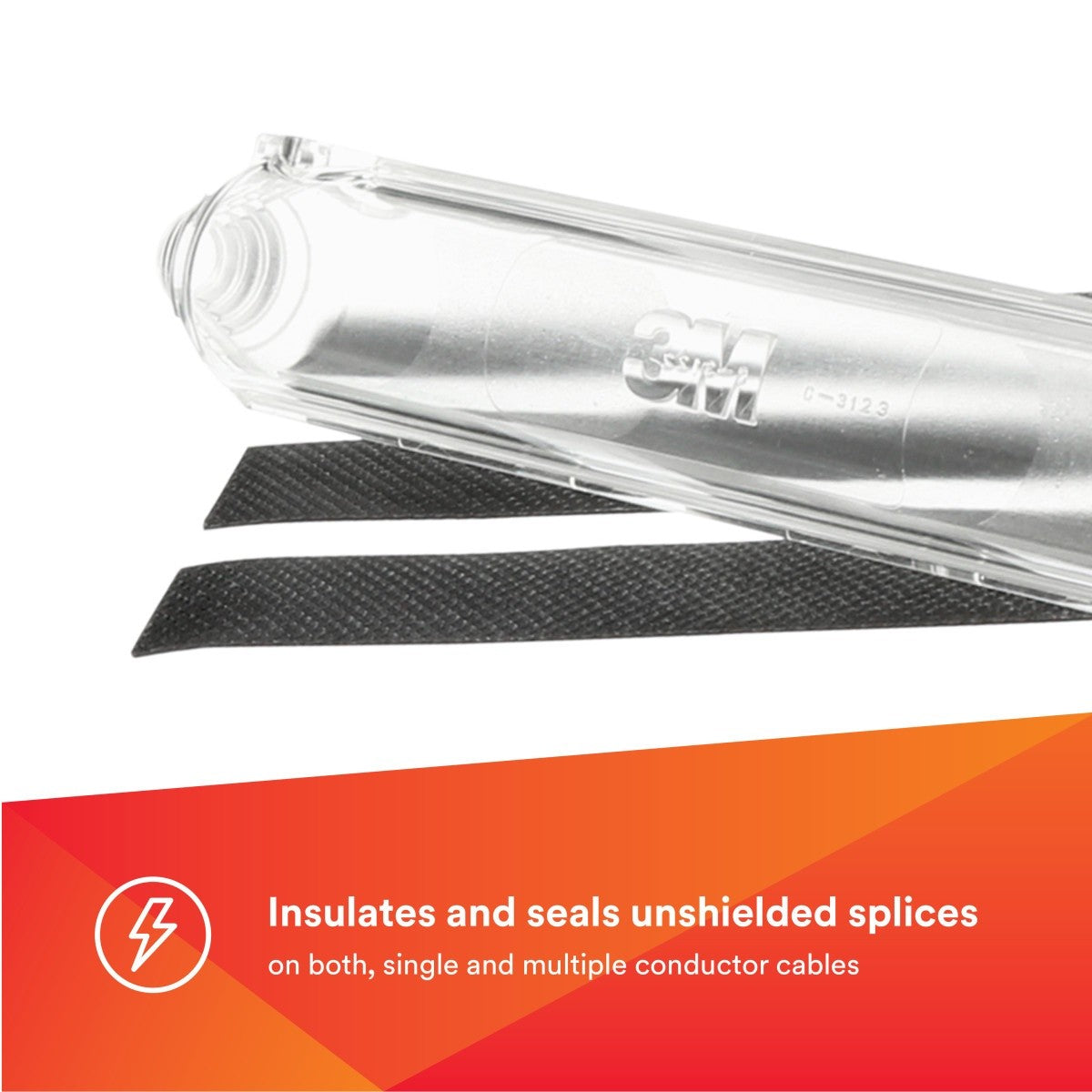

- Insulates and seals unshielded single and multiple conductor cable splices

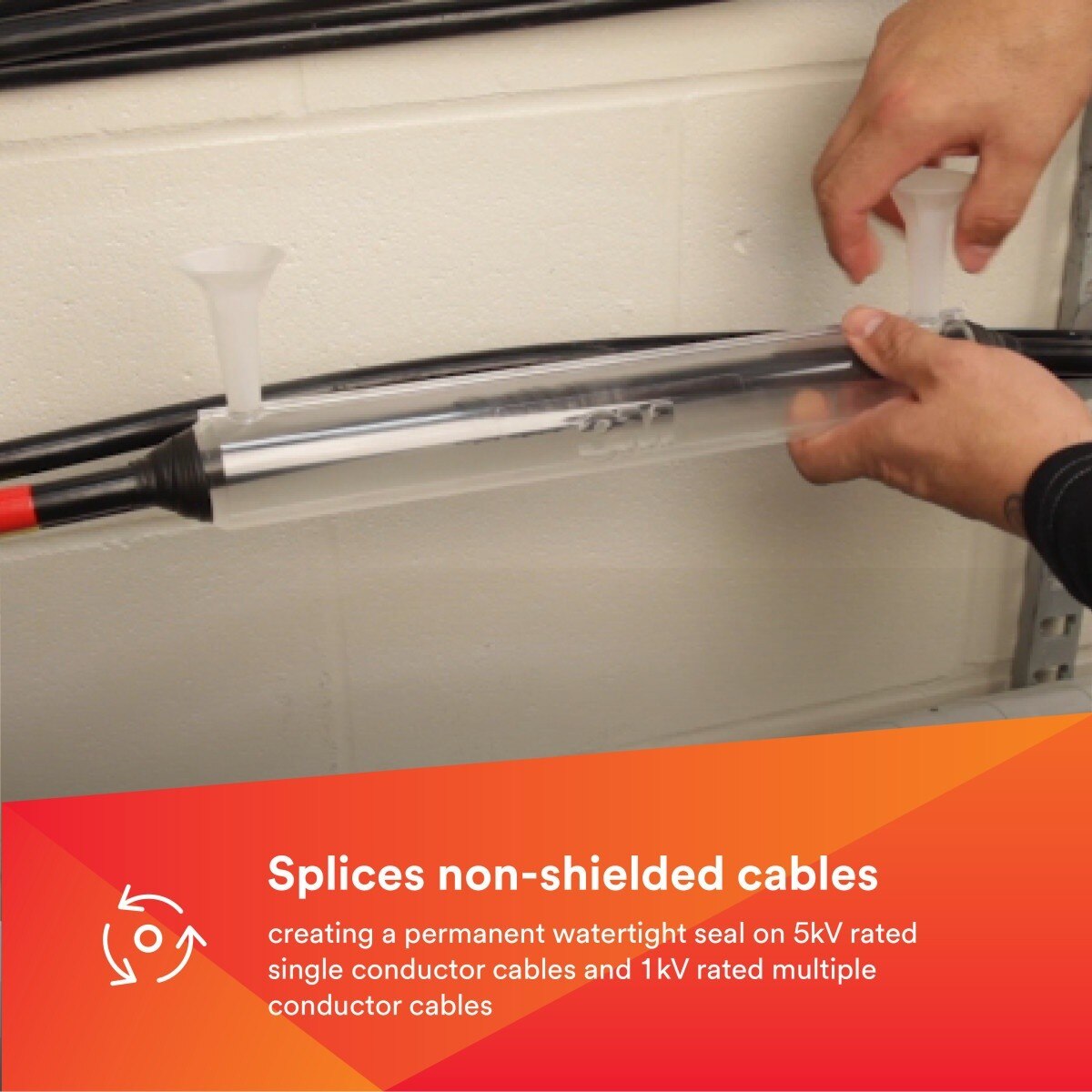

- Suitable for splicing non-shielded submersible cables
- Tough and oil resistant resin system
- Rated for 5 kV single conductor cables and 1 kV multiple conductor cables
- Bonds to itself and to most modern cable jackets
- UL Listed; RoHS 2011/65/EU compliant
3M 7100123072 Specifications
| Brand | 3M Scotchcast |
| Part Number | 82-AN |
| Product Type | Splice |
| Splice Type | Inline |
| Product Series | 82-A Series |
| Product Technology | Resin |
| Application | Sealing, electrical insulation and mechanical protection |
| Material | Epoxy |
| Color | Black |
| Conductor Amount | Single, Multiple |
| Conductor Size Range | 10 AWG to 2 AWG |
| Insulation O.D. Range | 0.406 to 0.750 Inch |
| Maximum Cable Outside Diameter | 0.60 in |
| Voltage Rating | 5 kV |
| Product Length | 8.0 in |
| Product Width | 5.374 in |
| Product Height | 2.0 in |
| Gross Weight | 0.61 lbs |
