Description
Description
3M 7100123111 Description

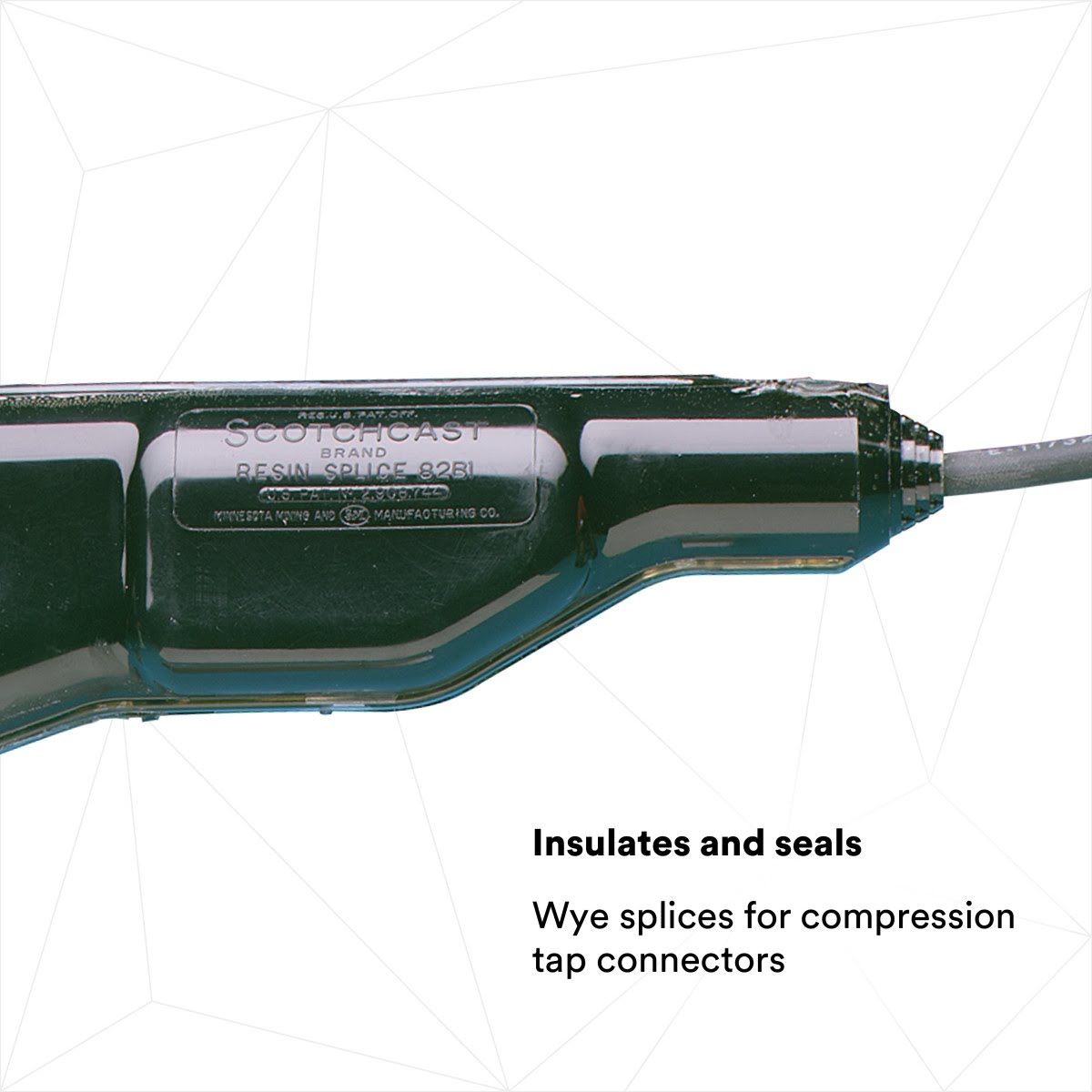

3M Scotchcast Wye Resin Splice Kit 82-B1N is designed to insulate and seal wye splices for compression tap connectors on power cables. The cast resin system provides electrical insulation, sealing and mechanical protection for non-shielded cable applications.
3M 7100123111 Includes

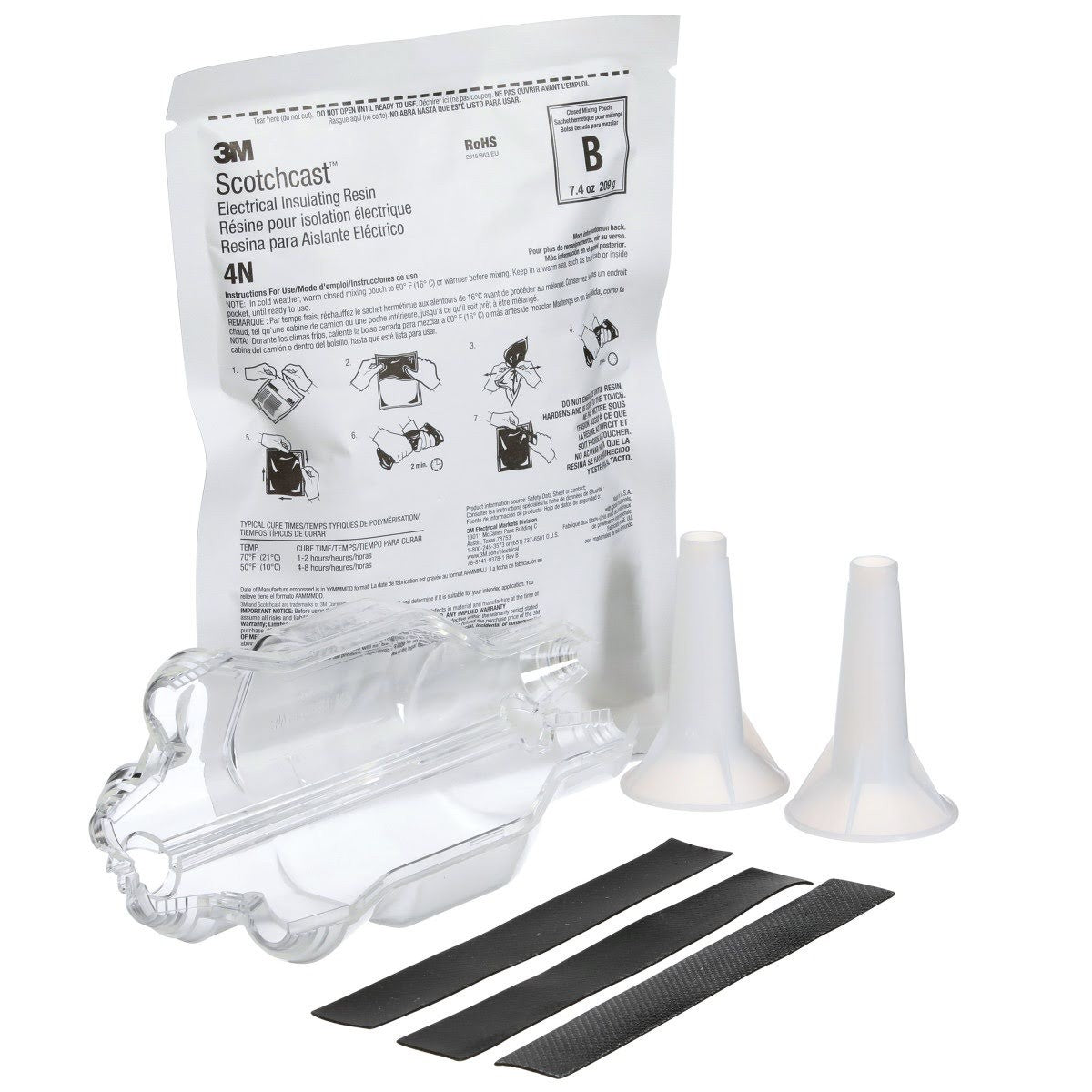

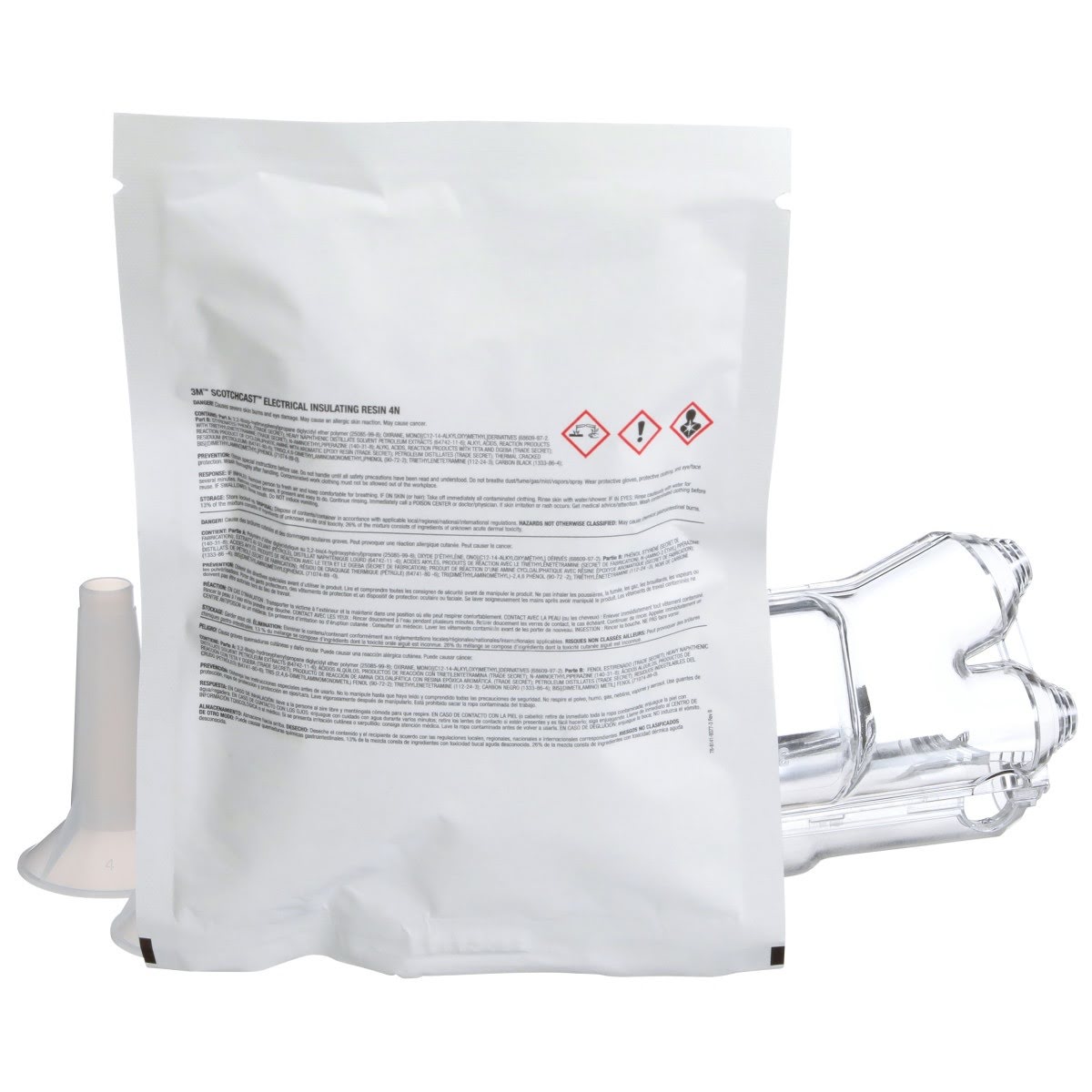

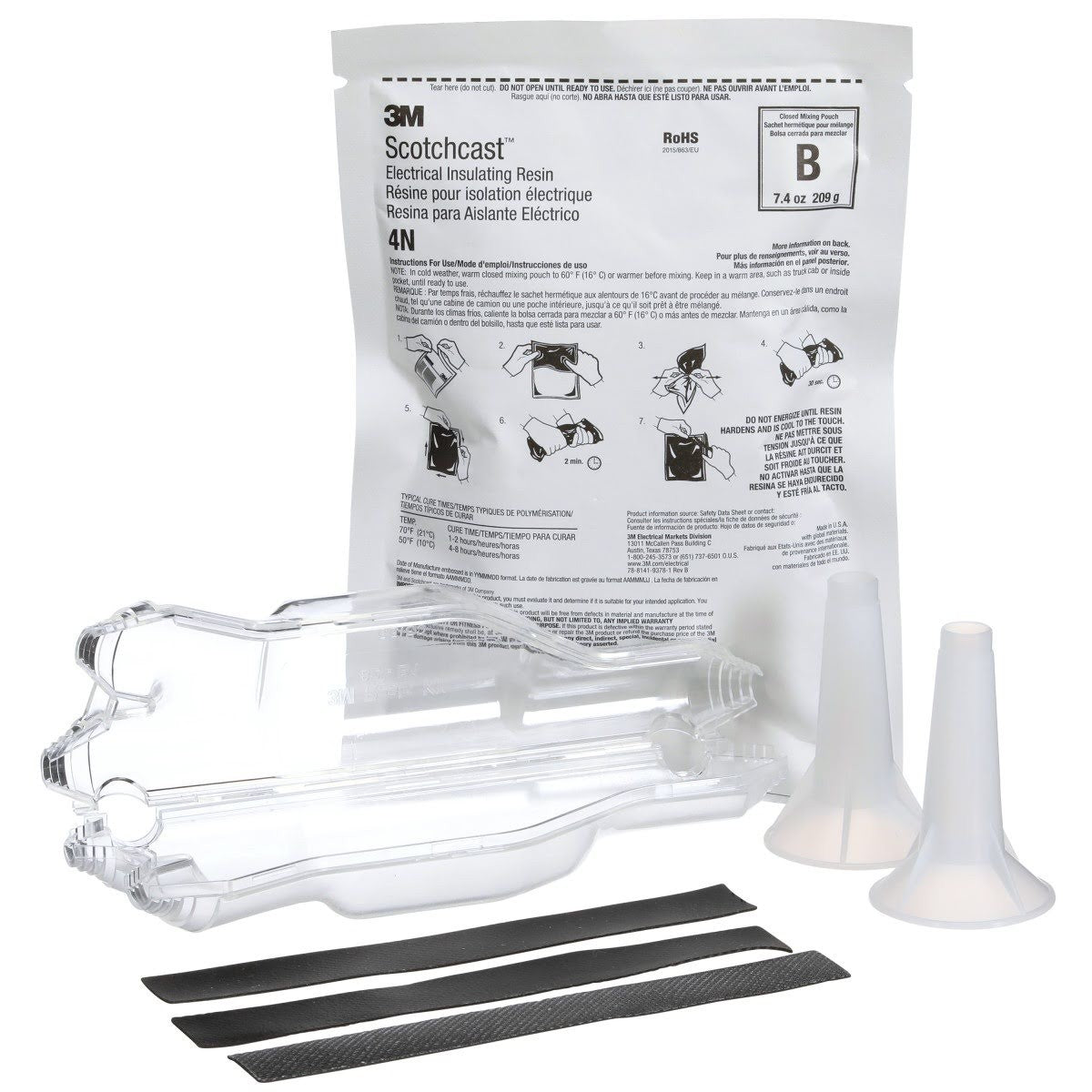

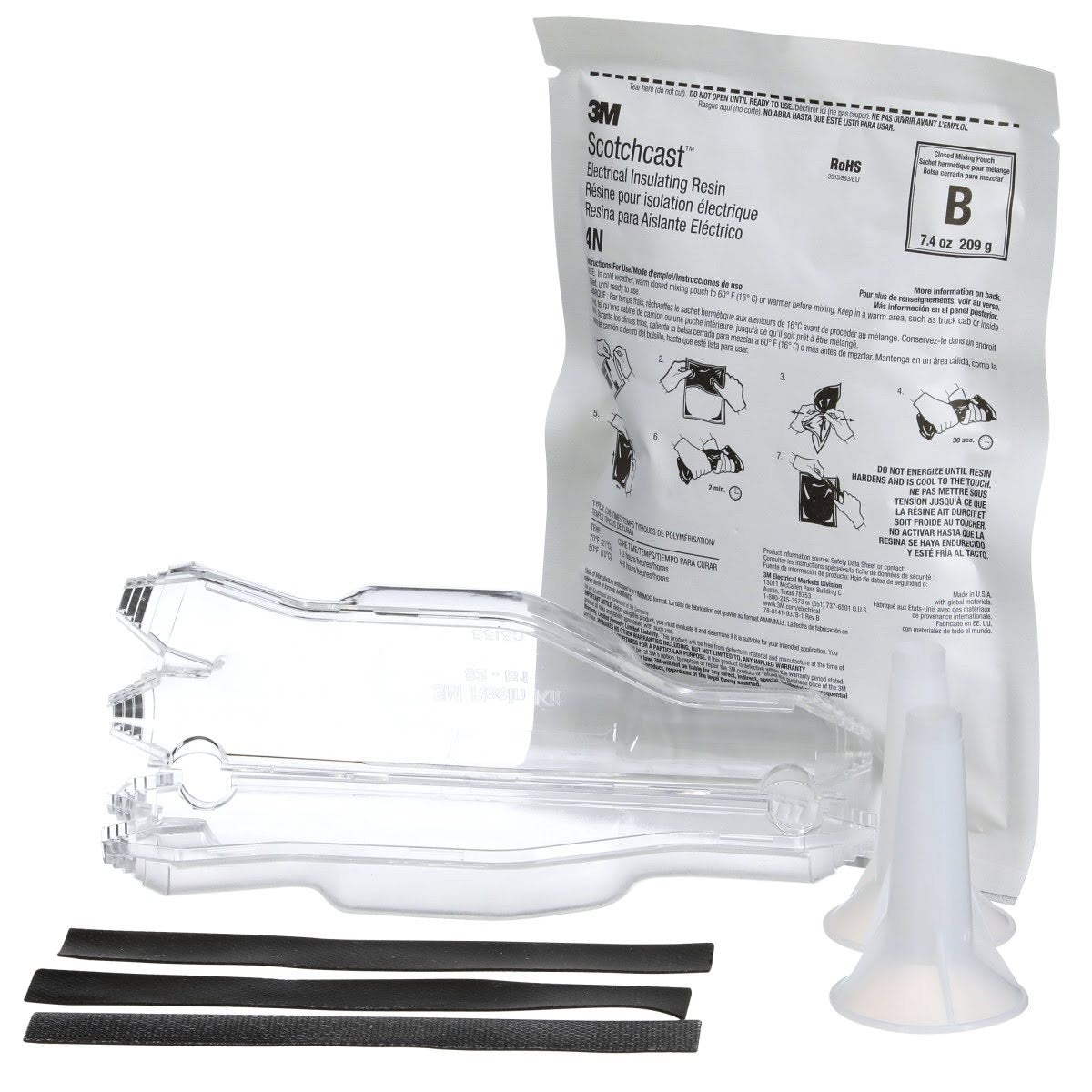

- (10) - 3M 7100123111 Scotchcast Wye Resin Splice Kit 82-B1N, 600-1000 V, Non-Shielded
3M 7100123111 Features
- Designed to insulate and seal wye splices for compression tap connectors (C tap or H tap)

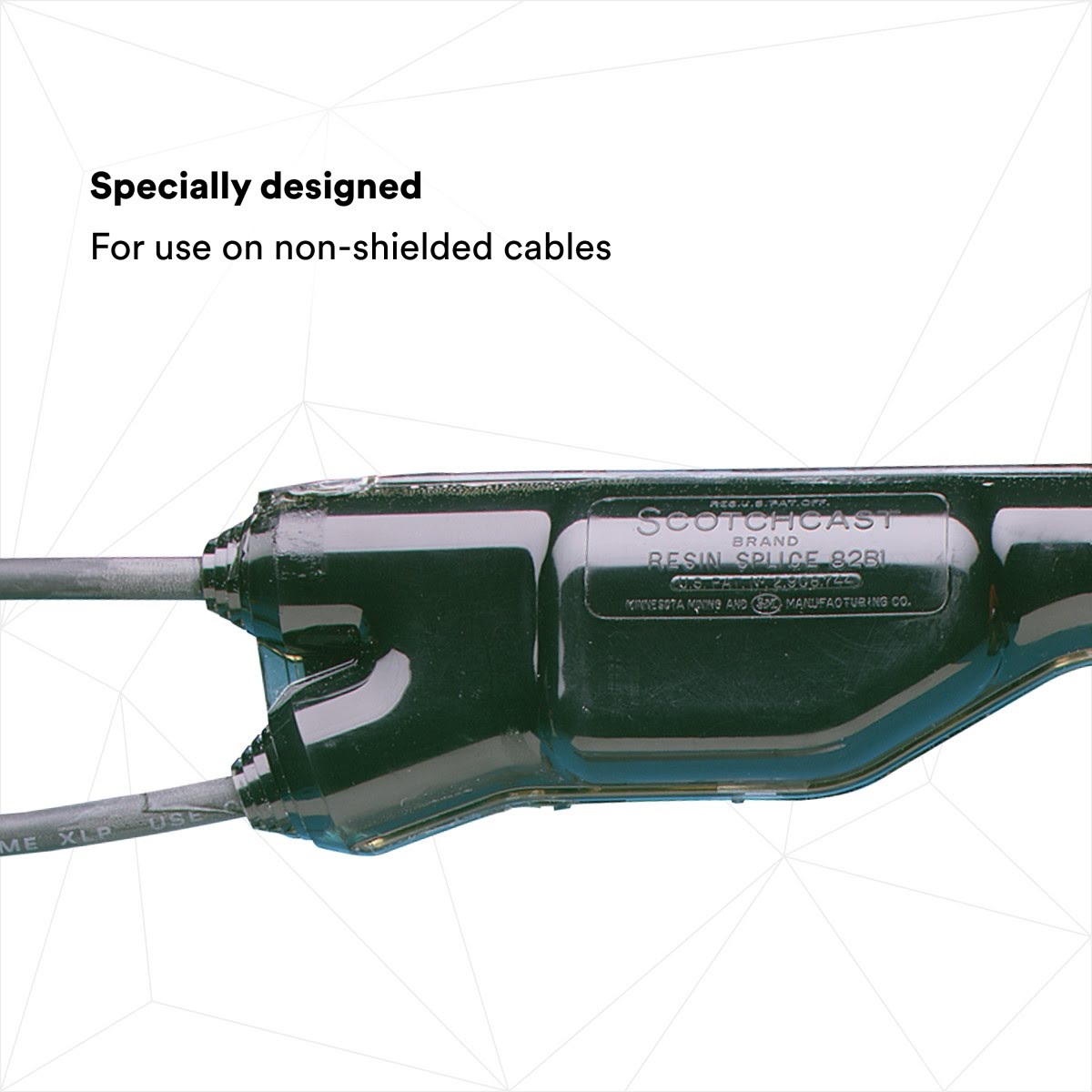

- For use on non-shielded cables

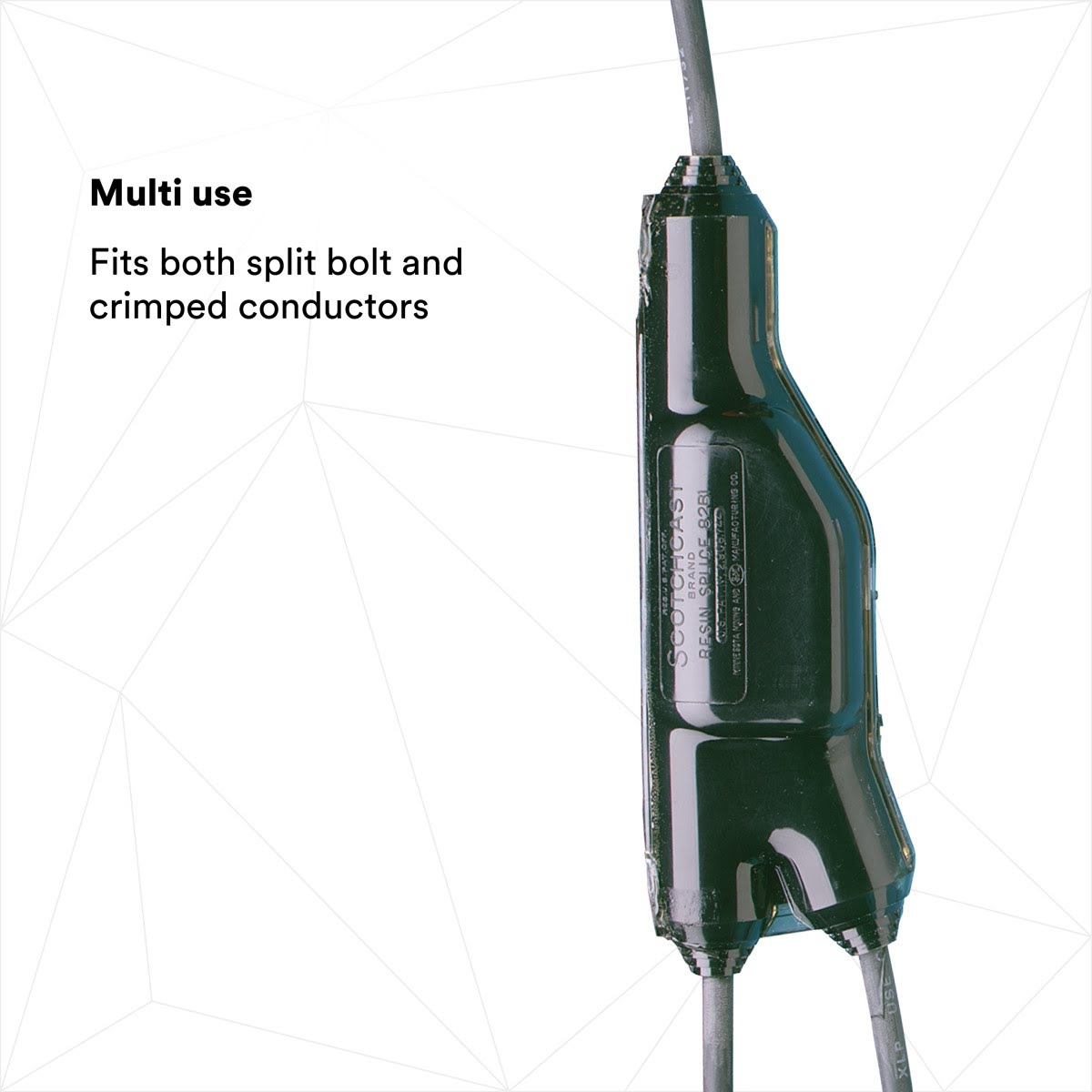

- Fits both split bolt and crimped conductors
- Provides sealing, electrical insulation and mechanical protection

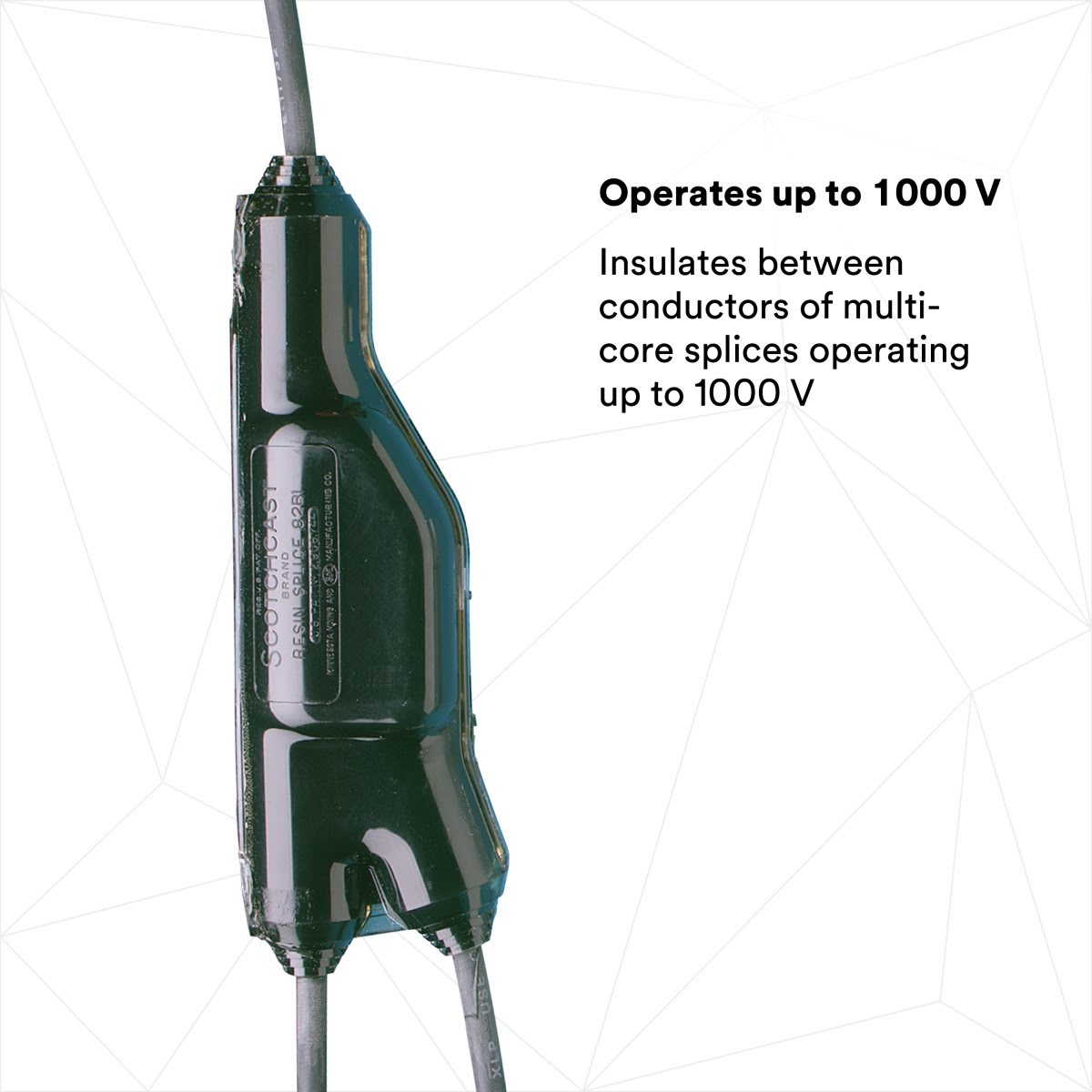

- Voltage rating: 5 kV single conductor and 1 kV multiple conductors
- Epoxy resin construction
- Black resin color

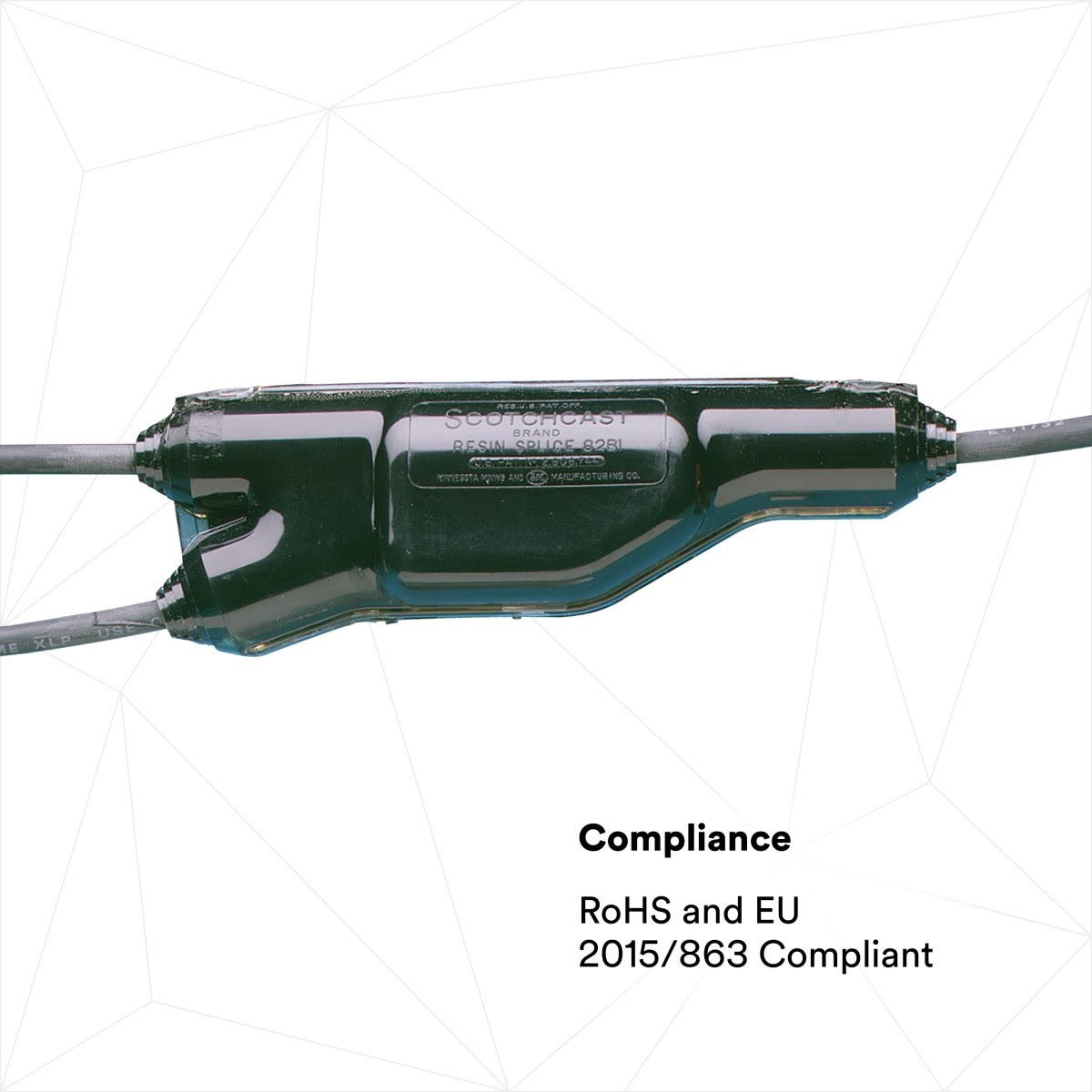

- RoHS 2011/65/EU compliant without exemption
3M 7100123111 Specifications
| Product Type | Splice Kit |
| Product Series | 82-B Series |
| Splice Type | Inline |
| Cable Type | Non-shielded |
| Voltage Rating | 5 kV (single), 1 kV (multiple) |
| Material | Epoxy |
| Product Color | Black |
| Insulation Outside Diameter Range | 0.250 - 0.625 in |
| Insulation Outside Diameter Range (Metric) | 6 - 16 mm |
| Minimum Conductor Size (Imperial) | 2/0 AWG |
| Maximum Conductor Size (Imperial) | 4/0 AWG |
| Maximum Conductor Size (Metric) | 120 mm2 |
| Application | Sealing, electrical insulation and mechanical protection |
| RoHS Compliance | RoHS 2011/65/EU compliant without exemption |
| Shelf Life | 36 Month |
