3M 7000031766 Description

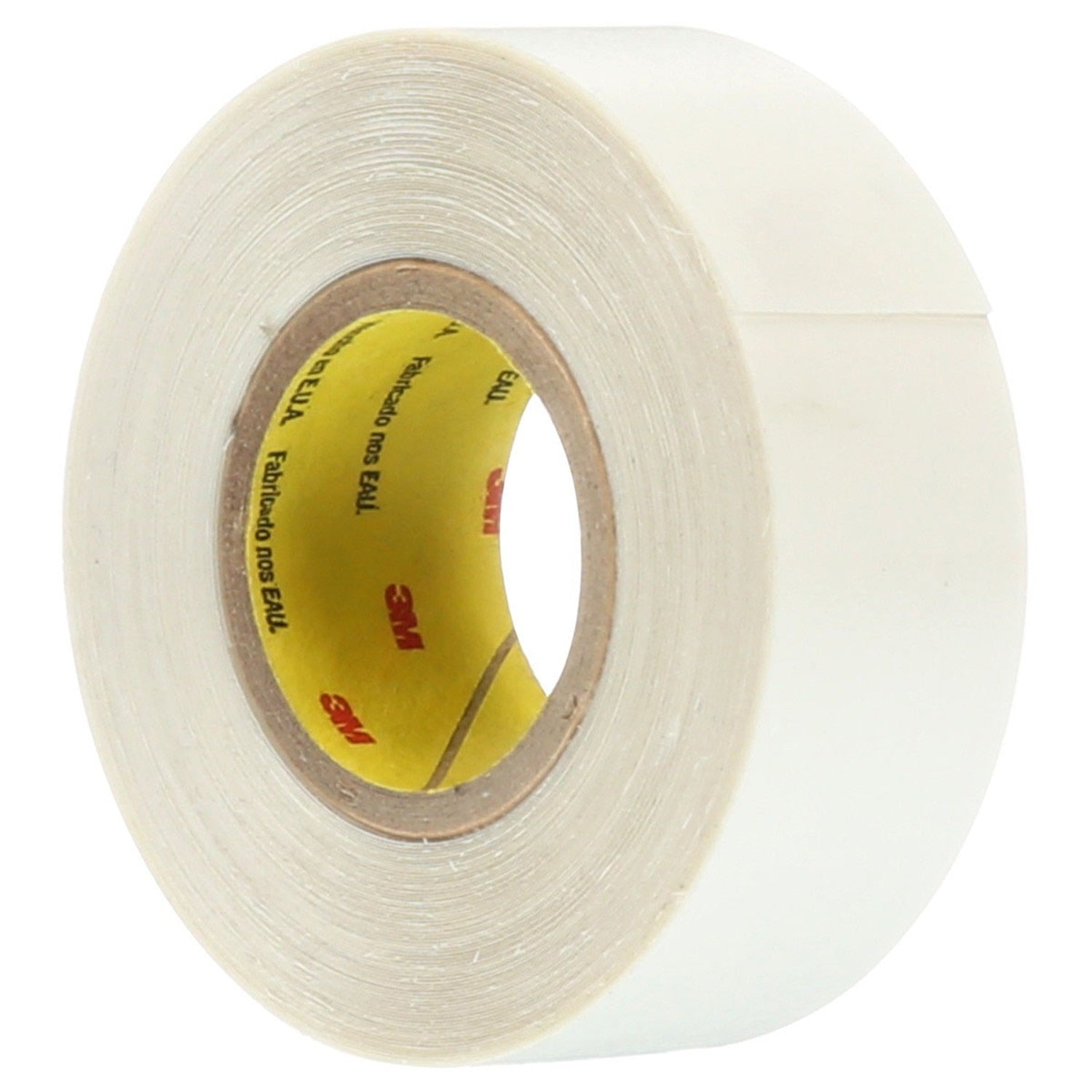

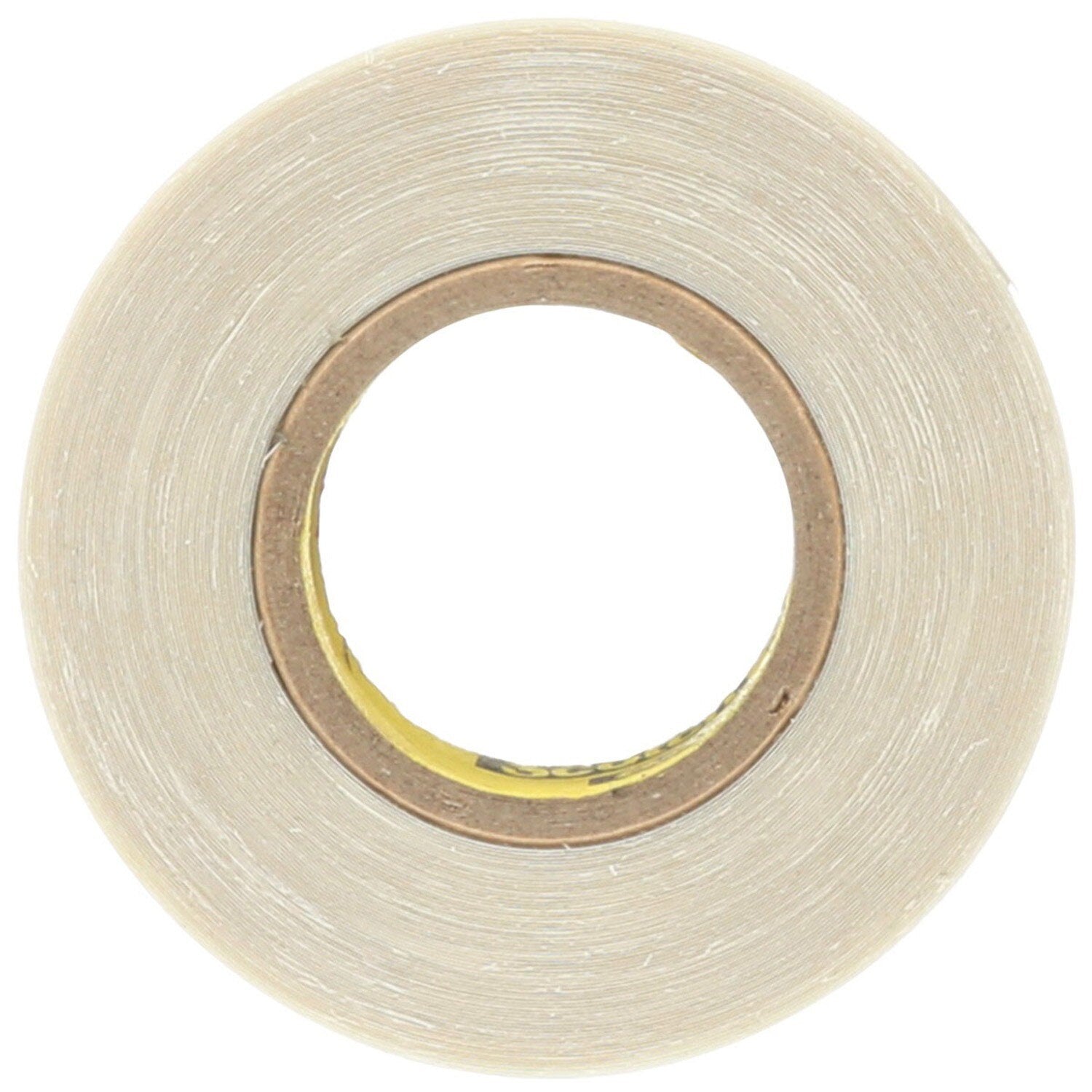

3M ScotchCode Wire Marker Tape Refill Roll SWD-R is a white tape refill for wire and cable identification. It features a high?tack acrylic adhesive that adheres firmly to insulation surfaces and resists solvents, oil, and water. The tape measures 0.75 in x 1.375 in and is rated up to 600 V for electrical identification applications.
3M 7000031766 Includes
- (10) - 3M 7000031766 ScotchCode Refill Roll SWD-R, 0.75 in x 1.375 in
3M 7000031766 Features
- High-tack acrylic adhesive resists solvents, oil, and water
- White wire marker tape refill for ScotchCode dispensers
- Adheres firmly to insulation surfaces
- Maximum recommended voltage rating: 600 V
- Operating temperature up to 176 F (80 C)
- Fits insulation outside diameters up to 0.145 in
- Overall width: 0.75 in (19 mm); label length: 1.375 in
- Material: Plastic; UV resistant: No
3M 7000031766 Specifications
| Brand | ScotchCode |
| Color | White |
| Adhesive Material | Acrylic |
| Marker Type | Dispenser |
| Dispenser/Marker Type | Tape Roll Refill |
| Marker ID Style | Pre-printed |
| Material | Plastic |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature (F) | 176 F |
| Maximum Operating Temperature (C) | 80 C |
| Maximum Insulation Outside Diameter | 0.145 in |
| Overall Width | 0.75 in (19 mm) |
| Label Length | 1.375 in |
| Overall Length (Metric) | 2.43 m |
| UV Resistant | No |
| UPC | 051128562208 |
| 3M ID | 7000031766 |
| Consumer Unit Dimensions (L x W x H) | 1.4 in x 2.95 in x 5.0 in |
| Consumer Unit Weight | 0.125 lb |
Toolup Part # :
860068
