3M 7010320675 Description

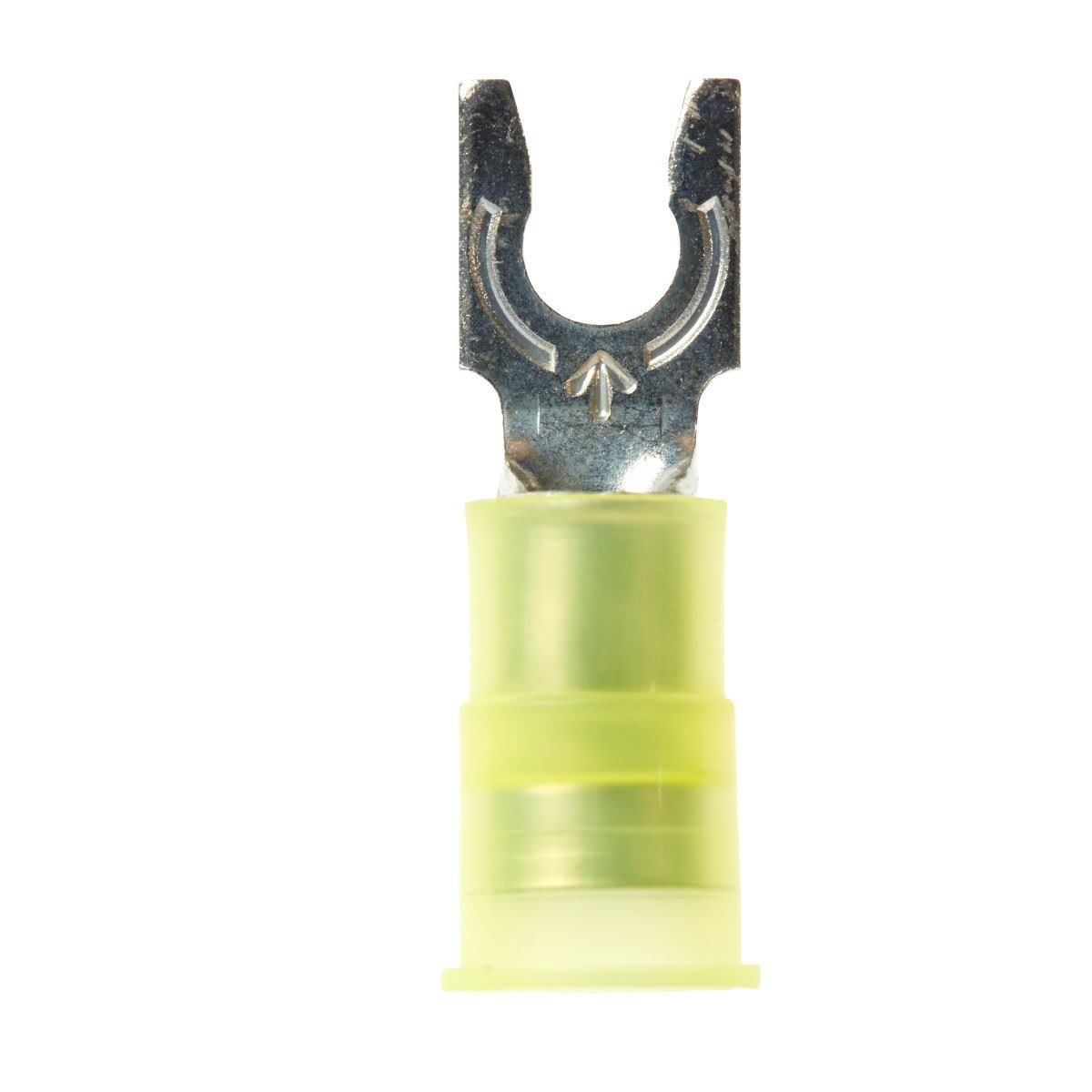

3M Locking Fork Terminal has a spring like tongue to securely lock around the stud. The terminal has a nylon insulated, butted seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin plated finish resists corrosion.
3M 7010320675 Includes
- (500) - 3M 7010320675 Scotchlok Locking Fork Nylon Insulated, MNG10-6FLX
3M 7010320675 Features
- Locking fork terminal with spring like tongue for secure fit around stud
- Nylon insulated butted seam barrel for reliable performance
- Funnel designed seamless brass sleeve helps guide wire insertion
- Electrolytic copper construction provides good conductivity
- Tin plated finish helps resist corrosion
- Withstands -40 to 221 degrees F (-40 to 105 degrees C)
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS 2011/65/EU compliant
3M 7010320675 Specifications
| Part Number | MNG10-6FLX |
| Terminal Type | Fork |
| Terminal Style | Locking |
| Stud Size | #6 |
| Wire Range | 12 to 10 AWG |
| Insulation Material | Nylon with Insulation Grip |
| Material | Electrolytic copper |
| Finish | Tin plated |
| Overall Length | 1.03 in |
| Overall Width | 0.28 in |
Toolup Part # :
860208
