3M 7000006223 Description

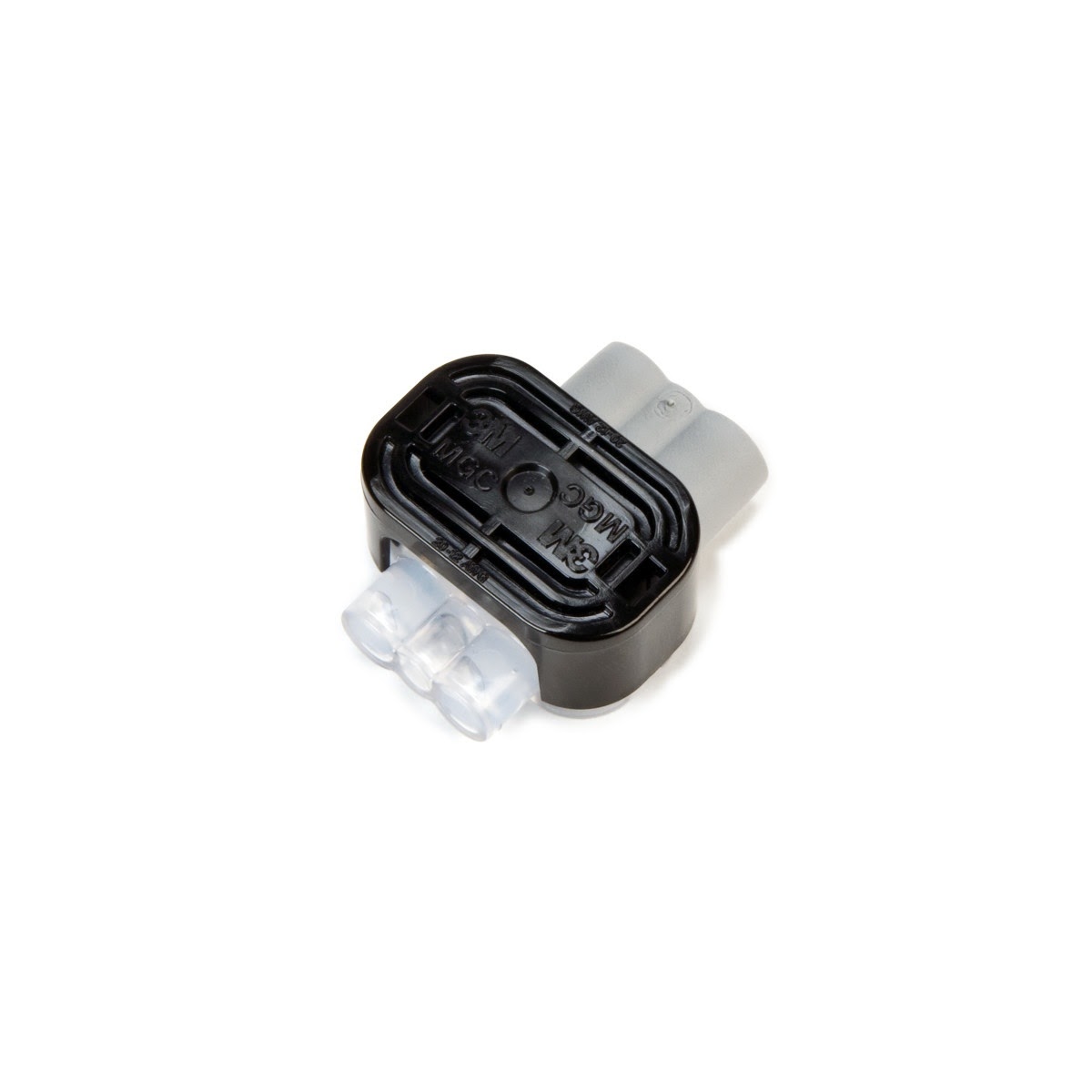

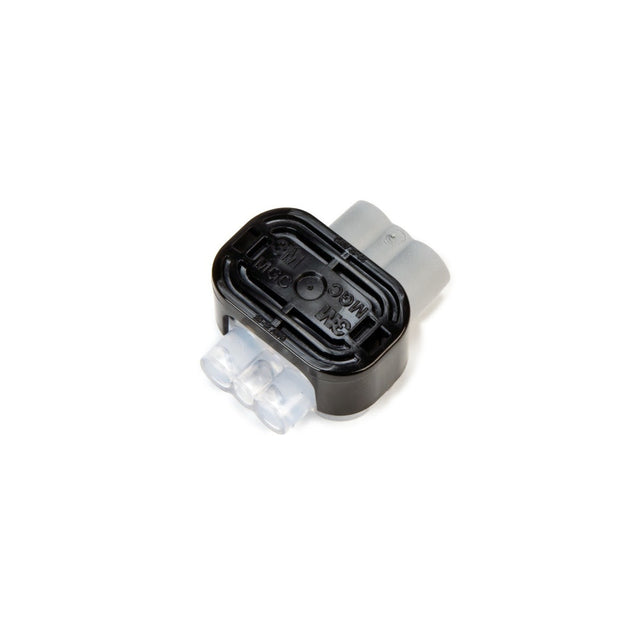

3M Scotchlok Moisture Guard Connector MGC provides a convenient, grease-filled connection for landscape irrigation and lighting wires, helping protect splices from moisture and UV exposure in above-ground applications.
3M 7000006223 Includes
- (400) Moisture Guard Connector
3M 7000006223 Features
- Mineral oil based grease helps protect connections from moisture
- Suitable for applications requiring moisture and UV protection
- Weather resistant polycarbonate housing for above ground applications
- Insulation displacement connector style for quick wire connections
- Accommodates 16 to 14 AWG solid stranded and 12 AWG stranded outer ports plus 18 AWG solid stranded and 20 AWG stranded inner port
- 600 V rated for building wire and 1000 V rated for signs fixtures and luminaires
- C UL Listed and RoHS 2011 65 EU compliant
3M 7000006223 Specifications
| Brand | Scotchlok |
| Product Type | Connector |
| Part Number | MGC-JUG |
| Connection Type | Moisture Guard |
| Connector Style | Insulation Displacement |
| Wire Connector Type | IDC Connectors |
| Material | Flame Retardant Polycarbonate |
| Moisture Resistant | Yes |
| Maximum Operating Temperature | 221 Degree Fahrenheit 105 Degree Celsius |
| Maximum Voltage Rating | 600 V 1000 V in signs lighting fixtures and luminaires |
| Conductor Sizes | 16 to 14 AWG solid stranded 12 AWG stranded outer ports 18 AWG solid stranded 20 AWG stranded inner port |
| Case Quantity | 400 per Case |
Toolup Part # :
853395
