At a Glance
Length
94 in
Width
1/4 in
Adhesive Type
Acrylic
Sub-Brand
ScotchCode
Material
Plastic
Application
Electrical
Description
Description
3M 7000058260 Description

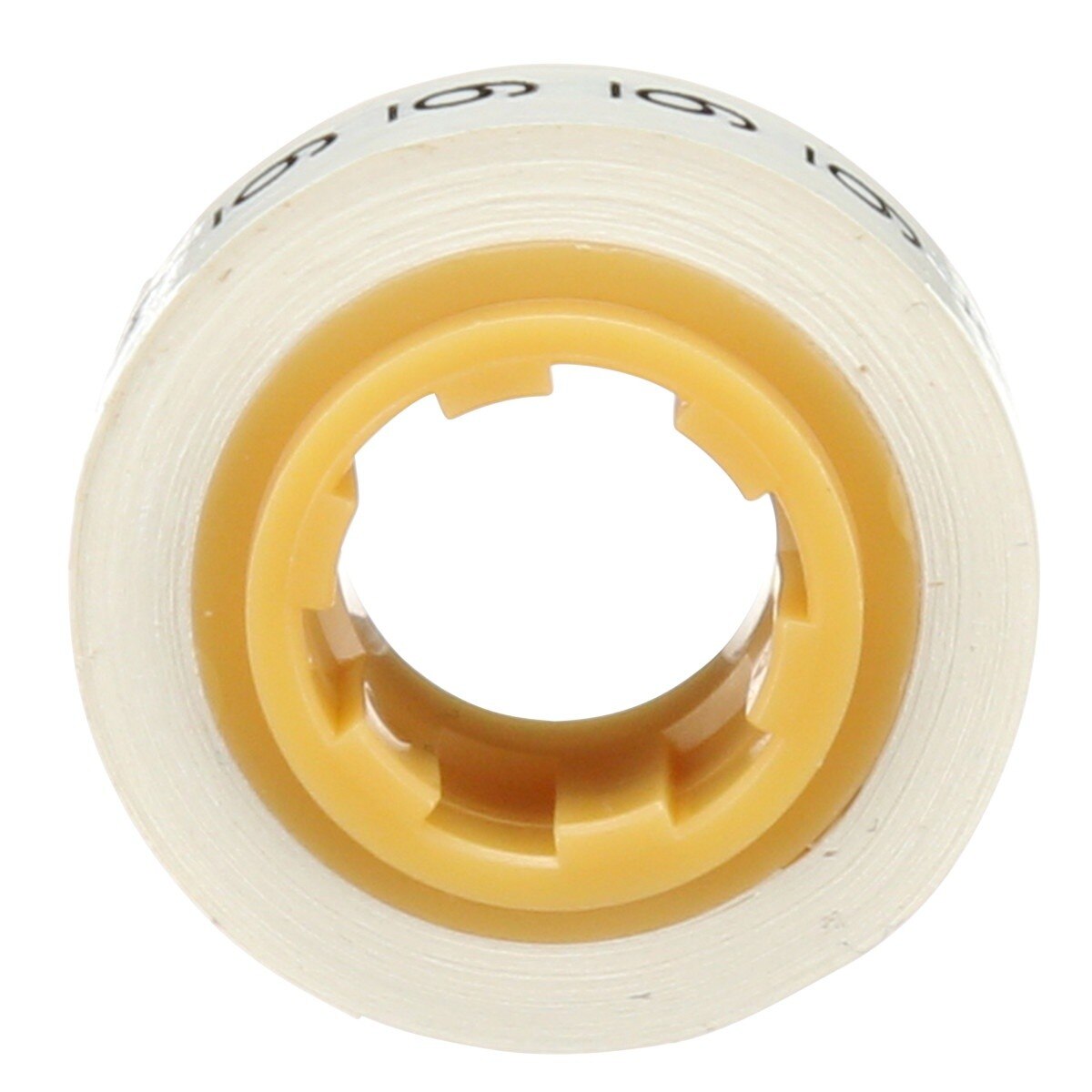

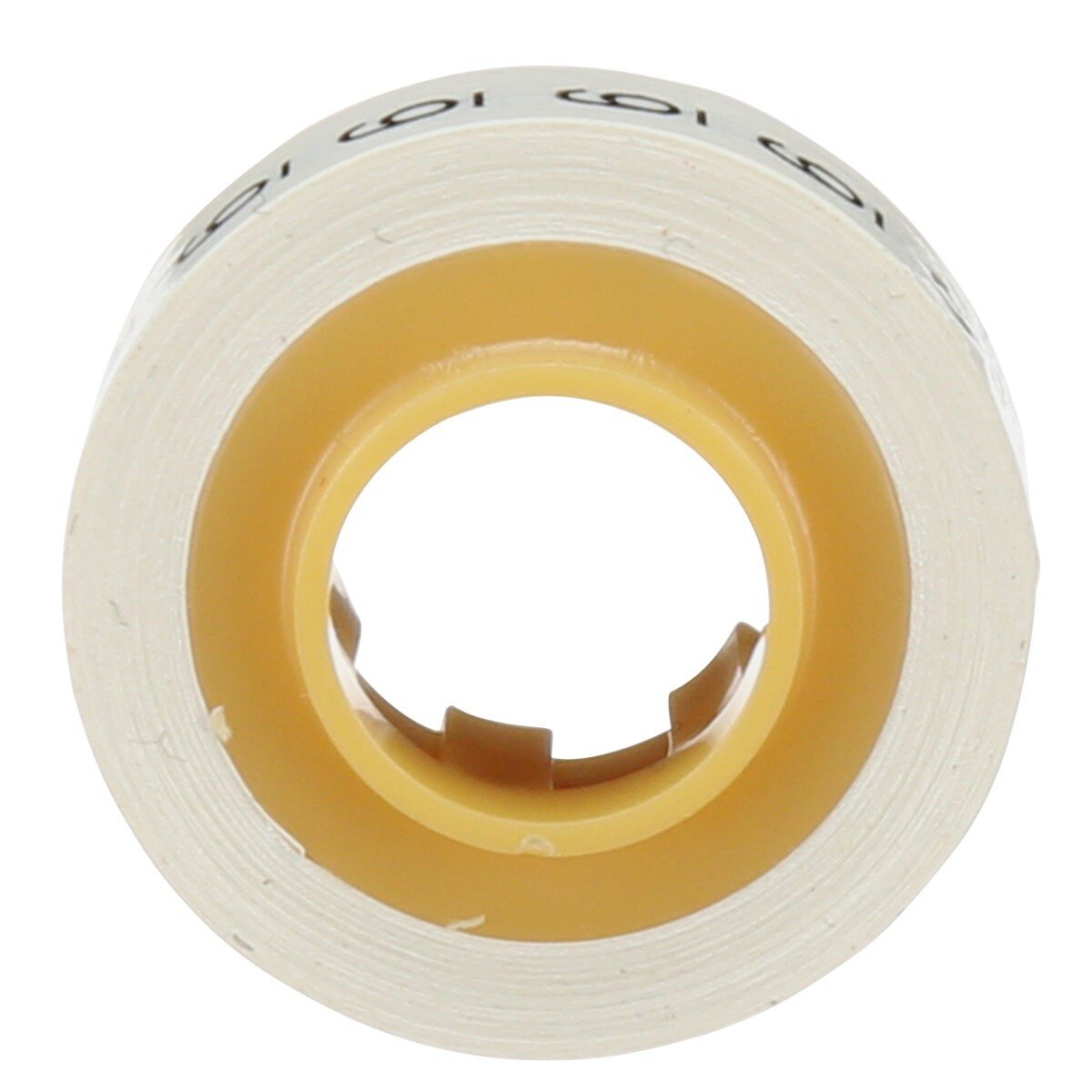

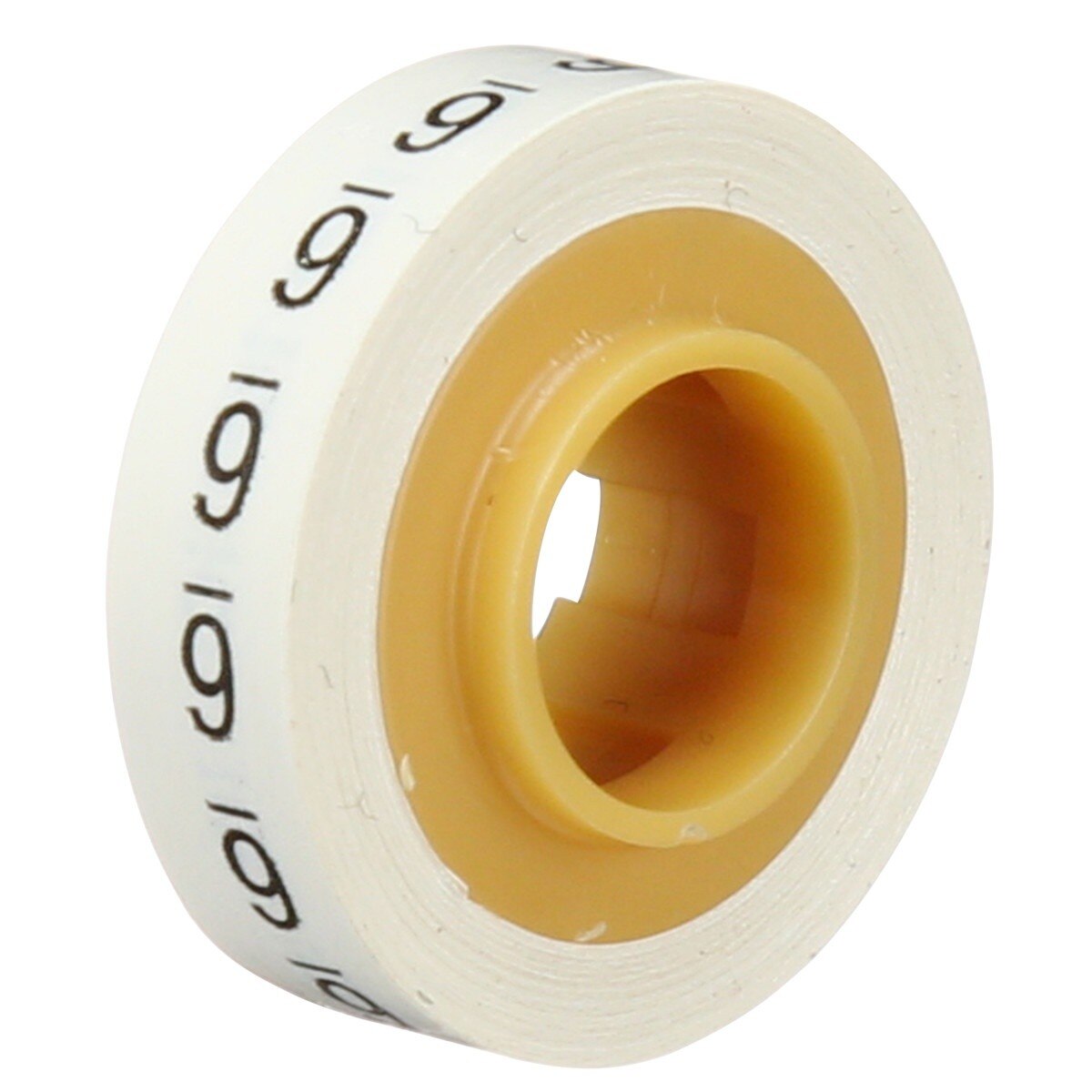

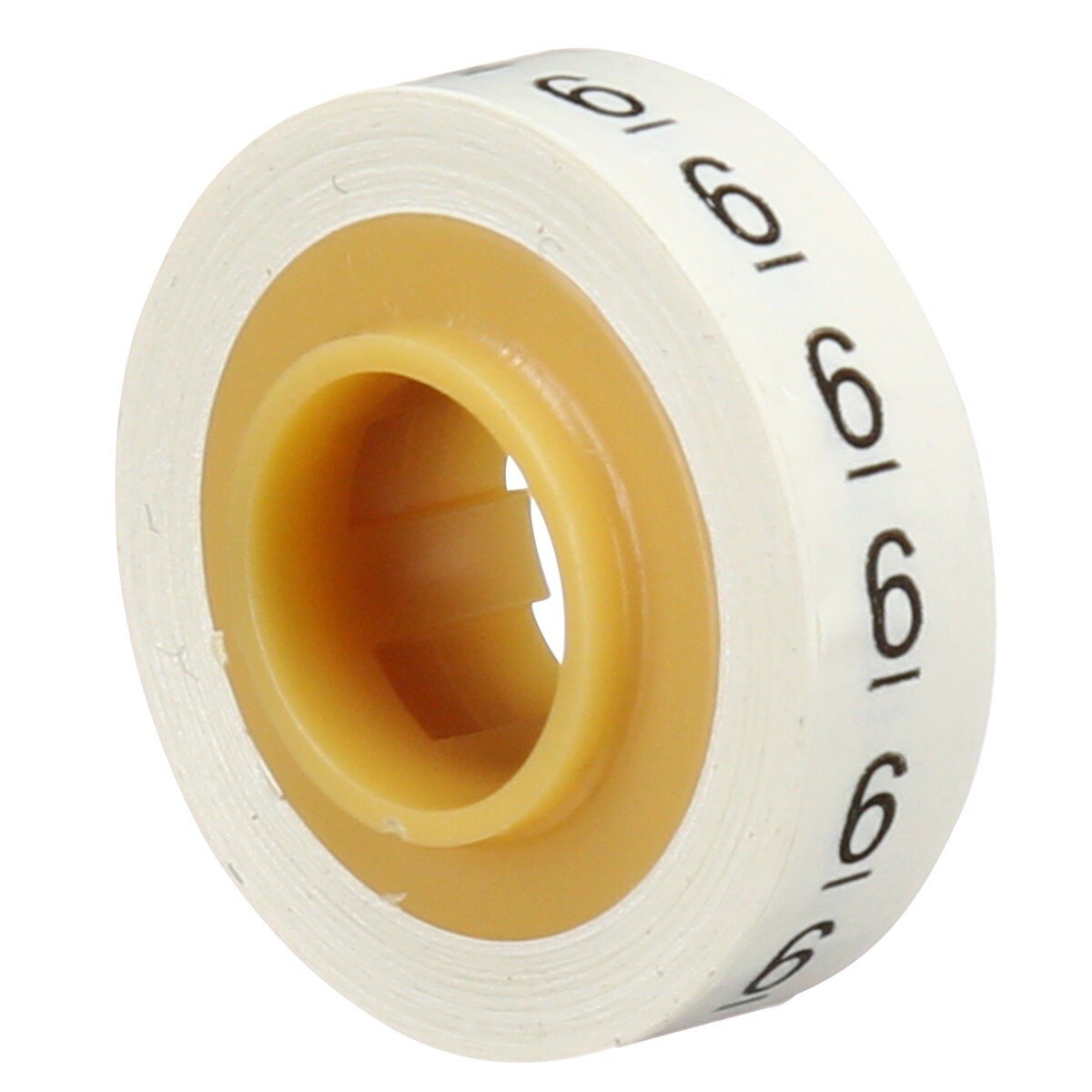

3M ScotchCode wire marker tape refill roll SDR-6 is a pre-printed white tape roll with black 6 legend for marking wire and cable. It uses a high tack acrylic adhesive that resists solvents, oil, and water and adheres firmly to insulation surfaces.
3M 7000058260 Includes
- (10) Wire Marker Tape Refill Roll, Legend 6
3M 7000058260 Features
- Pre-printed legend: 6 for fast wire and cable identification
- High tack acrylic adhesive adheres firmly to insulation surfaces
- Resists solvents, oil, and water
- Operating temperature range: -40 Degree F to 250 Degree F
- White tape with black legend for clear readability
- Maximum recommended voltage rating: 600 V
3M 7000058260 Specifications
| Part Number | SDR-6 |
| Product Type | Identification |
| Global Product Hierarchy | Wire Marker Tapes |
| Application | Marking Wire and Cable |
| Dispenser/Marker Type | Tape Roll Refill |
| Marker ID Style | Pre-printed |
| Legend | 6 |
| Printed Text Type | Number - 6 |
| Tape Color | White |
| Color Family | White |
| Legend Color | Black, White |
| Adhesive Material | Acrylic |
| Material | Plastic |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Insulation Outer Diameter (Metric) | 3.7 mm |
| Overall Length (Metric) | 2.4 m |
| Overall Width (Metric) | 5.46 mm |
| Maximum Operating Temperature (Fahrenheit) | 250.0 Degree Fahrenheit |
| Maximum Operating Temperature (Celsius) | 121.0 Degree Celsius |
| Maximum Recommended Voltage Rating | 600.0 V |
| UV Resistant | No |
| RoHS | RoHS 2011/65/EU compliant without exemption |
Toolup Part # :
849401
