3M 7100042492 Description

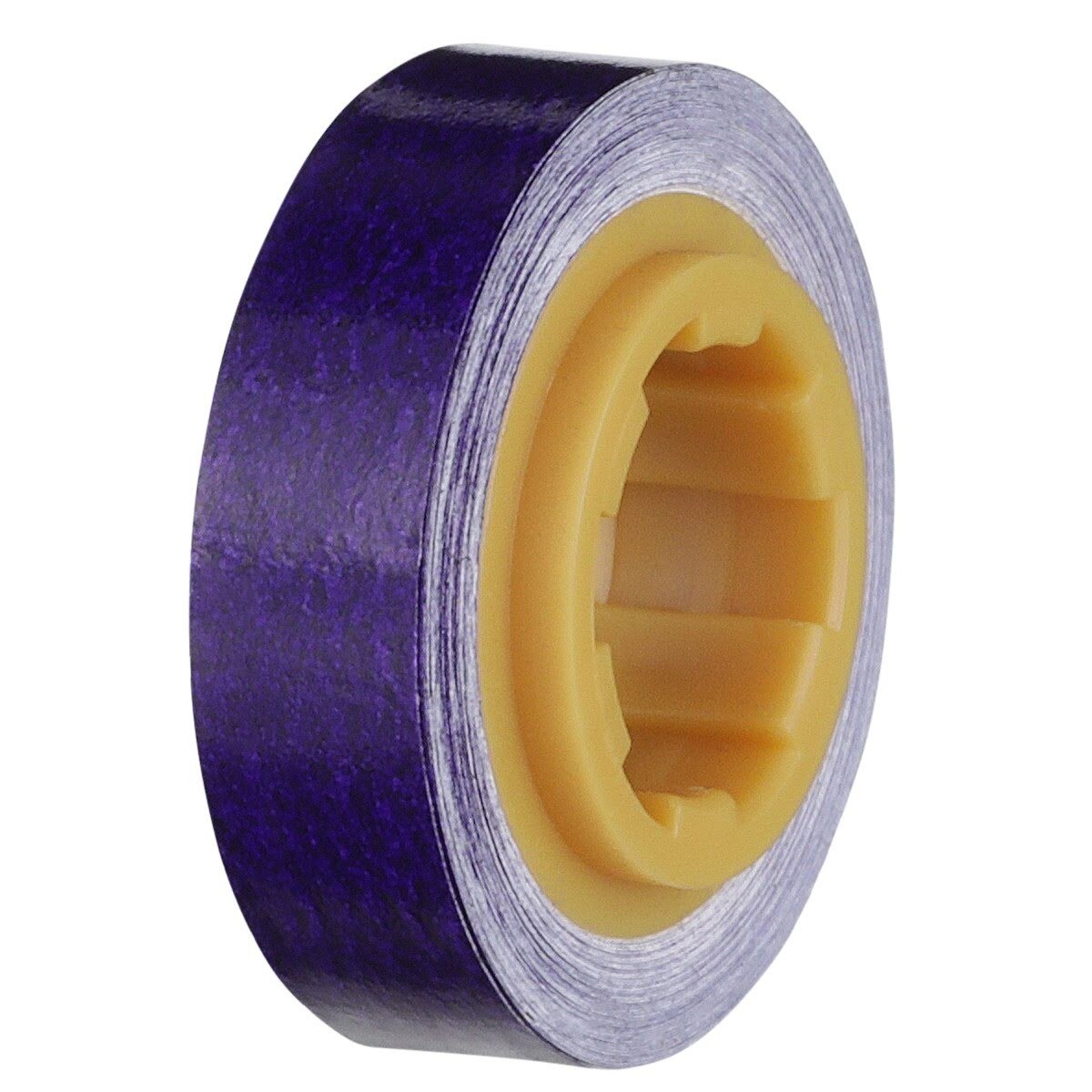

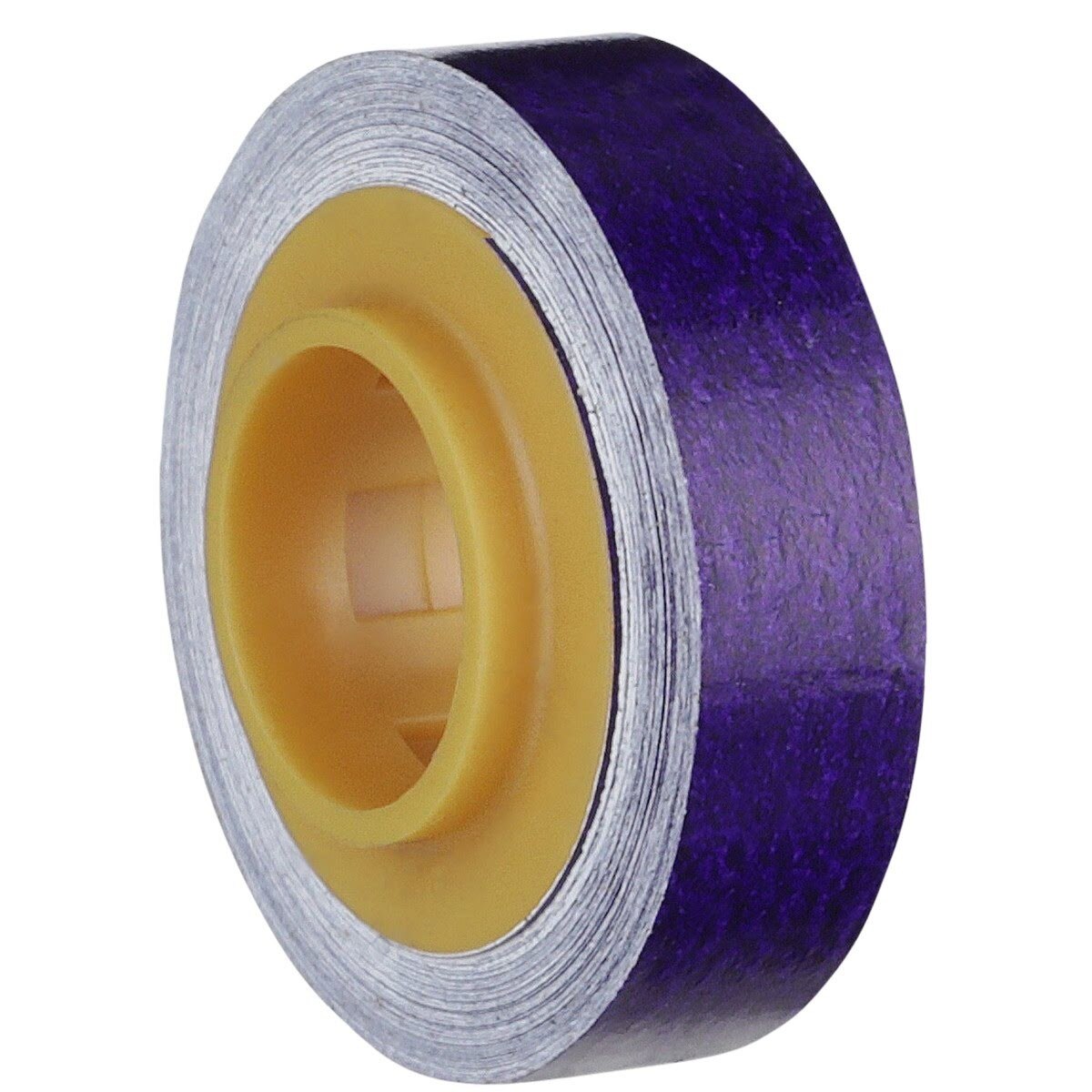

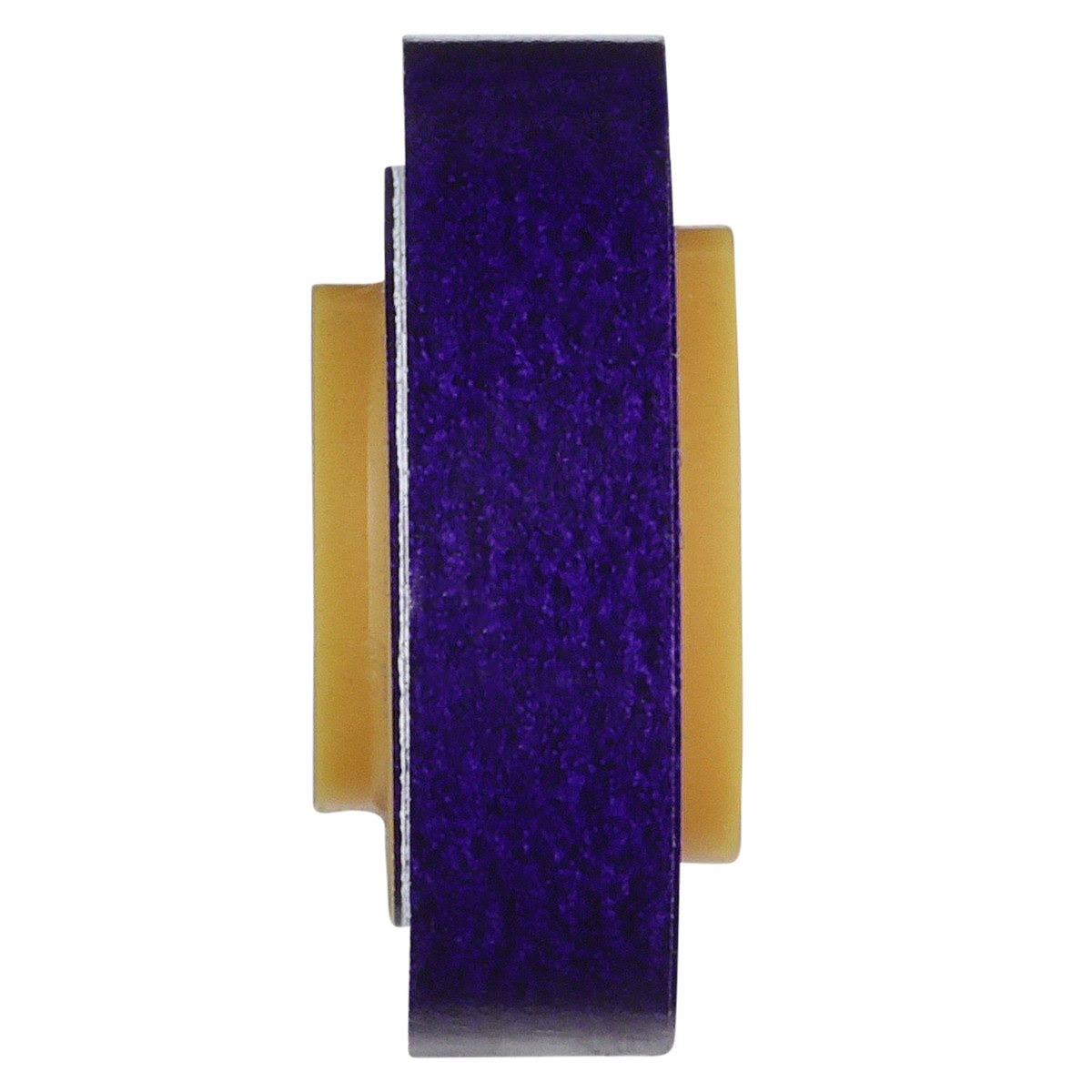

3M ScotchCode wire marker tape refill rolls help identify wires and cables with a high tack acrylic adhesive that resists solvents, oil, and water and adheres firmly to insulation surfaces.
3M 7100042492 Includes

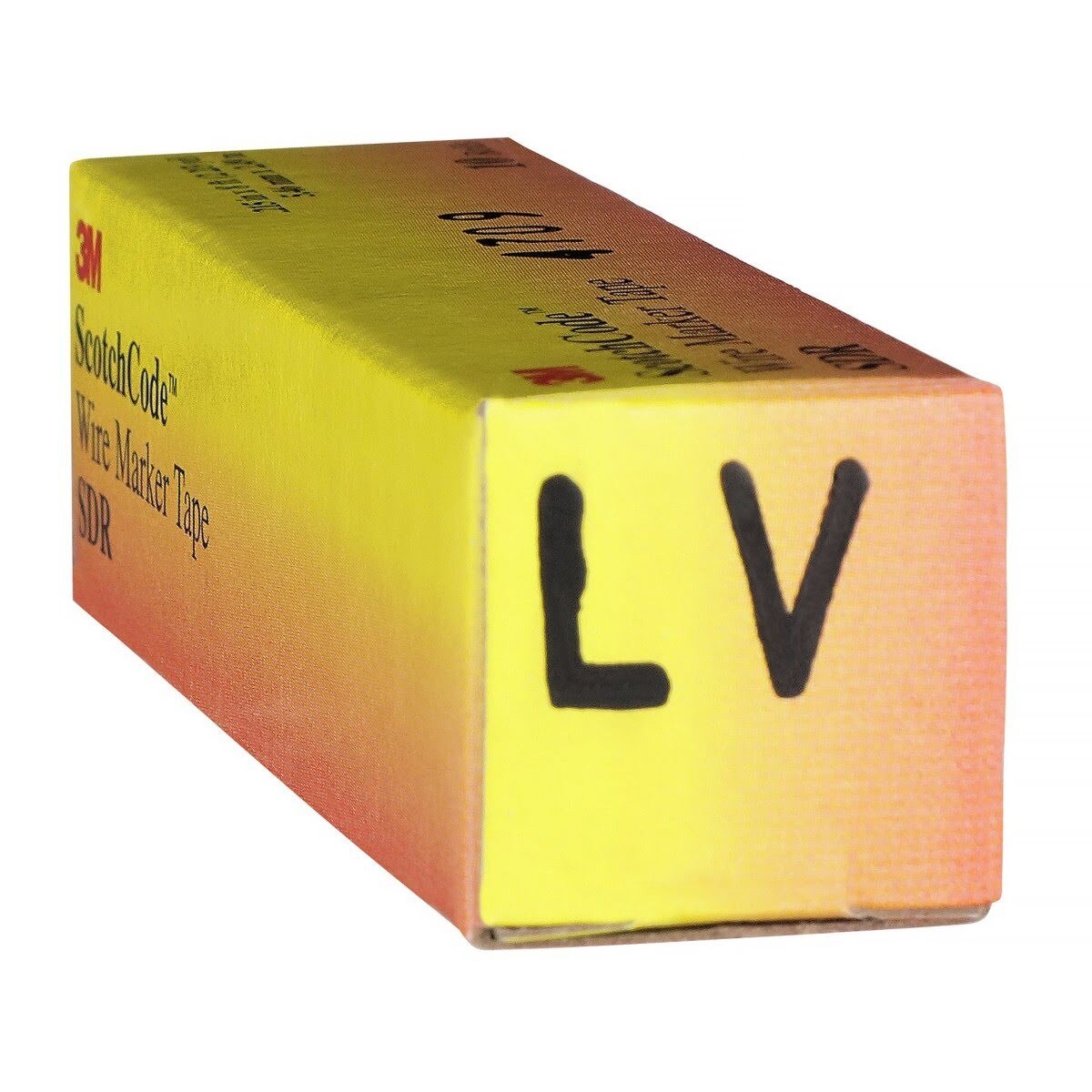

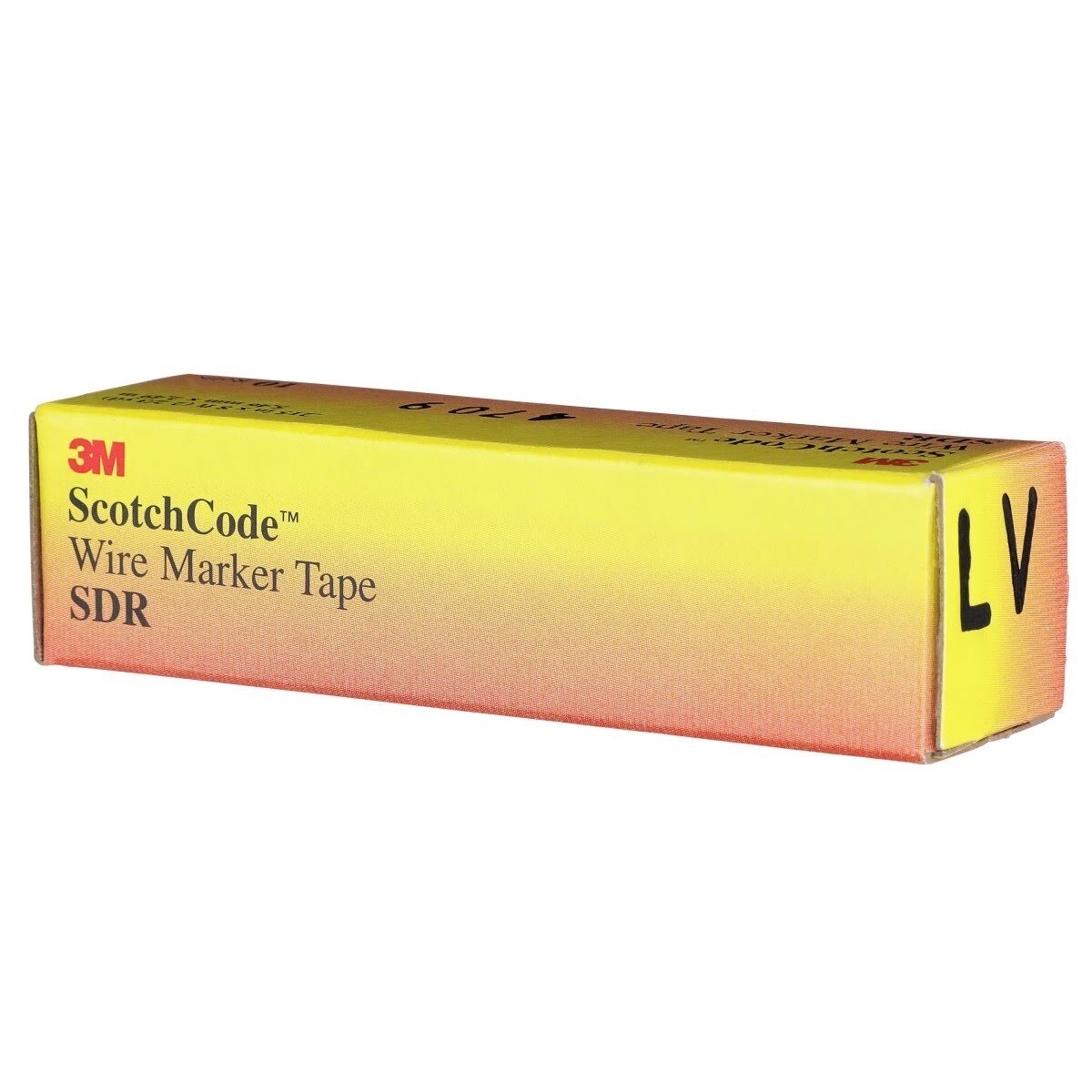

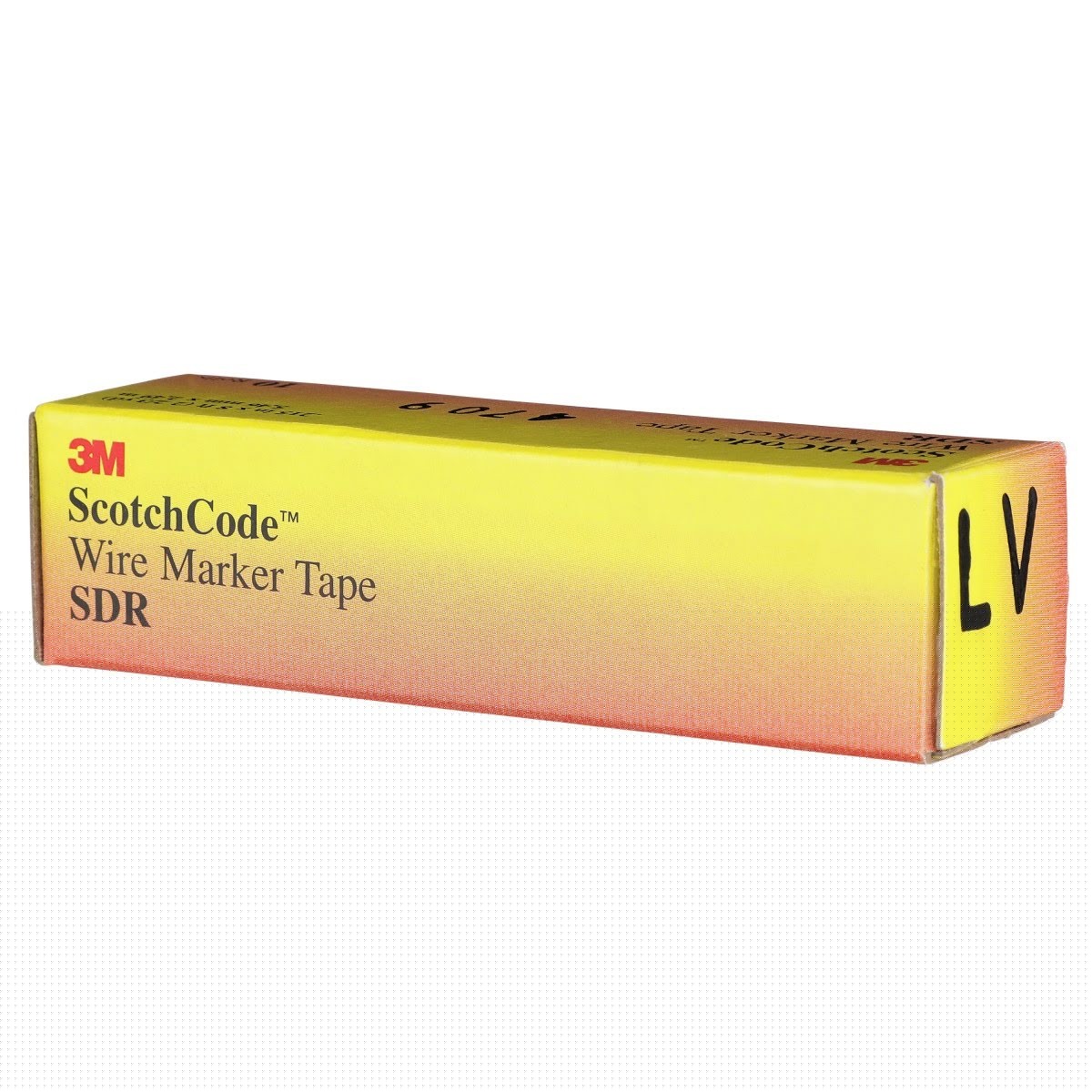

- (10) 3M ScotchCode Wire Marker Tape Refill Roll, SDR-VL, Violet
3M 7100042492 Features
- Wire marker tape refill roll for marking wire and cable
- High tack acrylic adhesive resists solvents, oil, and water
- Adheres firmly to insulation surfaces
- Usable operating temperature range -40 Degree Celsius to 121 Degree Celsius
- Maximum recommended voltage rating 600 V
- Pre-printed marker ID style
- Cut length to suit
3M 7100042492 Specifications
| Product Type | Wire Marker Tape Refill Roll |
| Part Number | SDR-VL |
| Application | Marking Wire and Cable |
| Adhesive Material | Acrylic |
| Tape Color | Violet |
| Legend Color | Violet |
| Color Family | Purple |
| Material | Plastic |
| Marker ID Style | Pre-printed |
| Marker Size | Cut Length to Suit |
| Dispenser/Marker Type | Tape Roll Refill |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Insulation Outer Diameter (Metric) | 3.7 mm |
| Maximum Operating Temperature | 250 Degree Fahrenheit |
| Maximum Operating Temperature (Metric) | 121 Degree Celsius |
| Maximum Recommended Voltage Rating | 600 V |
| Operating Temperature Range (Celsius) | -40 Degree Celsius to 121 Degree Celsius |
| UV Resistant | No |
| Shelf Life | 720 days |
