3M 7000031540 Description

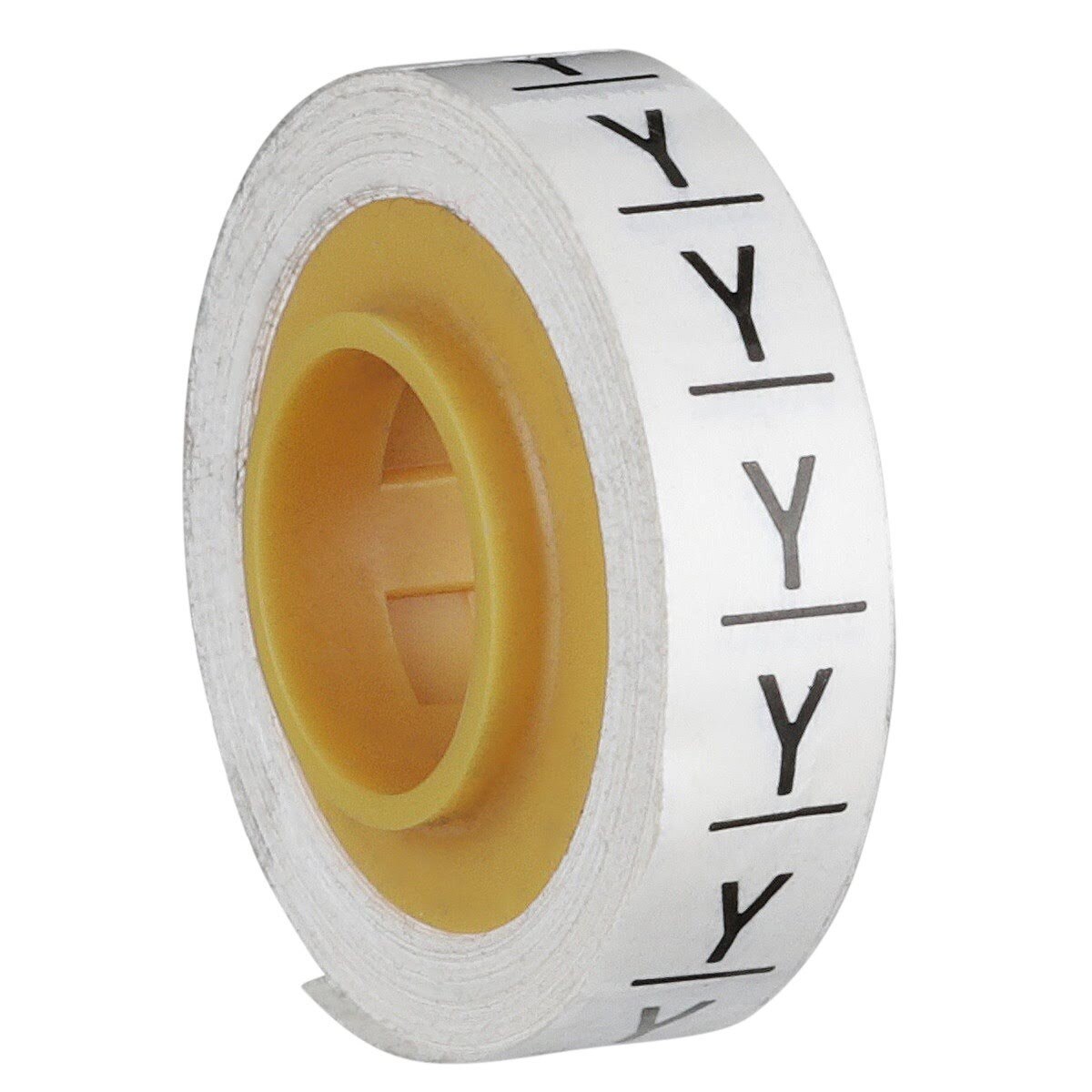

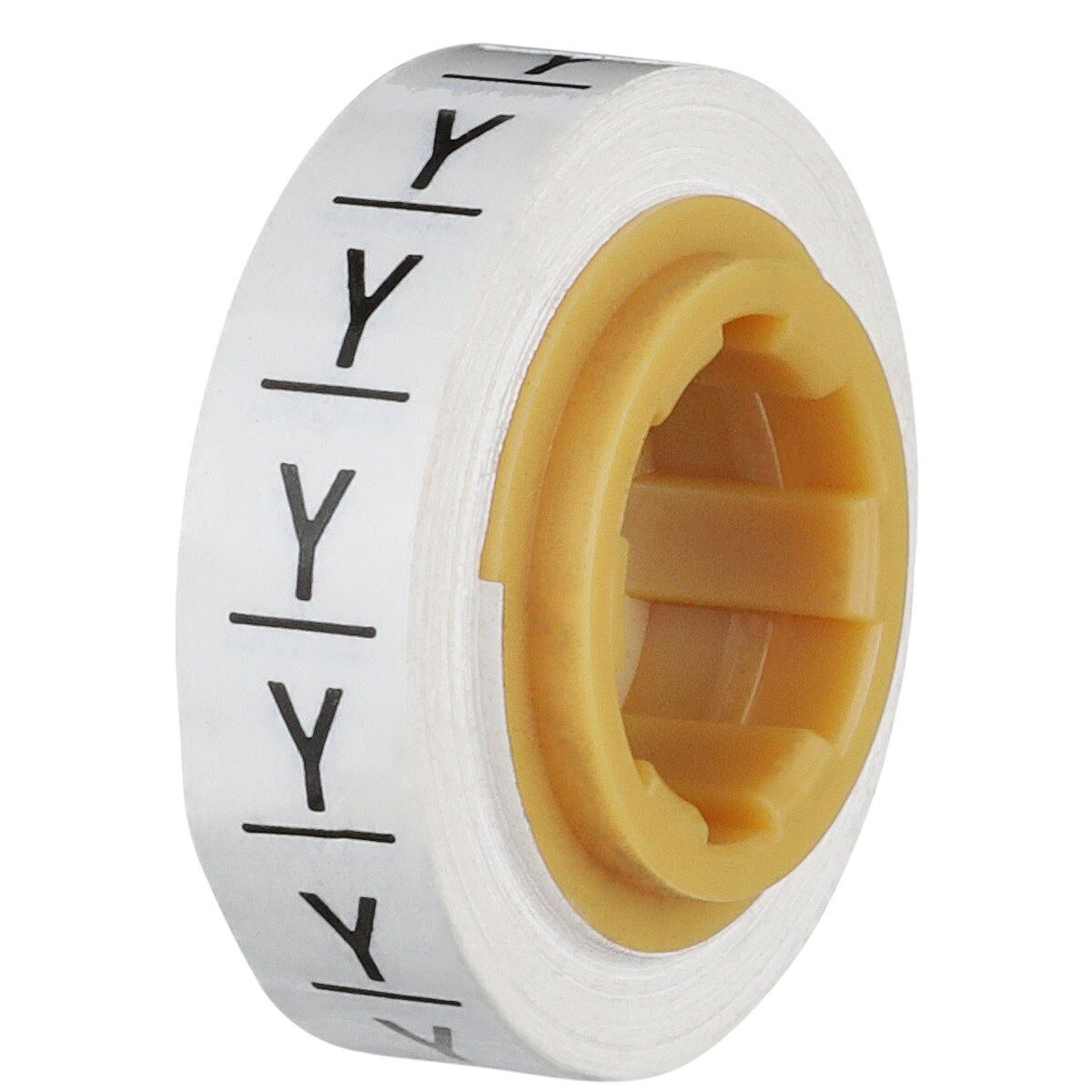

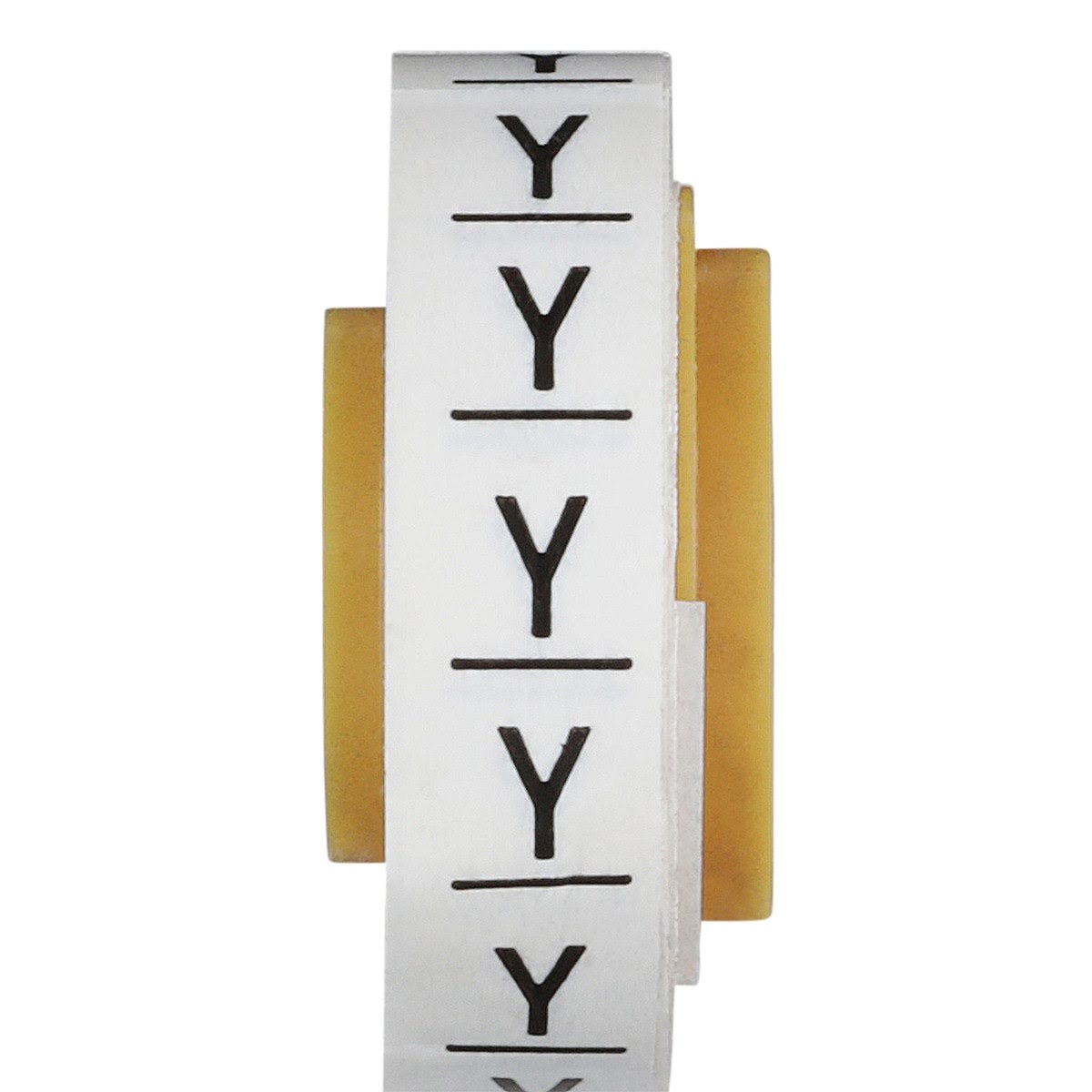

3M ScotchCode Wire Marker Tape Refill Roll SDR-Y is a pre-printed wire and cable identification tape roll designed to adhere firmly to insulation surfaces. It features a high tack acrylic adhesive that resists solvents, oil, and water for durable, long-lasting labeling.
3M 7000031540 Includes
- (50) 3M ScotchCode Wire Marker Tape Refill Roll SDR-Y
3M 7000031540 Features
- Pre-printed letter Y legend for wire and cable identification
- High tack acrylic adhesive resists solvents, oil, and water
- Adheres firmly to insulation surfaces
- Operates in temperatures from -40 Degree F to 250 Degree F
- White tape with black printed legend
- Designed as a tape roll refill for wire marker systems
- RoHS 2011/65/EU compliant without exemption
- Maximum recommended voltage rating of 600 V
3M 7000031540 Specifications
| Part Number | SDR-Y |
| Product Type | Identification |
| Application | Marking Wire and Cable |
| Dispenser or Marker Type | Tape Roll Refill |
| Marker ID Style | Pre-printed |
| Printed Text Type | Letter - Y |
| Legend | Y |
| Color Family | White |
| Tape Color | White |
| Legend Color | White |
| Adhesive Material | Acrylic |
| Material | Plastic |
| Overall Length | 2.4 m |
| Overall Width | 5.46 mm |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 250.0 Degree Fahrenheit |
| Maximum Recommended Voltage Rating | 600.0 V |
| UV Resistant | No |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| SAP Shelf Life In Days | 720 |
Toolup Part # :
852407
