At a Glance
Length
12 in
Sub-Brand
Scotchlok
Material
Vinyl
Application
Electrical
Description
Description
3M 7000132746 Description

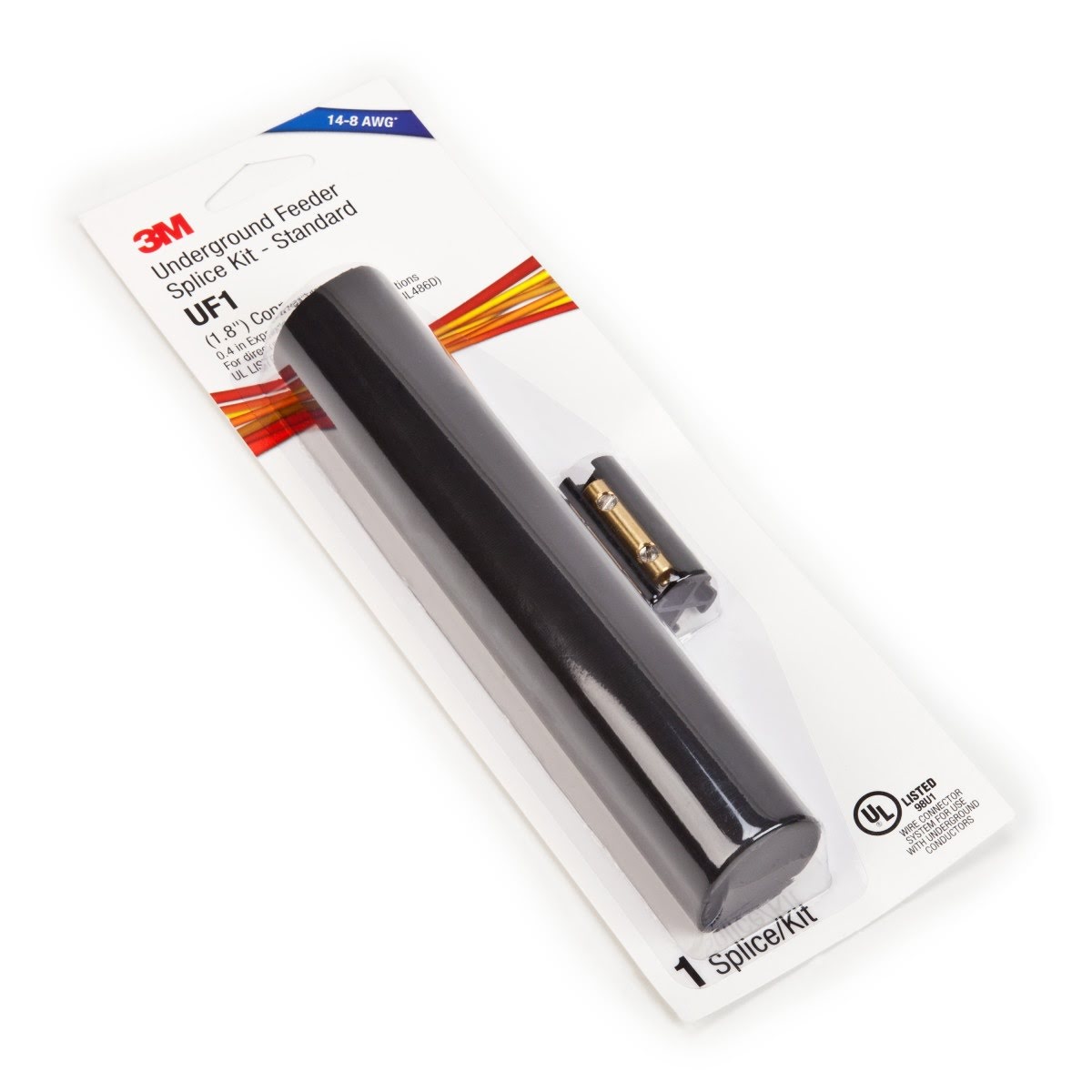

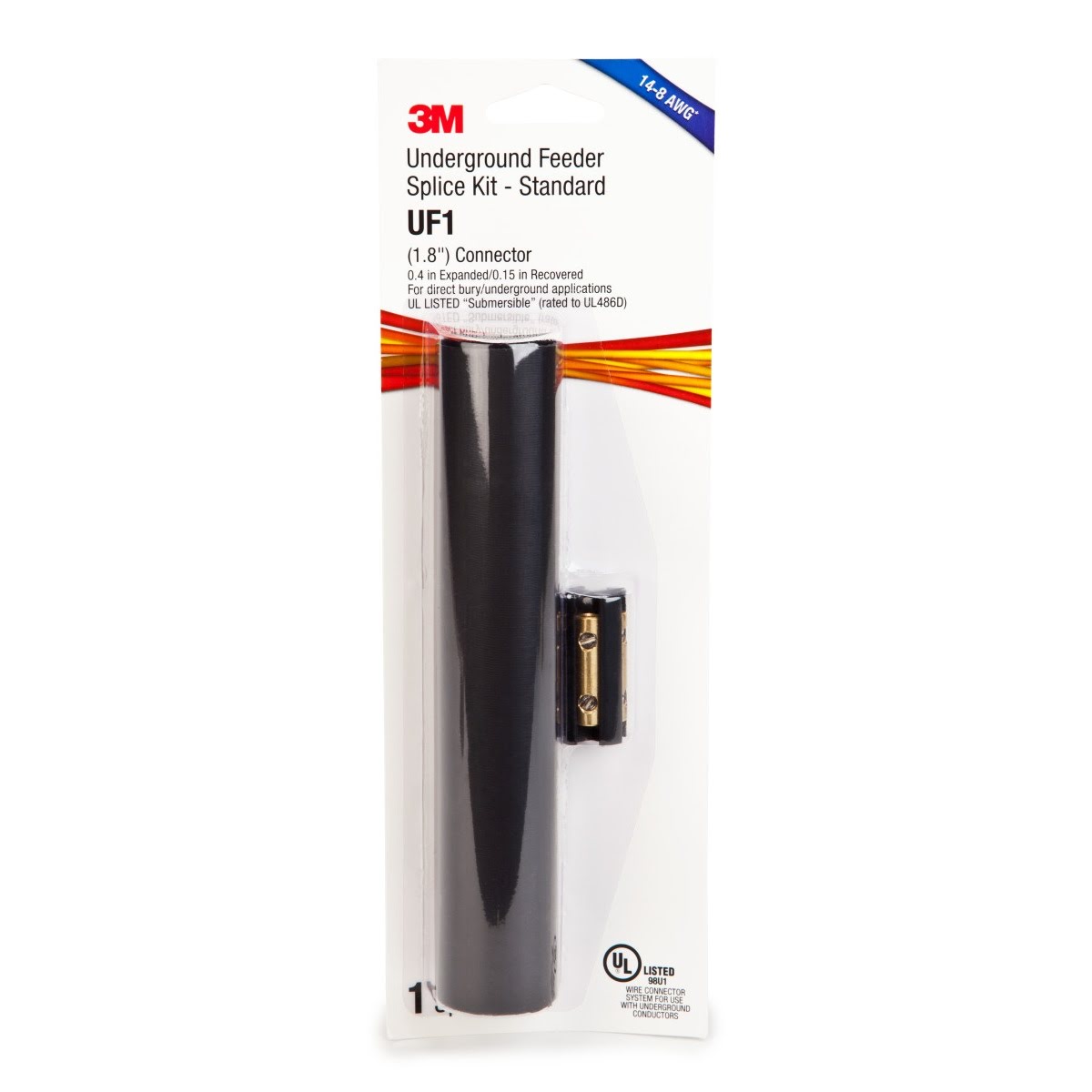

The 3M UF1 Standard Splice Kit provides a reliable moisture proof electrical connection for UF B underground feeder cable. The kit includes a connector insulation assembly and a heavy wall adhesive lined heat shrink tube for direct bury and underground applications, and is rated for 600V use.
3M 7000132746 Includes
- (6) - 3M 7000132746 Splice Kit UF1 Standard, 1.8 in (45,7 mm) connector, 8.0 in (203,2 mm) heat shrink tube (UF1-SPLICE KIT)
3M 7000132746 Features
- Moisture proof electrical connection for type UF B underground feeders
- Designed for flat non shielded UF cables
- Heavy wall adhesive lined heat shrink tubing for high moisture protection
- Connector assembly includes four cylindrical set screw connectors separated by vinyl insulation
- Rated for 600V applications
- Withstands temperature range from -67 to 230 Degree F (-55 to 110 Degree C)
- UL Listed and RoHS 2011/65/EU compliant
- For direct bury and underground applications
- Wire range 14 to 8 AWG
3M 7000132746 Specifications
| Product Type | Splice |
| Series | UF |
| Part Number | UF1-SPLICE KIT |
| Connector Length | 1.8 in (45,7 mm) |
| Heat Shrink Tube Length | 8.0 in (203,2 mm) |
| Voltage Rating | 0.6/1 kV |
| Wire Range | 14 to 8 AWG |
| Temperature Range | -67 to 230 Degree F (-55 to 110 Degree C) |
| UL Listed | Yes |
| RoHS Compliant | Yes |
| Product Length (in) | 12.0 |
| Product Width (in) | 4.0 |
| Product Height (in) | 1.75 |
| Product Weight (lbs) | 0.205 |
