3M 7100127163 Description

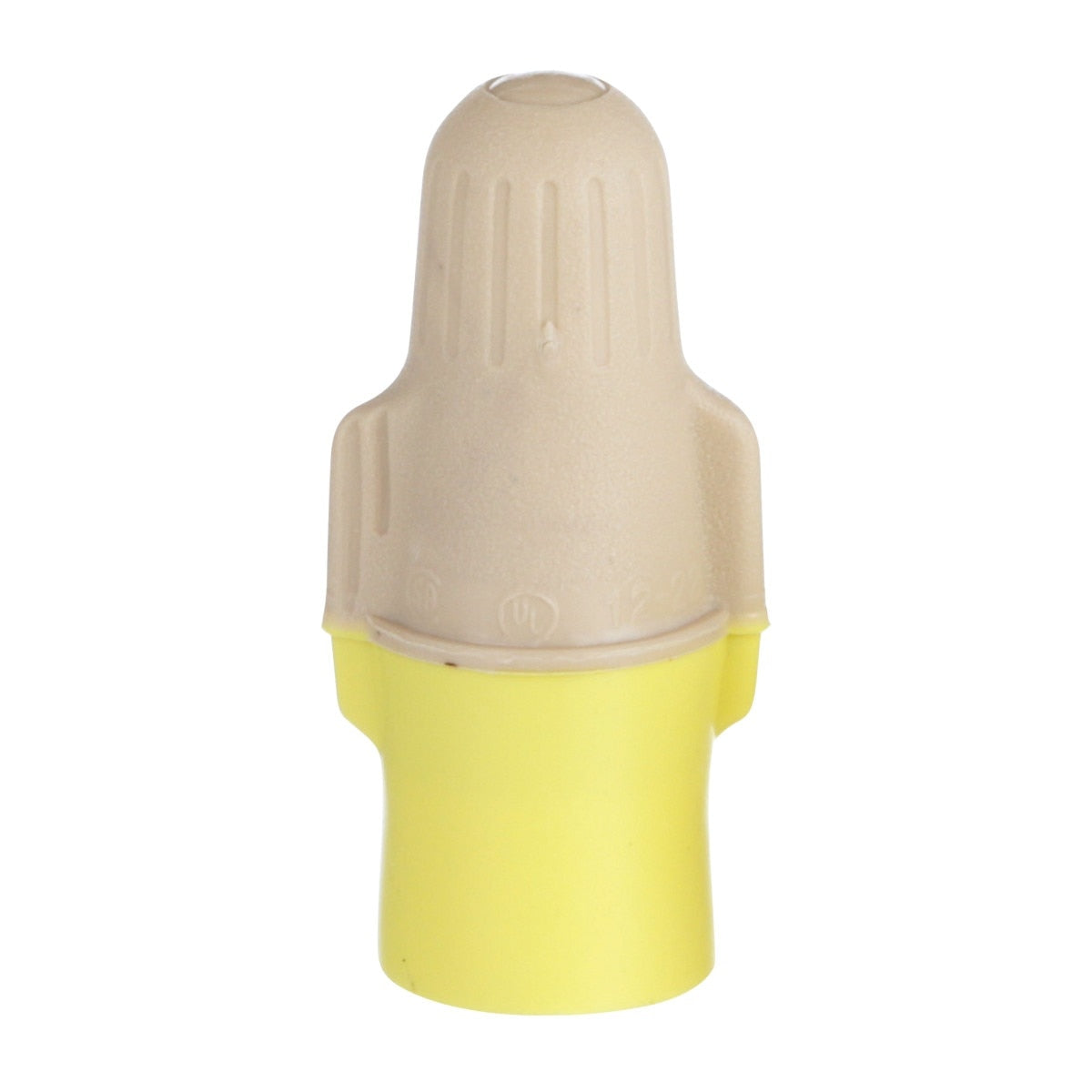

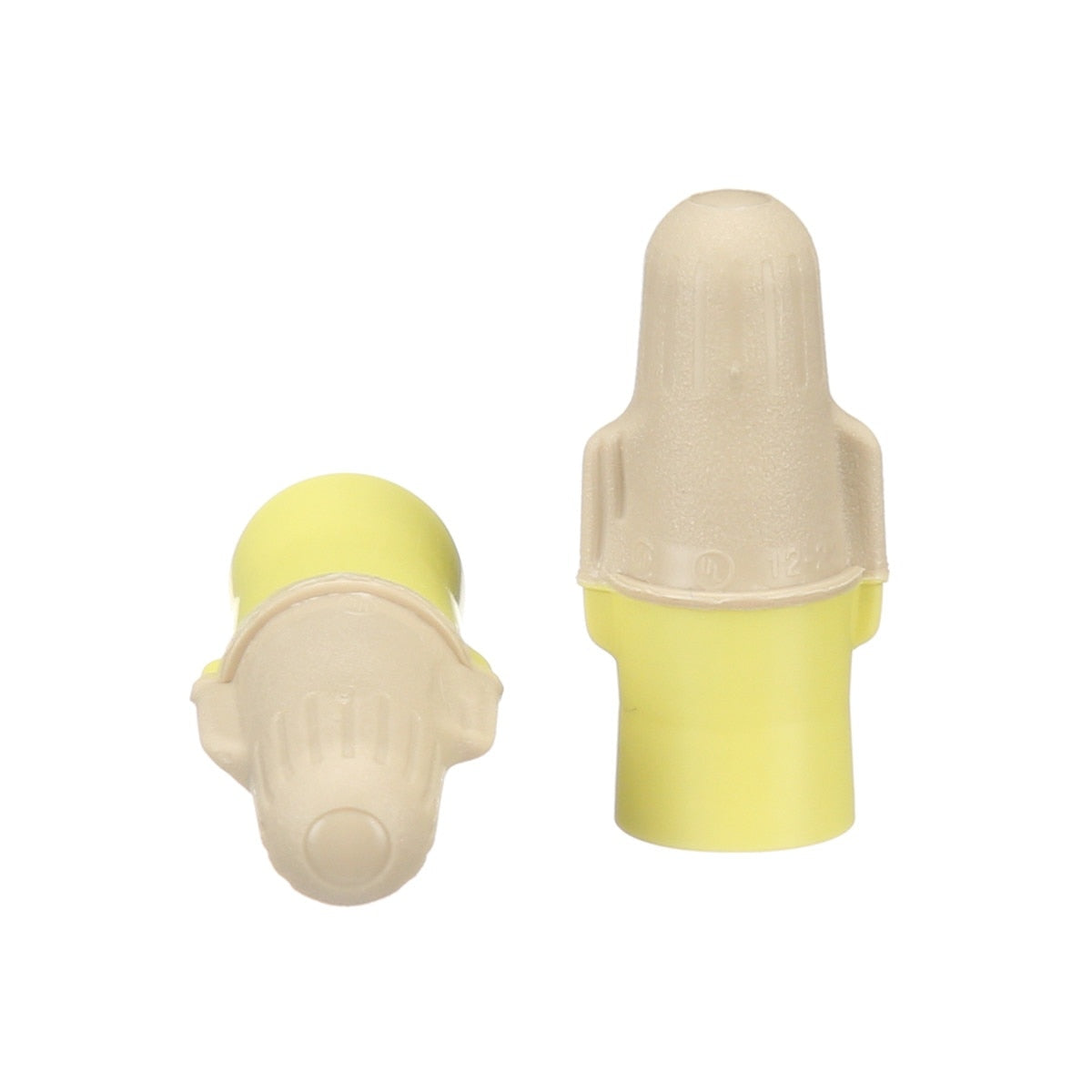

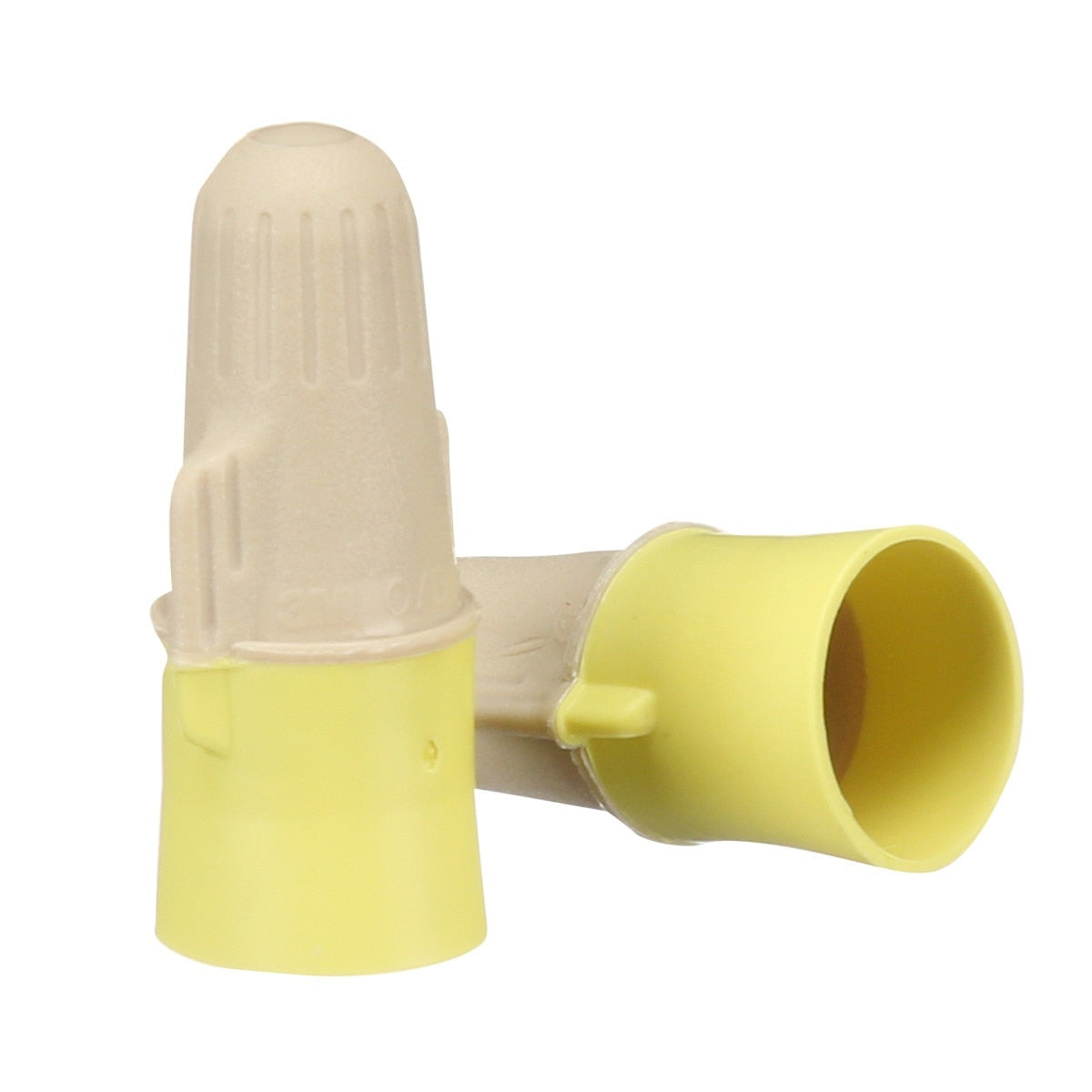

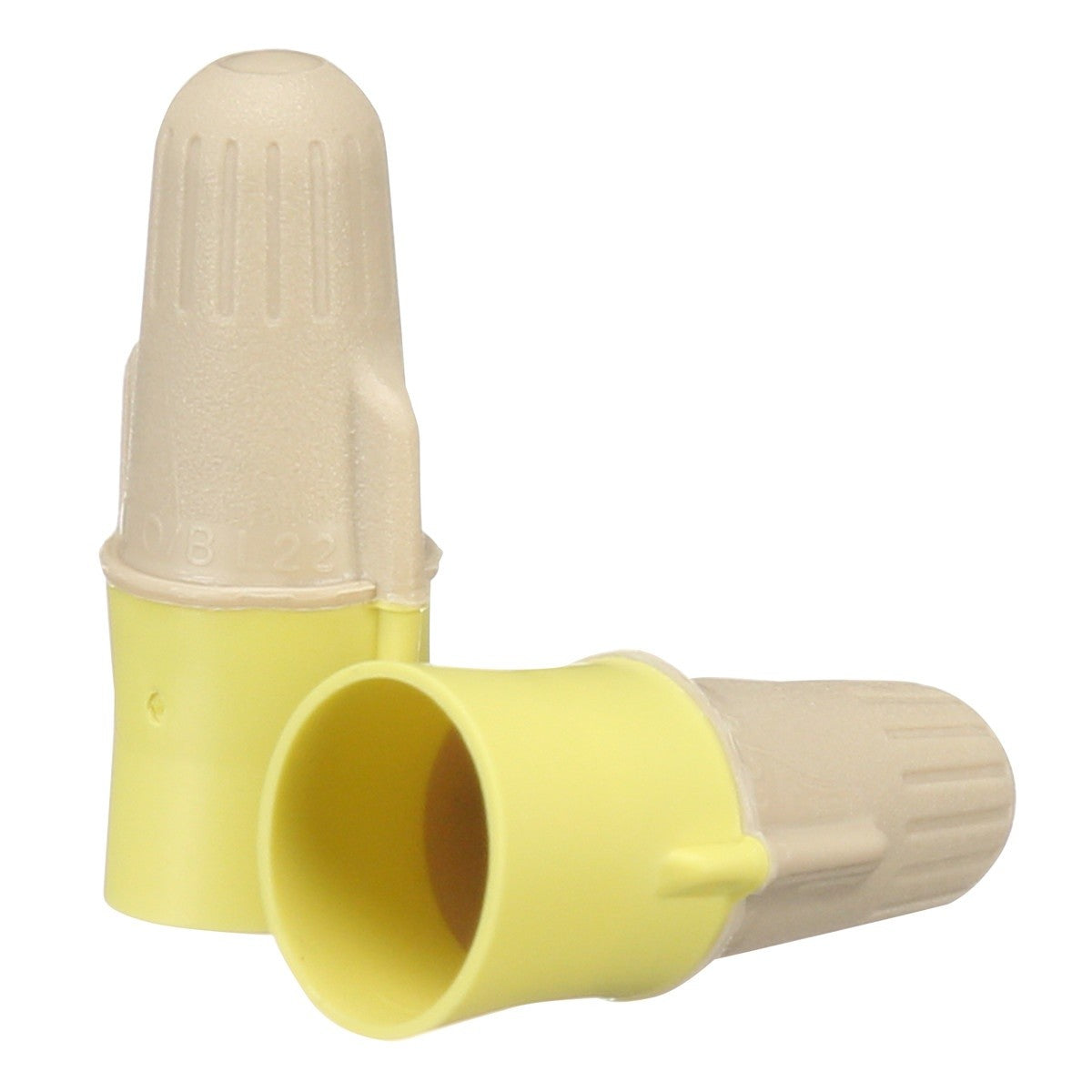

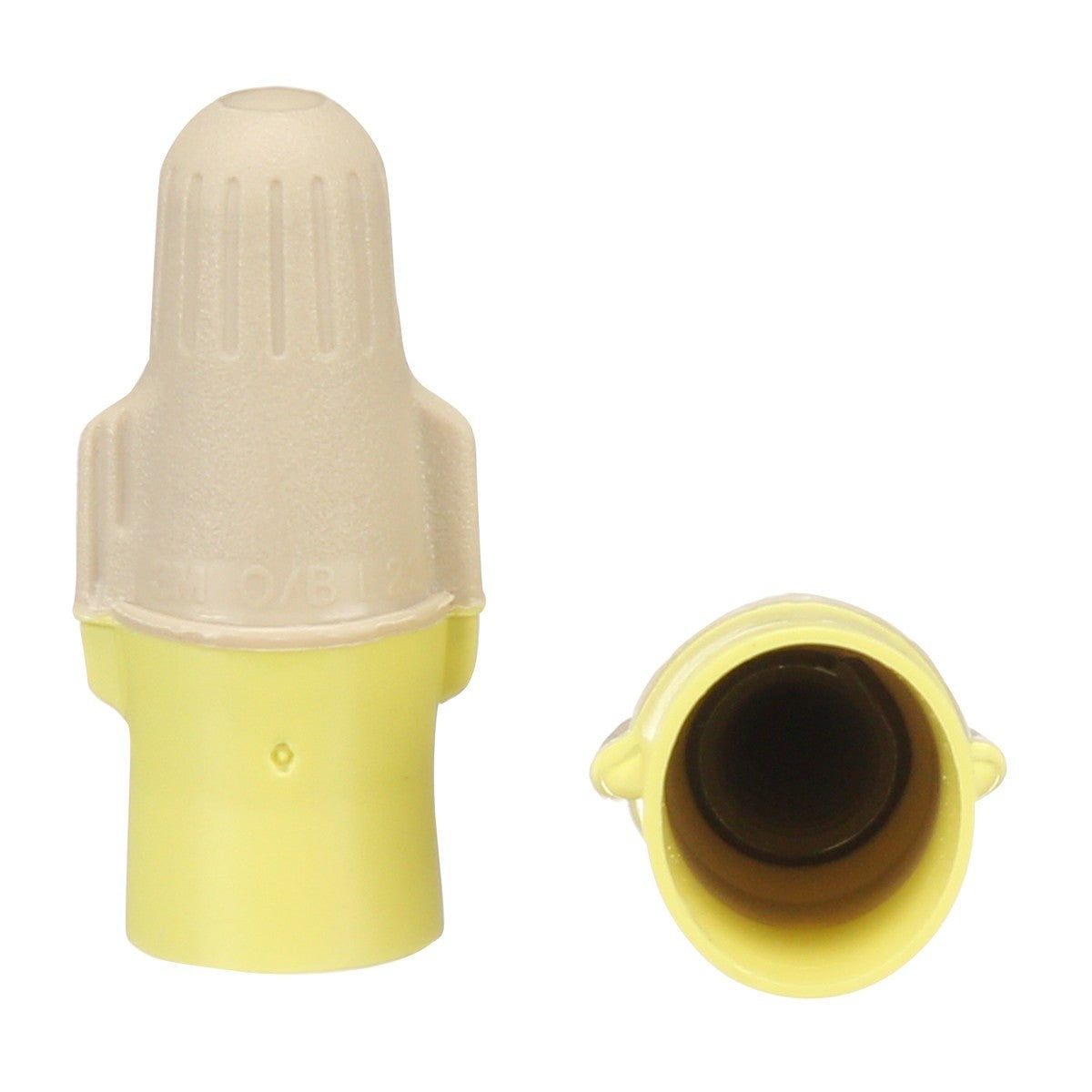

3M Performance Plus twist on wire connectors feature a flexible spring and strong bite to help create secure copper wire connections while the flexible skirt helps reduce copper exposure for improved safety.
3M 7100127163 Includes
- (1000) - 3M 7100127163 Performance Plus Wire Connector T/Y+POUCH, 100/pouch
3M 7100127163 Features
- Strong bite helps provide a secure reliable connection
- Flexible spring expands for greater wire range and reuse
- Dual color coded design helps cover common applications
- UL Listed
- Rated up to 600 V on copper wire
- Twist on connector style
- Flame retardant plastic construction
3M 7100127163 Specifications
| Brand | Performance Plus |
| Product Type | Connector |
| Wire Connector Type | Twist-on Wire Connectors |
| Connector Style | Twist On |
| Connection Type | Pigtail |
| Conductor Sizes (Imperial) | 22 - 12 AWG |
| Maximum Insulation Outside Diameter (in) | 0.145 |
| Voltage Rating | 600 V |
| Maximum Operating Temperature (C) | 105 Degree Celsius |
| Maximum Operating Temperature (F) | 221 Degree Fahrenheit |
| Product Color | Tan Yellow |
| Material | Plastic |
| Flame Retardant | Yes |
| Specifications Met | CSA UL Listed |
| Product Length (in) | 4.724409448818897 |
| Product Width (in) | 1.968503937007874 |
| Product Height (in) | 7.716535433070866 |
| Shipping Weight (lb) | 0.31415872361345054 |
