3M 7010399008 Description
3M Thin-Wall Heat Shrink Tubing EPS-300 is a dual-wall, adhesive-lined polyolefin tubing designed to provide insulation and a moisture-resistant seal for wire splices, bundles, and harness breakouts. This flame-retardant tubing offers a 3:1 shrink ratio and is rated for 600V applications, making it suitable for automotive and marine use.
3M 7010399008 Includes

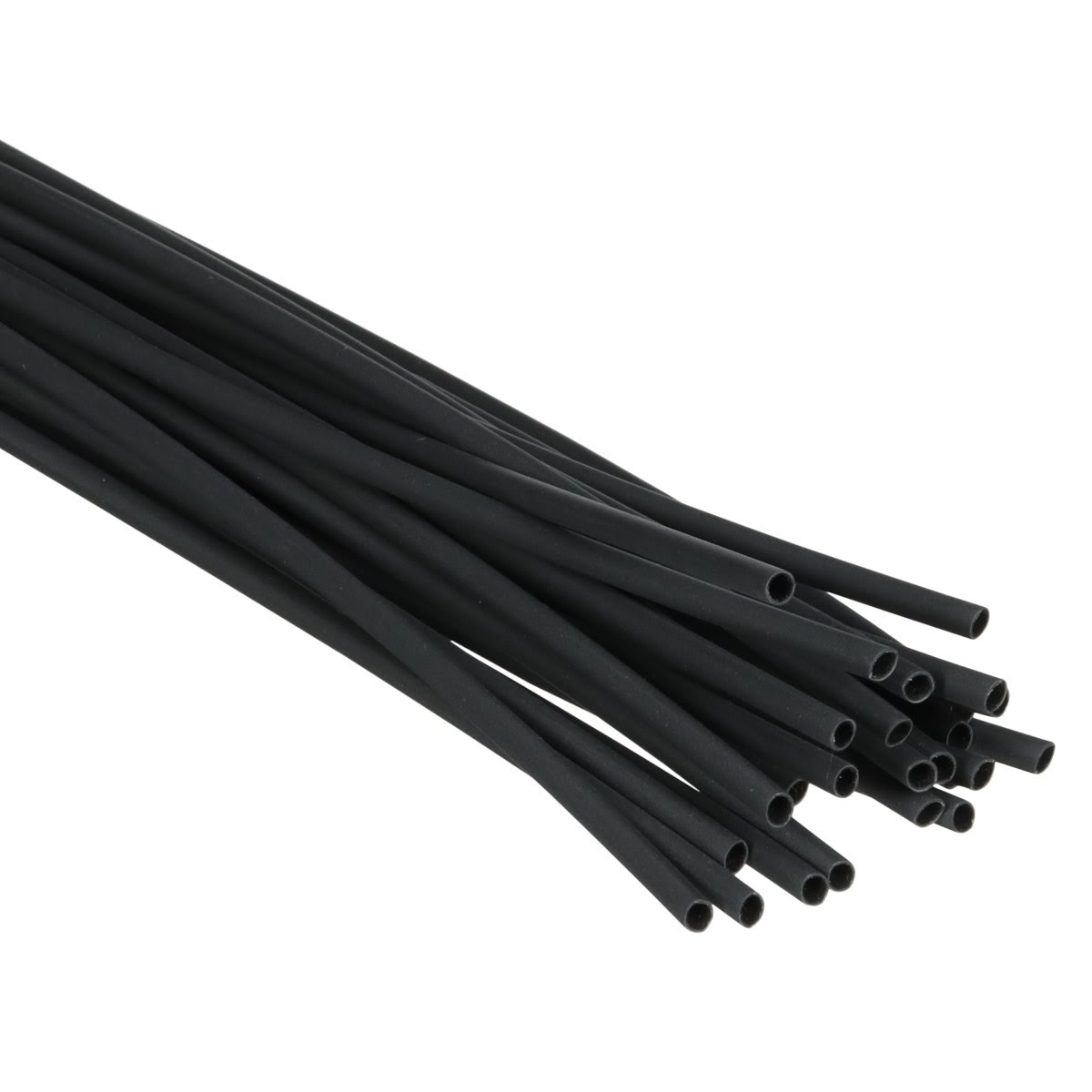

- (10) - 3M 7010399008 Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/8 in, Black, 6 in Pieces (E30.125BK6"P)
3M 7010399008 Features

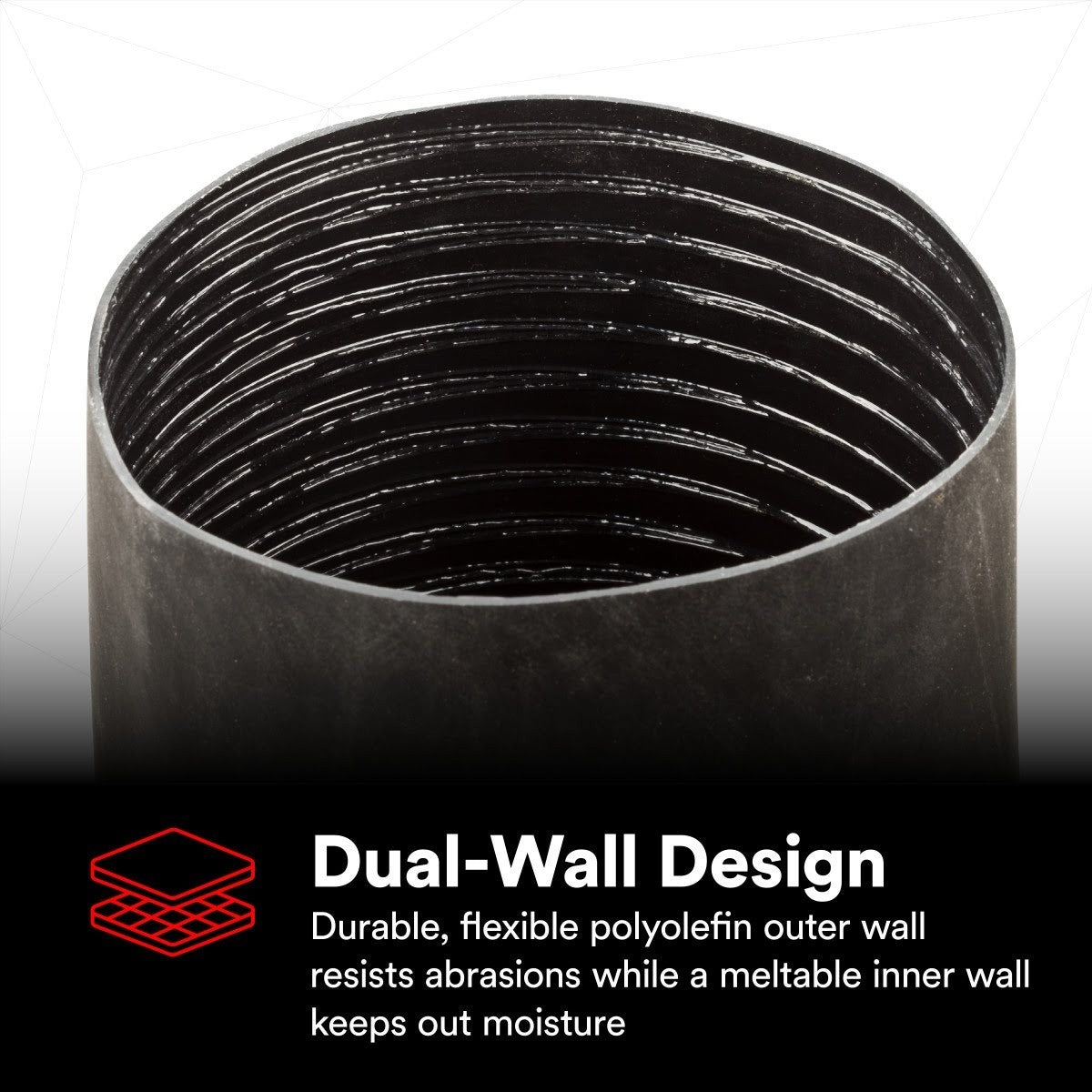

- Dual-wall, adhesive-lined construction helps provide a moisture-resistant seal

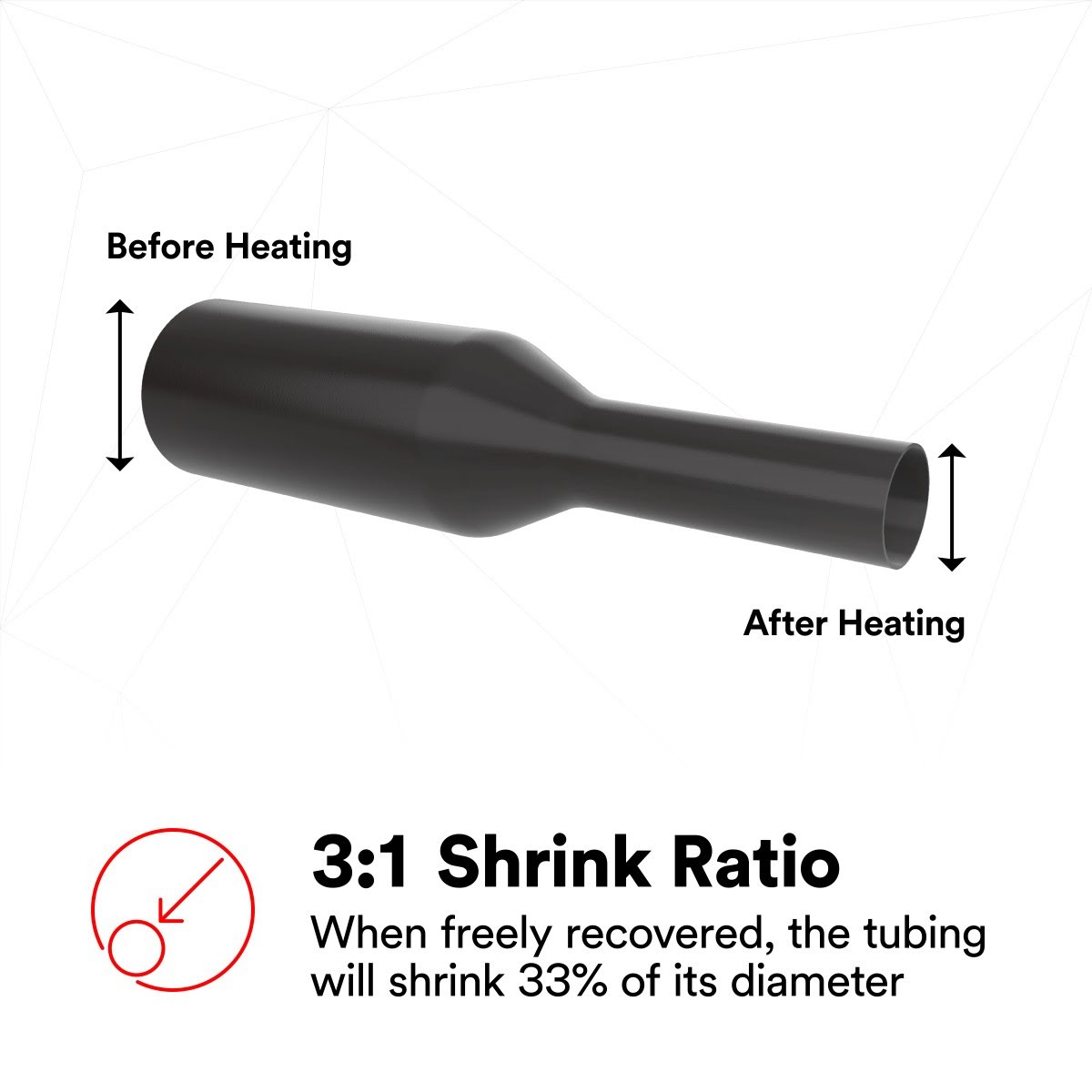

- 3:1 shrink ratio for tight fit over connections and splices
- Flame-retardant tubing rated for 600V applications
- Flexible polyolefin outer wall provides abrasion resistance
- Supports automotive, truck, and marine wiring and harness applications
- Operating temperature range from -67 to 230 Degree Fahrenheit (-55 to 110 Degree Celsius)
3M 7010399008 Specifications
| Product Type | Heat Shrink Tubing |
| Series | EPS-300 |
| Color | Black |
| Shrink Ratio | 3:1 |
| Inner Diameter Before Shrink | 0.125 in |
| Inner Diameter After Shrink | 0.04 in |
| Piece Length | 6 in |
| Material | Polyolefin |
| Adhesive Lined | Yes |
| Voltage Rating | 600V |
| Minimum Operating Temperature | -67 Degree Fahrenheit |
| Maximum Operating Temperature | 230 Degree Fahrenheit |

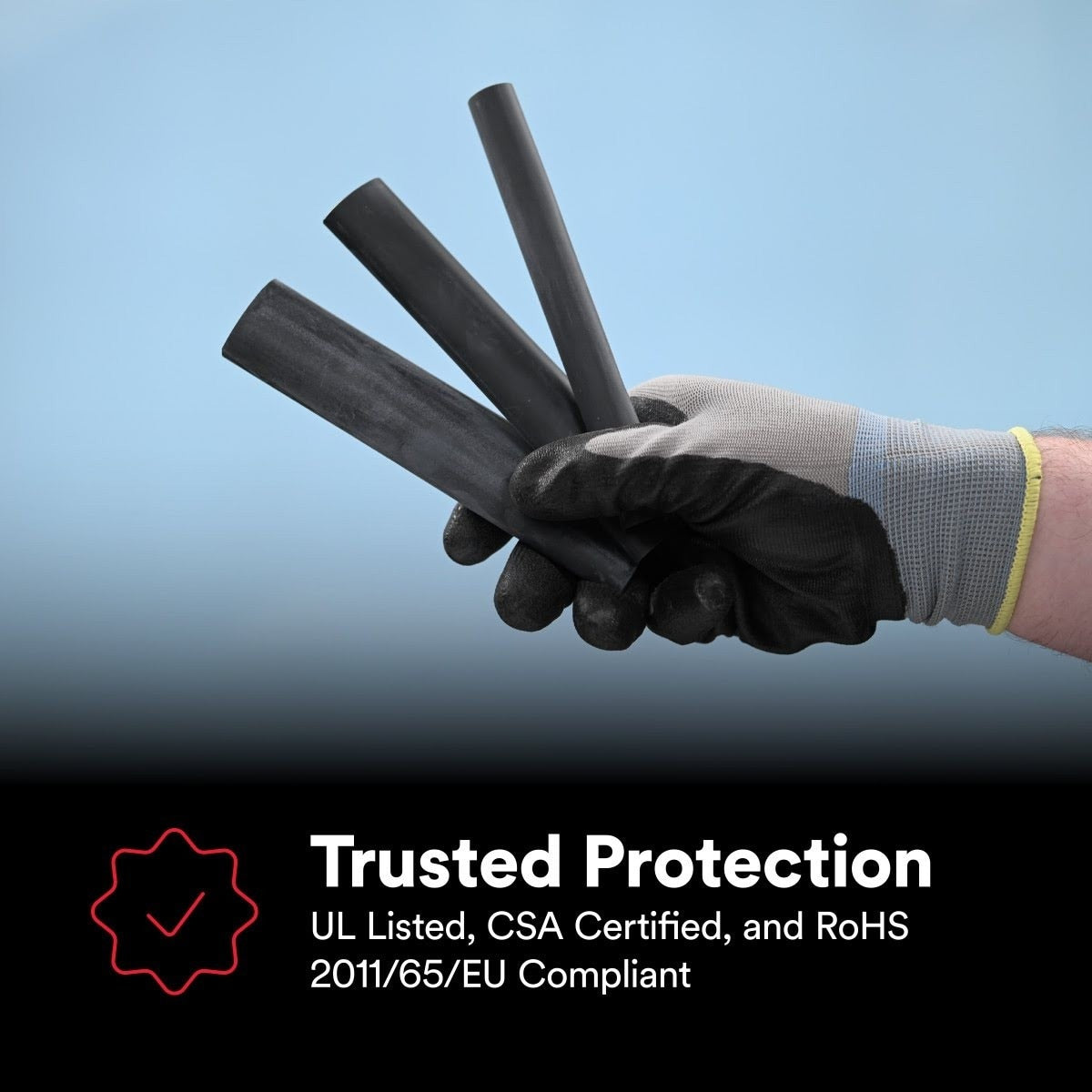

| Certifications | UL Listed, CSA Certified |
| RoHS | RoHS 2011/65/EU compliant |
