Amana 55204 Description

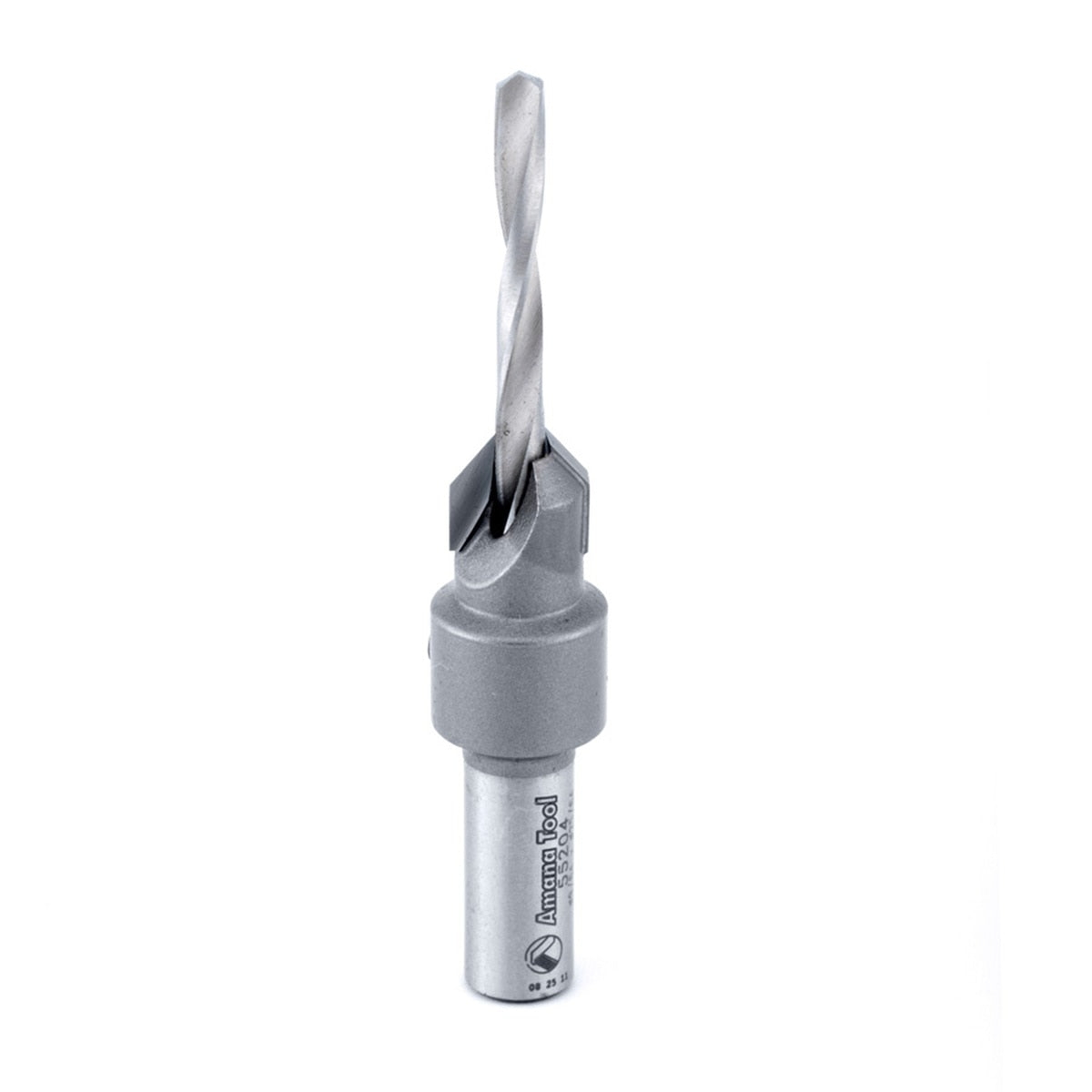

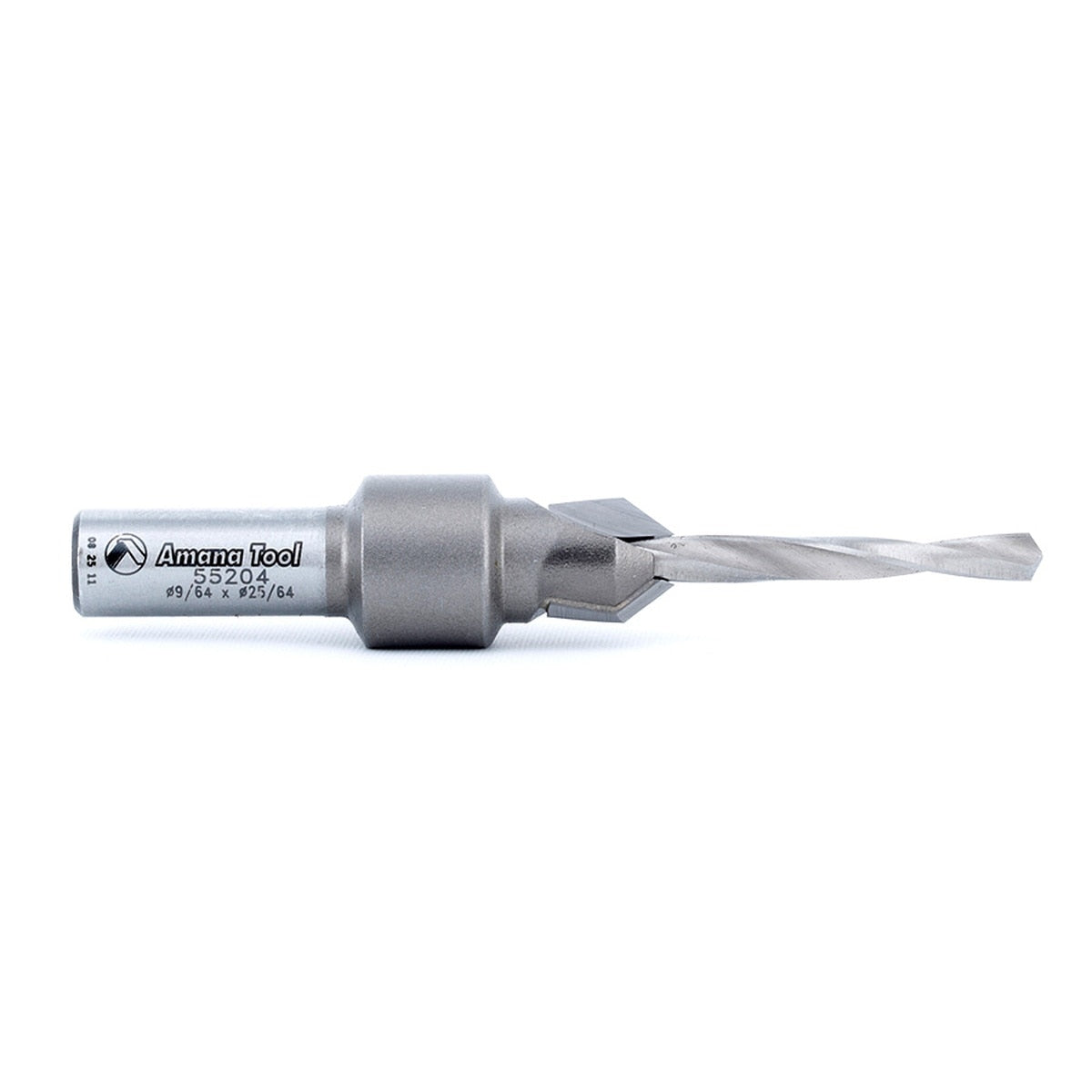

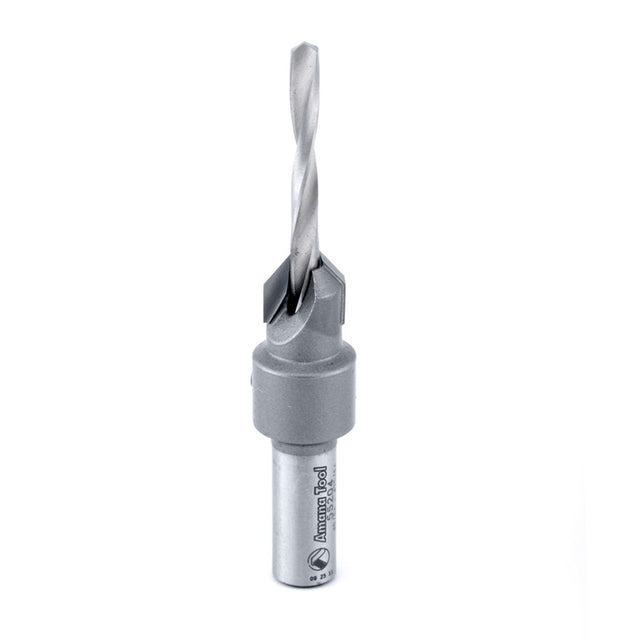

The Amana 55204 carbide tipped countersink bit is designed to countersink screw heads cleanly in wood, plastic, acrylic, composites, and non-ferrous materials. Its 2-flute integral design helps produce uniform, concentric results, while the carbide-tipped cutter and included fully ground HSS M2 drill bit provide clean hole edges and long service life.
Amana 55204 Includes
- (1) Carbide Tipped Countersink Bit with Drill Bit
Amana 55204 Features
- Carbide tipped countersink bit for clean screw head recesses
- 82 Degree countersink profile for No 6 screws
- 2-flute integral design helps deliver uniform, concentric results
- Produces chip-free hole edges and longer life than steel countersinks
- Includes a fully ground HSS M2 drill bit
- Suitable for natural woods, MDF, chipboard, plywood, composites, acrylic, HDPE, and aluminum or other non-ferrous materials
- 5/16 in. round shank for secure holding
- Can be used for CNC countersinking applications
Amana 55204 Specifications
| Product Type | Carbide Tipped Countersink Bit |
| Screw Size | #6 |
| Countersink Angle | 82 Degree |
| Countersink Diameter | 25/64 in. |
| Drill Diameter | 9/64 in. |
| Shank Diameter | 5/16 in. |
| Shank Type | Round |
| Overall Length | 2-3/4 in. |
| Cutting Height | 1/2 in. |
| L1 Length | 1-5/8 in. |
| Replacement Drill | 630-802 |
| Flute Count | 2 |
Toolup Part # :
318233
