Amprobe 2730991 Description

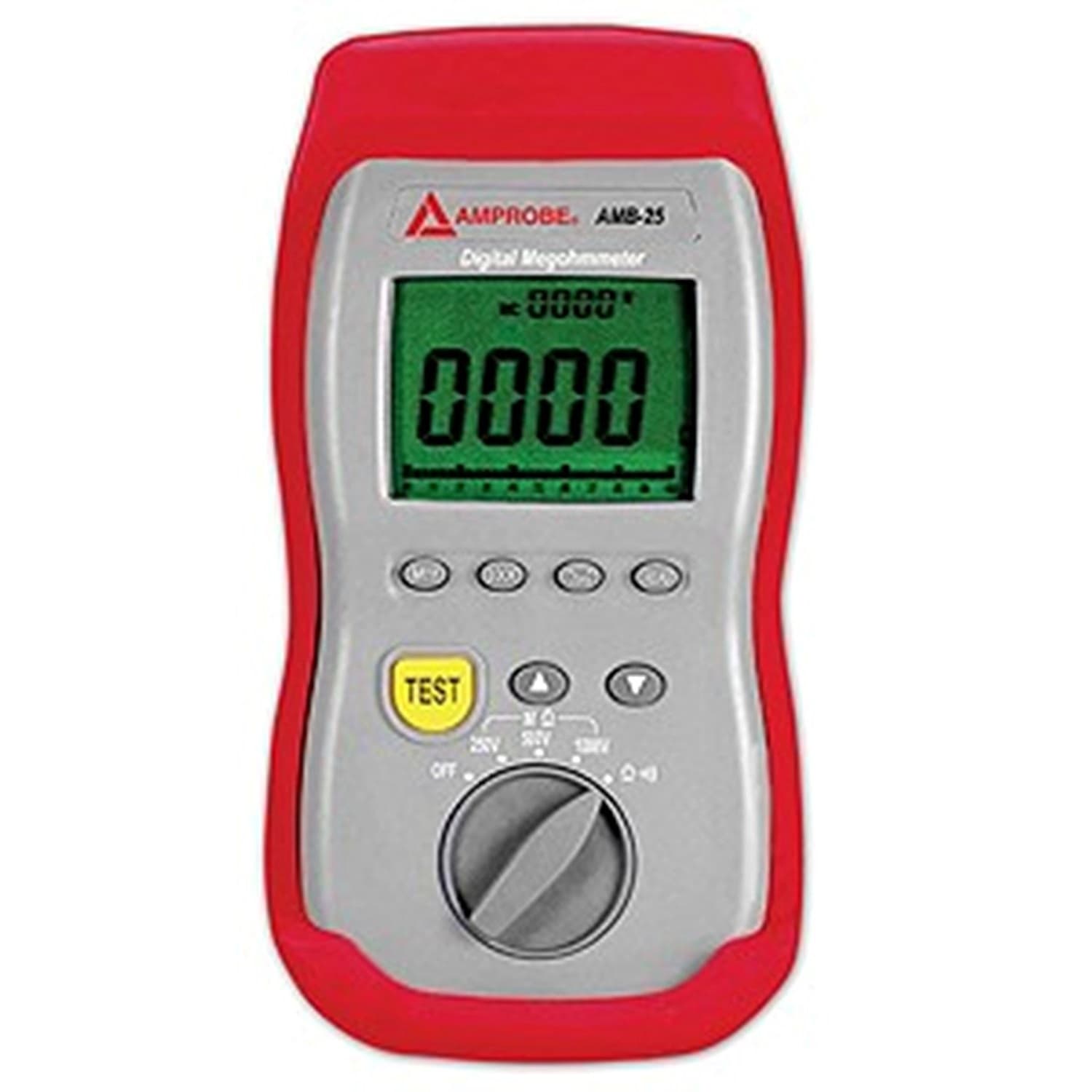

The Amprobe AMB-25 Digital insulation resistance tester is an affordable and rugged megohmmeter that is fast and easy to use. It offers the features you need for insulation test applications including wires, cables, and transformers. This digital meter measures insulation resistance to help reduce shock hazards and downtime on electrical systems that include wires, cables, transformers, and electrical motors – often used in preventive maintenance applications. The tester has automatic range selection for increased safety and was designed for the use by electricians and electrical contractors. The unit measures insulation resistance from 0 to 1,000 megaohms using 250, 500, or 1,000V direct current (DC) test voltage. PACKED WITH FEATURES: This affordable and rugged megohmmeters are fast and easy to use, and offer the features you need for most insulation test applications including wires, cables, transformers, and motors. VARIETY OF TEST VOLTAGES: The Amprobe AMB-25 features 3 selectable test voltages 250V, 500V and 1000V. DIELECTRIC ABSORPTION RATIO TEST: Programmable timer to perform the dielectric absorption ratio test.
Amprobe 2730991 Includes
- AMB-25 Insulation Resistance Tester
- (1) Set Test Leads
- (6) AA Batteries (installed)
- User Manual
Amprobe 2730991 Features
- Tests insulation of wires, cables, transformers and electrical motors
- Selectable test voltages 250V, 500V and 1000V
- Programmable timer to perform the dielectric absorption ratio test
- Sensitive ohmmeter for checking resistance of motor windings
Amprobe 2730991 Specifications
| Insulation resistance (250 V DC) | 40.00 MO, 400.0 MO |
| Insulation resistance (500 V DC) | 400.0 MO, 1000.0 MO |
| Insulation resistance (1000 V DC) | 400.0 MO, 2000.0 MO |
| Resistance (9 V) | 999.9 O |
