Amprobe 2740465 Description

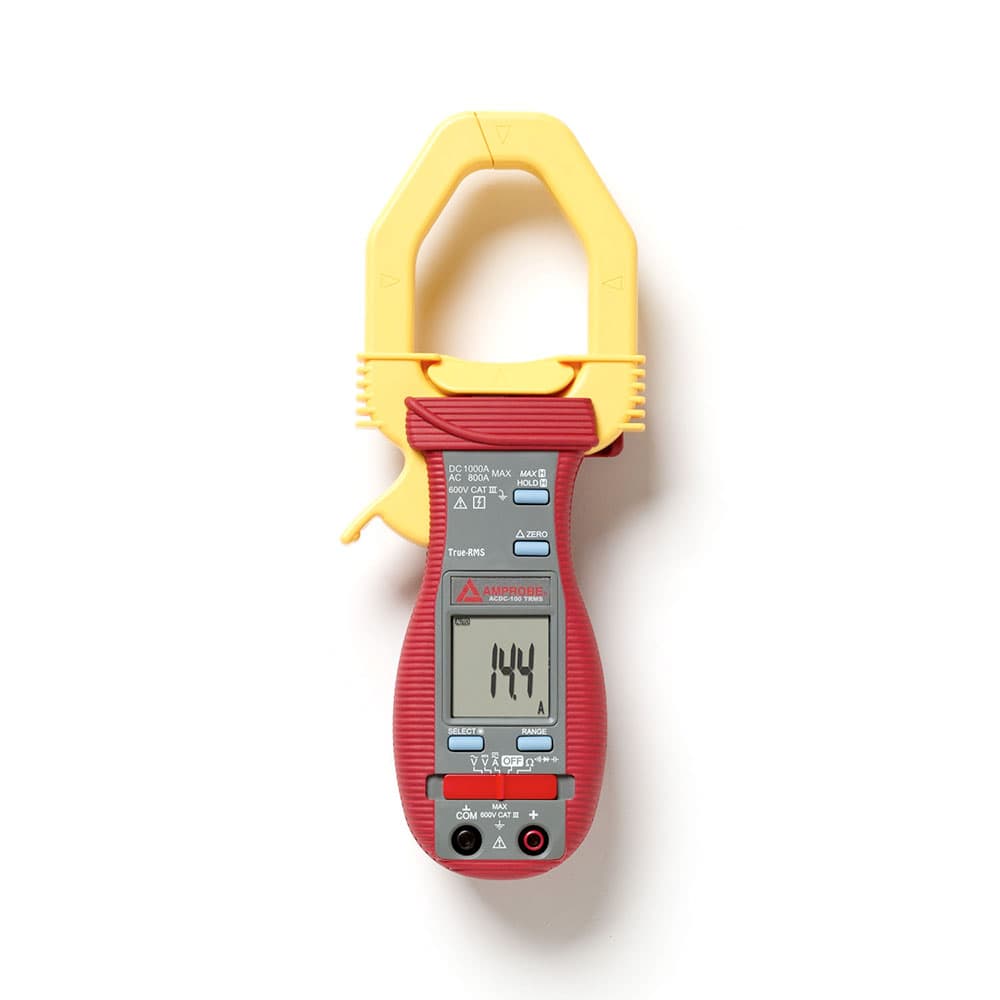

The ACDC-100 TRMS 1000A Digital Clamp Meter offers quality and reliability with the measurement capabilities technicians need in an AC/DC current clamp meter. Test a variety of electrical applications, including linear loads, such as standard induction motors and incandescent lights, where the current or voltage has a sinusoidal waveform, or non-linear loads, such as electronic devices or motors, where the current or voltage has a non-sinusoidal waveform. Use it to measure AC current to 800A, DC current to 1000A, and AC/DC voltage up to 600V. This reliable TRMS clamp meter also includes a continuity beeper, relative zero function, data hold and diode test. Its large jaws accommodate conductors up to 2 inch (50 mm) in diameter and its enhanced ergonomic design make it a great choice for a clamp with professional digital multimeter capabilities. PACKED WITH FEATURES: The ACDC-100 TRMS 1000A digital clamp meter offers superior accuracy, quality and reliability with all the basic measurement capabilities technicians need in an AC/DC current clamp meter. Use it to measure AC current to 800A, DC current to 1000A, and AC/DC voltage from 400.0 mV to 600V. EASY-TO-READ MEASUREMENTS: The Amprobe ACDC-100 TRMS 1000A AC/DC Clamp Meter features a large, easy to read LCD display, auto and manual ranging, relative zero mode, auto power off and data hold.
Amprobe 2740465 Includes
- ACDC-100 TRMS 1000A AC/DC Clamp Meter
- Deluxe Carrying Case
- Test Leads
- Batteries (installed)
- Users Manual
Amprobe 2740465 Features
- True-RMS
- Measures AC current to 800A and DC current to 1000A, AC/DC voltage to 600V, plus capacitance, and resistance
- Continuity beeper quickly identifies shorts and opens
- Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
- Data hold freezes the reading on the display for further analysis
- Diode test quickly finds voltage drops
- MAX capture function measures inrush current (30 mS response)
- Combines user friendly features such as a large, easy to read backlit digital display, auto power-off to conserve battery life, and a "third hand" test probe holder
- Rubber over-molded case absorbs shock and provides built-in probe storage
- Accommodates conductors up to 2.0" (50mm) in diameter
Amprobe 2740465 Specifications
| True-rms | Yes |
| AC Current | 400.0 A, 800 A |
| DC Current | 400.0 A, 1000 A |
| Voltage AC/DC | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
| Resistance | 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO |
| Continuity | Yes |
| Capacitance | 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF |
| Accommodates conductors | up to 2.0 (50 mm) in diameter |
