Amprobe 4394419 PK-110 Digital Multimeter Electrical Tester Kit with Voltage Probe

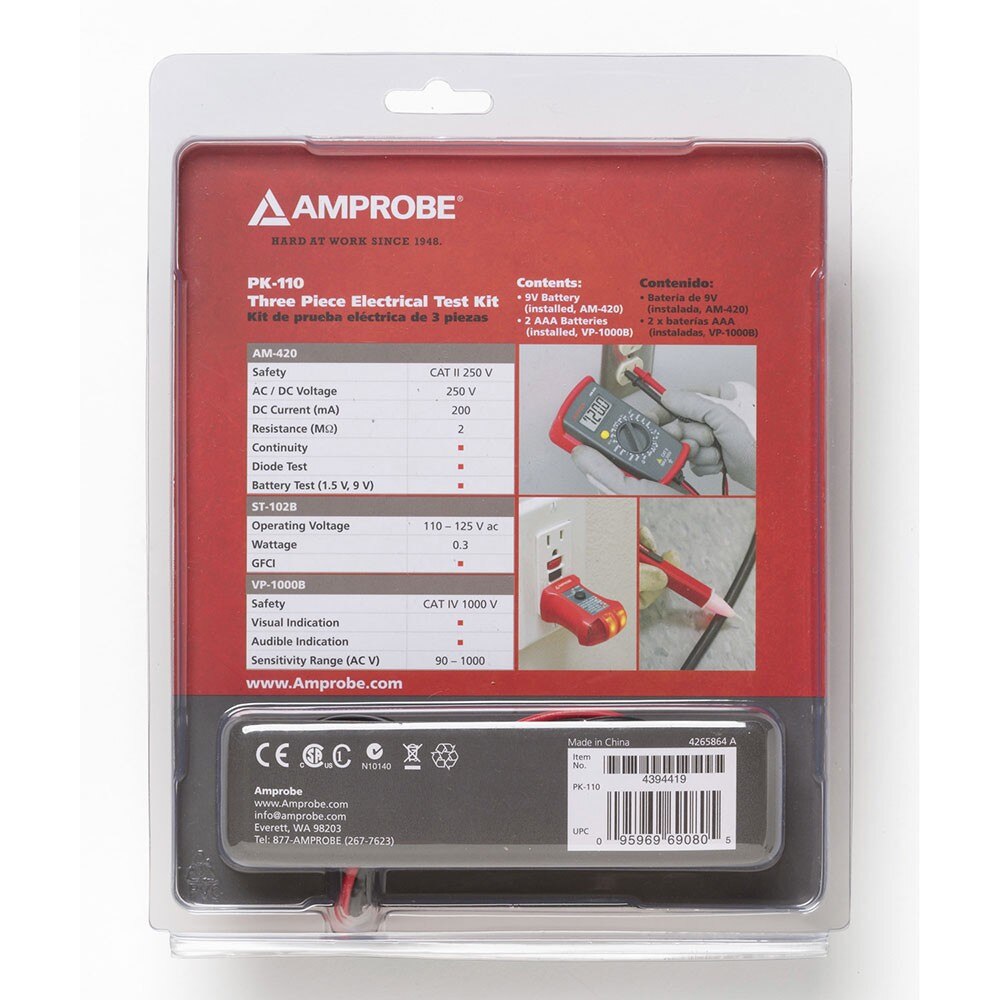

Amprobe PK-110 Data Sheet

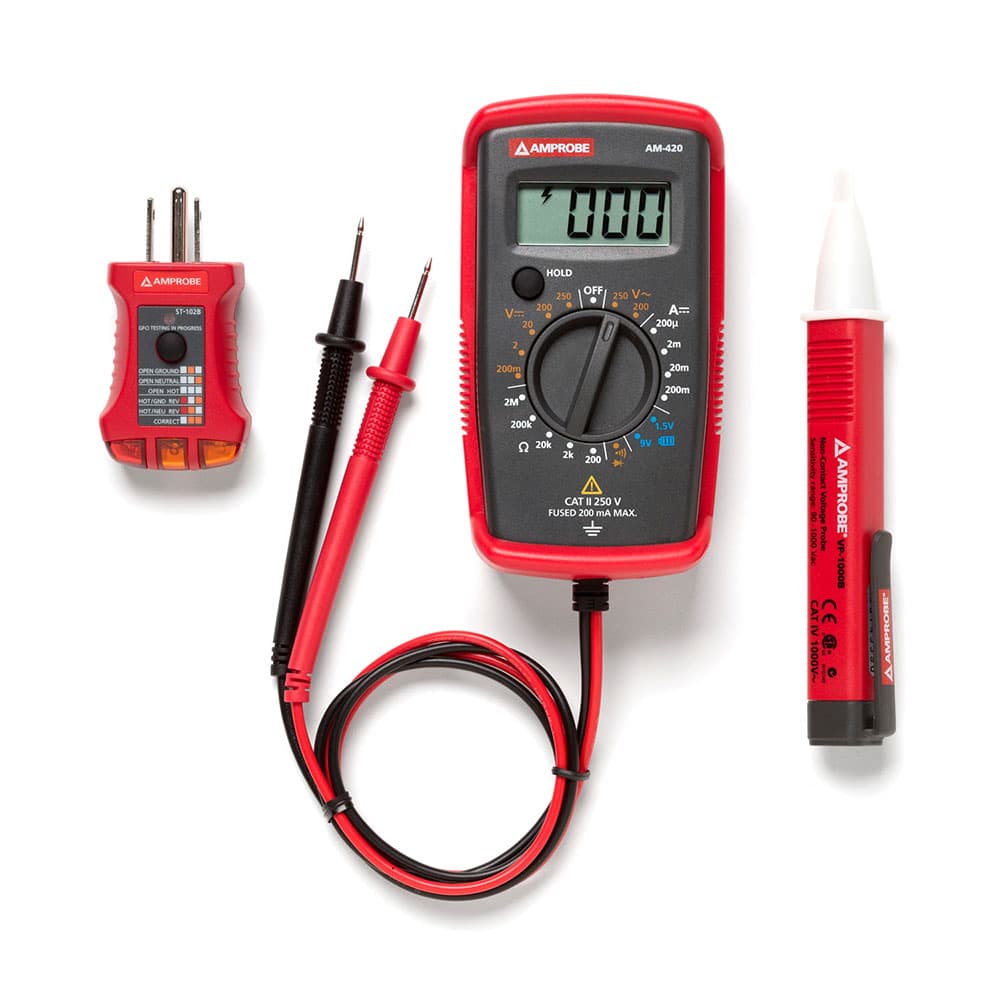

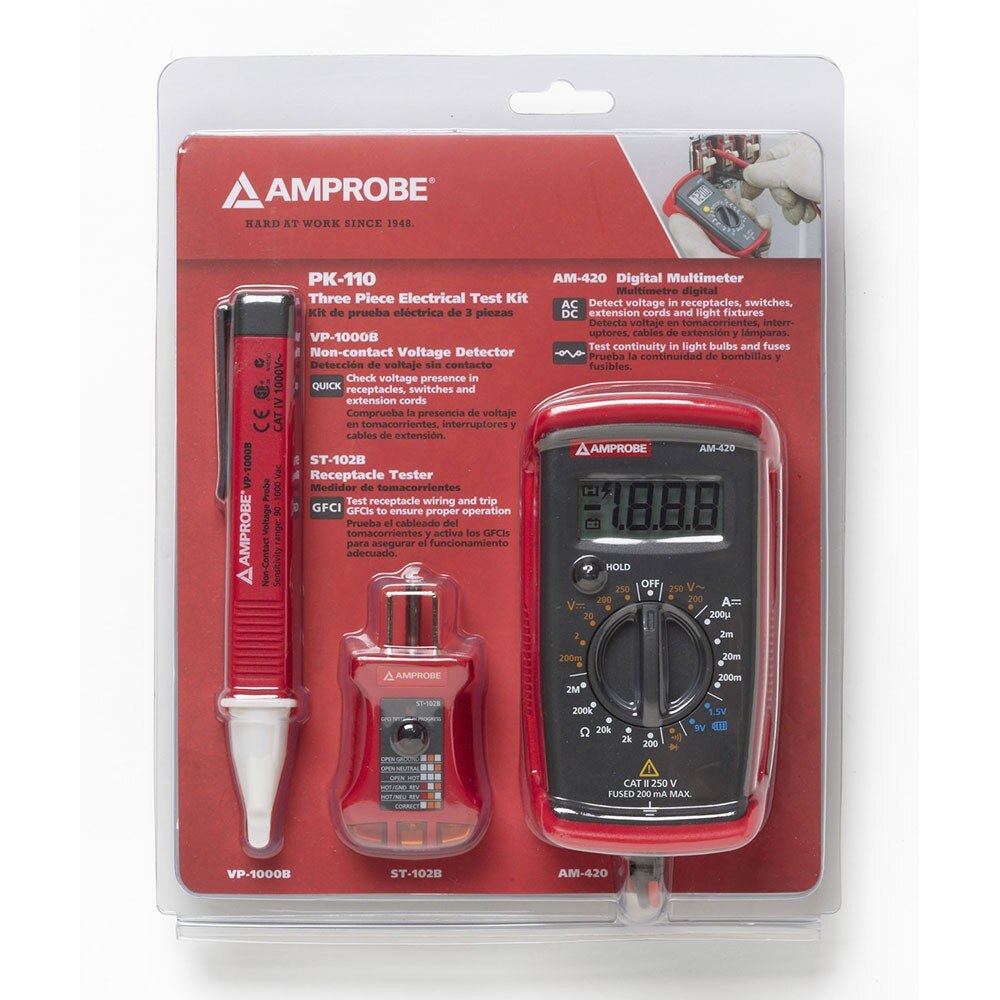

INCLUDES:

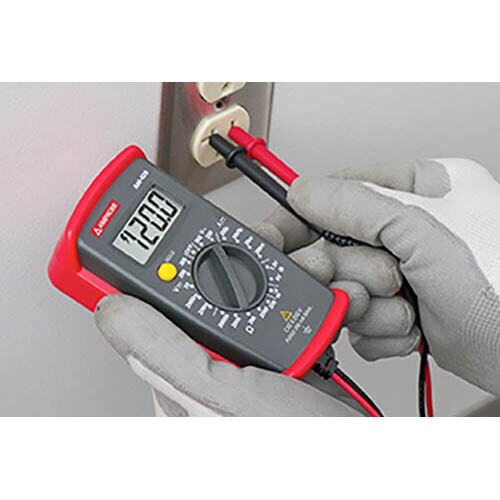

AM-420 Multimeter with 9V alkaline battery (installed), User manual

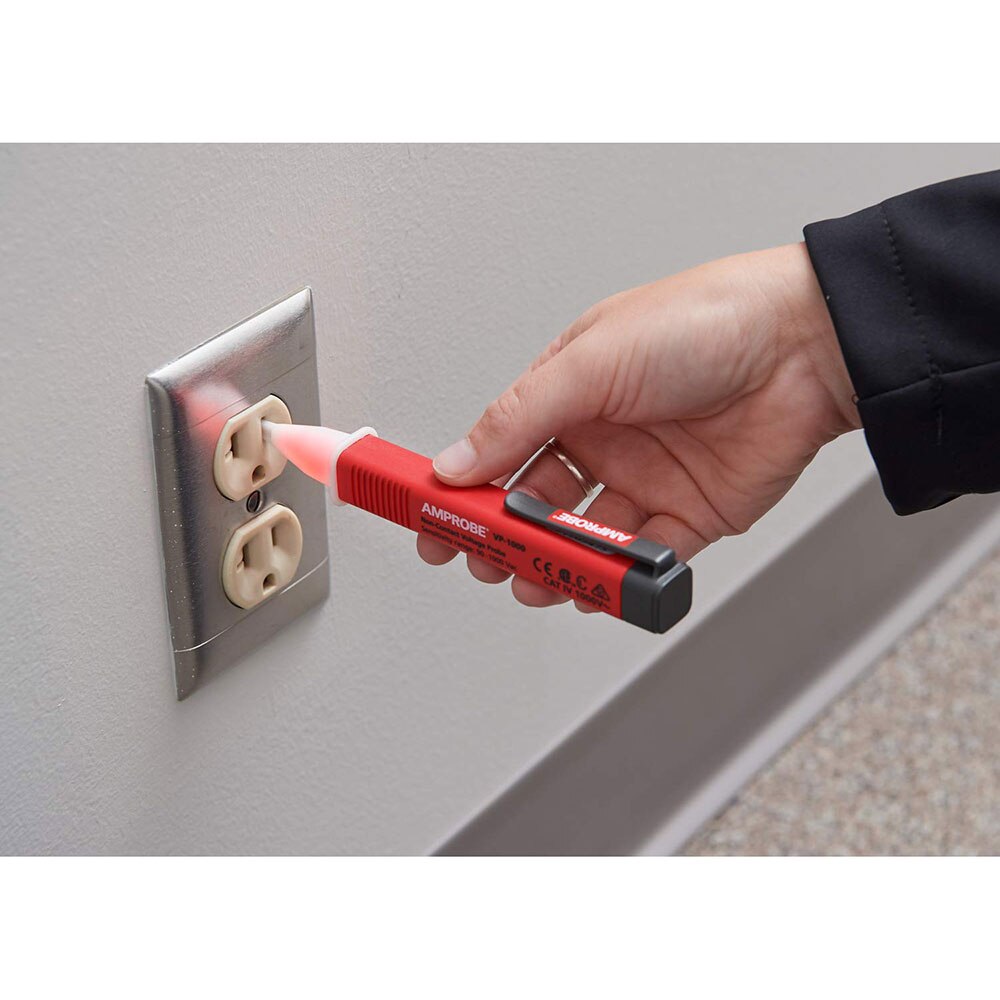

VP-1000 Non-Contact Voltage Probe with (2) 1.5 V AAA batteries (installed), User manual

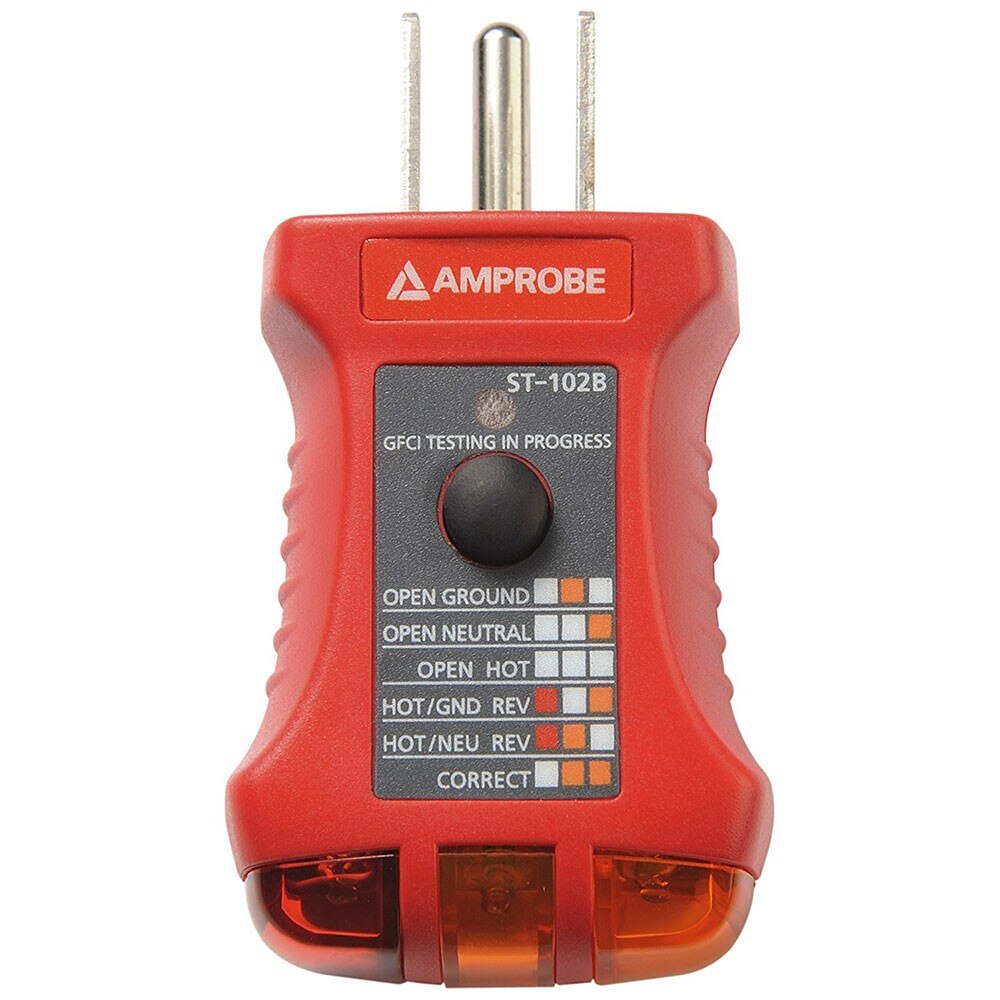

ST102B Socket Tester with GFCI, User Manual

FEATURES:
Kit contains tools to measure voltage up to 300 V AC/DC, AC/DC current and resistance, capacitance and perform battery tests
RV Safety Testing: check RV pedestal outlets (20 A, 30 A, 50 A) for proper wiring and grounding, check for œhot skin conditions and proper wiring of outlets in your RV
Check for presence of voltage in receptacles, switches, extension cords and light fixtures

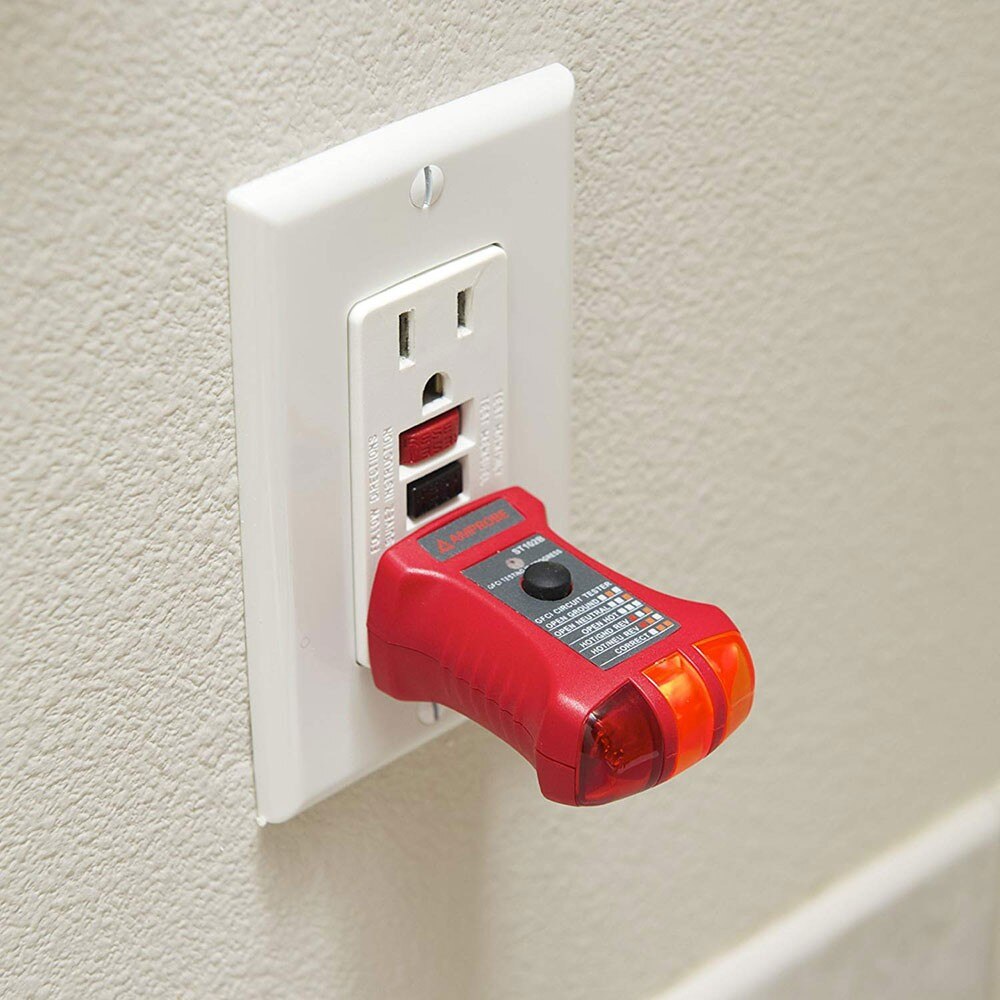

Verify proper wiring of GFCI (ground fault circuit interrupter) and standard US and Canadian wall outlets with a simple push of a button
UL and CSA listed for safety

SPECIFICATIONS:
AM-420: AC voltage 200.0 / 250 V
AM-420: DC voltage 200 mV 2.000 / 20.00 / 200.0 / 250 V
AM-420: DC current 200.0 μA 2.000 / 20.00 / 200.0 mA
AM-420: Resistance 200.0 Ω 2.000 / 20.00 / 200.0 kΩ 2.000 MΩ
AM-420: Continuity Beeps at ≤10 Ω, off at >70 Ω
VP-1000: Operating voltage range 90 Vac → 1000 Vac, 50/60 Hz
VP-1000: Sensitivity Lights at approx. 10 mm (0.39 in) distance from a wire carrying 120 Vac
VP-1000: Storage condition -10°C to +50°C (14°F to 122°F), ≤ 95% RH
VP-1000: Operating altitude 2000 meters
ST-102B: Operating Voltage 110 “ 125 Vac, 50 “ 60 Hz
ST-102B: Wattage 0.3 W
ST-102B: Actuator Black button
ST-102B: Indicator Red LED, three lights, neon
ST-102B: Lamp Lens Colors One red, two amber


Amprobes PK-110 Electrical Test Kit offers three electrical testers with testing functions suitable for a variety of residential applications. The kit includes the AM-420 Digital Multimeter, ST-102B Socket Tester with GFCI and VP-1000 Non-Contact Voltage Detector. From identifying voltage presence in outlets and switches to confirming proper wiring of regular and GFCI protected outlets, the PK-110 kit boasts all the features needed to perform quick and safe electrical tests. AM-420 DIGITAL MULTIMETER: Accurately measure voltage up to 250V in receptacles, switches, extension cords and light fixtures. Troubleshoot light bulbs and fuses with the continuity function. Check 1.5V and 9V batteries. Test extension cords and verify proper wiring of an outlet with voltage function. CAT II 250 V safety rating. VP-1000 NON-CONTACT VOLTAGE DETECTOR: Easily and safely detect voltage presence between 90 and 1000 V. Quickly verify voltage presence in outlets, switches, extension cords, circuit breakers and fuses without disconnecting the electrical system. Bright LED alerts when voltage is present. Operates as ˜always on using low power circuitry with no buttons for increased safety. Double insulated, CAT IV 1000V safety rating. ST-102B SOCKET TESTER WITH GFCI: Test receptacle wiring and confirm GFCI sockets are properly wired with push button. Detect five different wiring faults open ground, open neutral, open hot, hot/ground reverse, and hot/neutral reverse. Three illuminated lights on the tester indicate the type of wiring problem.
