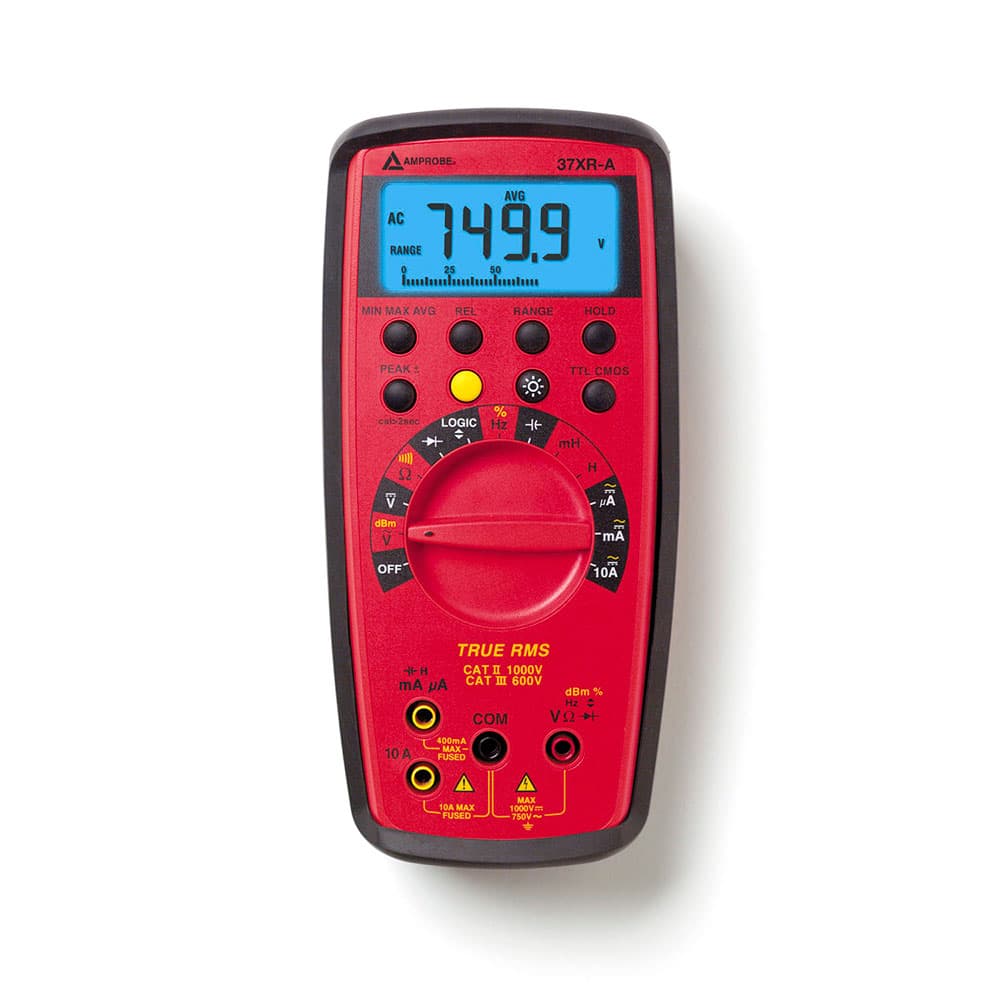

Amprobe 4867996 37XR-A True-RMS Autoranging Digital Multimeter with Component and Logic Test
Description
Description
Amprobe 2727808 Description
The XR Multimeter Series lets you customize features and functions for your electric, electrical, plant maintenance or HVAC applications. HVAC contractors and field service technicians have a choice of the manual ranging 37XR-A with capacitance of the auto ranging, True-RMS 38XR-A offers component and logic test. If you're an engineer, designing or troubleshooting industrial automation and control systems, check out the 38XR-A, a True-RMS multimeter with bright blue backlight and an optical PC interface. VOLTECT NON-CONTACT TECHNOLOGY: The 37XR-A Multimeter features auto and manual ranging for measuring current, voltage, resistance, capacitance, frequency, inductance, duty cycles, logic states, and dBm function. EASY-TO-READ MEASUREMENTS: The Amprobe 37XR-A Digital Multimeter is a feature packed, rugged and reliable multimeter. It displays true-rms measurement on a low-light backlit LCD screen. TRUE-RMS MEASUREMENT: The Amprobe 37XR-A Digital Multimeter offers true-rms measurement along with component and logic testing for troubleshooting electronics at the bench or on the job site.
Amprobe 2727808 Includes
- 37XR-A TRMS Digital Multimeter
- Test Leads with Threaded Alligator Clips (TL36A)
- 9 V Battery (installed)
- Magne-Grip Holster with Magnetic Hanging Strap
- Spare Fuse
- User Manual
Amprobe 2727808 Features
- Backlight, True-rms with component and logic test
- Inductance to 40 H, frequency to 40 MHz, capacitance to 400 ?F, logic to 20 MHz
- Input warning tone when test leads are in wrong jack
- 10 Amps AC/DC, fully safety fused
- Continuity beeper
- Min/max, average, relative, peak, and data hold
- Auto power off to save battery life
- Separate door for easy battery and fuse access
- Magne-Grip™ Holster with magnetic hanging strap
Amprobe 2727808 Specifications
| Autoranging; display | 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph |
| Display Update Rate | 2/sec, nominal |
| Power Battery | 9 V NEDA 1604, JIS 006P, IEC 6F22 |
| DC Voltage | 1.000 mV, 10.00 V, 100.0 V, 1000 V |
| AC Voltage | 1.000 mV, 10.00 V, 100.0 V, 1000 V |
| DC Current | 100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A |
| AC Current | 100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A |
| Resistance | 1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO |
| Continuity | Yes |
| Diode | Yes |
| Capacitance | 40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF |
| Frequency | 100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz |
| Duty cycle | 0.00 % ? 90.0 % |
| Logic test | Yes |
| Inductance | 40 H |
| dBm | -13 dBm ? + 50 dBm |
