Amprobe 5044625 Description

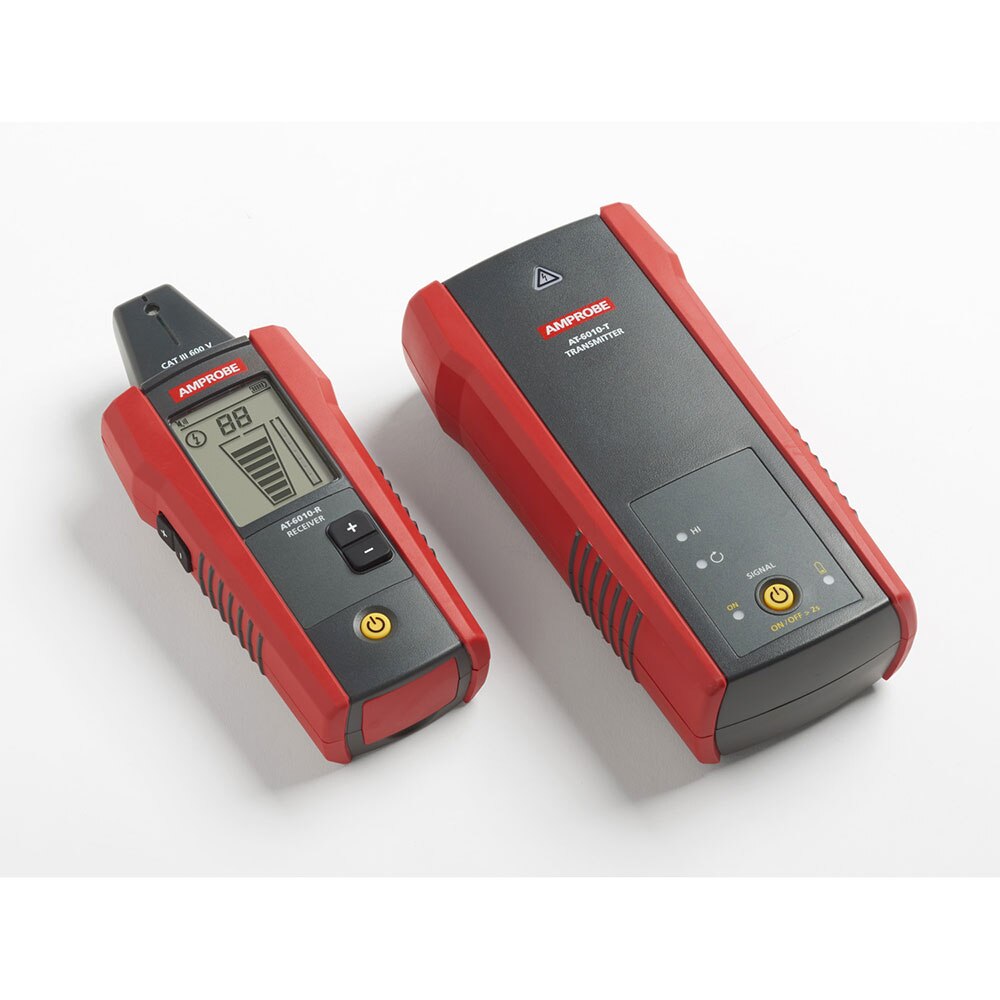

With the AT-6010 Advanced Wire Tracer, it’s never been easier and safer to locate Energized and De-energized wires, breakers and fuses. When the Transmitter is connected to the circuit, the Receiver easily detects the signal in the wires or cables behind walls, ceilings and floors. The Transmitter works on Energized and De-energized circuits up to 600 V AC/DC in Category I through Category III electrical environments, allowing for work directly on an energized circuit without the need to take equipment offline. The Transmitter also features high signal mode for general tracing and a loop mode designed specifically for locating shorts, as well as two optimal tracing frequencies that are automatically activated based on the detected voltage. The complete AT-6010 kit features test leads and accessories International accessory kit for use outside North America.

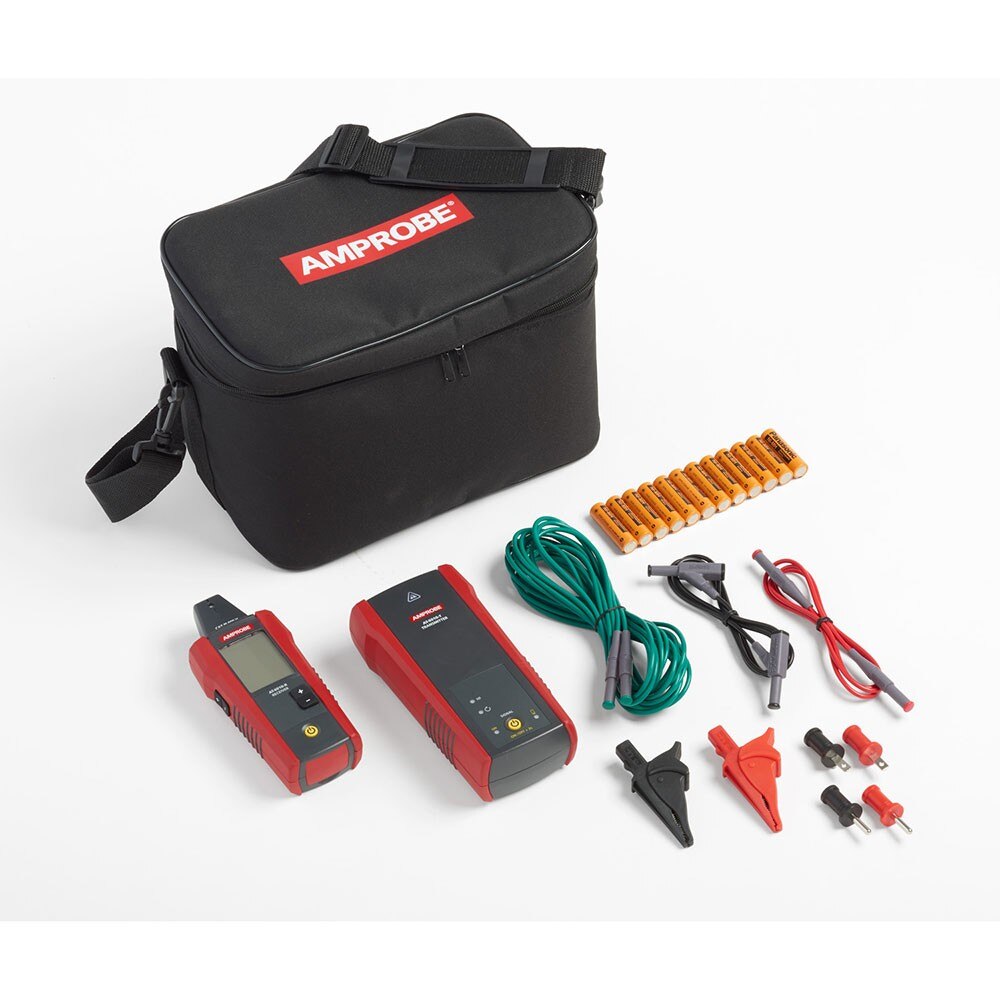

Amprobe 5044625 Includes
- (1) Advanced Wire Tracer

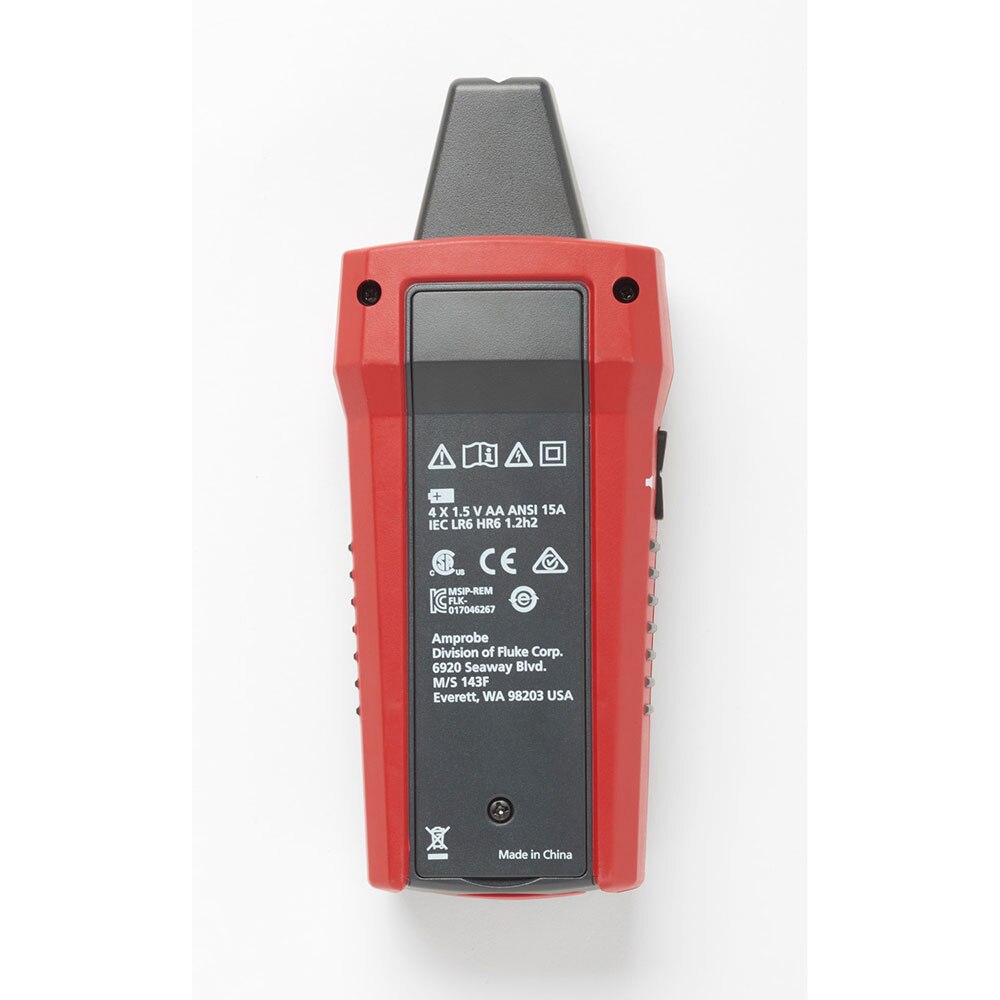

- (1) AT-6010-R Receiver
- (12) Batteries

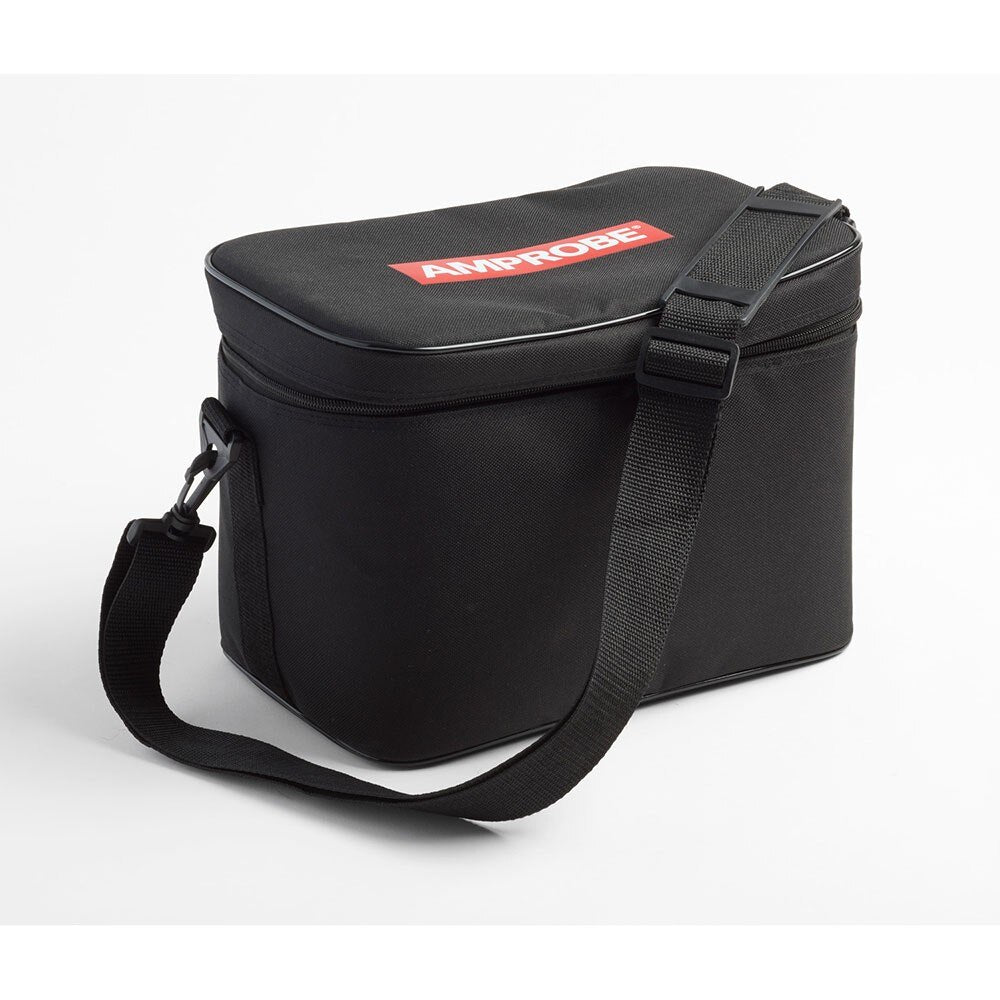

- (1) Soft Carrying Case
- (1) User Manual
Amprobe 5044625 Features
- Large LCD Receiver screen with two digit readout, bar graph and sound to easily determine wire location
- Rated CAT III 600 V for work directly on an Energized circuits without taking equipment offline
- Simple one button Transmitter operation
- Compatible with the CT-400 Signal Clamp accessory for inducing a tracing signal on the cable when there is no access to bare conductors
Amprobe 5044625 Specifications
| Measurement Category | CAT III 600 V |
| Transmitter Operating Voltage | 0 to 600 V AC/DC |
| Receiver Display | B&W 2.5" LCD |
