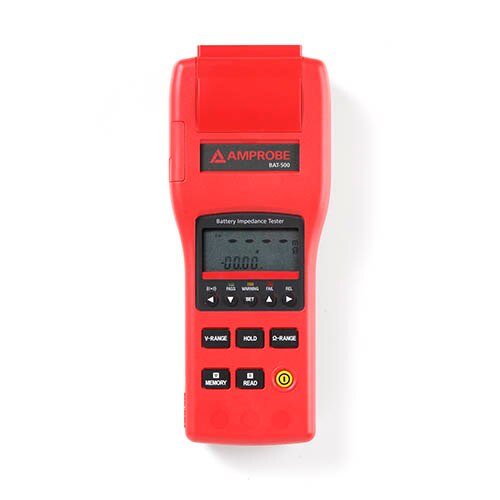

Amprobe BAT-500 Battery Impedance Tester

INCLUDES:
• (1) Battery Impedance Tester
• (1) User manual
• (1) Software manual
• (1) Set Batteries
• (1) RS232 cable
• (1) Set kelvin clips
• (1) Software CD

FEATURES:
• Tests battery impedance to calculate its true life
• Works with most batteries, compact storage batteries, alkaline and lead-acid up to 500 Ah
• Resistance measurement up to 40 ohms, and voltage up to 40 V
• Tests are performed without shutting down a battery
• Simultaneously measure battery resistance and voltage
• Comparator function to quickly access conditions as pass, warning, or fail
• 99 memory locations to store results with read function
• Compact and lightweight
• RS232 PC interface to download testing results to a PC for trending/life cycle analysis
• Instruction manual, batteries, test probe, software, RS232 cable


SPECIFICATIONS:
• Manufacturer Warranty: 1 year
• Packaging Type: Case
• Packaging Material: Molded Plastic
• Unit Weight (KG): 1.8
• Unit Height (CM): 4.5
• Unit Length (CM): 25
• Unit Width (CM): 10

Compact and light weight, the Amprobe BAT-500 Battery Tester quickly and accurately tests batteries without taking the batteries off-line. This battery tester features a comparator function with pass/fail indication, speed testing of batteries up to 500 Ah. Amprobe BAT-500 Battery Tester, compact and light weight, simultaneously measures battery resistance and voltage up to 40V.
