Amprobe 3052401 Description

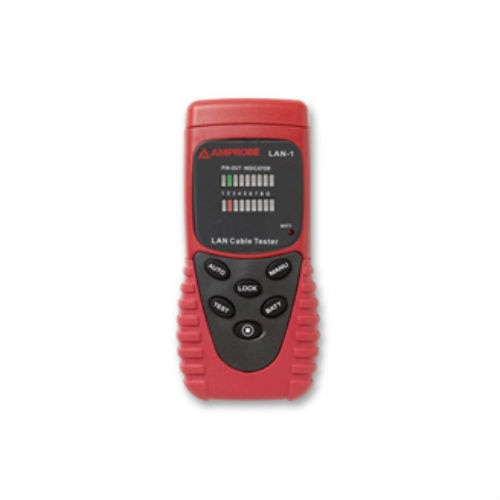

The Amprobe LAN-1 Cable Tester is designed for testing opens, shorts and miswired cable installations. It is designed to work with various data cables and connectors.
Amprobe 3052401 Includes
- (1) User manual
- (1) 9V battery (installed)
- (1) Remote terminator
- (1) RJ45 to female BNC cable
- (1) RJ45 to male BNC cable
- (1) RJ45 to RJ45 cable
- (1) Female BNC to Female BNC cable
Amprobe 3052401 Features
- 10/100 base -T cable
- 10 base-2 cable
- RJ45 modular cables
- AT&T 258A cable
- EIA/TIA 568A/568B cables
- Token ring cable
- Verify the cable wiring for continuity, opens, shorts or incorrect wiring
- Test installed cable on wall plate or the patch panels by using the remote termination module
- Perform loopback test or remote test
- Buzzer sound warning for error condition in cable
- Two sets of LED lights for source and test indication
- Maximum line length: > 300 meters
- Connector types: RJ45, BNC
Amprobe 3052401 Specifications
| Manufacturer Warranty | 1 year |
| Packaging Type | Package |
| Packaging Material | Plastic |
| Unit Weight (KG) | 0.47 |
| Unit Height (CM) | 8 |
| Unit Length (CM) | 24.8 |
| Unit Width (CM) | 17 |
