Atlas Lifting and Rigging TCH-015-20 Description

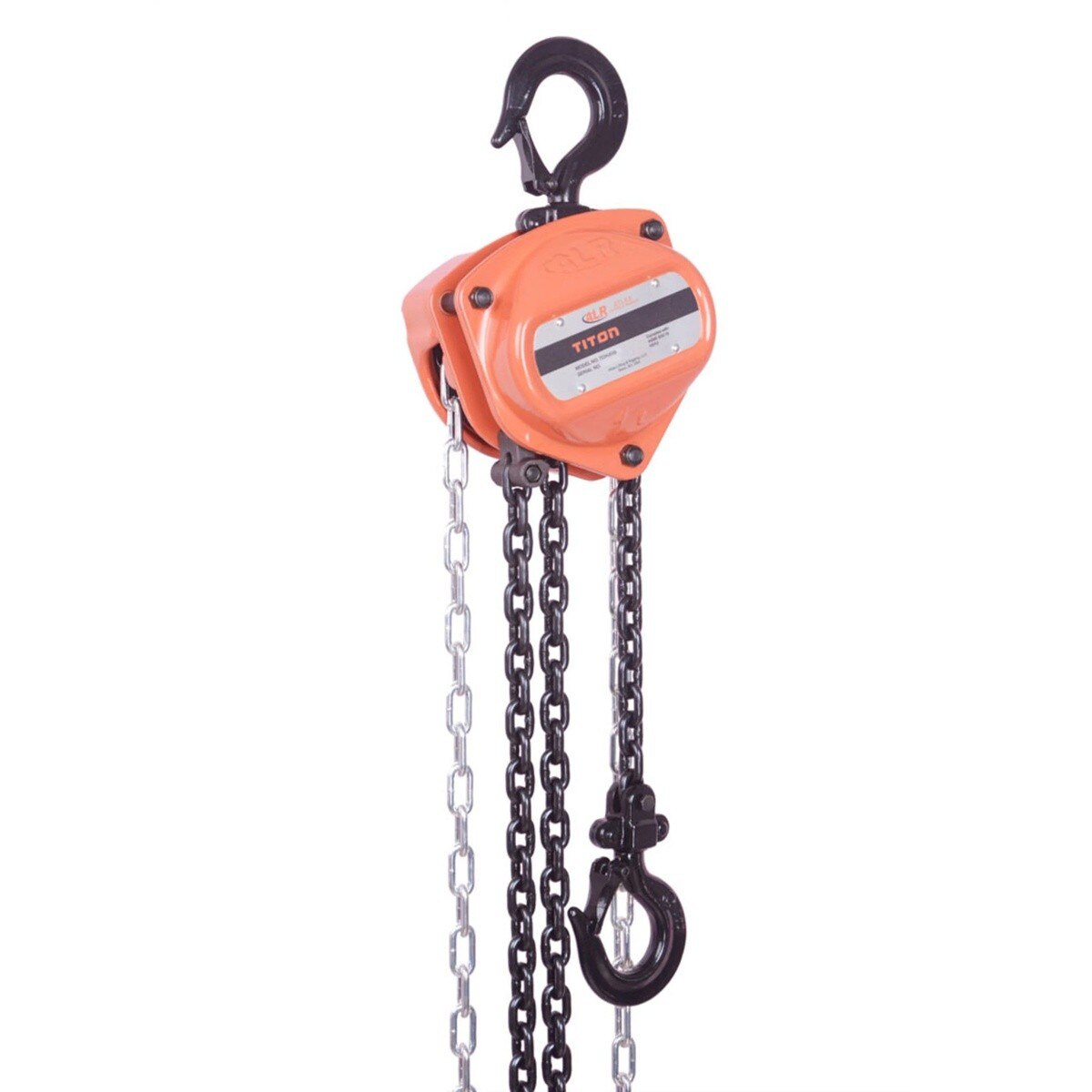

The Atlas Lifting and Rigging TCH-015-20 manual hand chain hoist provides a 1-1/2 ton (3300 lb) lifting capacity with a 20 ft lift height for dependable overhead lifting and rigging. Built with a durable steel construction, it features zinc-coated components for harsh conditions, upgraded high-strength alloy side plates, and welded structural stay bolts for added strength. Safety-focused details like permanent measuring points on the hooks help indicate overload stretching, while a sintered brake system and caged or sealed roller bearings support smooth, reliable operation.
Atlas Lifting and Rigging TCH-015-20 Includes
- (1) TCH-015-20 Manual Hand Chain Hoist
Atlas Lifting and Rigging TCH-015-20 Features
- 1-1/2 ton (3300 lb) lifting capacity for industrial lifting and rigging tasks
- 20 ft lift height for higher reach applications
- Zinc-coated components designed to withstand harsh conditions
- Quick adjust free spool feature for faster chain take-up

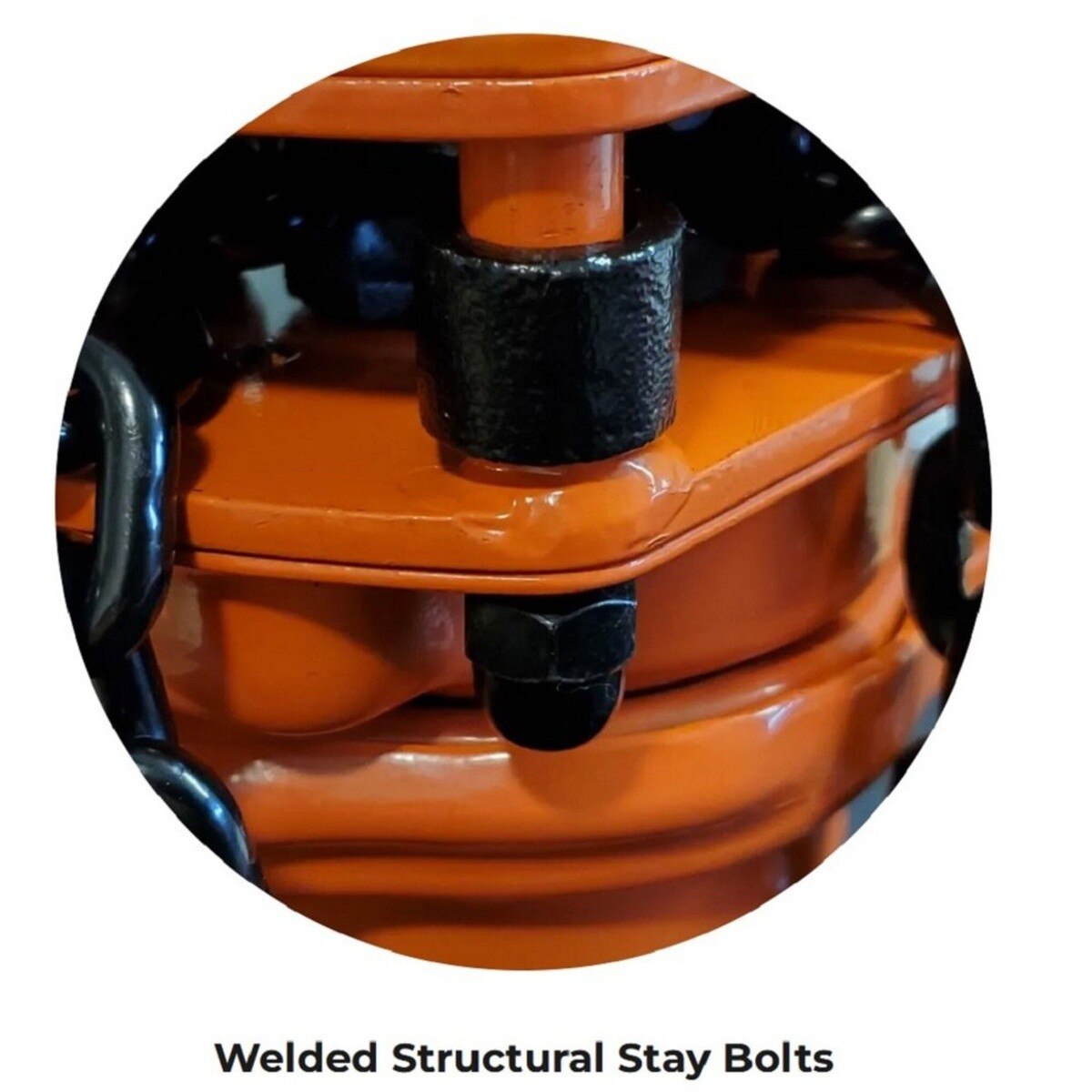

- Welded structural stay bolts for increased strength and safety

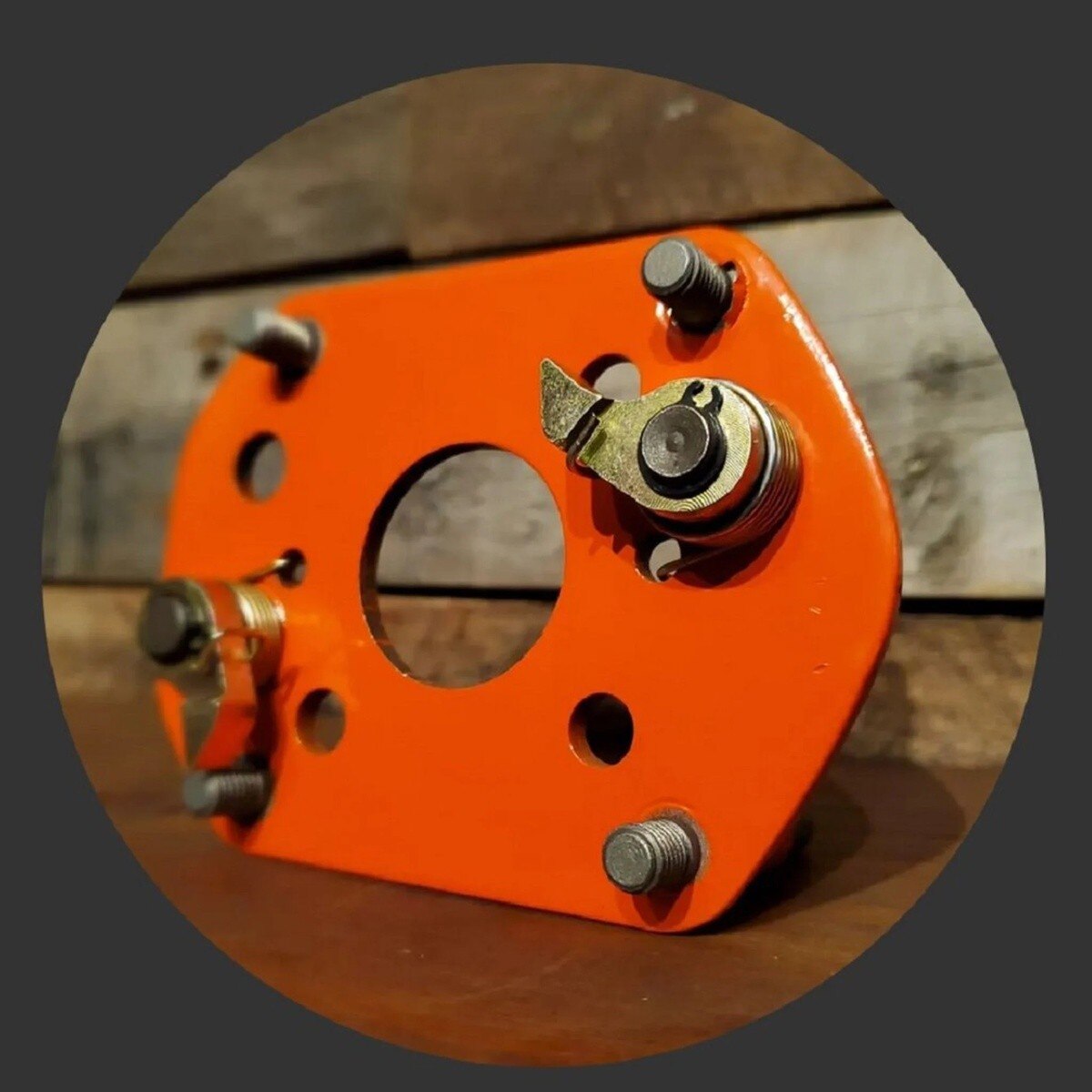

- Upgraded high-strength alloy side plates for structural durability
- Sintered brake system designed to resist cracking, shattering, and moisture absorption
- Caged or sealed roller bearings for smooth operation

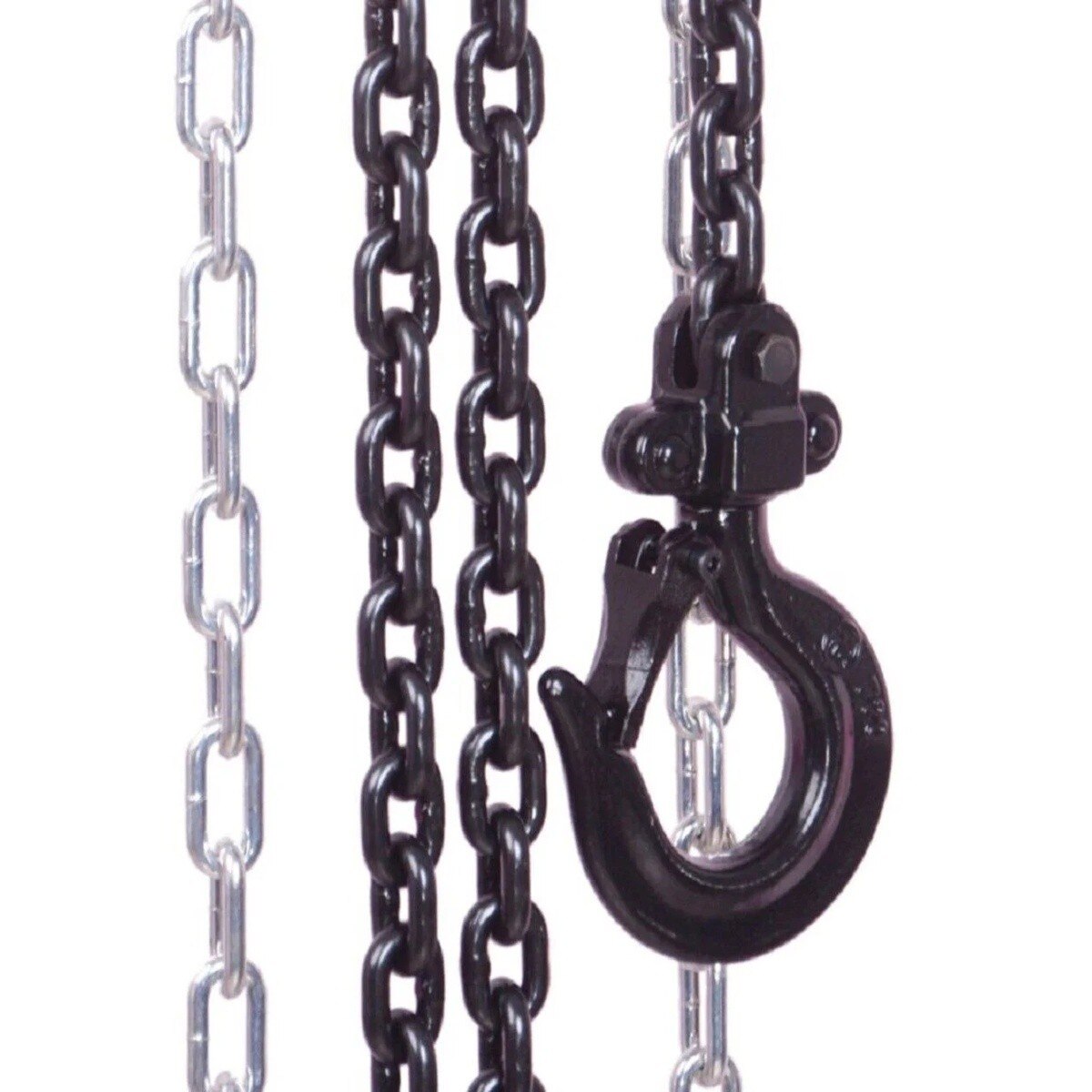

- Permanent hook measuring points help identify hook stretching from overload
- Quick hook replacement design for serviceability

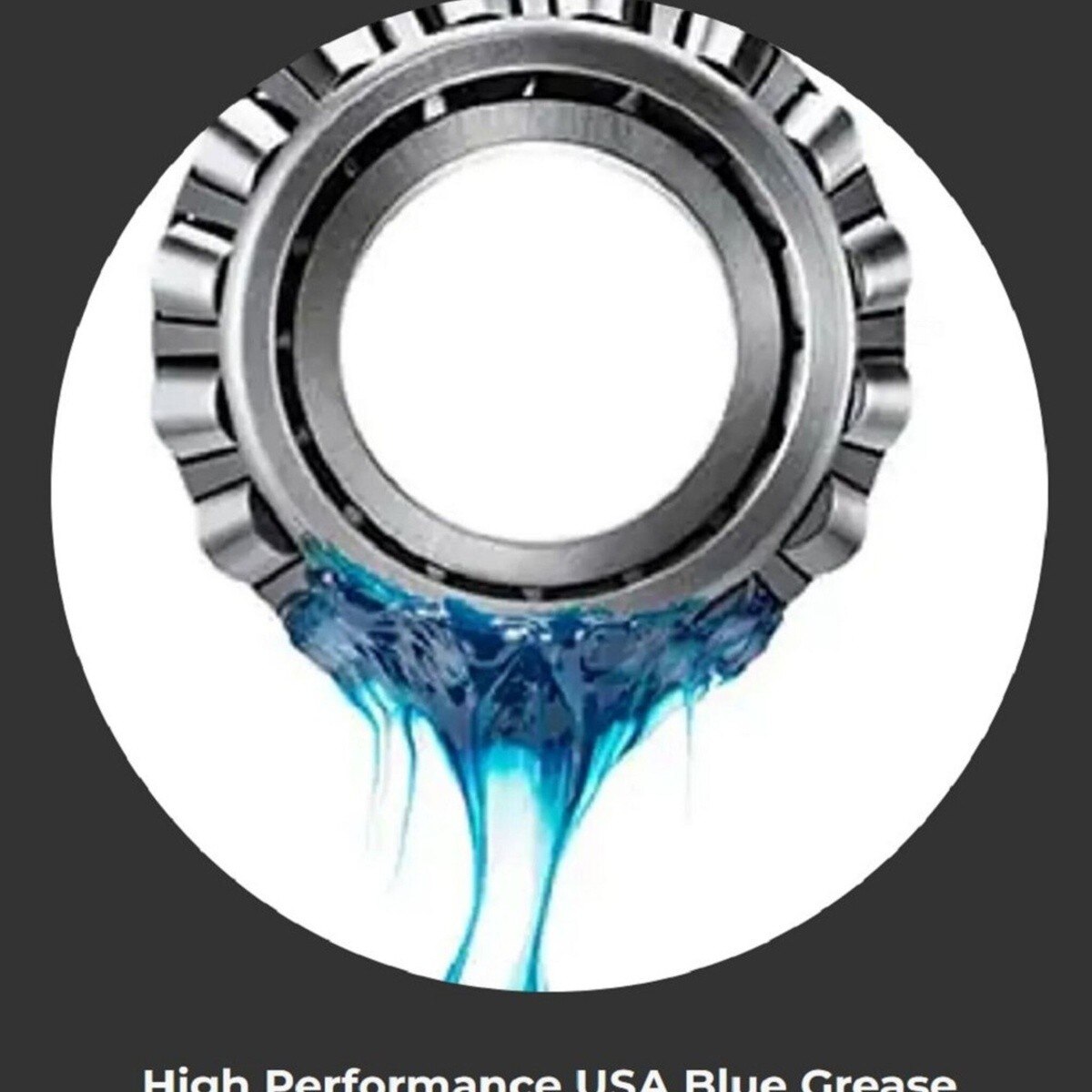

- High performance USA blue grease
Atlas Lifting and Rigging TCH-015-20 Specifications
| Capacity | 1-1/2 Ton |
| Weight Capacity | 3300 lbs |
| Maximum Lift Height | 20 ft |
| Overall Length | 240 in |
| Color | Orange |
| Material | Steel |
| Assembled Width | 11.5 in |
| Assembled Depth | 8 in |
| Height | 7.5 in |
| Assembled Weight | 50.974 lbs |
| ASTM B30.21 Compliant | Yes |
| Warranty Type | 3 Years Limited |
| Country of Origin | China |
Toolup Part # :
667423
