Baileigh Industrial BA9-1000326 ATM-27-1000 Pneumatic Tapping Arm
Description
Description
Baileigh Industrial 1000326 Description

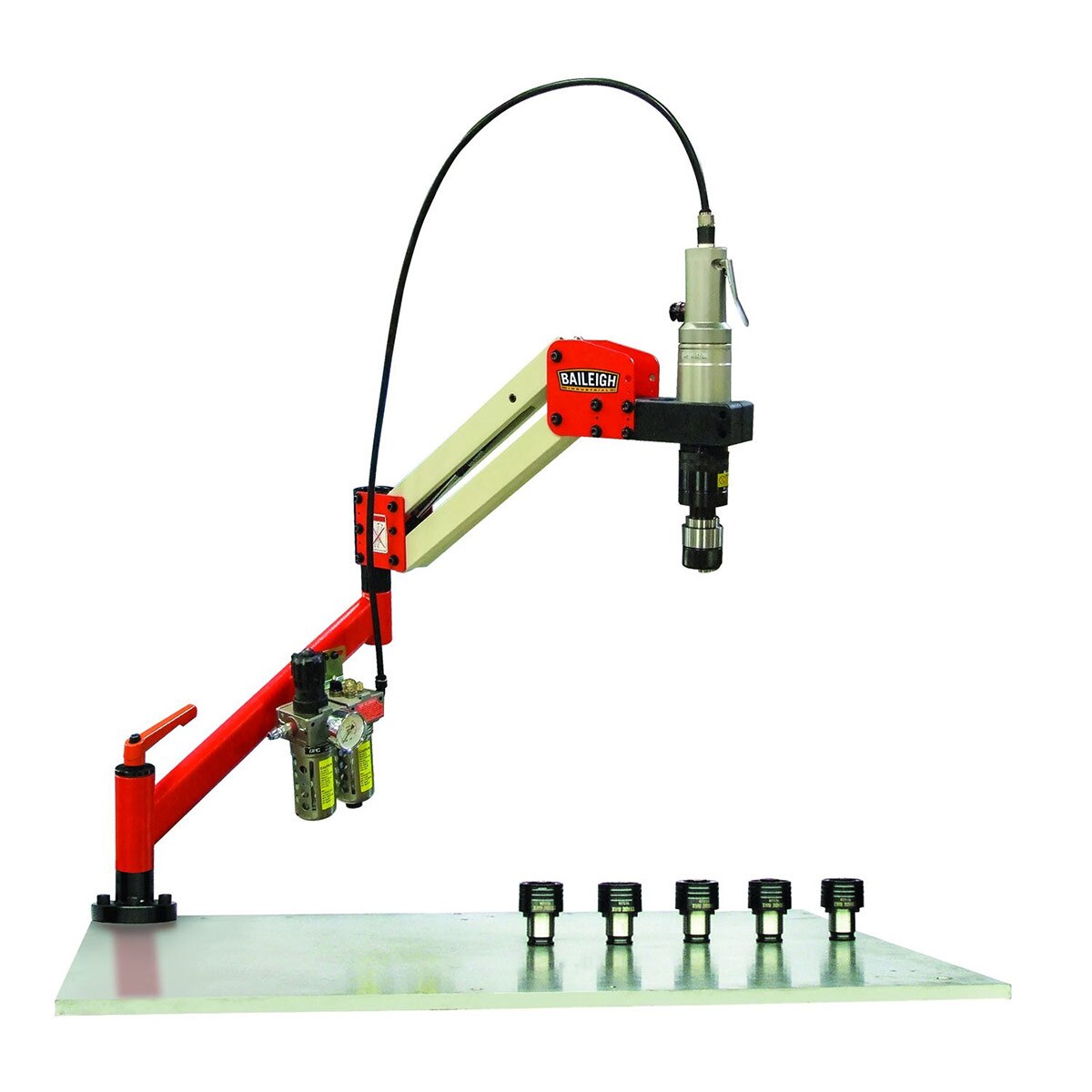

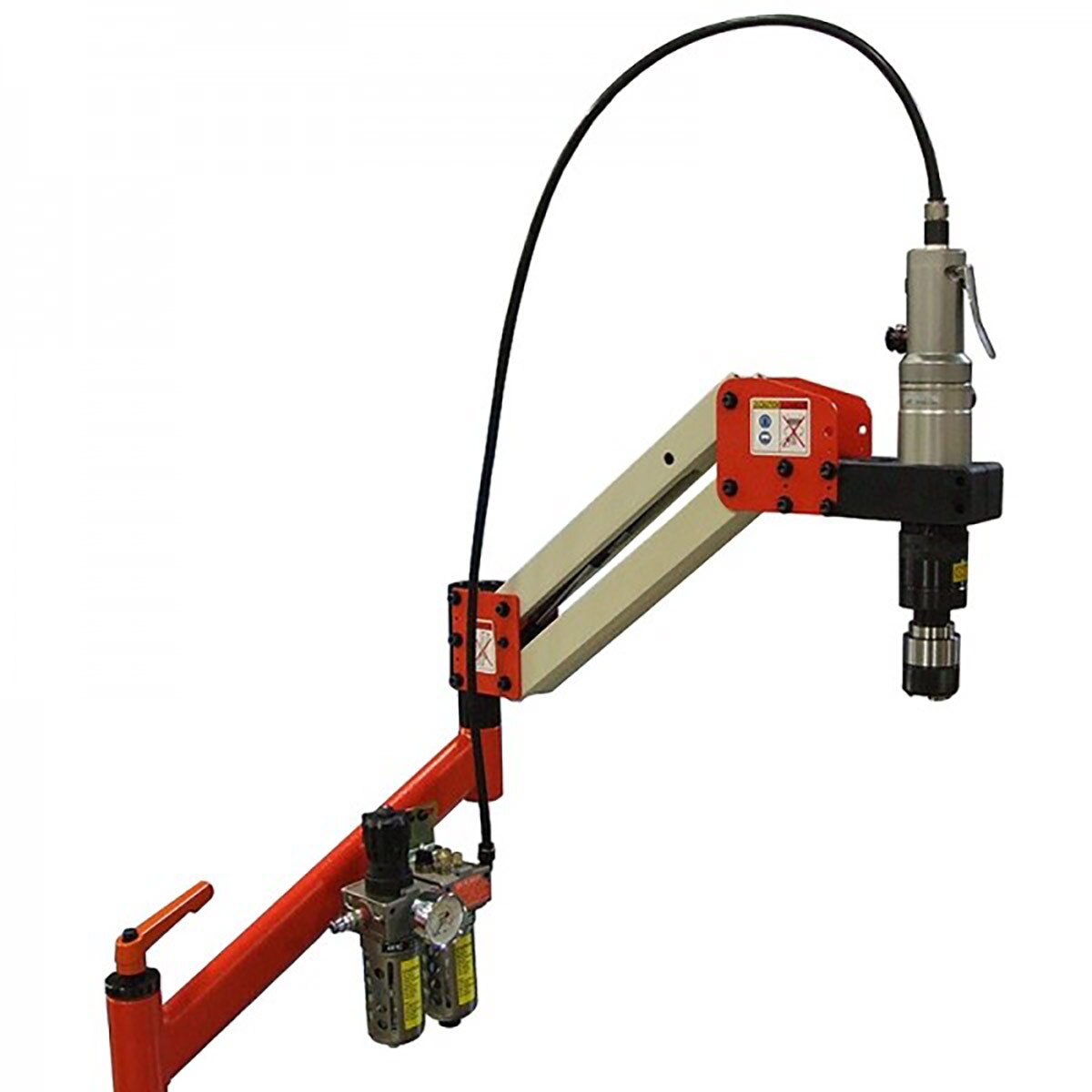

The ATM-27-1000 pneumatic tapping arm from Baileigh industrial is a heavy duty articulating tool support arm designed to provide fingertip control for the most demanding applications. It is versatile and has many uses such as tap, drill, fasten, lift, grind, and polish. The sturdy cast iron swing arm is connected to the base by means of a hardened and ground shaft that incorporates a leveling system. The twin parallel arms are made of heavy gage aluminum tubing that effective sat neutralizing vibration and torque reaction. The included pneumatic motor spins at 220 rpm and includes 6 different tap holders, as well as a drill chuck. Another nice feature of the ATM-27-1000 tapping arm is that is has an ergonomic design, this is to protect workers from injuries that tend to develop over time during repetitious work. Use with the optional work cart to make this a mobile unit so that it can be used anywhere in the shop.

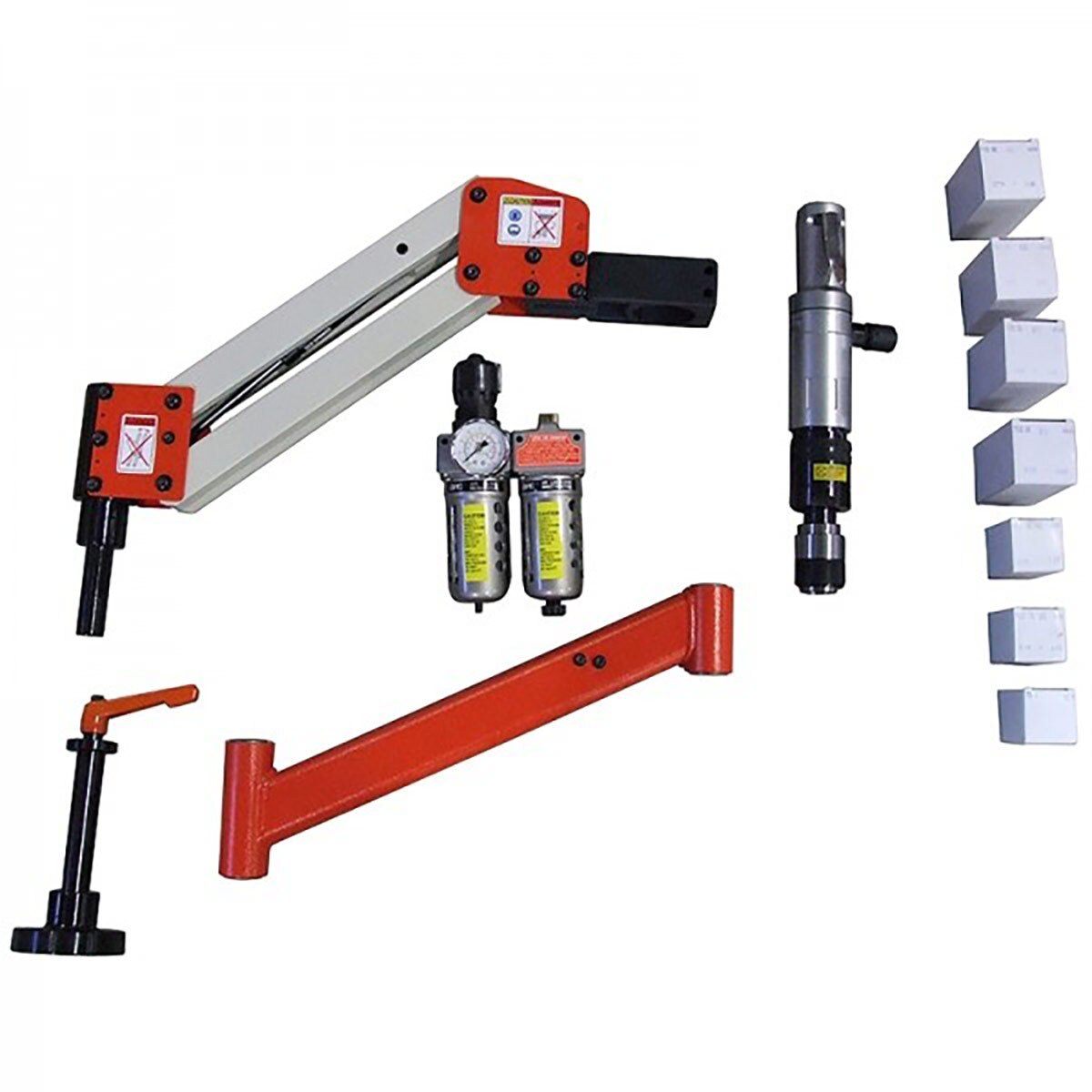

Baileigh Industrial 1000326 Includes
- (1) Pneumatic Tapping Arm
- (1) 1/4" Tap Holder
- (1) 3/8" Tap Holder
- (1) 1/2" Tap Holder
- (1) 5/8" Tap Holder
- (1) 3/4" Tap Holder
- (1) 7/8" Tap Holder
Baileigh Industrial 1000326 Features
- Air tapping spindle
- Work range 3.93" to 39.3"
- Slanted arm
- Table mount system
- 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8" tap holders included
Baileigh Industrial 1000326 Specifications
| Dimensions | 69" x 44" x 32" |
| Tapping Range | .11" to 1" |
| Maximum Work Range | 39.3" |
| Minimum Work Range | 3.93" |
| Spindle Speed | 220 RPM |
| Spindle Operation | Pneumatic |
| Tap Holders | 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8" |
| Country of Origin | Taiwan |
