Baileigh Industrial BA9-1000361 Sheet Metal Break BB-12014
Description
Description
Baileigh Industrial 1000361 Description

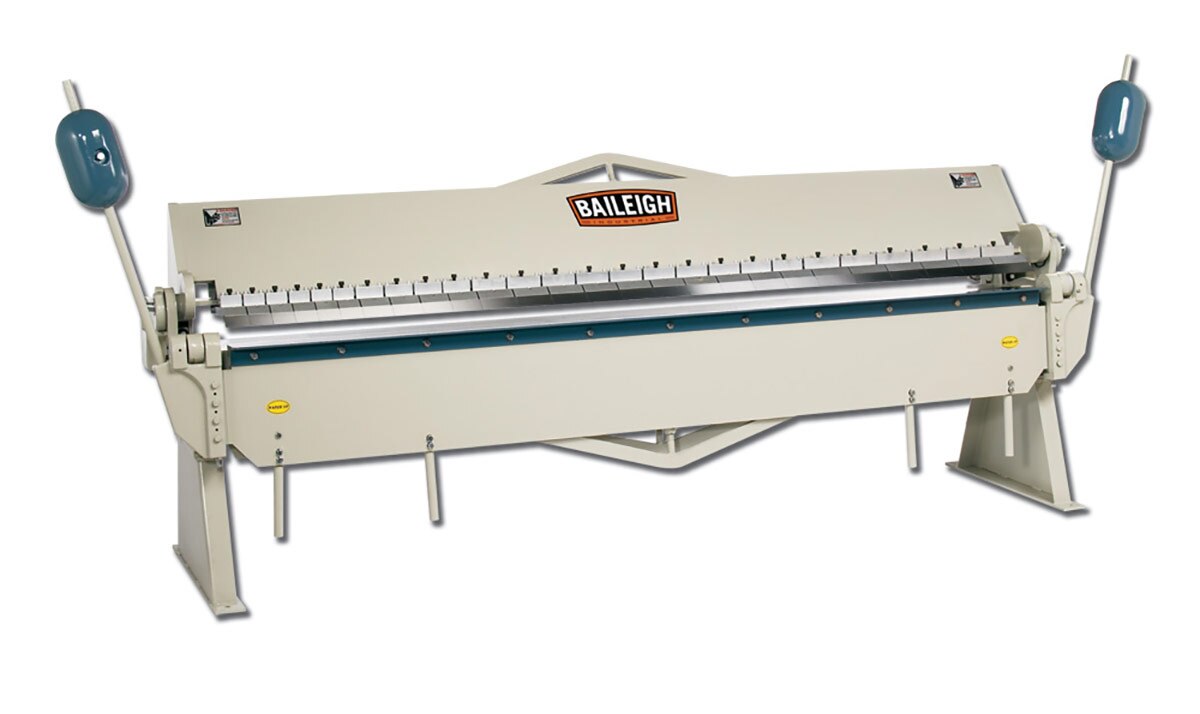

The BB-12014 sheet metal brake has a 120" wide web width to allow for 4' x 8' sheets to be bent at 45 degree angles. This finger brake has 26 varying sized fingers that allows for metal bending of most size box and pans up to 6" deep. This massively built machine almost weighs in at 3500 lbs and supports a heavy duty truss rod system for supporting the apron during maximum capacity bends. Furthermore the apron is stabilized by the massive frame that is electro welded of all steel construction and ready to provide decades of serious use at the machines maximum capacity of 14 gauge mild steel and 18 gauge stainless steel. This is the perfect metal brake for the general fab shop or HVAC shop and accepts the entire length of sheet metal at 45 degrees, allowing for angle crimps to add support to long duct pieces, and can handle up to 14GA mild steel. The apron shafts ride in precision lube for life bearings allowing for better bend tolerances and less operator fatigue. The apron is further supported by two massive counter weights further reducing operator fatigue even at maximum capacity. Of course the individual hardened fingers can allow for straight bending or box and pan configurations. Baileigh's line of sheet metal forming machines consists of six sheet metal brakes including the BB-12014.
Baileigh Industrial 1000361 Includes
- (1) Sheet Metal Brake
Baileigh Industrial 1000361 Features
- Maximum capacity of 14 gauge mild steel and 18 gauge stainless steel.
- 10-foot (120”) length enables your shop to take on a wide range of projects.
- Bends up to 135°.
- 26 fingers of varying sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6") allow you to bend boxes and pans up to 6” deep.
- You can set up the individual hardened fingers for straight bending or box and pan configurations.
- Apron shafts ride in precise oilable bearings, maintaining tight bend tolerances and minimizing operator fatigue.
- 2 massive counterweights make it easy to bend at maximum capacity and reduce physical strain.
- Heavy-duty truss rods support the apron to reduce flex on maximum capacity bends.
- Electro-welded all-steel framework keeps this metal brake accurate over decades of daily use at full capacity.
- Massively-built sheet metal finger brake weighs in at almost 3500 lbs.
- Baileigh backs this metal brake with a 1-year parts warranty.
- Includes lifetime technical support by phone. You can depend on help with the machine and project advice for as long as you’re using the BB-12014.
- Recommended for: General fab shops or HVAC shops.
Baileigh Industrial 1000361 Specifications
| Dimensions | 145" x 33" x 45" |
| Min Reverse Bend | .625" |
| Thickness (SS) | 14 ga. (18 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3", 4", 5", 6" |
| Power | Manual |
| Bending Length Capacity | 120” |
| Type | Box & Pan |
