Baileigh Industrial BA9-1000380 Box and Pan Brake BB-12016
Description
Description
Baileigh Industrial 1000380 Description

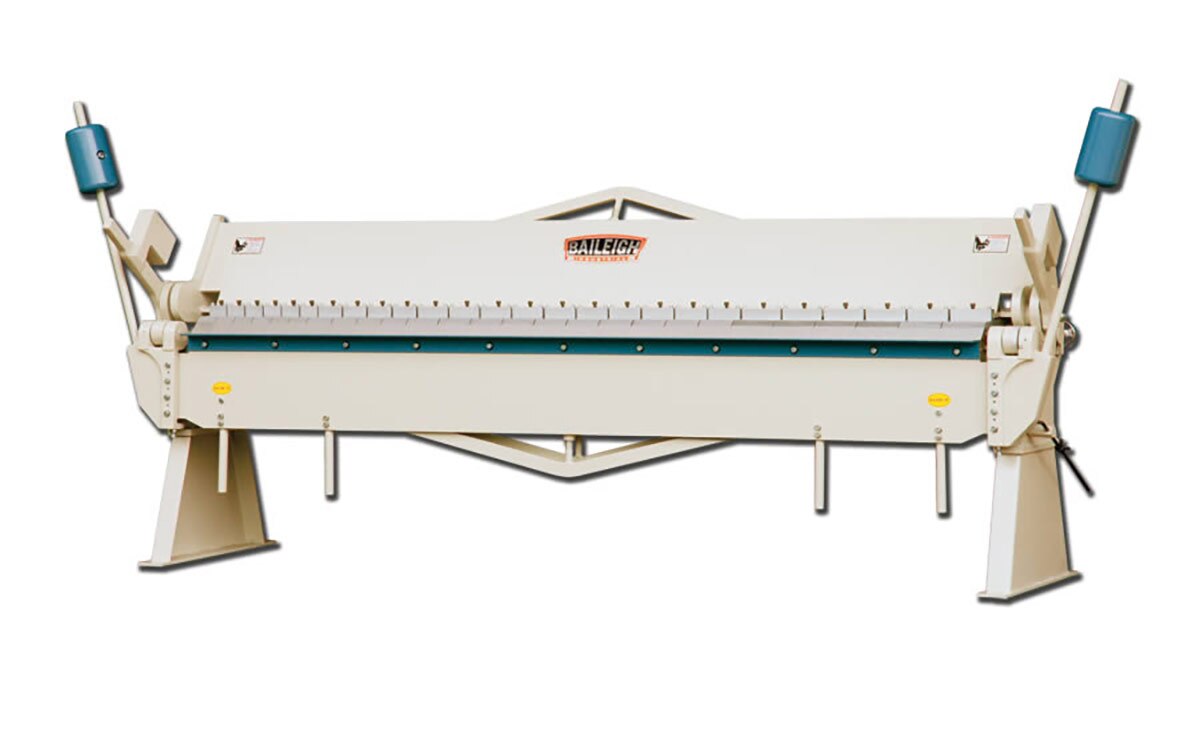

The BB-12016 manually operated box and pan brake from Baileigh Industrial is perfect for HVAC shops or fabricating shops that have to bend full 4 x 8 sheets of light gauge sheet metal. This heavy duty sheet metal brake is built to the same standards as our other finger brakes but is specially designed to make bending 16gauge and lighter sheet metal easier. The fully welded frame and support rods help keep alignment during the bending process even at full capacity. Unlike other box and pan brakes on the market the bending leaf shafts on the BB-12016 ride in precision lube for life bearings allowing for better bend tolerances and less operator fatigue. The BB-12016 sheet metal brake comes standard with 26 individual fingers of varying lengths to allow you to make just about any size box or pan. The box depth on the BB-12016 finger brake is an impressive 6”. Two large counter weights are also included to help with the bending process.
Baileigh Industrial 1000380 Includes
- (1) Box & Pan Brake
- (26) Fingers
Baileigh Industrial 1000380 Features
- Bends 16 gauge mild steel across its entire 10-foot length.
- Maximum bend angle of 135°.
- 26 individual fingers of varying lengths (6 of 3", 4 of 4",10 of 5", 6 of 6") allow you to make boxes or pans of many sizes.
- 6” maximum box depth.
- Bending leaf shafts ride in precise oilable for better bend tolerances and less operator fatigue—unlike many other box and pan brakes on the market.
- 2 large counterweights make the bending process easier and reduce physical strain on the operator.
- Electro-welded steel framework and support rods keep alignment in place, even at full capacity.
- Includes a 1-year parts warranty.
Baileigh Industrial 1000380 Specifications
| Dimensions | 144" x 54" x 59" |
| Min Reverse Bend | .625" |
| Thickness (SS) | 16 ga. (20 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3", 4", 5", 6" |
| Power | Manual |
| Bending Length Capacity | 120” |
| Type | Box & Pan |
