Baileigh Industrial BA9-1000381 Box and Pan Brake BB-14418
Description
Description
Baileigh Industrial 1000381 Description

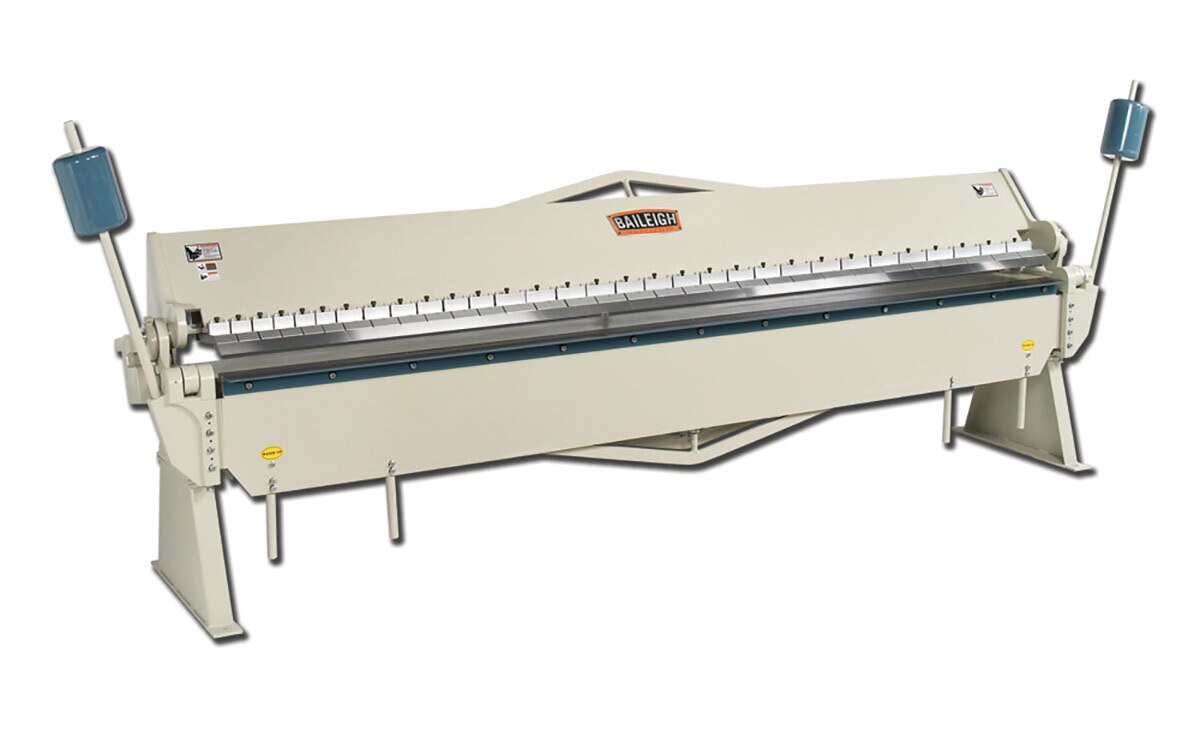

The BB-14418 box and pan brake from Baileigh Industrial is a great tool for those HVAC shops that need the extra length for making custom duct work. It has an overall bending length of 12’ and can bend 18gauge mild steel sheet metal at the full length. The BB-14418 will even handle 22gauge stainless steel sheet metal for those exotic jobs that come along. The BB-14418 is built to the exact same standards as the rest of the Baileigh Industrial sheet metal brakes which allow for years of trouble free use. The fully welded frame on the BB-14418 allows for the big capacity without twisting or misalignment that plagues many of the other sheet metal brakes on the market. 31 interchangeable fingers of varying lengths are included with the BB-14418 finger brake allowing the operator to make just about any size box or pan imaginable up to a 6” box depth. Two large counter bending weights to help the operator bend at full length are also part of the impressive BB-14418 box and pan brake.
Baileigh Industrial 1000381 Includes
- (1) Box & Pan Brake
- (31) Fingers
Baileigh Industrial 1000381 Features
- 18 gauge mild steel and 22 gauge stainless steel maximum capacity.
- Bends sheet metal across its entire 12-foot (144”) length.
- 135° maximum bend angle.
- Includes 31 interchangeable fingers of varying lengths (6 fingers of 3", 6 of 4", 10 of 5", 9 of 6" ).
- You can make just about any size box or pan imaginable up to a 6” box depth.
- 2 large counterweights help the operator bend at full length and capacity without straining.
- Electro-welded steel construction enables this sheet metal brake to handle its maximum capacity while maintaining accuracy.
- Baileigh covers this sheet metal finger brake with a 1-year parts warranty.
Baileigh Industrial 1000381 Specifications
| Dimensions | 176" x 34" x 48" |
| Min Reverse Bend | .625" |
| Thickness (SS) | 18 ga. (22 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3", 4", 5", 6" |
| Power | Manual |
| Bending Length Capacity | 144” |
| Type | Box & Pan |
