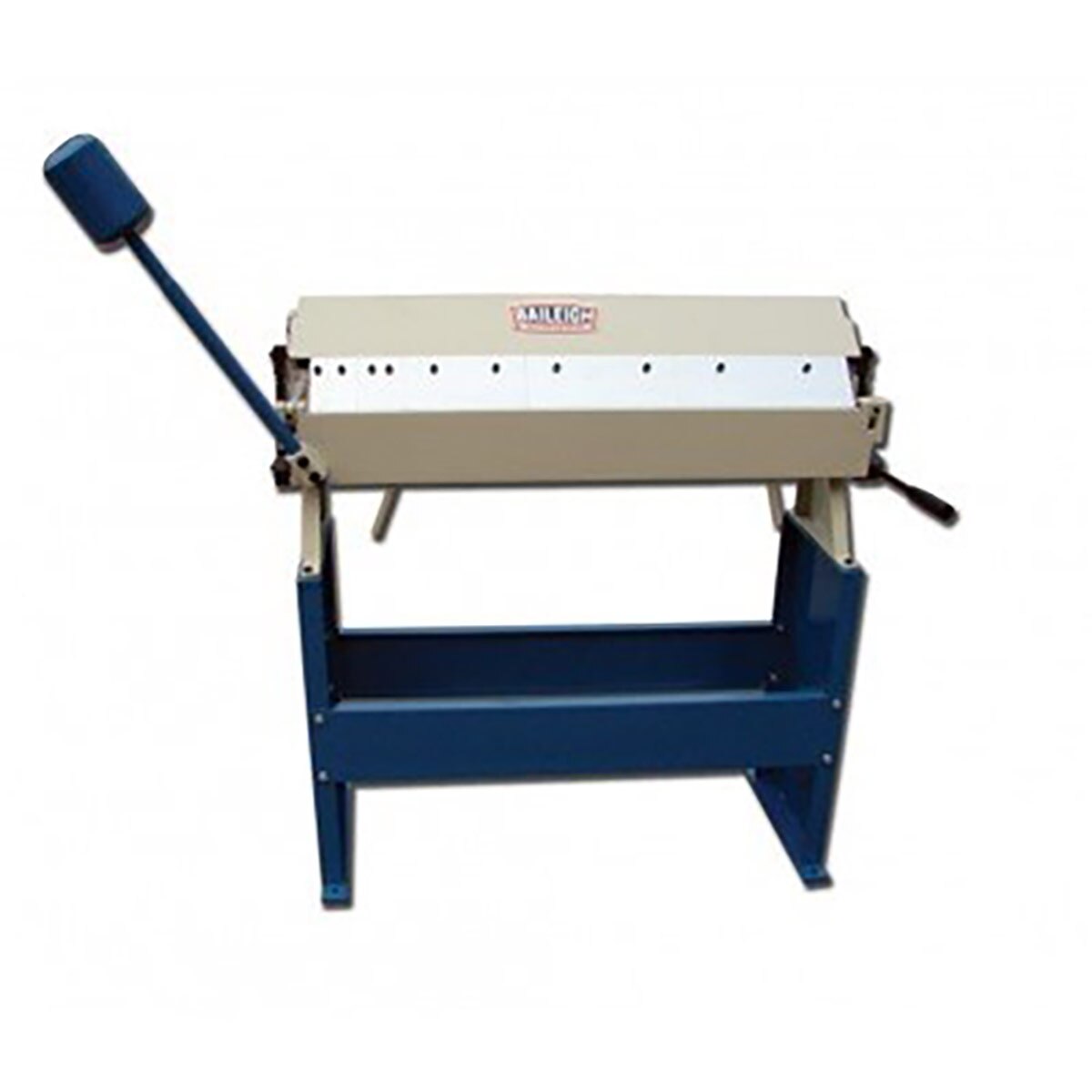

Baileigh Industrial BA9-1000386 Finger Brake BB-3616E
Description
Description
Baileigh Industrial 1000386 Description
The large robust sheet metal brakes that most metal fabrication shops haves might be to difficult to operate when working with short pieces of sheet metal. That is where the BB-3616E finger brake fits in, its small size allows for easier operation while not sacrificing on quality. It is a Baileigh Industrial sheet metal brake, so it is built to the best standards, but at an economical price point that will not break the bank, just sheet metal. The BB-3616E sheet metal bender has an assortment of 10 fingers to allow for fabricating various depths and sizes of boxes and pans out of sheet metal that is 16 gauge mild steel or thinner sheet metal. This finger brake’s heavy-duty construction consists of plate steel and an electro welded frame work that allows for crisp bend angles even at the middle of the beam at full capacity. This finger brake has a heavy counter weight to assist lifting the apron, which comes in handy when bending at full capacity. There is a finger gap adjustment on the right and left of the bend brake to allow for different gauges of material.
Baileigh Industrial 1000386 Includes
- (1) Finger Brake
- (6) Fingers
Baileigh Industrial 1000386 Features
- 36” box brake has a maximum capacity of 16 gauge mild steel.
- Bends up to 135°.
- Includes an assortment of 6 fingers to make various depths and sizes of boxes and pans.
- Rugged plate steel construction and electro-welded framework ensure crisp bend angles even in the middle of the beam at full capacity.

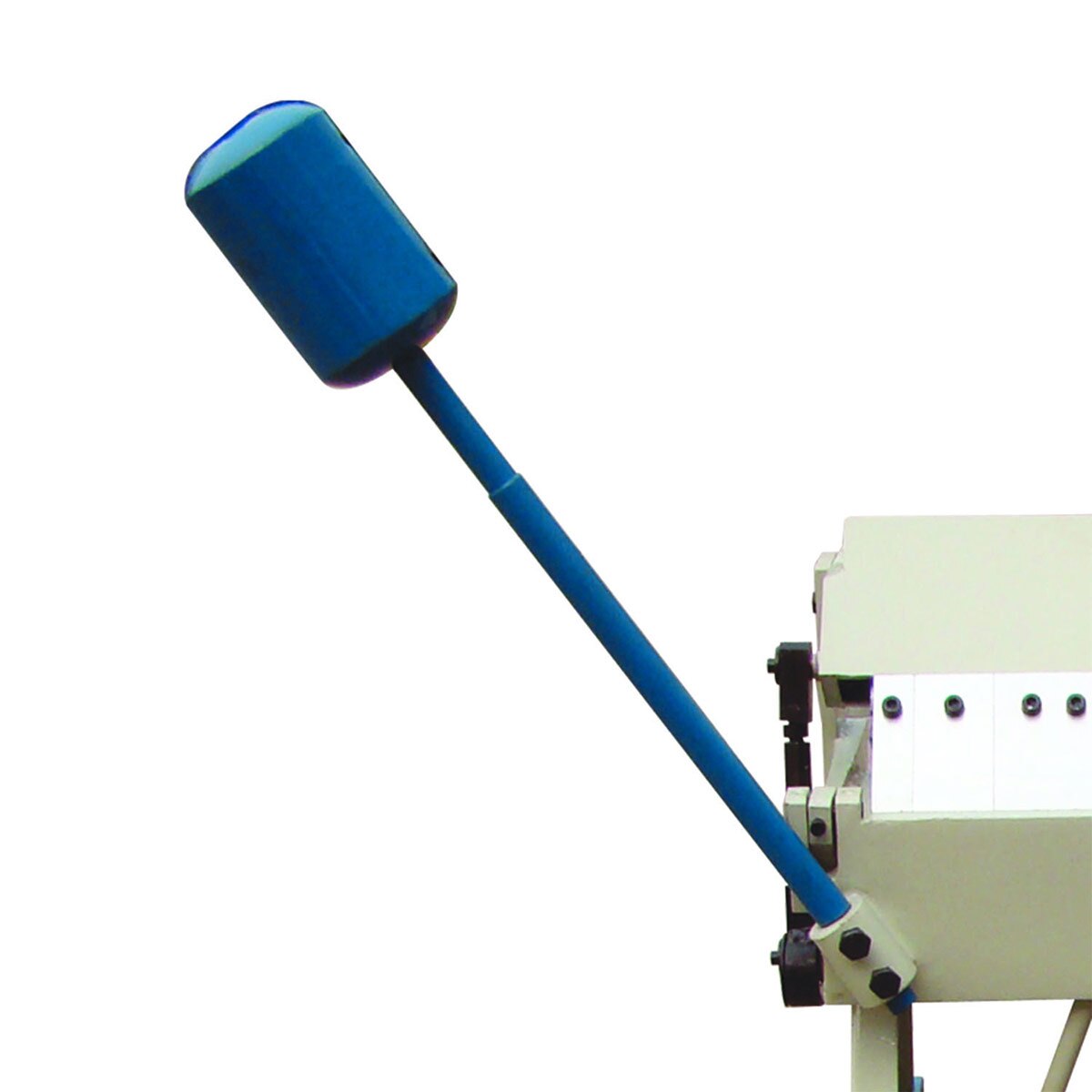

- Heavy counterweight to assist in lifting the apron—especially handy when bending at full capacity.

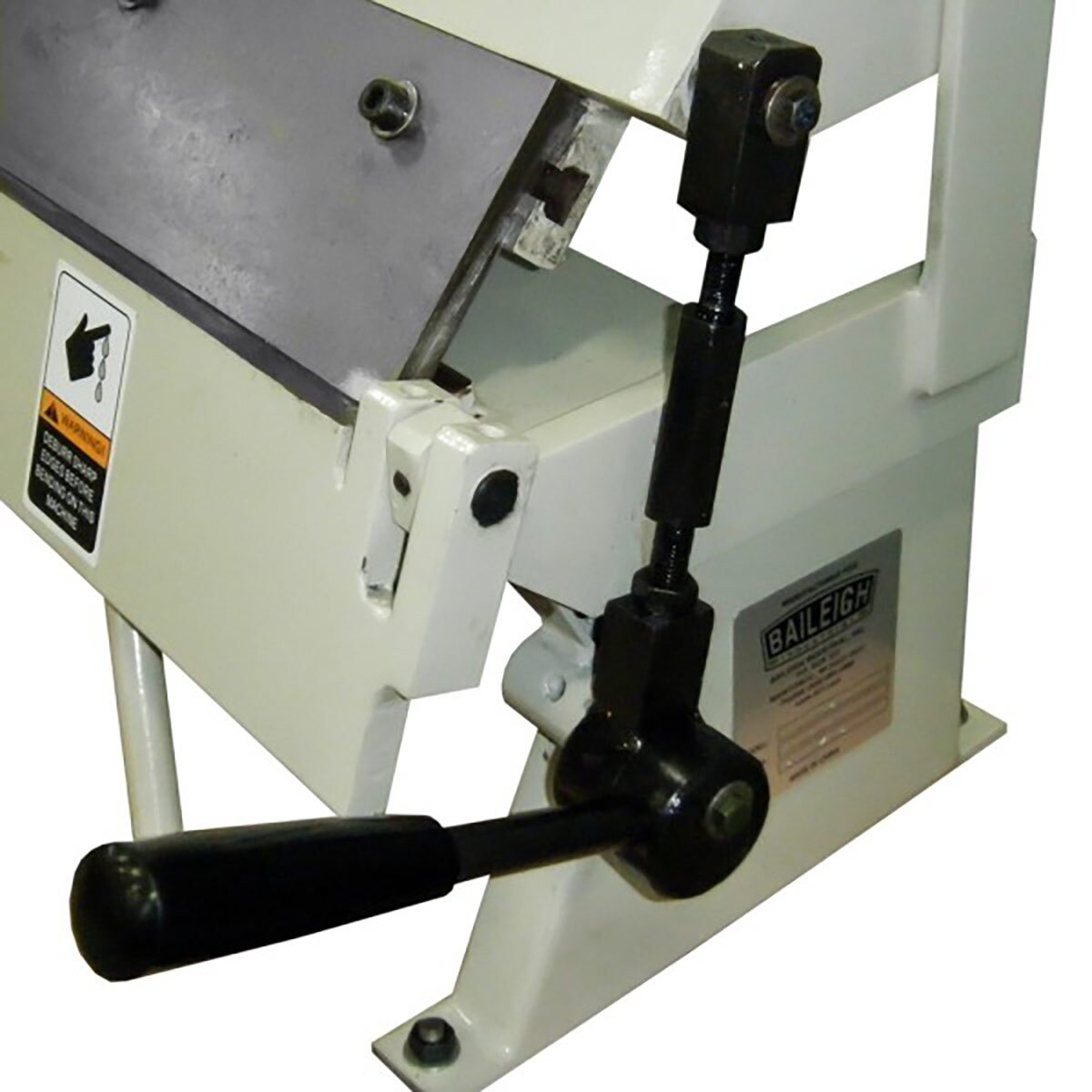

- Finger gap adjustment on the right and left of the bend brake allows for different gauges of material.
- Baileigh covers this sheet metal finger brake with a 1-year parts warranty.
Baileigh Industrial 1000386 Specifications
| Dimensions | 45" x 20" x 24" |
| Thickness | 16 ga. (20 ga.) |
| Stand | Yes |
| Box Depth | 1.375" |
| Bend Angle | 0 – 135° |
| Power | Manual |
| Base Type | Yes |
| Bending Length Capacity | 36” |
| Finger Sizes | 1", 2", 3", 8", 10", 12" |
| Type | Box & Pan |
