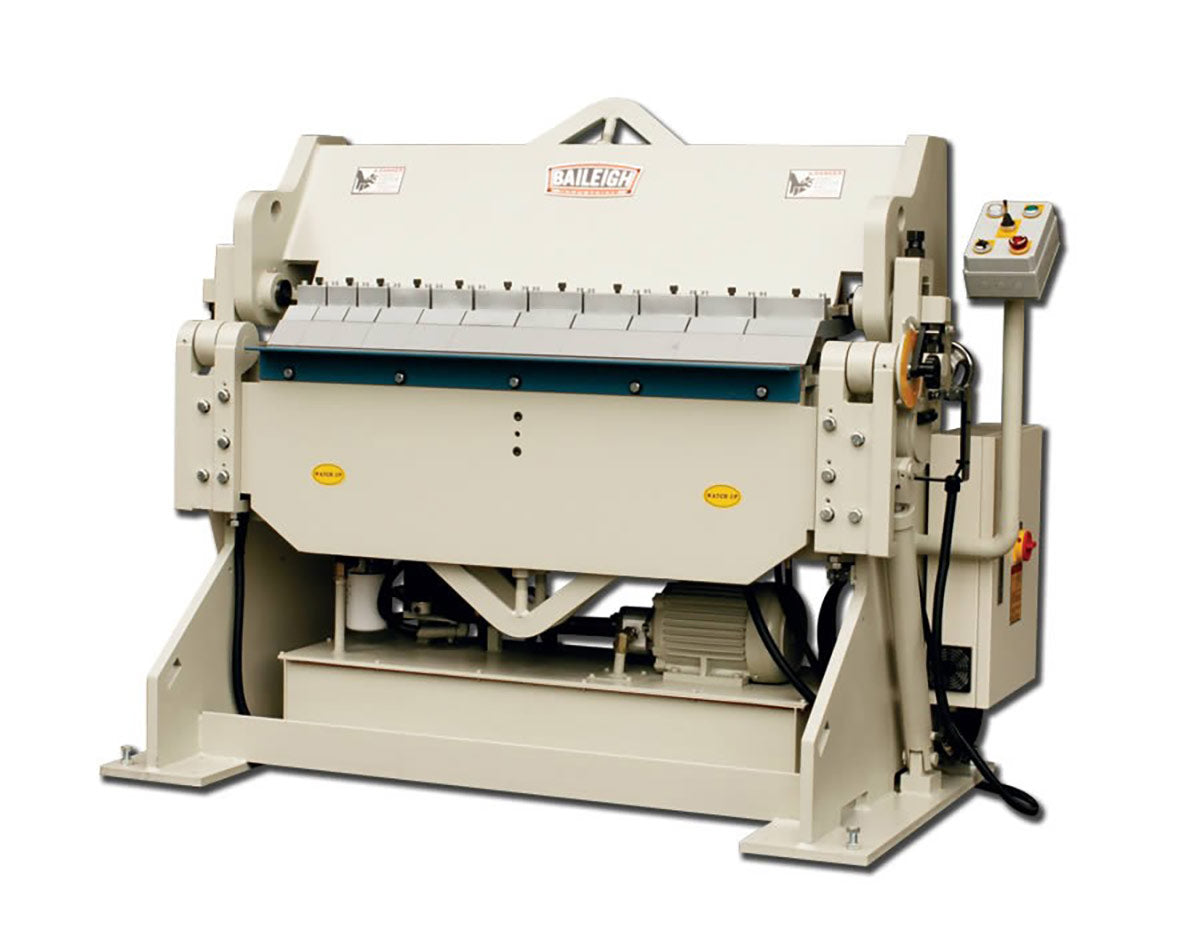

Baileigh Industrial BA9-1000403 Hydraulic Box and Pan Finger Brake BB-4810H
Description
Description
Baileigh Industrial 1000403 Description
The BB-4810H finger brake will do a maximum of 10 gauge sheet metal at a full 48 inches. This semi-automatic sheet metal brake has 3-3", 2-4", 5-5" and 1-6" fingers that allows any sheet metal fabricator to adjust for different size boxes and pans they wish to make. The BB-4810H box and pan brakes is built with a fully welded beam, bending leaf and is further stabilized with truss rod support that helps minimize any deflection when bending at full capacity. The BB-4810H hydraulic sheet metal box & pan brake uses industrial grade hydraulics to lift the leaf and can be operated in manual or semi-automatic mode. For even more holding power, when bending 10 gauge mild steel, the beam is lifted and clamped via an electric motor that turns a cam. The BB-4810H hydraulic finger brake has a programmable bend adjustment making reproducing bends easy on this hydraulic sheet metal brake. Another nice feature of the BB-4810H, like all the Baileigh Industrial box and pan brakes, is that the bending apron is removable allowing the operator to get closer between bends. The BB-4810H has a 1” beam adjustment and is capable of bending to a maximum of 135°. Operating on 220V 3 Phase the BB-4810H uses a powerful 3 hp motor to control all the hydraulic functions.
Baileigh Industrial 1000403 Includes
- (1) Hydraulic Box & Pan Finger Brake
- (11) Fingers
Baileigh Industrial 1000403 Features
- Runs on 220-volt 3-phase power.
- Powerful 3 hp motor controls all the hydraulic functions.
- 1” beam adjustment.
- Maximum bend angle of 135°.
- Includes 11 fingers (3 fingers of 3”, 2 of 4”, 5 of 5”, 1 of 6”), allowing you to adjust for different size boxes and pans you want to make.
- Industrial-grade hydraulics lift the leaf for clean, precise motion.
- You can operate this hydraulic brake in manual or semi-automatic mode.
- Hydraulic motor turns a cam to lift and clamp the beam when bending 10 gauge mild steel.
- Adjustable bend auto-stop makes it easy to produce repeatable bends.
- Removable bending support lets you get closer between bends.
- Fully-welded beam and bending leaf, stabilized with truss rods, minimizes any deflection when bending at full capacity.
- Baileigh backs this hydraulic box and pan brake with a 1-year parts warranty.
Baileigh Industrial 1000403 Specifications
| Dimensions | 86" x 50" x 69" |
| Motor | 3 HP |
| Min Reverse Bend | .984" |
| Thickness (SS) | 10 ga. (12 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3", 4", 5", 6" |
| Power | 220V / 3-phase |
| Bending Length Capacity | 48” |
