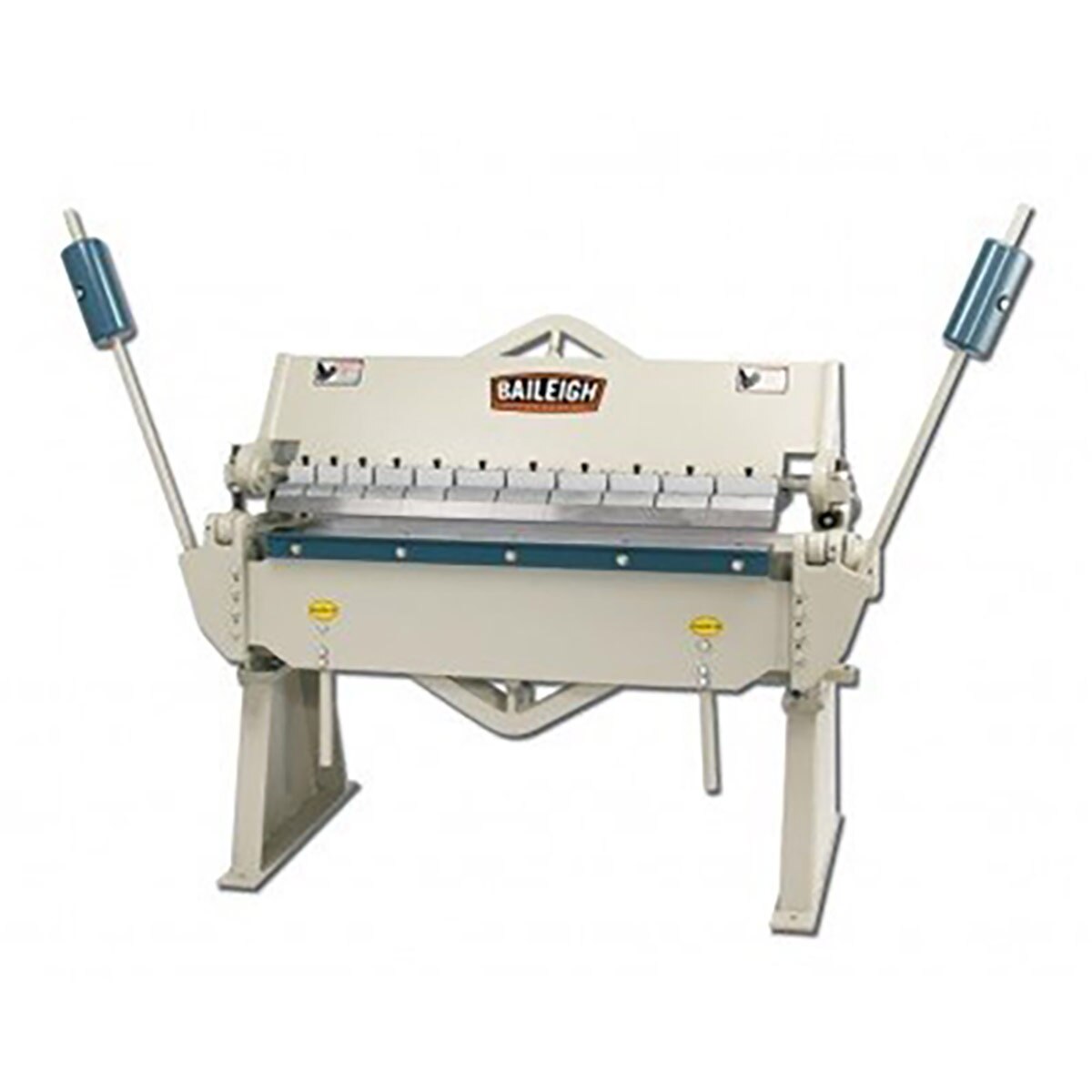

Baileigh Industrial BA9-1000404 Finger Brake BB-4812
Description
Description
Baileigh Industrial 1000404 Description
The fully welded framework, supported by solid steel adjustable trusses, allow the BB-4812 sheet metal brake to bend 12 gauge mild steel sheet metal over the entire 48” length. The BB-4812 weighs in at just less than 2000lbs, truly making it one heavy duty sheet metal brake. The BB-4812 finger brake comes standard with 11 hardened and polished 3 piece fingers of varying lengths that allow the operator to configure the sheet metal brake in any way possible. Because of the three piece design, the box depth of the BB-4812 is 6’ one of the largest on the market. The heavy duty apron on the BB-4812 has an integrated stop rod for repeatability. Also included is a pair of heavy counter weights to assist the operator in the bending of 12 gauge sheet metal. As you can see, like most Baileigh Industrial equipment, the BB-4812 is built to offer years of service and is typically in stock for quick deliveries.
Baileigh Industrial 1000404 Includes
- (1) Finger Brake
- (11) Fingers
Baileigh Industrial 1000404 Features
- Bends 12 gauge (or lighter) mild steel.
- 4 feet (48”) long.
- Maximum bend angle of 135°.
- Compact size makes a great fit for tight floor plans.
- Includes 11 hardened and polished 3-piece fingers of varying lengths (3 at 3”, 2 at 4”, 5 at 5”,1 at 6”). You can make many different box sizes.
- Up to 6” box depth, made possible by 3-piece design, is one of the largest available.
- 2 handwheels adjust the gap for varying material thickness.
- Comes standard with a stop rod system to help you make repeatable bends and simplify production runs.
- Heavy counterweights assist you with bending thick sheet metal—a relief for operators who frequently use the box brake for long periods of time.
- Massive torsion system, connected to the steel beam and leaf, keeps the beam from twisting at maximum capacity.
- Electro-welded steel framework, supported by solid steel adjustable trusses, prevents flexing and maintains accuracy.
- Baileigh covers this sheet metal finger brake with a 1-year parts warranty.
Baileigh Industrial 1000404 Specifications
| Dimensions | 70" x 32" x 42" |
| Min Reverse Bend | .625" |
| Thickness (SS) | 12 ga. (16 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3", 4", 5", 6" |
| Power | Manual |
| Bending Length Capacity | 48” |
| Type | Box & Pan |
