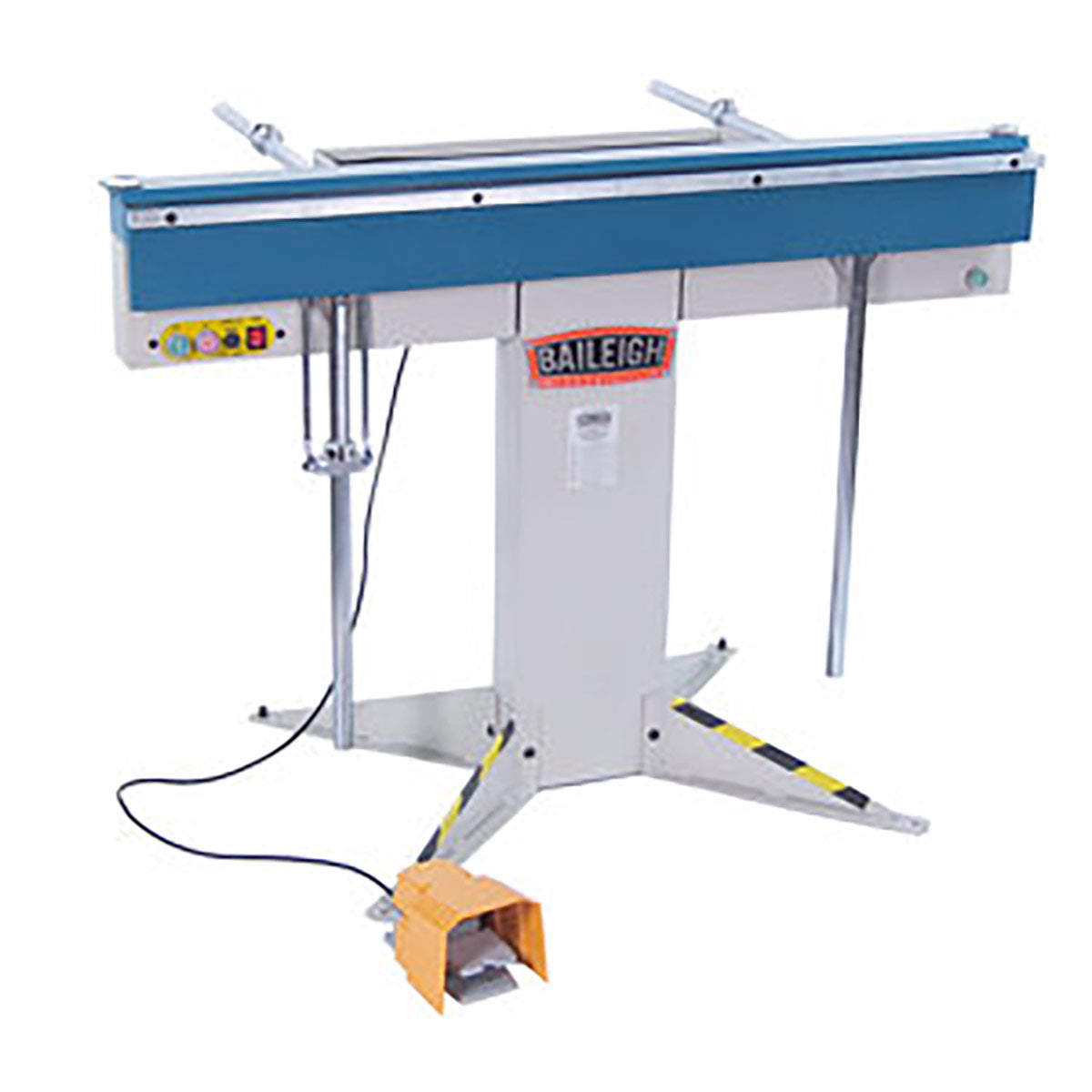

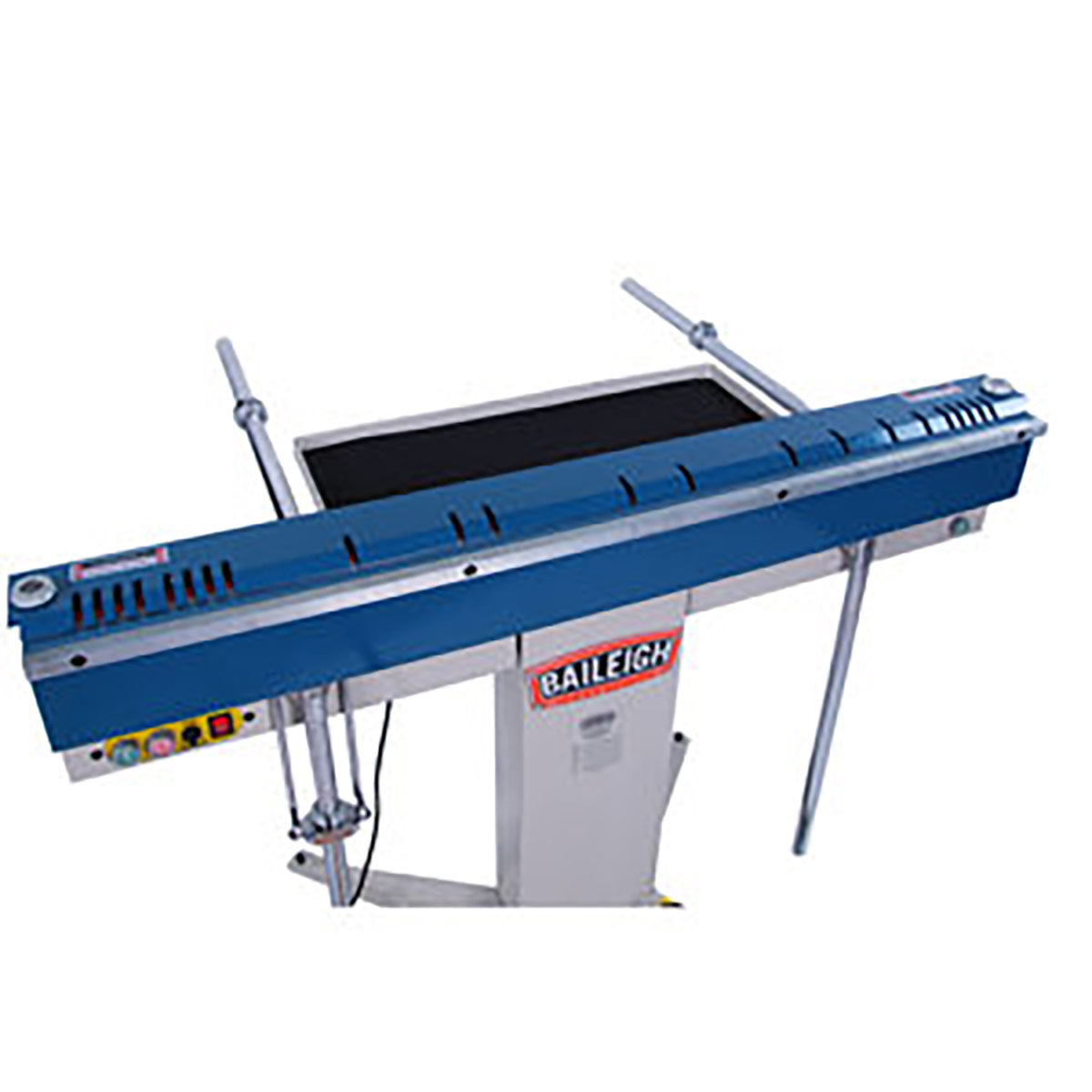

Baileigh Industrial BA9-1000490 Magnetic Sheet Metal Brake-4816M
Description
Description
Baileigh Industrial 1000490 Description

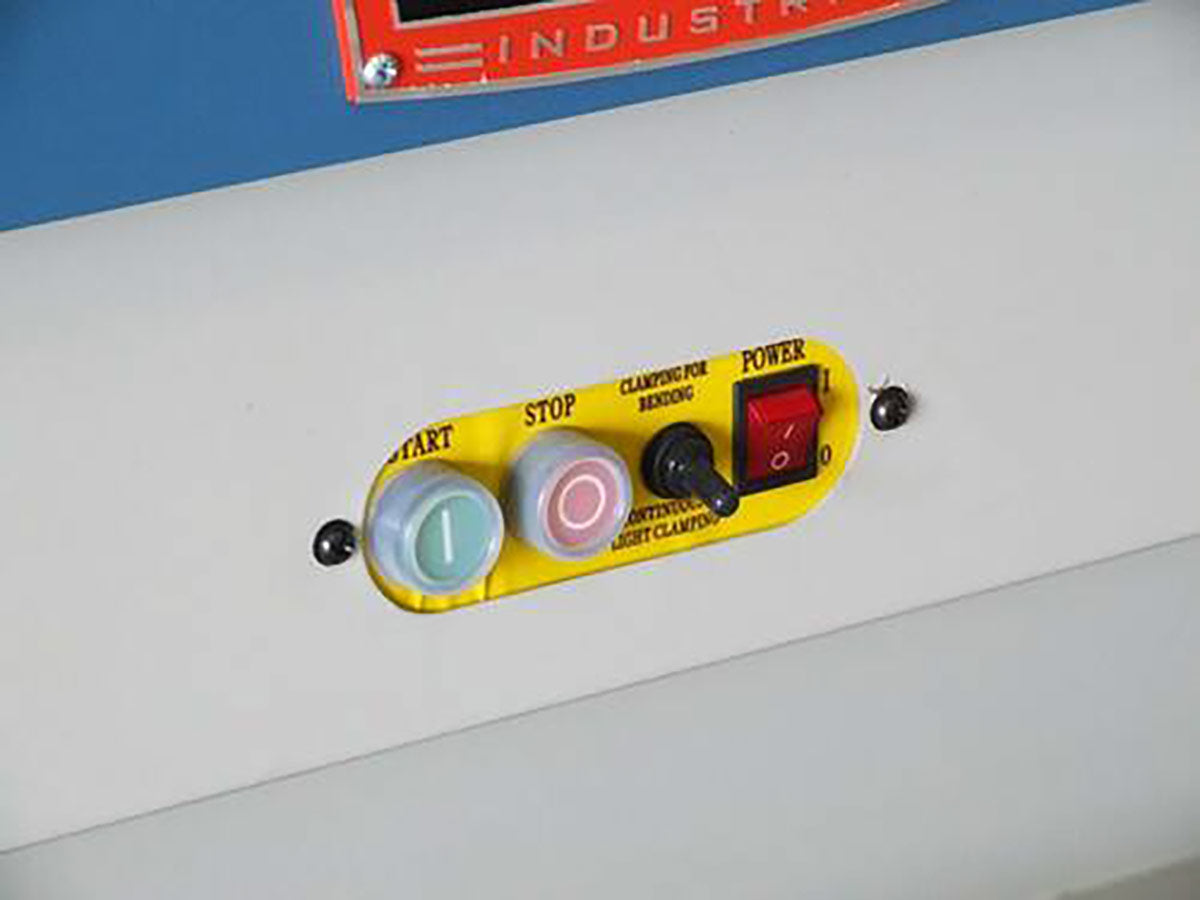

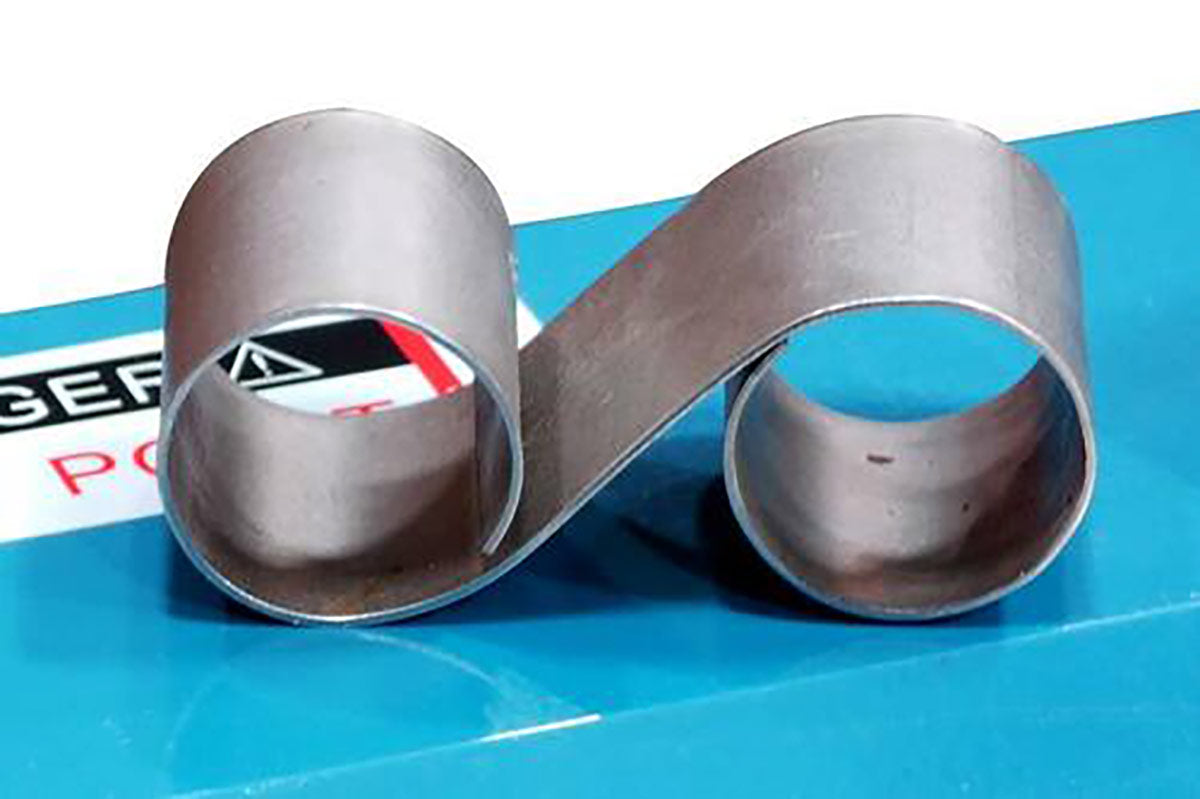

The BB-4816M magnetic sheet metal brake is a unique box and pan brake that has endless bending possibilities when compared to conventional sheet metal brakes. Requiring a common 220 volt, single phase power supply this folding machine can bend boxes or pans to almost any depth since it isn't reliant on conventional finger depths. A powerful magnet in the bending bed can be engaged by foot pedal or push button control to hold down a mild steel clamping bar of almost any configuration across the bed width or bed length. The sheet metal is pinned between the magnetic mild steel clamping bar, at this point the bottom bending leaf can be lifted to complete the bend. The mild steel clamping bar can be made of straight bars (of various widths if you had very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications of any other configuration. Again, because of the unique design the operator is not limited to the depth of the item since you are no longer limited by finger length. Our BB-4816M magnetic sheet metal brake can bend (items impossible for traditional box and pan brakes) totally enclosed boxes, triangles, alternate bends on varying planes, round items such as scrolling applications, and much more. This bending machine is perfect for bending sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and much more. The bottom leaf's bending extension can be removed for the tightest bend dimension between bends of 5/8". A scaled stroke angle control can be set for repeatable bends time after time. This magnetic box and pan brake comes with product supports and adjustable back gauges for production runs, as well as a simple to use gap adjustments on the standard clamping bars for different sheet metal thicknesses.
Baileigh Industrial 1000490 Includes
- (1) Magnetic Sheet Metal Brake
Baileigh Industrial 1000490 Features
- Runs on 220-volt single-phase power and will work at virtually any site.
- 48” (4-foot) length with a maximum capacity of 16 gauge mild steel.
- The breakthrough open-ended design allows you to create enclosed ducts and shapes impossible to make with a traditional box and pan brake.
- 6-ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake.

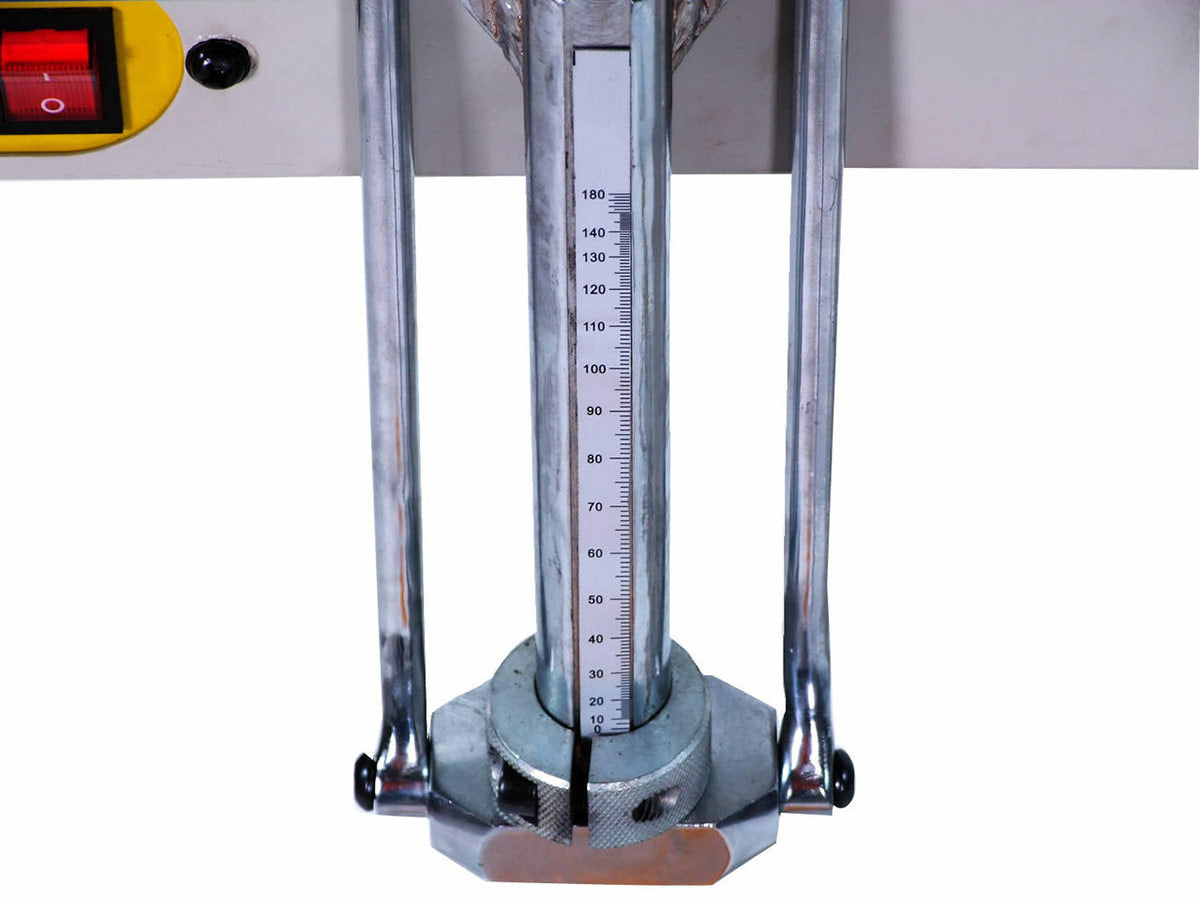

- Scaled stroke angle control lets you deliver repeatable bends time after time.

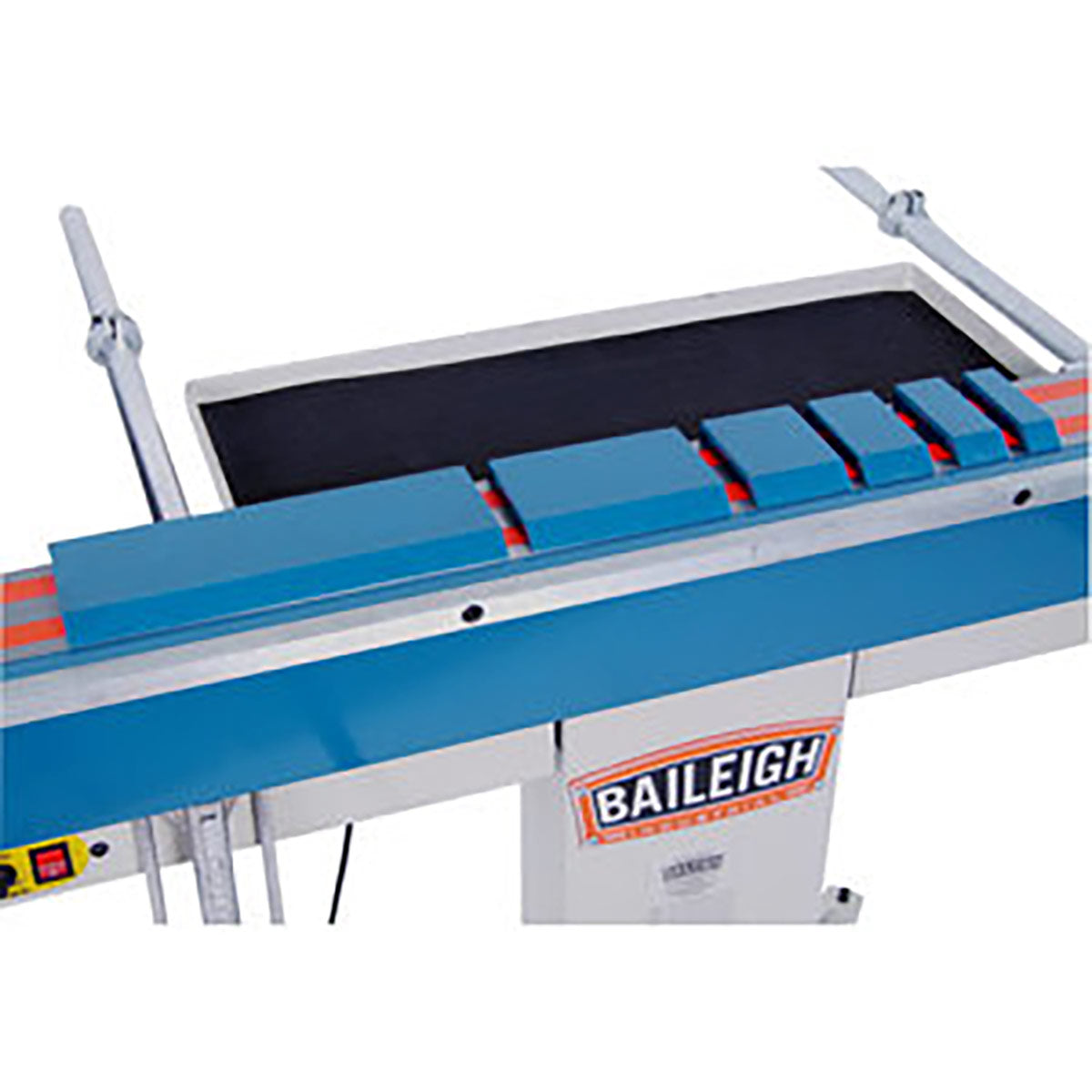

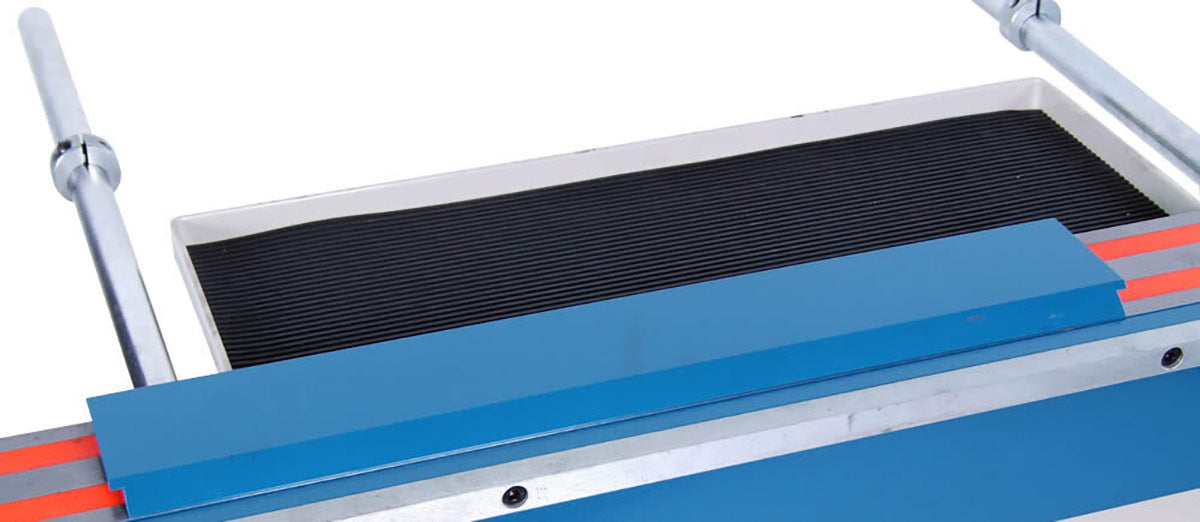

- You can set up the mild steel clamping bar with straight bars (of various widths if you had very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications.
- Blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses.
- You can remove the bottom leaf's bending extension for the tightest bend dimension between bends of .625”.

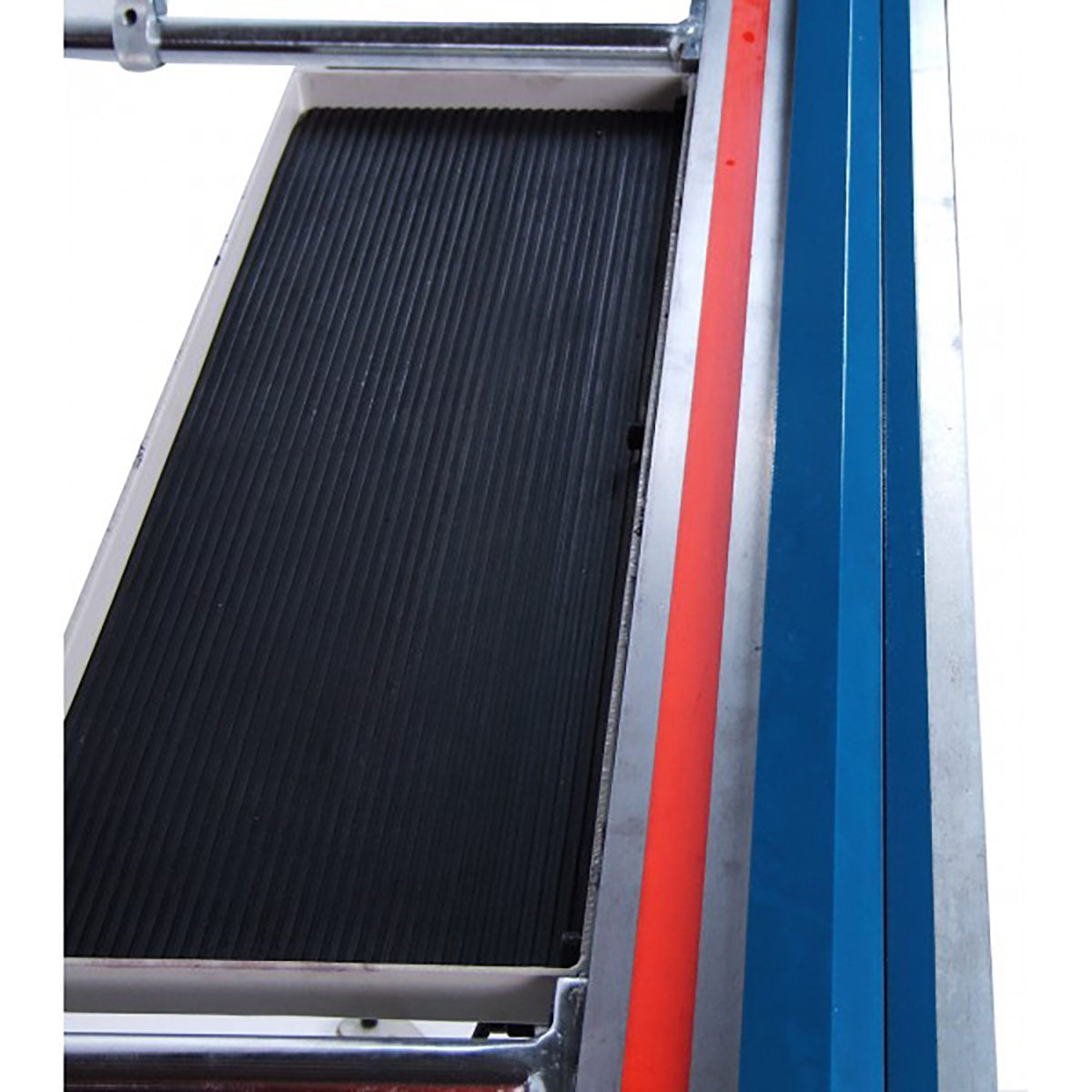

- Comes with product supports and adjustable back gauges for production runs.
- Baileigh covers this box brake with a 1-year parts warranty.
Baileigh Industrial 1000490 Specifications
| Dimensions | 57" x 45" x 15" |
| Duty Cycle | 30% |
| Box Depth | Unlimited |
| Clamping Force | 6 ton |
| Bend Angle | 0 – 180° |
| Max. Clamping Bar Lift | Unlimited |
| Power | 220V / 1-phase |
| Bending Length Capacity | 48” |
| Max. Capacity with Extension | 18ga. (1.21mm) Mild Steel / 21ga. (0.83mm) Stainless Steel |
| Max. Capacity without Extension | 16ga. (1.51mm) Mild Steel / 20ga. (0.91mm) Stainless Steel |
