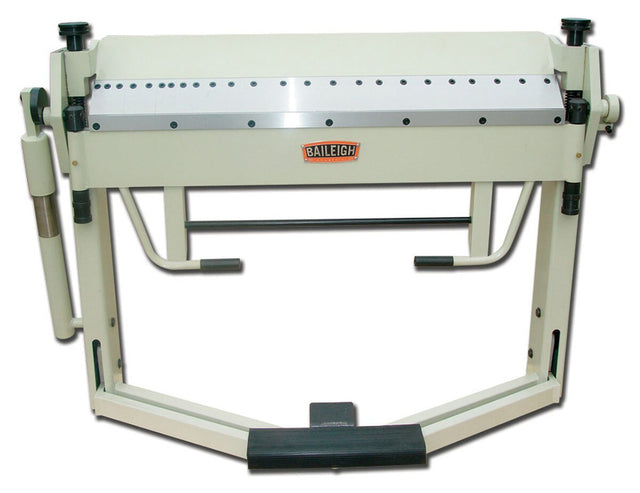

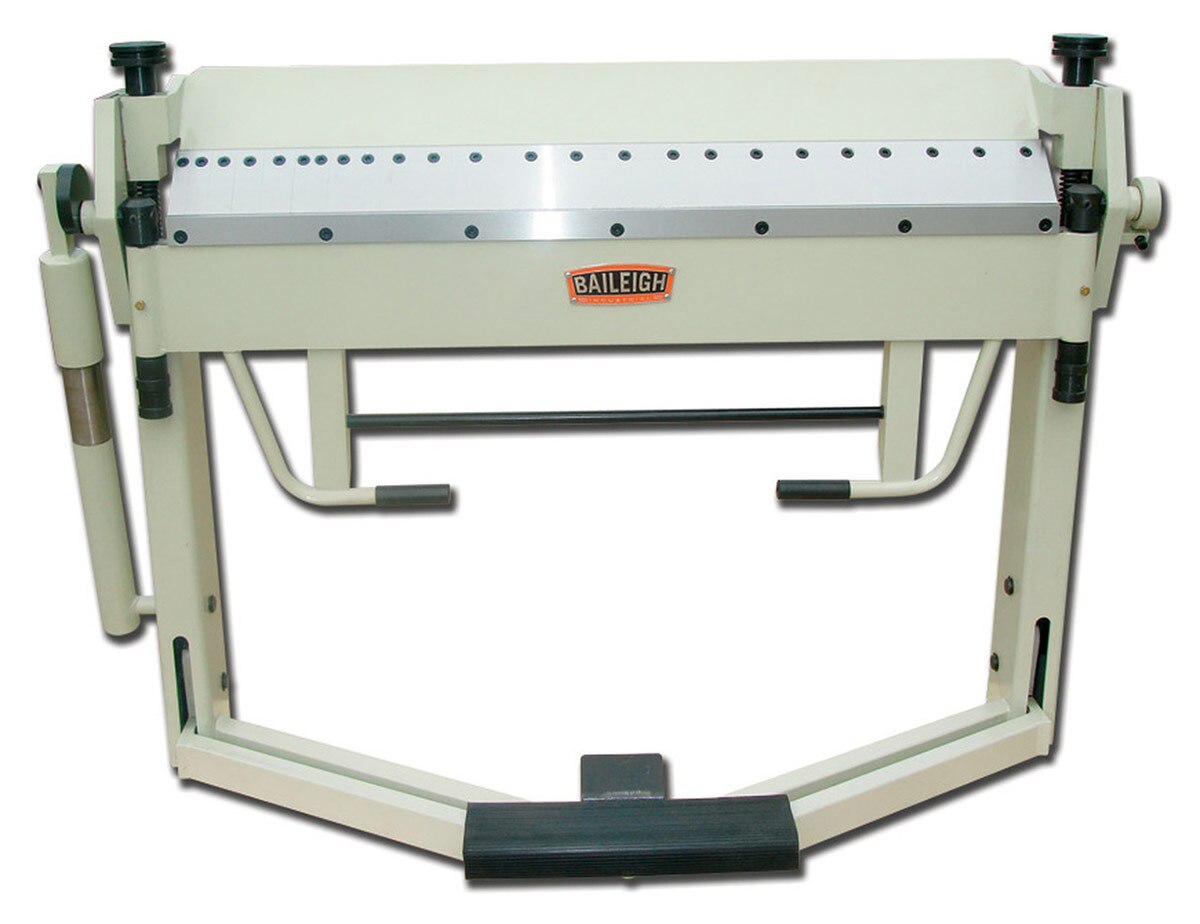

Baileigh Industrial BA9-1000529 Finger Brake BB-5014F
Description
Description
Baileigh Industrial 1000529 Description

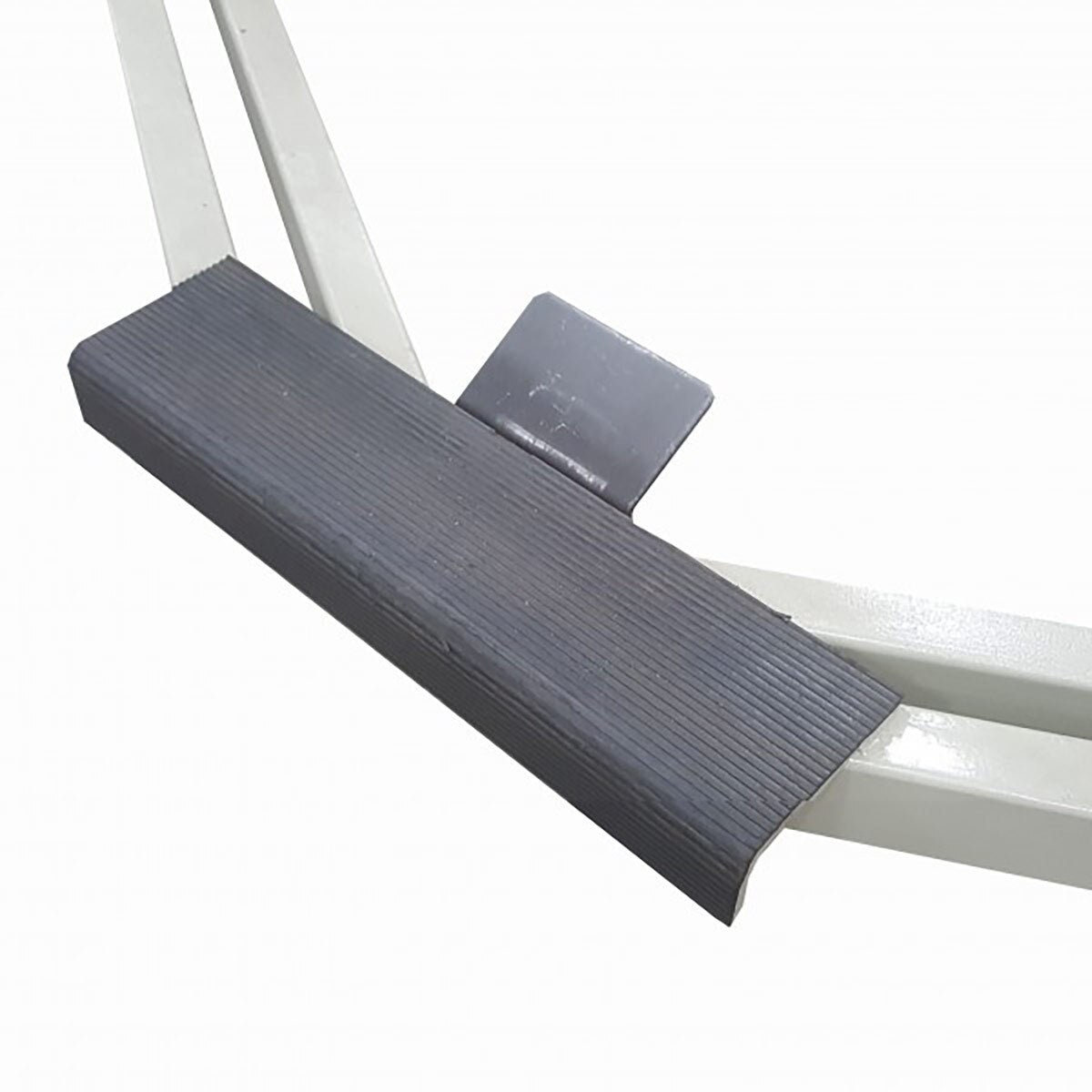

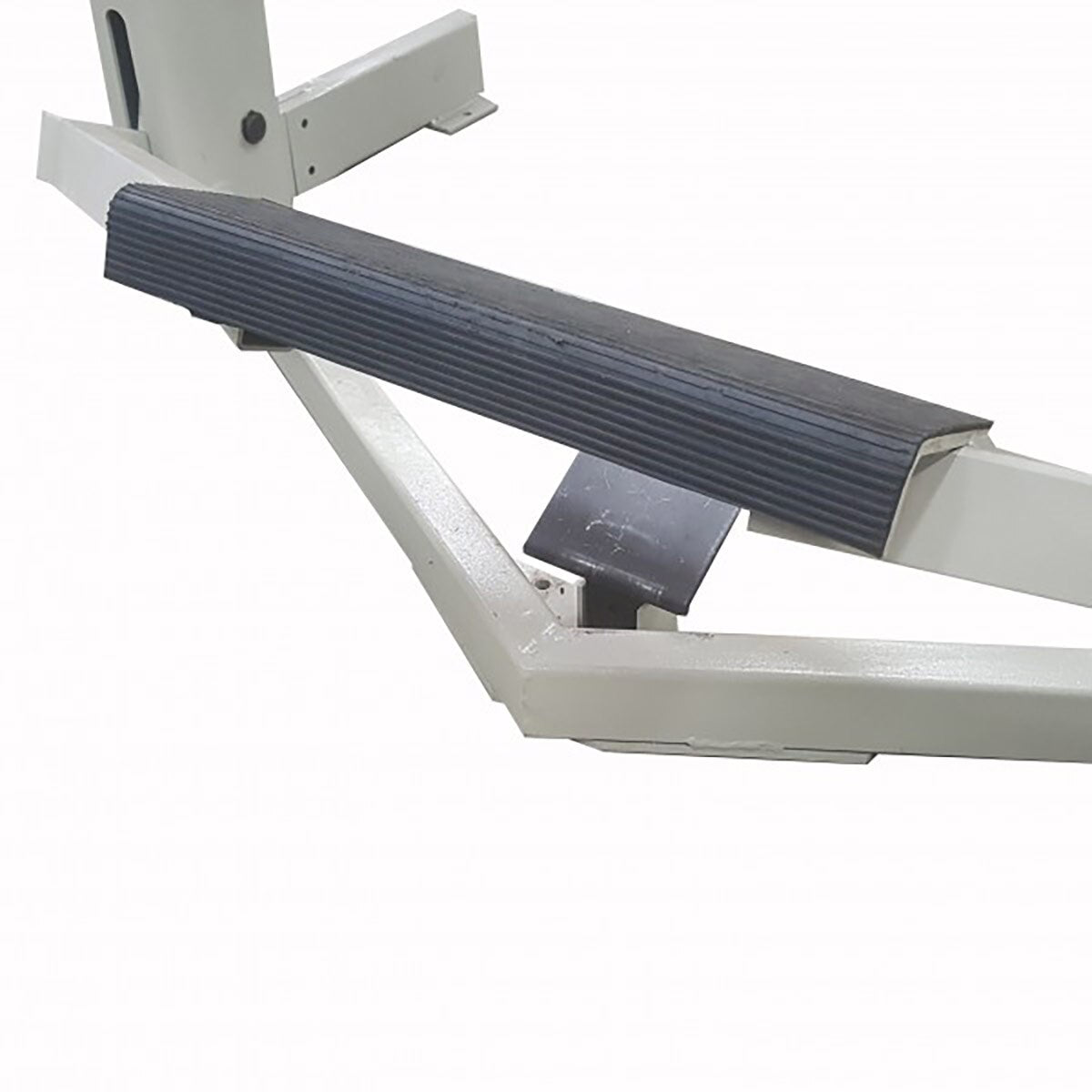

Doing a full width sheet metal bend on a standard box and pan brake can be difficult if you are by yourself, ever wish you had an extra hand to help? Baileigh Industrial’s BB-5014F finger brake allows the operator to clamp the material with his/her foot, so both hands are free for perfect positioning of the sheet metal before clamping the material in place. The BB-5014F finger brake model comes standard with an assortment of different width fingers to accommodate bending up the various sizes and shapes of tanks, pans, boxes and much more. Also included with the BB-5014F is an easy to adjust gap adjustment for various gauges of sheet metal. A spring loaded cylinder assists lifting the apron which gives assistance to the operator when bending at full capacity, which is an impressive 14 gauge at a full 50 inches. The BB-5014F sheet metal brake also features hardened fingers and bending die for long life and years for use. An adjustable stop rod rounds out the list of features for the BB-5014F.
Baileigh Industrial 1000529 Includes
- (1) Finger Brake
- (12) Fingers
Baileigh Industrial 1000529 Features
- Bends a maximum capacity of 14 gauge mild steel across the brake’s full 50” length.
- Adjustable stop rod makes it easy to produce repeatable bends.

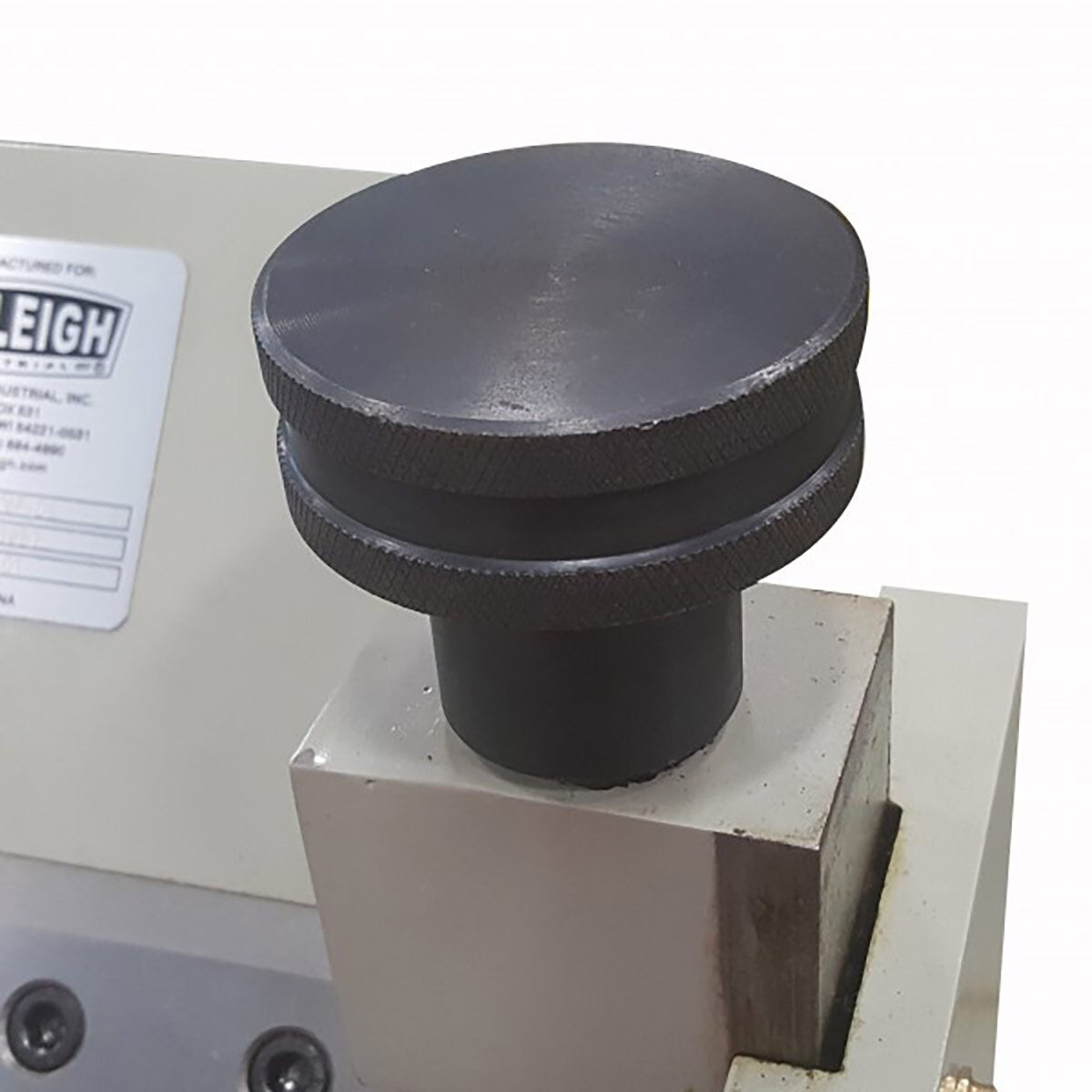

- Knobs at each end of the brake let you finetune the clamping pressure to fit your application.

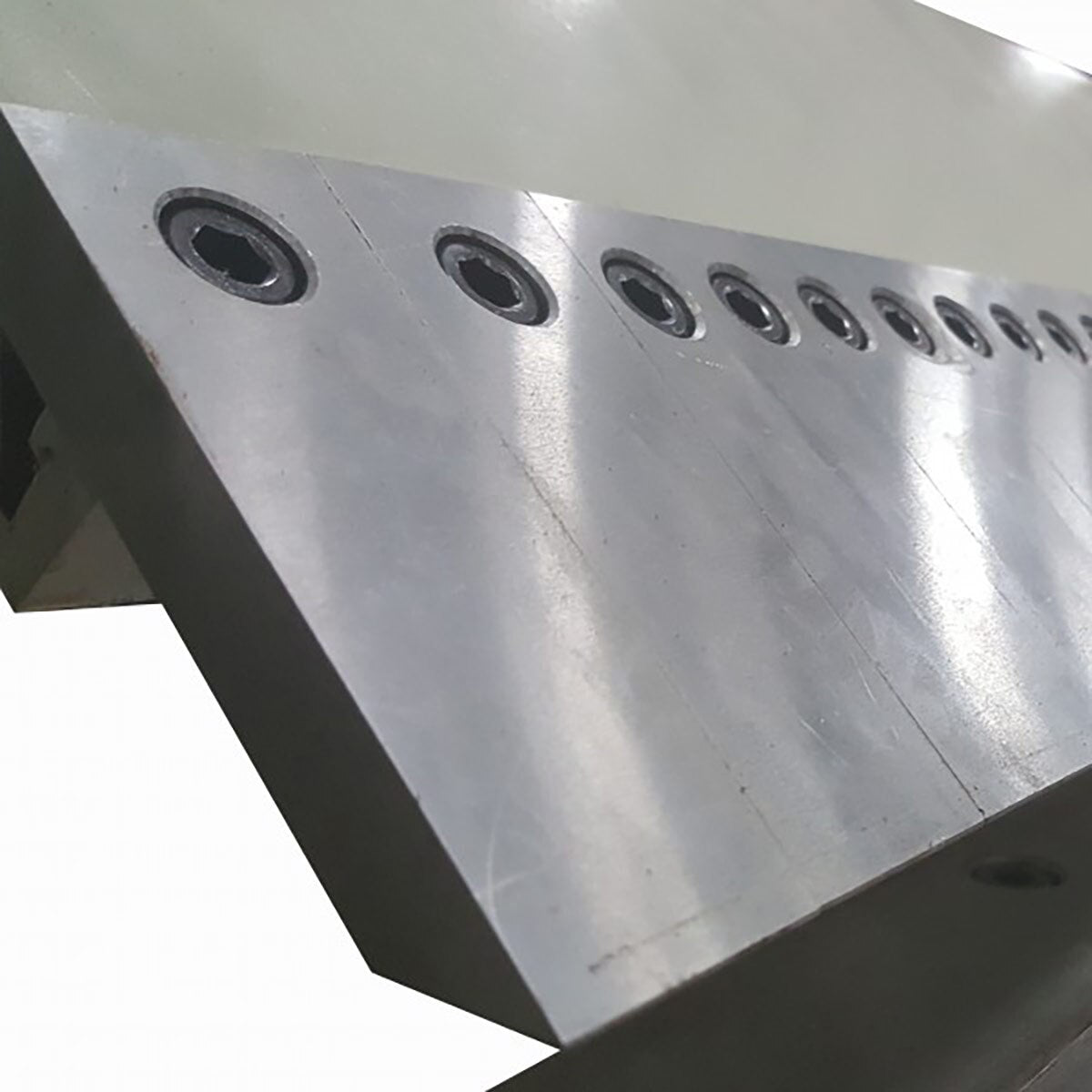

- Includes 12 fingers of varying widths that you can easily rearrange to create different sizes of tanks, pans, boxes and more.

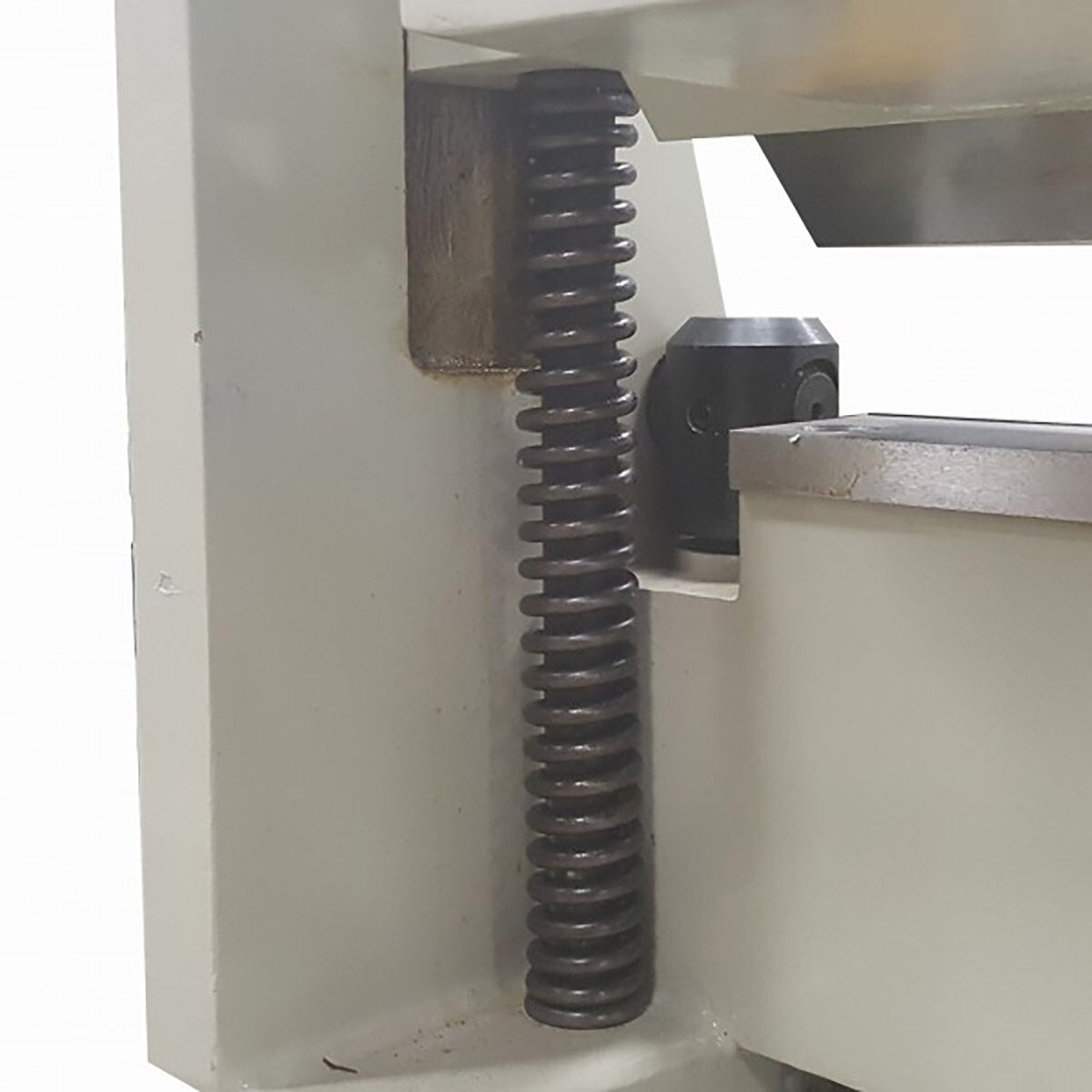

- Spring-loaded cylinder assists in lifting the apron, which you’ll find particularly useful when bending at full capacity.
- Blade gap adjustment enables you to take on various gauges of sheet metal.
- Made with a fully-welded steel framework to maintain accuracy and reduce deformation.
- Baileigh covers this sheet metal finger brake with a 1-year parts warranty.
Baileigh Industrial 1000529 Specifications
| Dimensions | 68" x 28" x 52" |
| Thickness (SS) | 14 ga. (18 ga.) |
| Box Depth | 2.5" |
| Bend Angle | 0 – 135° |
| Power | Manual |
| Bending Length Capacity | 50” |
| Type | Box & Pan |
| Country of Origin | China |
