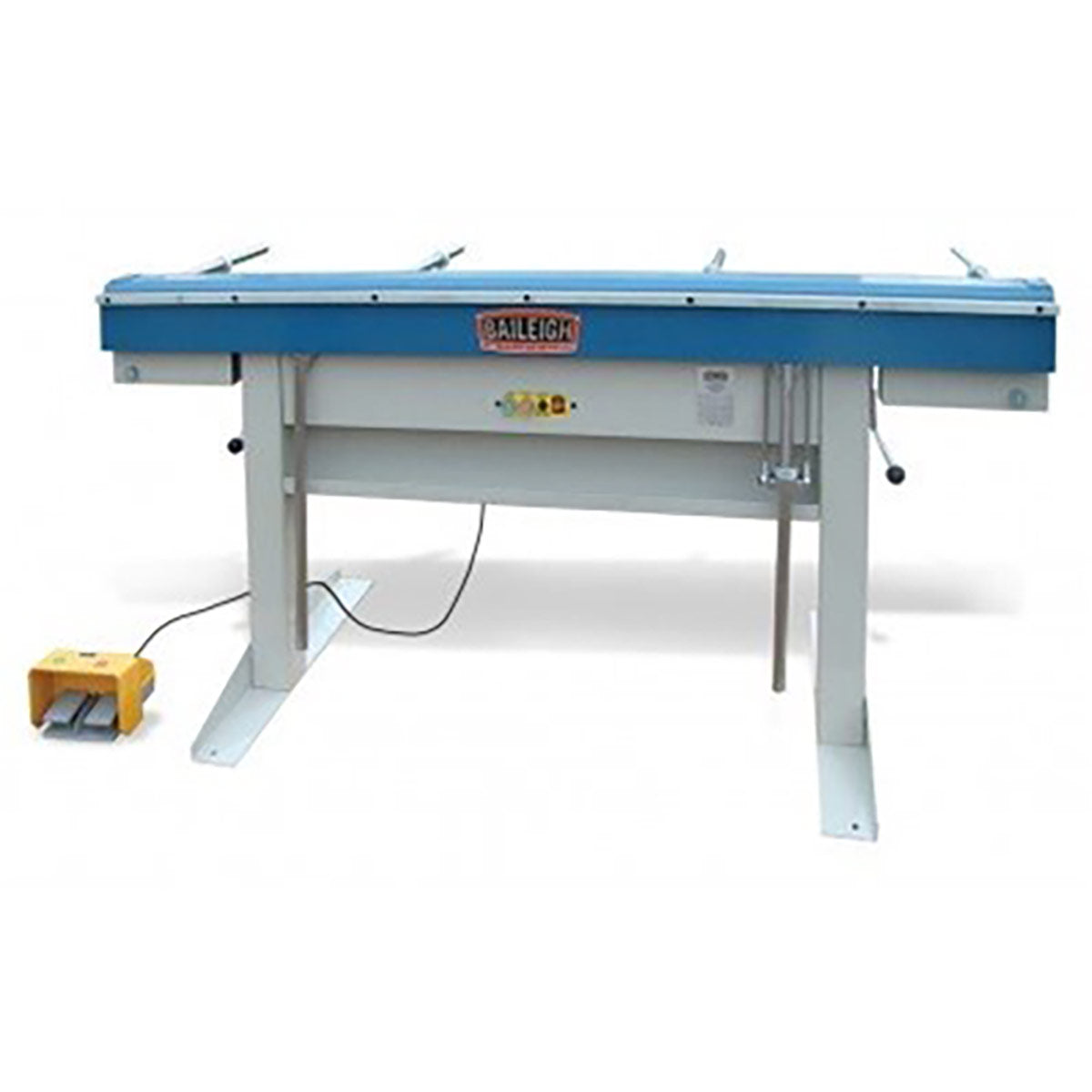

Baileigh Industrial BA9-1000545 Magnetic Box and Pan Brake BB-7216M
Description
Description
Baileigh Industrial 1000545 Description
The BB-7216M has over 78 inches of bendable area, which will allow the operator to get even more creative with the uses for this sheet metal brake. Operating on 220 volts, the BB-7216M uses a heady duty magnet to clamp the material between itself and the bending “clamp bar” or finger. Because the BB-7216M sheet metal brake uses a magnet to hold the material and “clamp bar” the operator is not required to use the supplied bars. This opens up a world of possibilities and applications that are just not possible with traditional box and pan brakes. Totally enclosed boxes, triangles, alternate bends on varying planes, round items such as scrolling applications, and much more are now possible. Once you start using the BB-7216M magnetic box and pan brake there will be no turning back. It’s one of the easiest box and pan brakes to operate on the market. To initiate a bend on the BB-7216M magnetic brake simply put a piece of material between the clamping bar to the depth required, hit the foot pedal control that softly clamps the material, allowing for any repositioning, once ready, lifting the leaf arms engages full magnetic power (6 tons) holding the material in place as the leaf arm makes the appropriate bend. One of the biggest advantages of this type of box and pan brake is that the magnetic power of 6 tons is consistent across the entire beam allowing for very crisp bends even in the middle of the machine.
Baileigh Industrial 1000545 Includes
- (1) Magnetic Box & Pan Brake
Baileigh Industrial 1000545 Features
- Runs on 220-volt single-phase power.
- 16 gauge mild steel maximum capacity.
- 6-foot (72”) length lets you to get creative with uses for this sheet metal brake.
- Offers all the features of our BB-4816M model—but with 2 feet of extra length.
- Maximum bend angle of 180°.
- Industrial magnetic power of 6 tons is consistent across the entire beam, producing crisp bends even in the middle.
- Unlimited box depth thanks to its open-ended design.
- Also makes straight bends if you choose to set up straight (instead of segmented) bars.
- You can adjust the finger setback for different thicknesses.

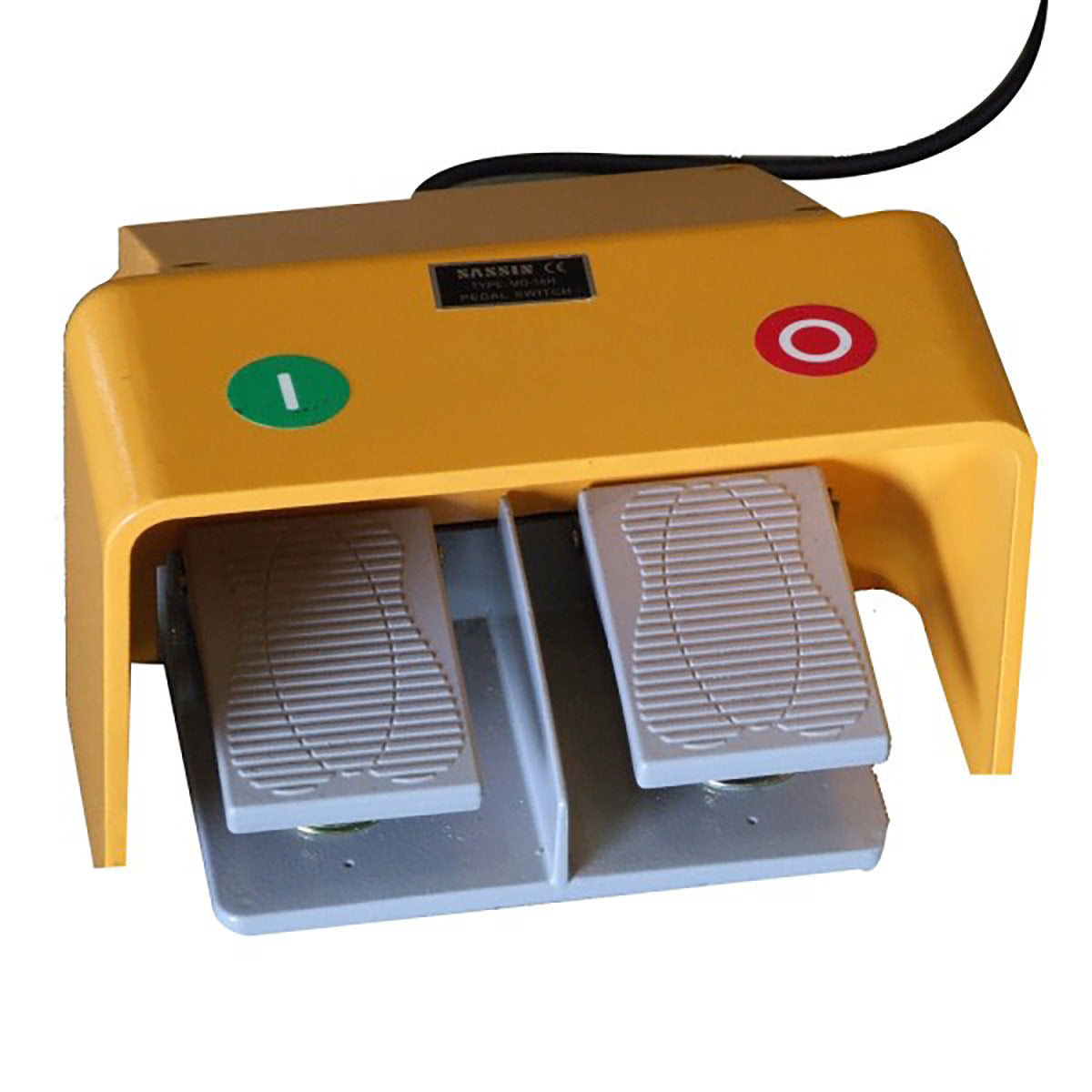

- Easy to operate. To make a bend on the BB-7216M: Put a piece of material between the clamping bar to the depth required, Hit the foot pedal control that softly clamps the material and reposition if necessary, Lift the leaf arms to engage full magnetic power, holding the material in place as the leaf arm makes the appropriate bend.
- Supplied back gauge helps you repeat bends and parts exactly.

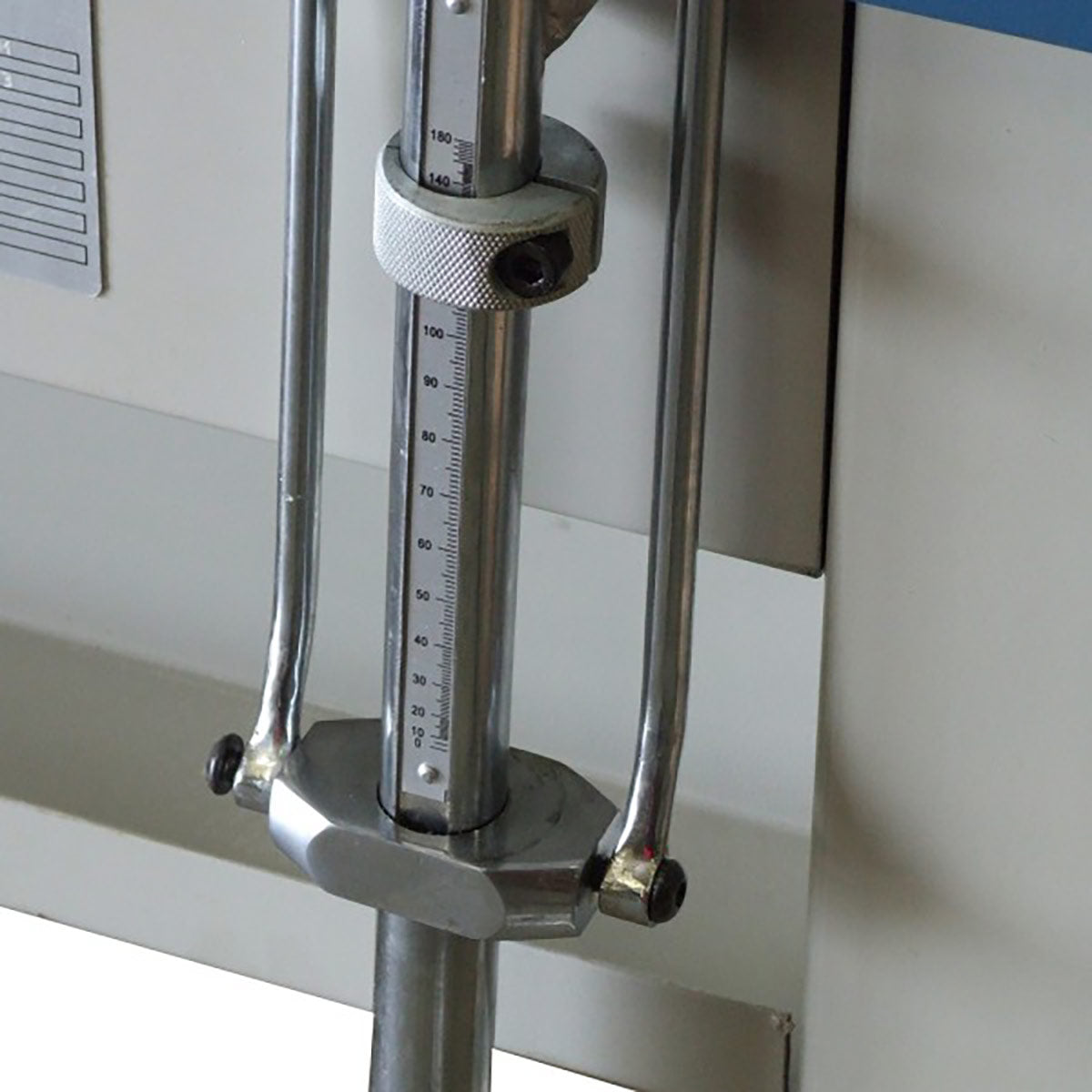

- Scaled stroke angle control is convenient for production.
- For tighter bends, you can remove the bottom leaf's bending extension.
- Baileigh covers this electromagnetic sheet metal brake with a 1-year parts warranty.
Baileigh Industrial 1000545 Specifications
| Dimensions | 87" x 44" x 15" |
| Thickness (SS) | 16 ga. (20 ga.) |
| Clamping Force | 6 ton |
| Bend Angle | 0 - 180° |
| Max. Clamping Bar Lift | Unlimited |
| Power | 220V / 1-phase |
| Bending Length Capacity | 72” |
| Type | Box & Pan |
| Country of Origin | Taiwan |
