Baileigh Industrial BA9-1000553 Box and Pan Brake BB-9612
Description
Description
Baileigh Industrial 1000553 Description

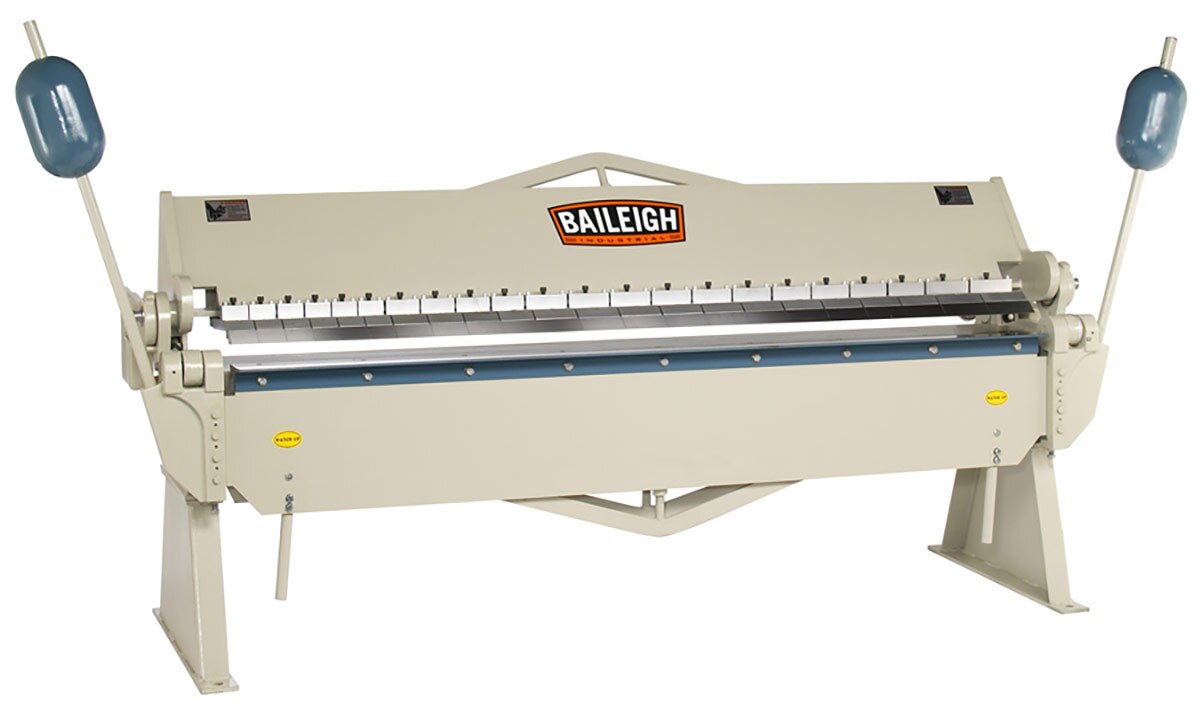

The BB-9612 Box and Pan Brake has 96" of useful bending width so it can bend a 4' x 8' the long way, up to 12 gauge mild steel, and 16 gauge stainless steel. This sheet metal tool has been rigidly built to withstand deflection in the apron area. The apron is reinforced with very heavy truss rods coupled to its massive all steel frame that is electro welded to withstand use at maximum capacity day in and day out for decades of quality bends. The heavy framework weighs in at an impressive 3200 lbs. This sheet metal brake's top apron has a 22 finger assortment of varying sizes to allow the operator to configure almost any box and pan up to a maximum depth of 6". The fingers and bending rail are hardened to produce extremely straight and tight bends for years of service, even in stainless steel. The bending apron has two massive counter weights to help assist the operator in fatigue free bending, even at maximum capacity. The apron side shafts ride in precision lube for life bearings that improves tolerance and longevity of apron. Like all Baileigh sheet metal equipment, the BB-9612 comes mounted on a solid floor stand that improves efficiency and reduces operator fatigue. This break is great for bending mild steel, aluminum and stainless steel.
Baileigh Industrial 1000553 Includes
- (1) Box & Pan Brake
- (22) Fingers
Baileigh Industrial 1000553 Features
- 8-foot (96”) bending width.
- Maximum capacity of 12 gauge mild steel and 16 gauge stainless steel.
- Bend angle of up to 135°.
- 22 finger assortment of varying sizes (6 fingers of 3", 4 of 4",10 of 5", 2 of 6").
- Maximum box depth of 6”.
- Hardened fingers and bending rail will produce extremely straight and tight bends, even when working with stainless steel.
- Apron side shafts ride in oilable bearings that improve tolerance and make the apron last longer.
- Heavy truss rods reinforce the rigidly-built apron and help it withstand deflection.
- 2 massive bending apron counterweights keeps fatigue low, even at full capacity.
- Mounted on a solid floor stand, raised to the ideal height, which improves efficiency and reduces operator fatigue.
- Electro-welded steel construction withstands bending at maximum capacity, day in and day out, for decades of quality bends.
- Heavy framework weighs an impressive 3200 lbs.
- Baileigh covers this sheet metal finger brake with a 1-year parts warranty.
Baileigh Industrial 1000553 Specifications
| Dimensions | 122" x 33" x 44" |
| Min Reverse Bend | .625" |
| Thickness (SS) | 12 ga. (16 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3", 4", 5", 6" |
| Power | Manual |
| Type | Box & Pan |
| Bending Length Capacity | 96” |
