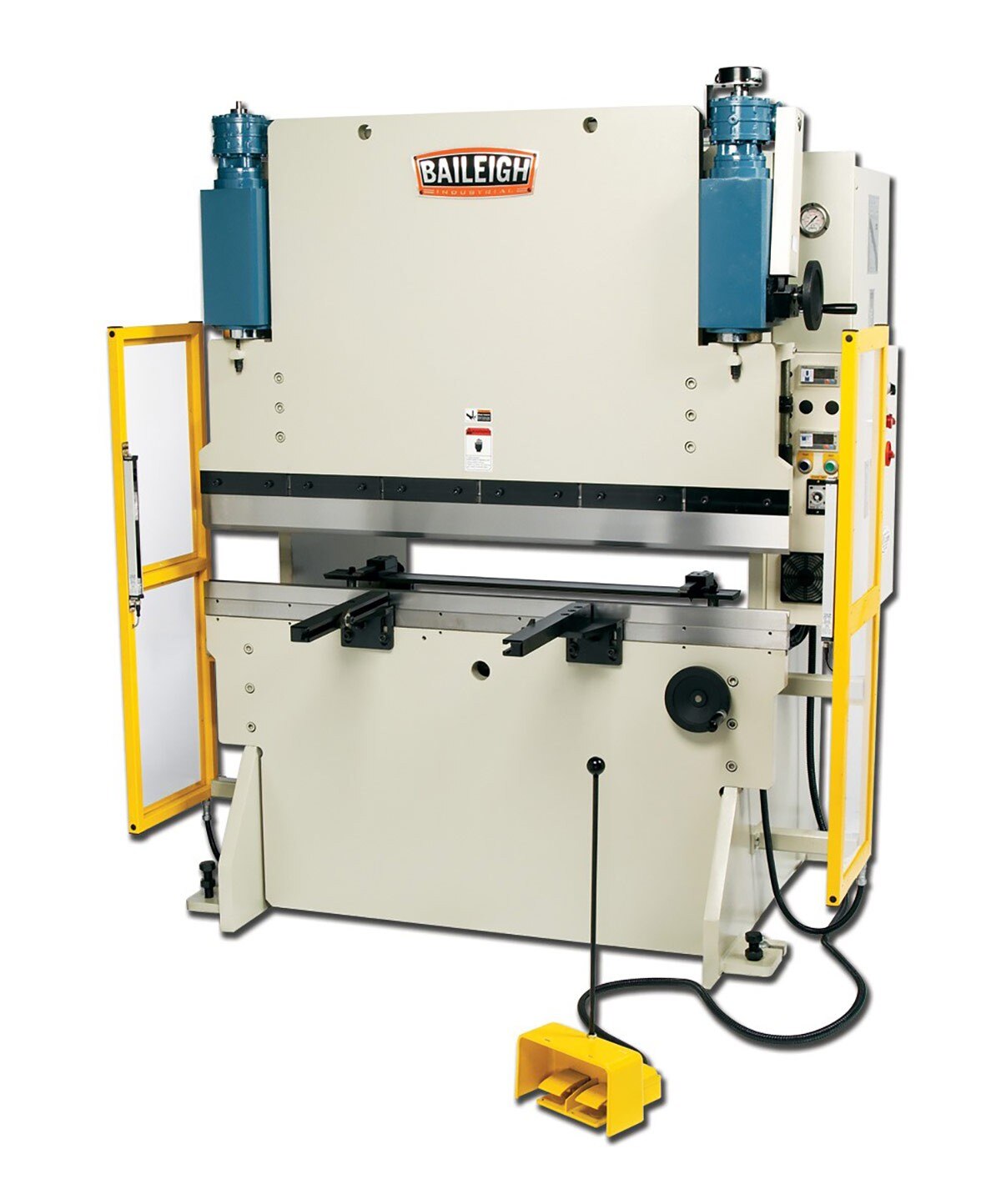

Baileigh Industrial BA9-1000824 Hydraulic Sheet Metal Press Brake BP-5060NC
Description
Description
Baileigh Industrial 1000824 Description
Baileigh's BP-5060 NC hydraulic sheet metal press brake is our most popular model for the small to medium fabricator. It has a very rigid electro welded frame of solid steel plate offering smooth production runs that improves accuracy of the machine. The upper beam is actuated downward by two heavy industrial hydraulic cylinders that are encoder controlled for precision. The upper beam rides on a hardened track that is coupled together by three axis of bearings. Unique to Baileigh press brake machines, for further accuracy the beam has a parallel mechanism that provides forced synchronization of the top and bottom die. This ensures better quality bends across the entire width of the machine. This sheet metal bender is a two axis NC (numerically controlled) unit that uses encoders on the upper beam and the back gauge. Their positions are displayed on their own DRO (digital readouts). Fine tuning of both axis is by independent hand wheels. The back gauge has manual metered adjustments to the height of the back gauge as well. Like all of our NC press brake machines it comes with guards with a six sensor safety curtain, front material rests and foot pedal controls. The top beams pressure can be regulated and the up position can be adjusted for less or more travel in seconds. There downward hold on the beam can be held by a simple timer. Finally there are three ways to run the machine. The jog function is there to assist with easy set up. Manual function is for those jobs where the operator wants more control. Finally the automatic function is meant for production scenarios. All in all this hydraulic sheet metal press brake is extremely well built, very easy to use, and will offer decades of service to any fabrication shop. Included with this machine is a set of production style single-vee tooling.
Baileigh Industrial 1000824 Includes
- (1) Hydraulic Sheet Metal Press Brake
Baileigh Industrial 1000824 Features
- Heavy electro welded frame, made of solid plate steel, keeps this NC hydraulic press brake accurate and running smoothly in production for many years
- Delivers up to 50 U.S. tons | 45.36 metric tons of pressure
- With a 6,160 Lbs. | 2,800 Kgs. steel frame makes crisp bends across the full 61.02" | 1,550 mm width
- Recommended for small industrial shops, maintenance and R'n'D shops, and potentially larger industrial shops, if need to make a specific part that fits this press brake's width
- 5 HP | 3.73 kW Motor runs on 220V/3 Phase/60 Hz. electric power
- Maximum capacity of .118" | 3 mm thickness mild sheet metal across the machine's full width
- 7.87" | 200 mm Throat depth enables to work on the middle of large panels
- Digital readout - DRO displays the position of the downward stroke, can fine tune a bend and make it right every time
- Runs in 3 modes, jog mode for setup | manual mode for more control over descent and return | automatic mode for full production
- 2 Encoder controlled hydraulic cylinders move the top beam
- Upper beam rides on a hardened and stabilizing track, coupled together by 3 axes of bearings to ensure high accuracy between both dies at any position of the stroke
- Takes a just few seconds to change the top beam pressure and the top position of the stroke for more or less travel
- Can set a timer for bend delay to hold the beam down at the bottom of the stroke, the bend keeps its shape
- 2 Hand wheels adjust the position of the beam and back gauge for consistency across the entire width of the beam
- Motorized back gauge rides on a solid ball screw trolley mechanism
- Back gauge encoder shows its position on its own DRO
- Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine
- Designed for simplicity, can learn to use it in a few minutes
