Baileigh Industrial BA9-1001298 Band Saw BS-20SA-DM
Description
Description
Baileigh Industrial 1001298 Description

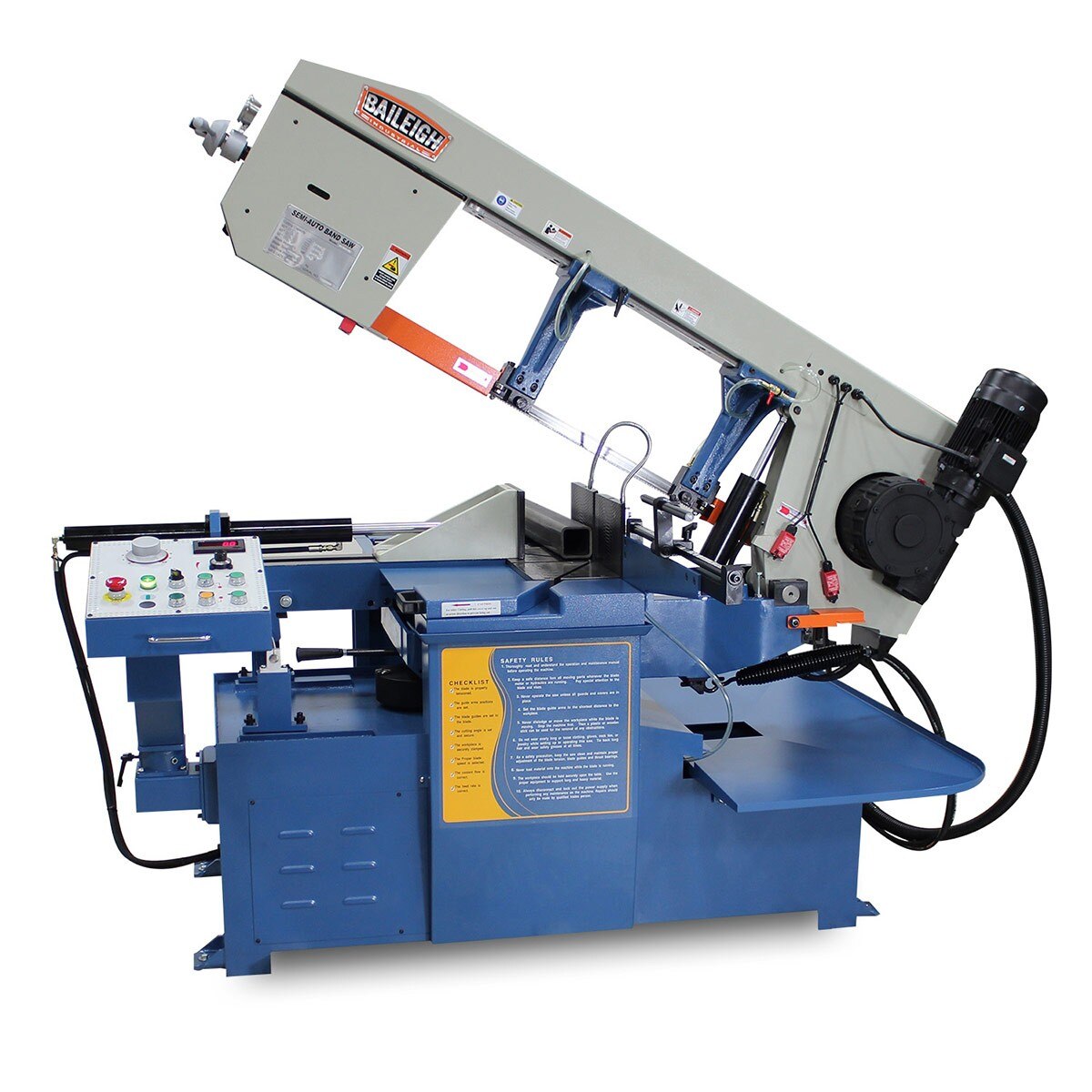

We built this semi-automatic dual miter band saw with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort. The hydraulic descent pressure can be adjusted by the operator achieving faster cut times and longer blade life, depending on what material the operator is cutting. The return position of the metal cutting head can be altered to achieve faster cycle times between cuts, when cutting smaller dimensioned pieces. Baileigh Industrial horizontal band saws are built to the highest quality standards on the market and will offer any fabrication or machine shop decades of precision sawing.
Baileigh Industrial 1001298 Includes
- (1) Band Saw
- (1) Blade
- (1) Infeed and Outfeed Table
Baileigh Industrial 1001298 Features
- Maximum capacity of 13” OD round at 90°.
- Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
- Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.
- Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
- You can fine-tune the speed for materials like mild steel, bronze, or aluminum.

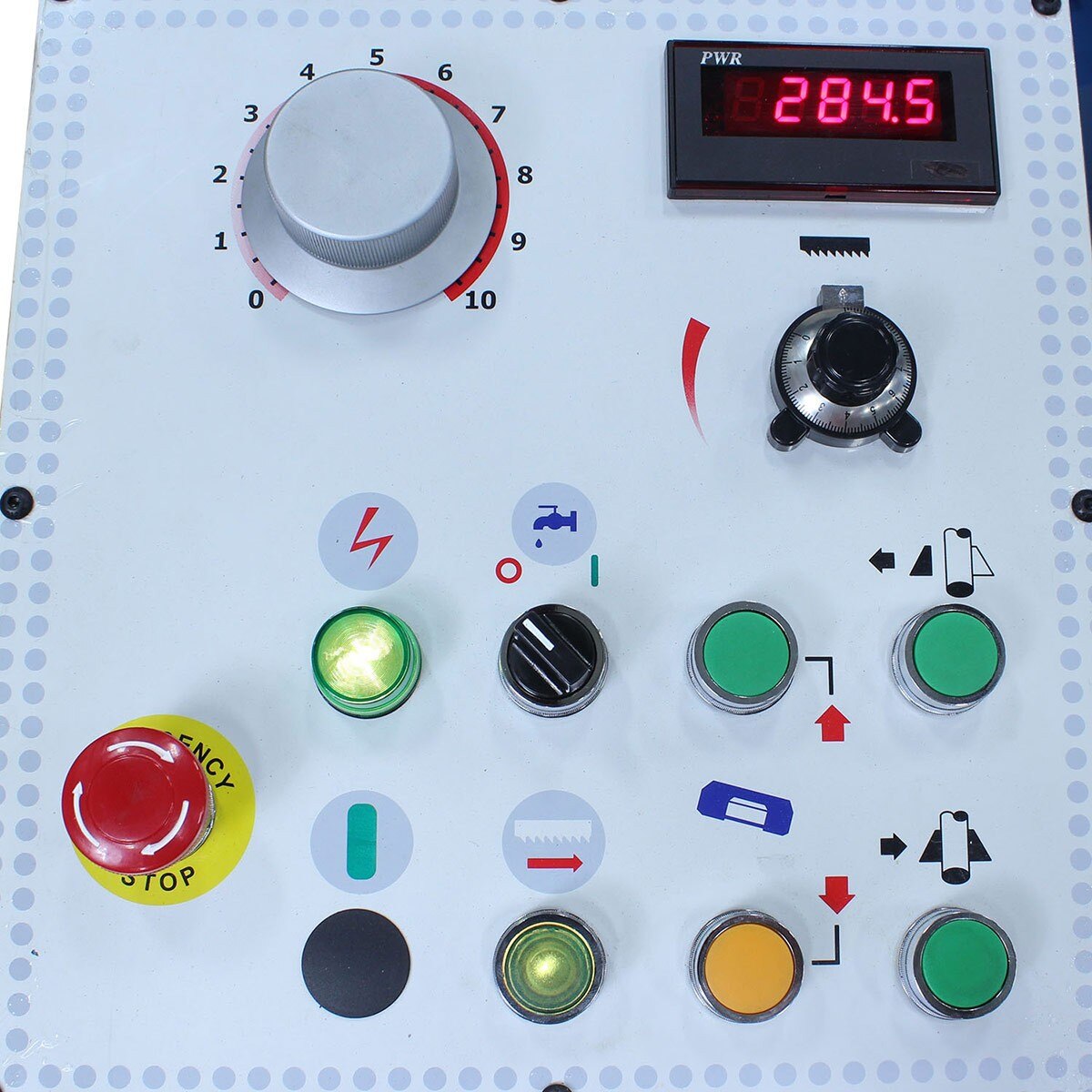

- Digital readout (DRO) allows you to reproduce settings with ease.
- Available in 220-volt or 440-volttriple-phase models (440-volt is a special order).
- Cast iron bow resists vibrations and helps to ensure a high-quality cut.

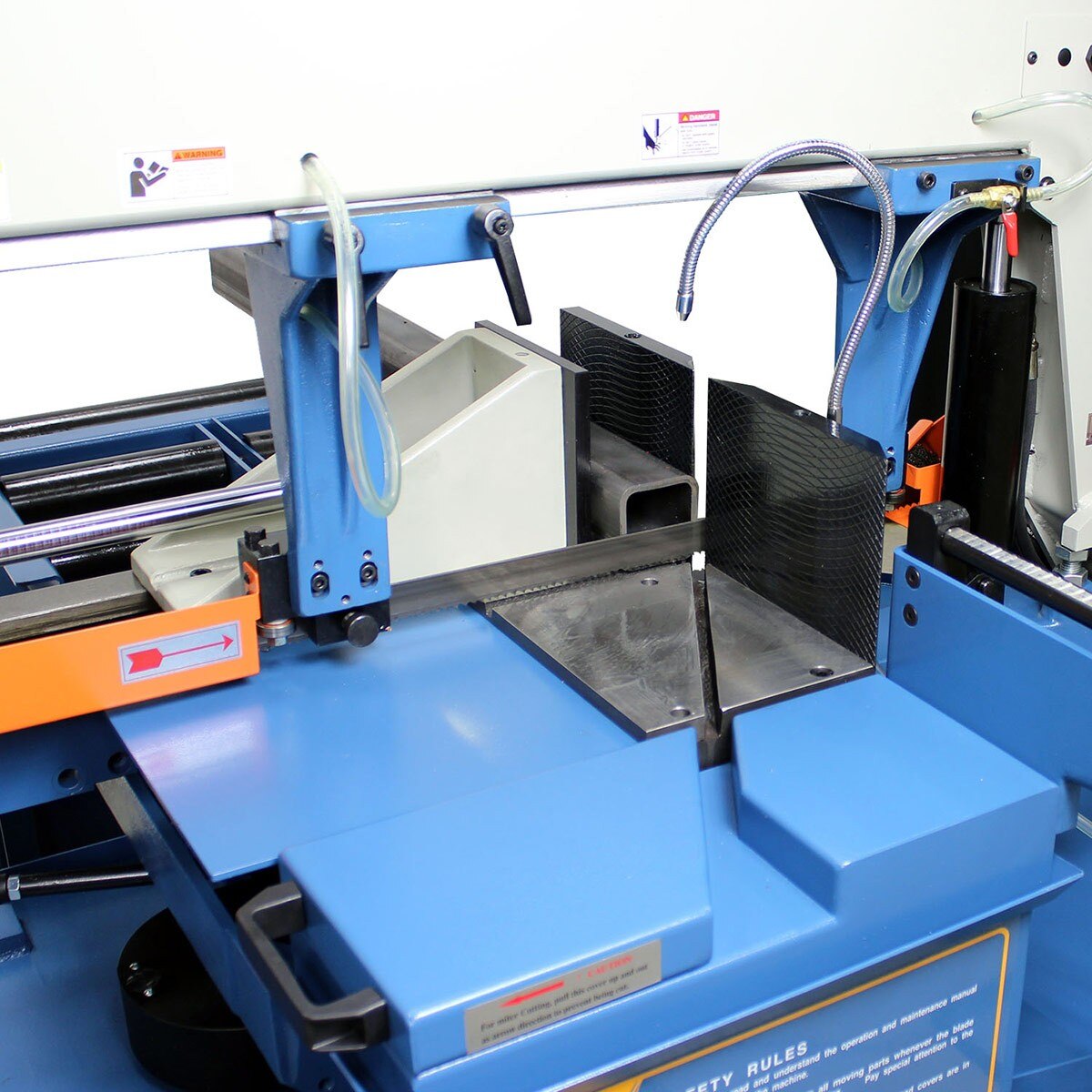

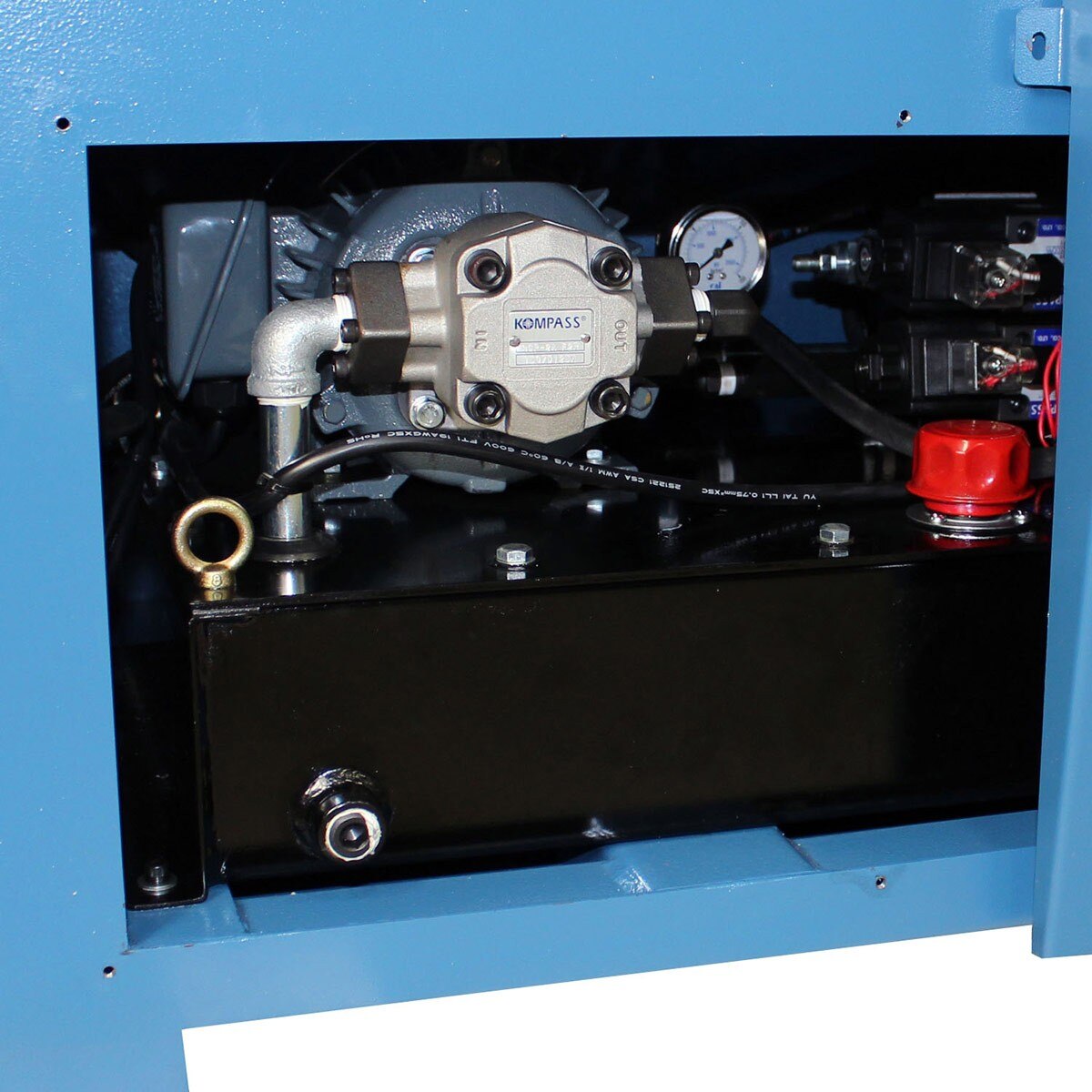

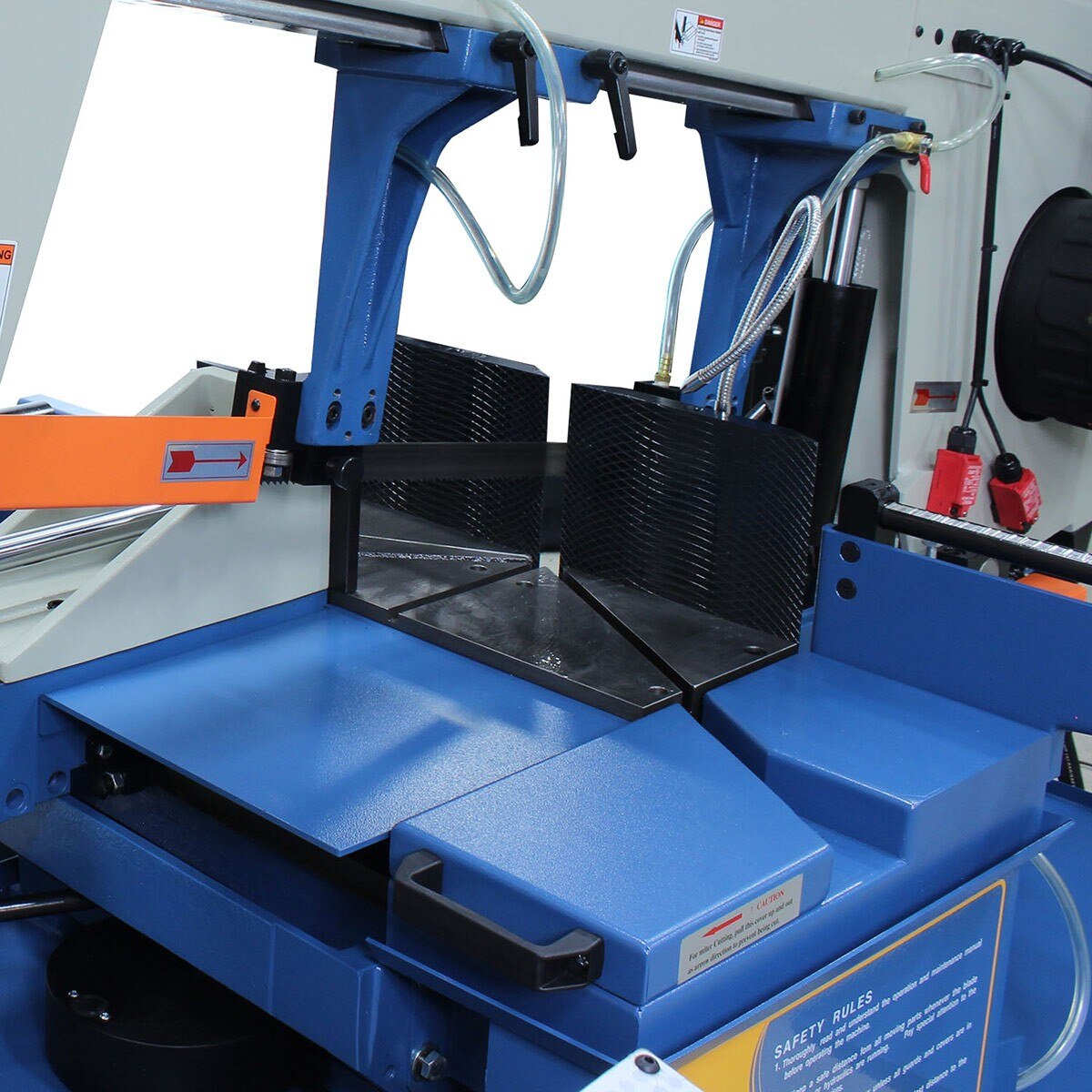

- Hydraulic vise, downfeed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest.
- You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life.
- Cutting head return position can be altered for faster cycle times between cuts on smaller pieces.
- Comes with heavy-duty infeed and outfeed tables for easier material handling.

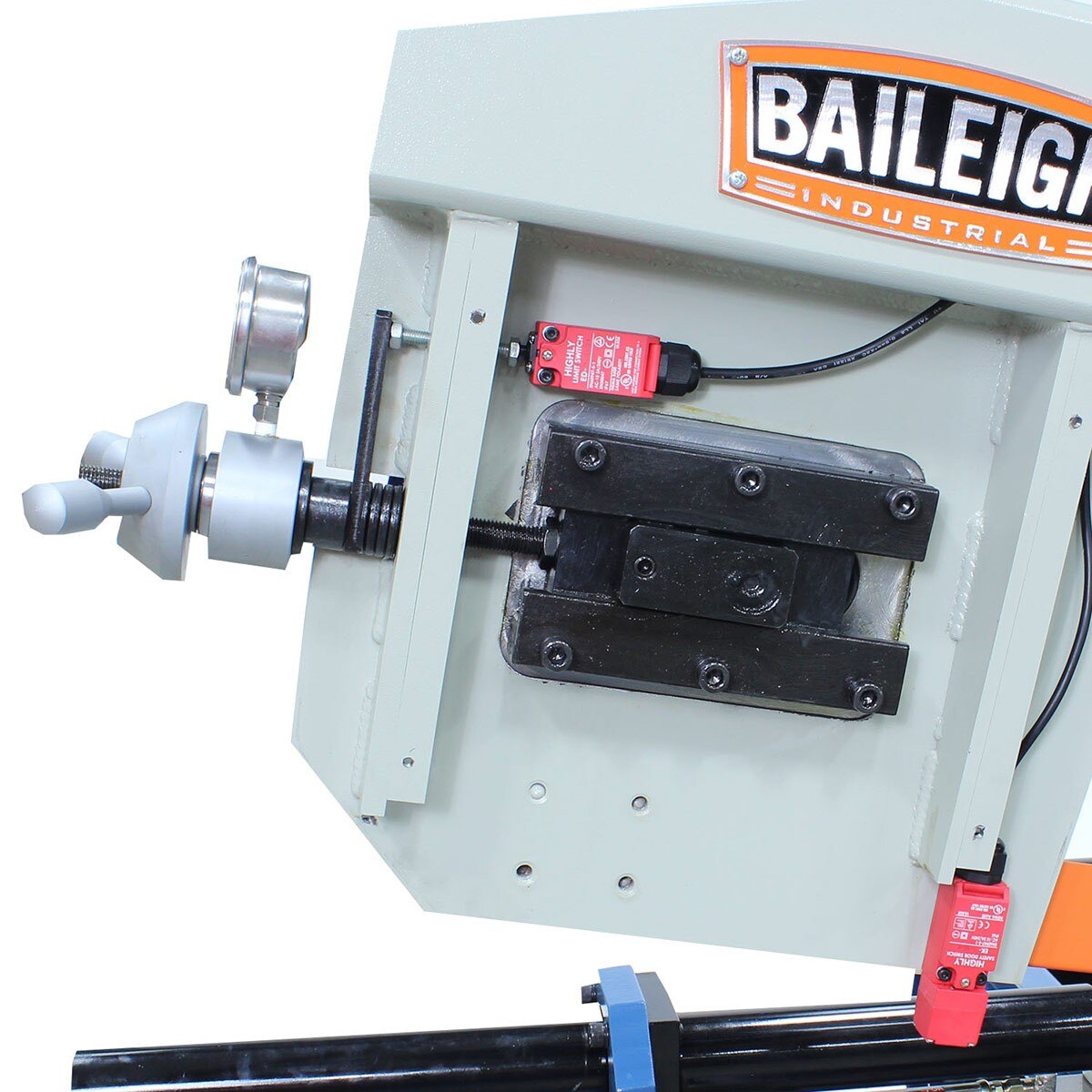

- Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge.
- Electro-welded steel framegives the machine structural strength to maintain accuracy.
- Compact floor plan conserves space in your shop.

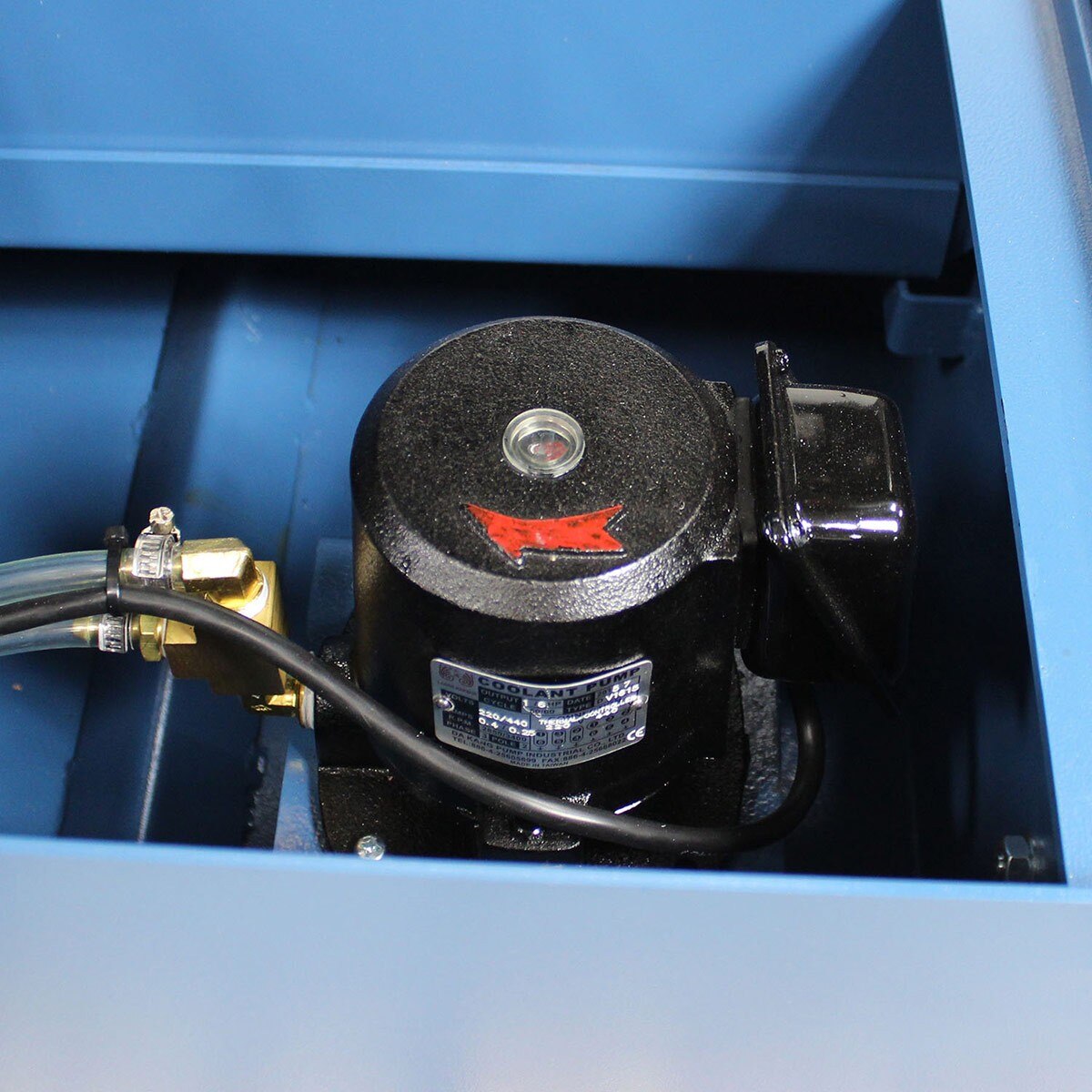

- High-pressure flood coolant system washes away metal chips and helps blades last longer.
- This dual miter band saw is covered by a 1-year parts warranty.
Baileigh Industrial 1001298 Specifications
| Dimensions | 90" x 36" x 66" |
| Return | Hydraulic |
| Miter Adjustment | Dual Miter Swivel Head |
| Miter Angle | 0 – 60°, 45°L |

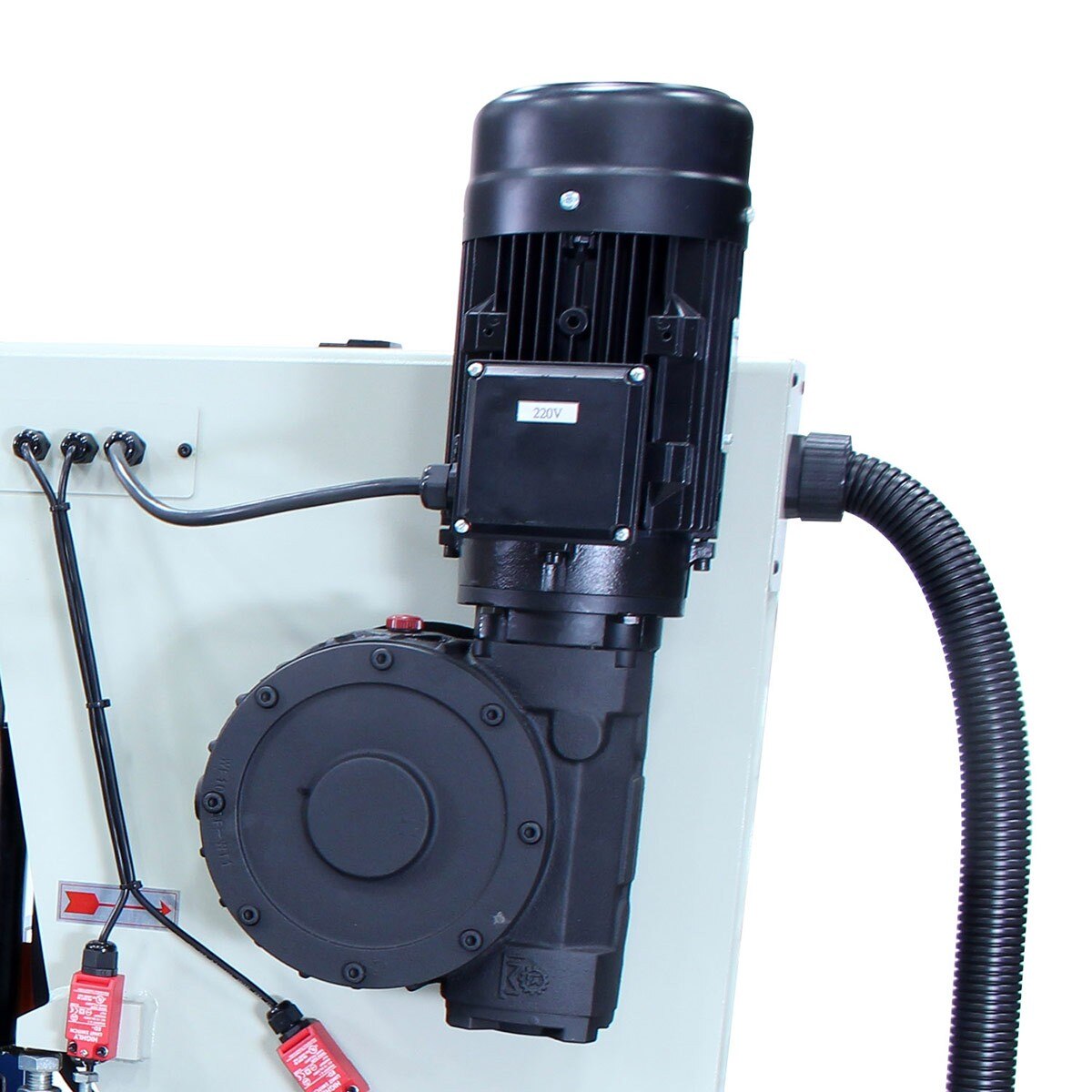

| Motor | 3 HP |
| Capacity Rectangle 90° | 13" x 18" / 13" x 10.6" / 12.4" x 7.7" |
| Capacity Round 90°/ 45° / 60° | 13" x 12" x 8.5" |
| Capacity Square 90°/ 45° / 60° | 13" x 12" x 8.5" |

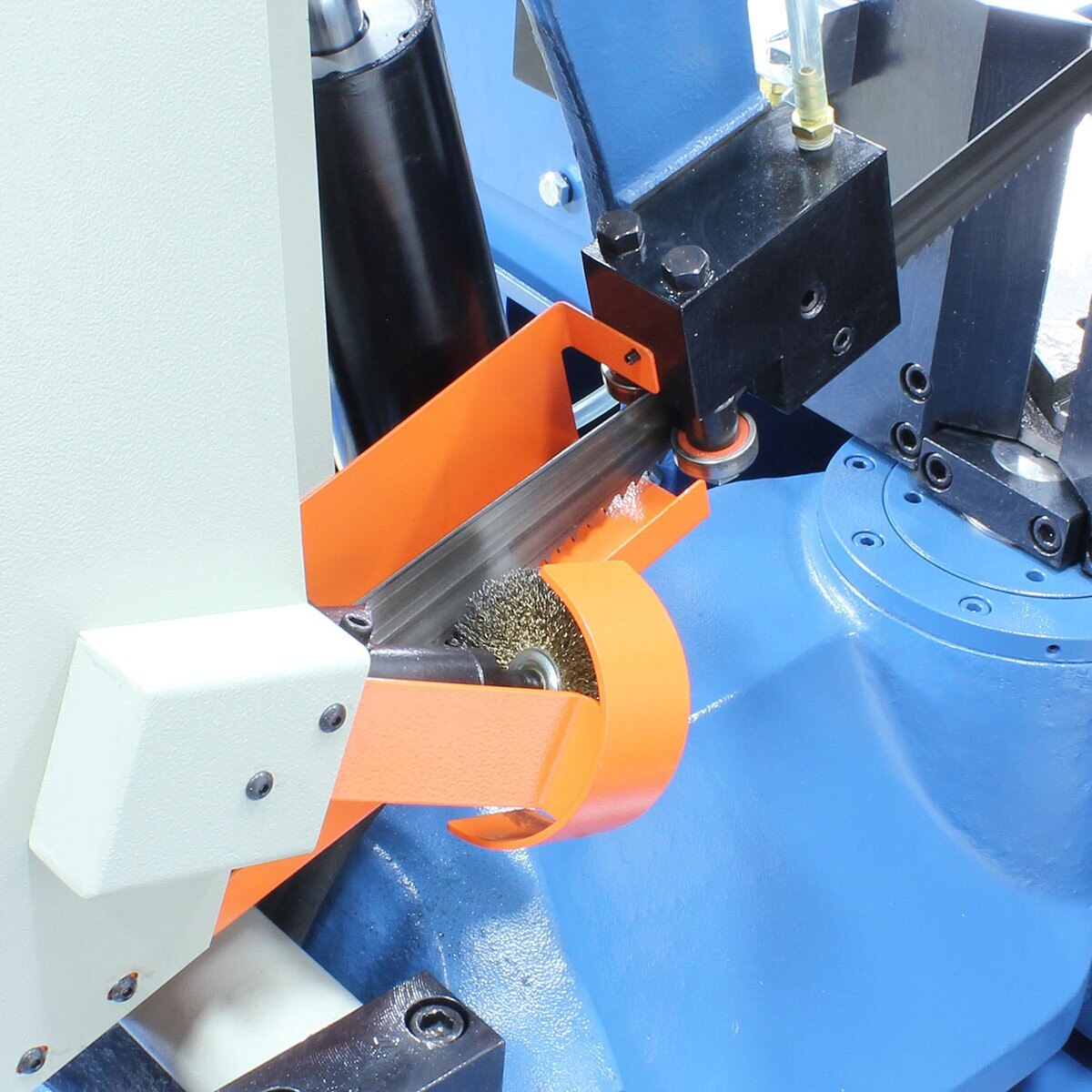

| Blade Guide | Carbide / Roller |
| Blade Size | 1.25" x .042" x 162.6" |
