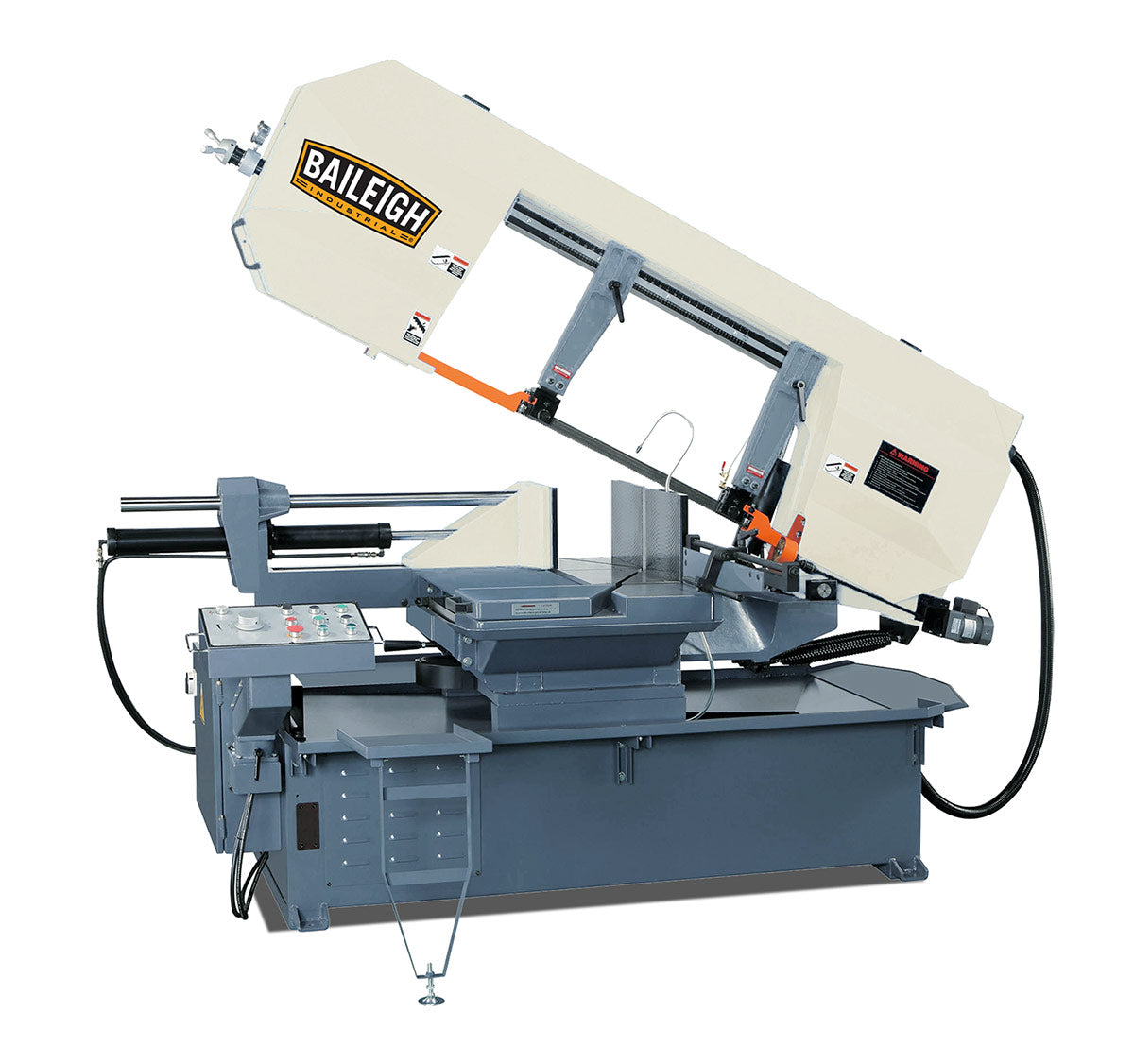

Baileigh Industrial BA9-1001389 Semi-Automatic Dual Mitering Horizontal Band Saw BS-24SA-DM
Description
Description
Baileigh Industrial 1001389 Description
Need a little more capacity than the BS-20SA-DM, but want to keep all the great features? Enter the BS-24SA-DM. Baileigh Industrial took many of the ideas that were already in place with the BS-20 series band saws and applied them to the BS-24 series. This dual-mitering band saw doesn’t sacrifice on capacity. With a hydraulic system, cast iron bow, and steel frame, the BS-24SA-DM is built for decades of efficient production. Baileigh Industrial horizontal band saws are built to the highest quality standards on the market and will offer any fabrication or machine shop decades of precision sawing.
Baileigh Industrial 1001389 Includes
- (1) Band Saw
- (1) Blade
Baileigh Industrial 1001389 Features
- Cuts 18” round or 15” x 24” rectangle at 90°.
- Swivel head miters 60° left and right.
- Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
- 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
- Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
- Runs on 220-volt 3-phase power for reliability.
- Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.

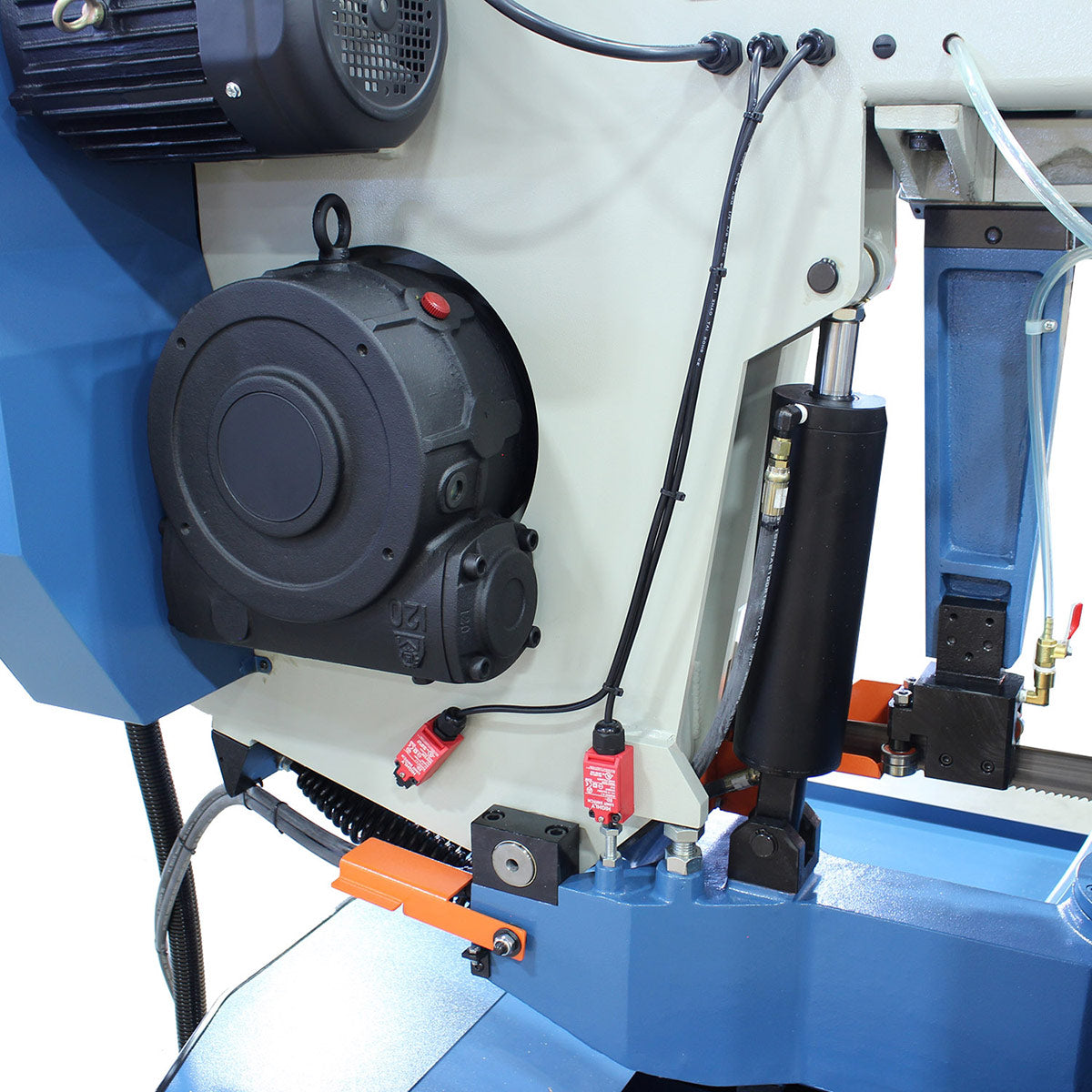

- Semi-automatic system with hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
- Industrial-grade hydraulics open and close the quick-lock vise.
- Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
- You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.

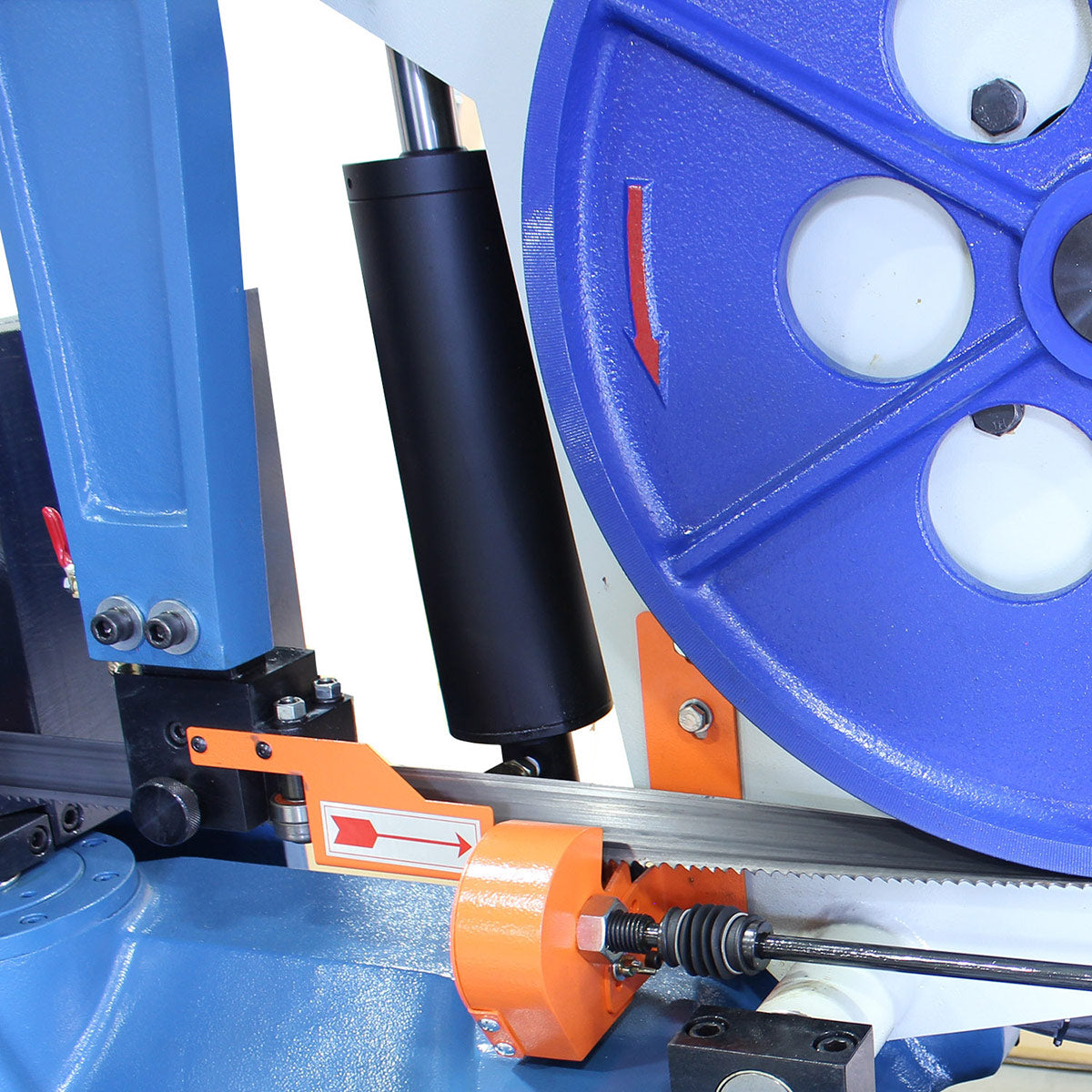

- Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
- Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.
- Flood coolant system washes away metal chips and helps prolong blade life.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1001389 Specifications
| Dimensions | 111" x 45" x 74" |
| Return | Hydraulic |
| Miter Adjustment | Dual Miter Swivel Head |
| Miter Angle | 0 - 60° Left and Right |
| Motor | 5 HP |
| Capacity Round | 90° 18.1" |
| Capacity Square | 90° 18.1" |
| Capacity Rectangle 90° | 17" x 24" |
| CapCapacity Round 90°/ 45° / 60° | 18" x 15.7" x 11"acity Round 45° |
| Table Height | 31.5" |
