Baileigh Industrial  |  SKU: BA9-1001432  |  Barcode: 731325397666

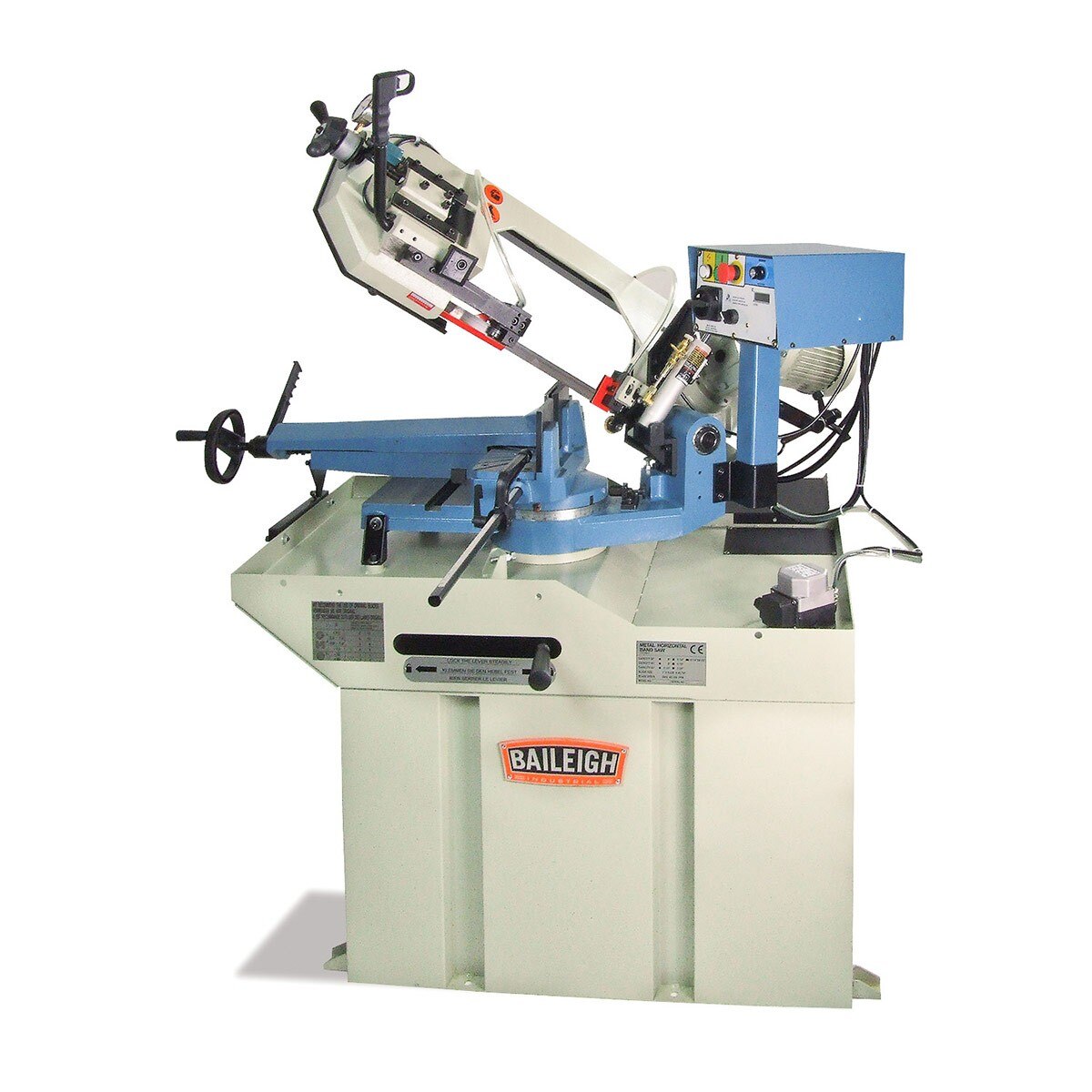

Baileigh Industrial BA9-1001432 Gear Driven Band Saw BS-260M

Free Shipping
$6,799.00 $8,352.86

Description

Baileigh Industrial 1001432 Description

Over the years, the BS-260M dual mitering band saw has gone through a number of changes. Once again we have improved it, and made it even better. Gone is the day of the DC driver board, now the BS-260M has an AC inverter for precise speed control and better reliability. Even better, powered by 220 volt single phase, it can be used just about anywhere.

Baileigh Industrial 1001432 Includes

  • (1) Band Saw

Baileigh Industrial 1001432 Features

  • Capacity of 8.66” round at 90°.

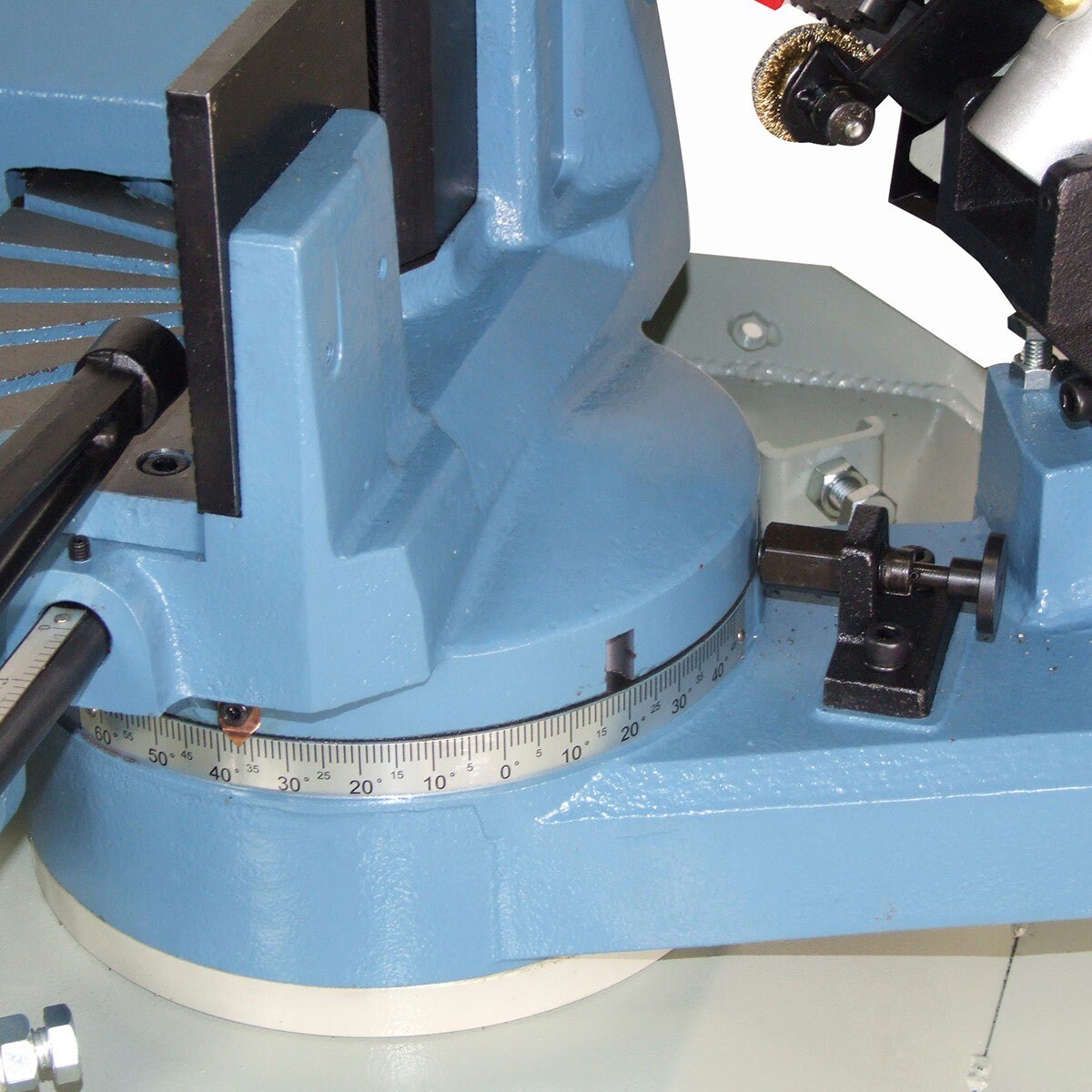

  • Dual-mitering head swivels up to 60° to the right and up to 45° to the left.
  • Change the miter angle in seconds with the quick-release head lock.
  • Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration.
  • Accepts standard 1” blades.
  • 8 precision ball bearings keep the blade in line.

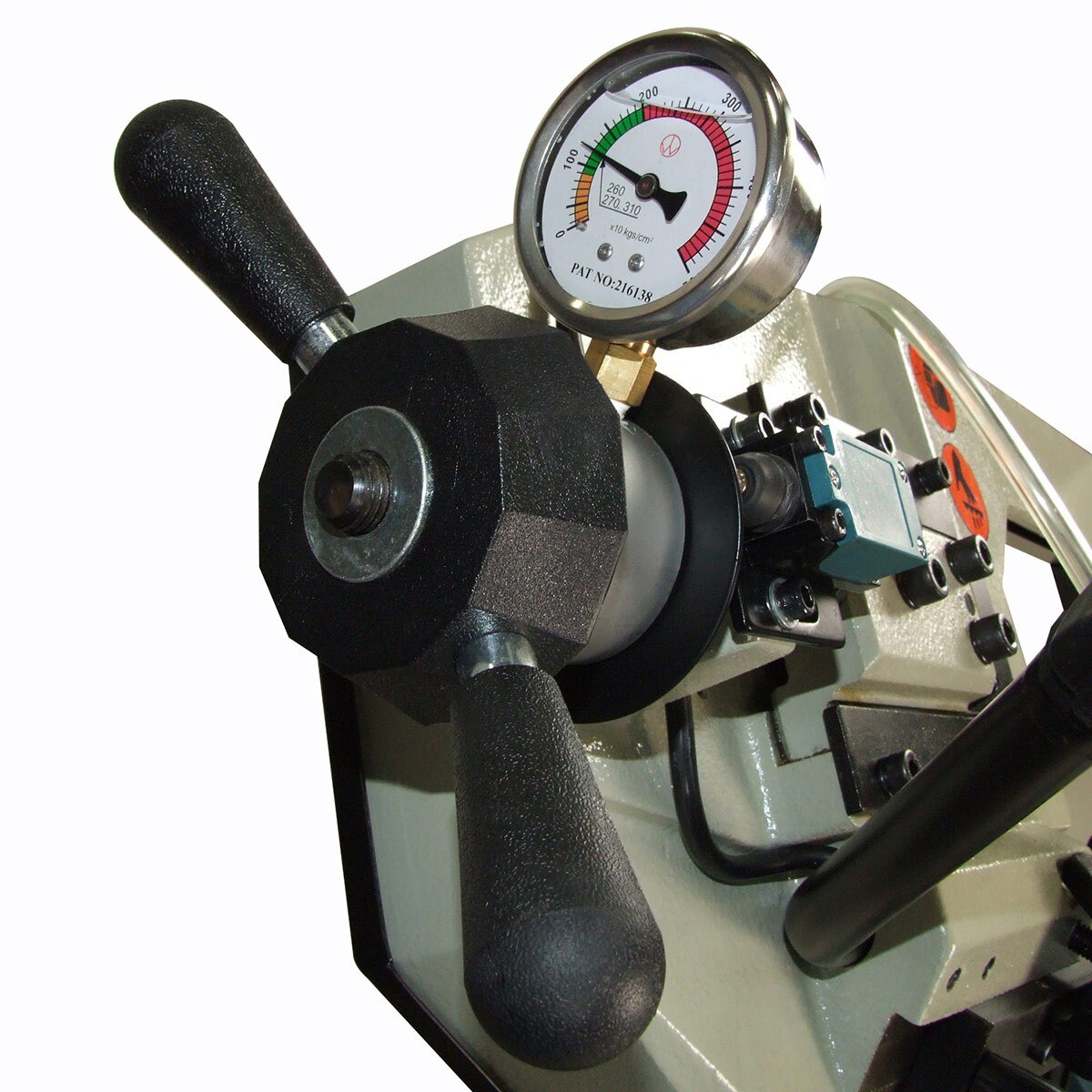

  • Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks.

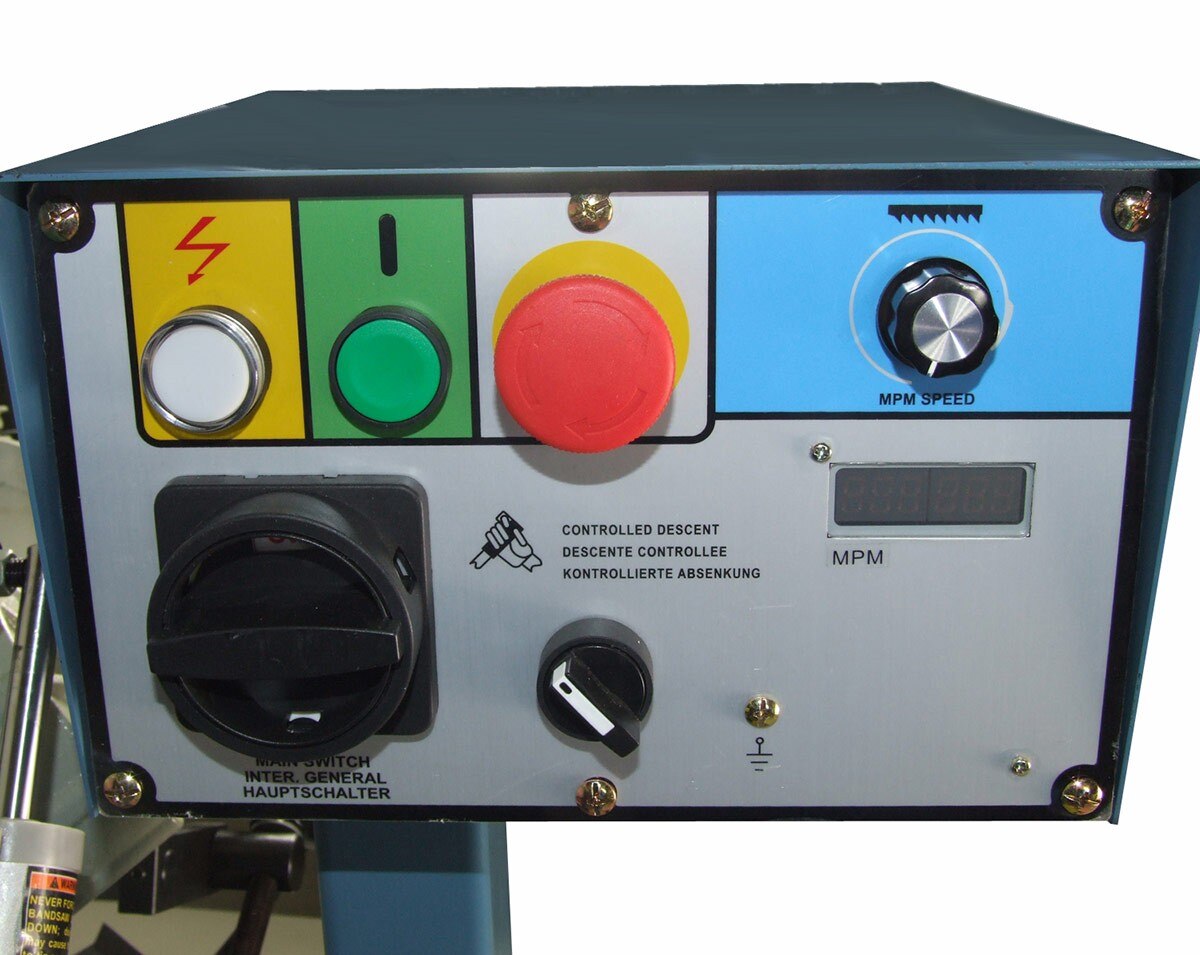

  • You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material.

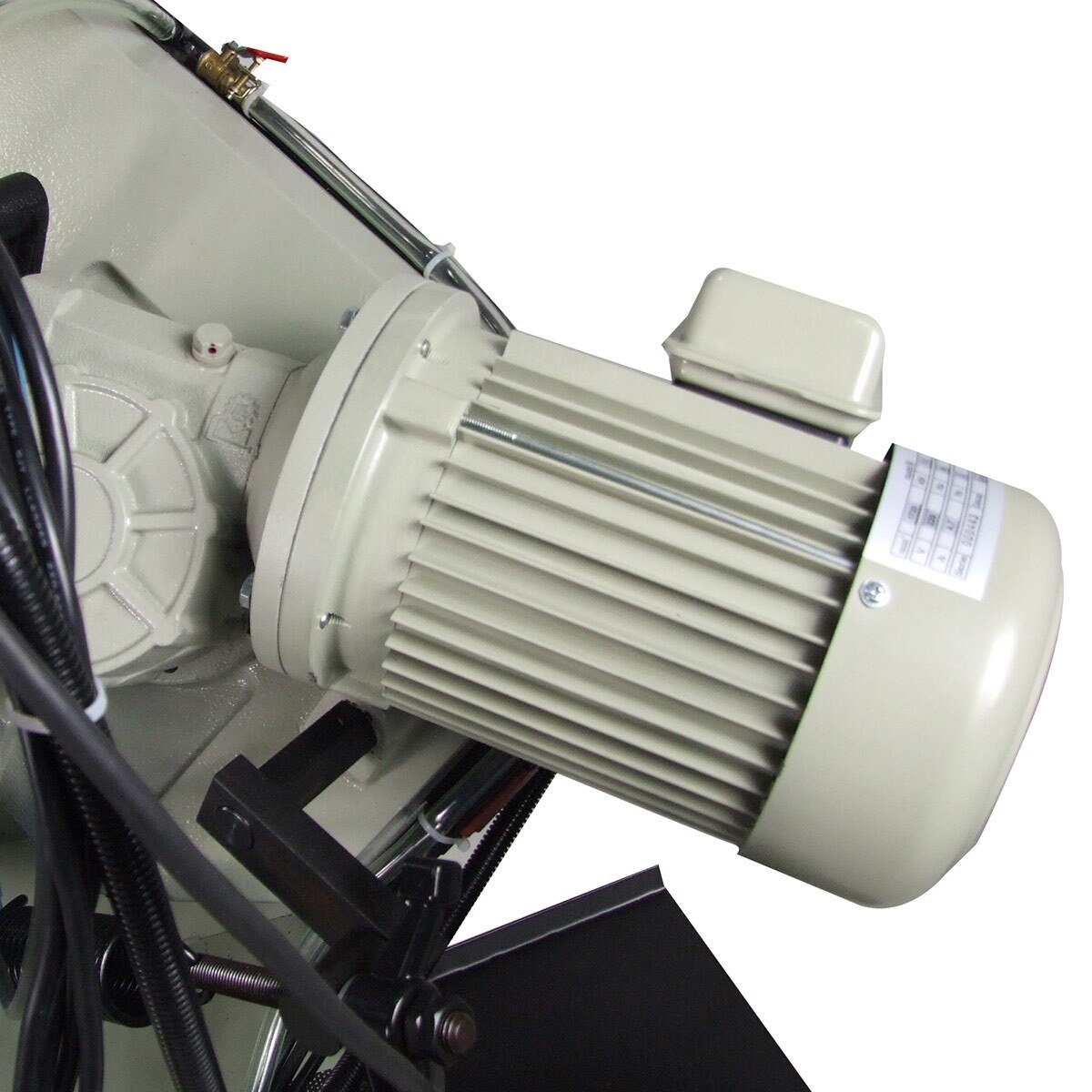

  • Direct-drive gearbox design saves you time in the long run—no pulleys to adjust or belts to break!

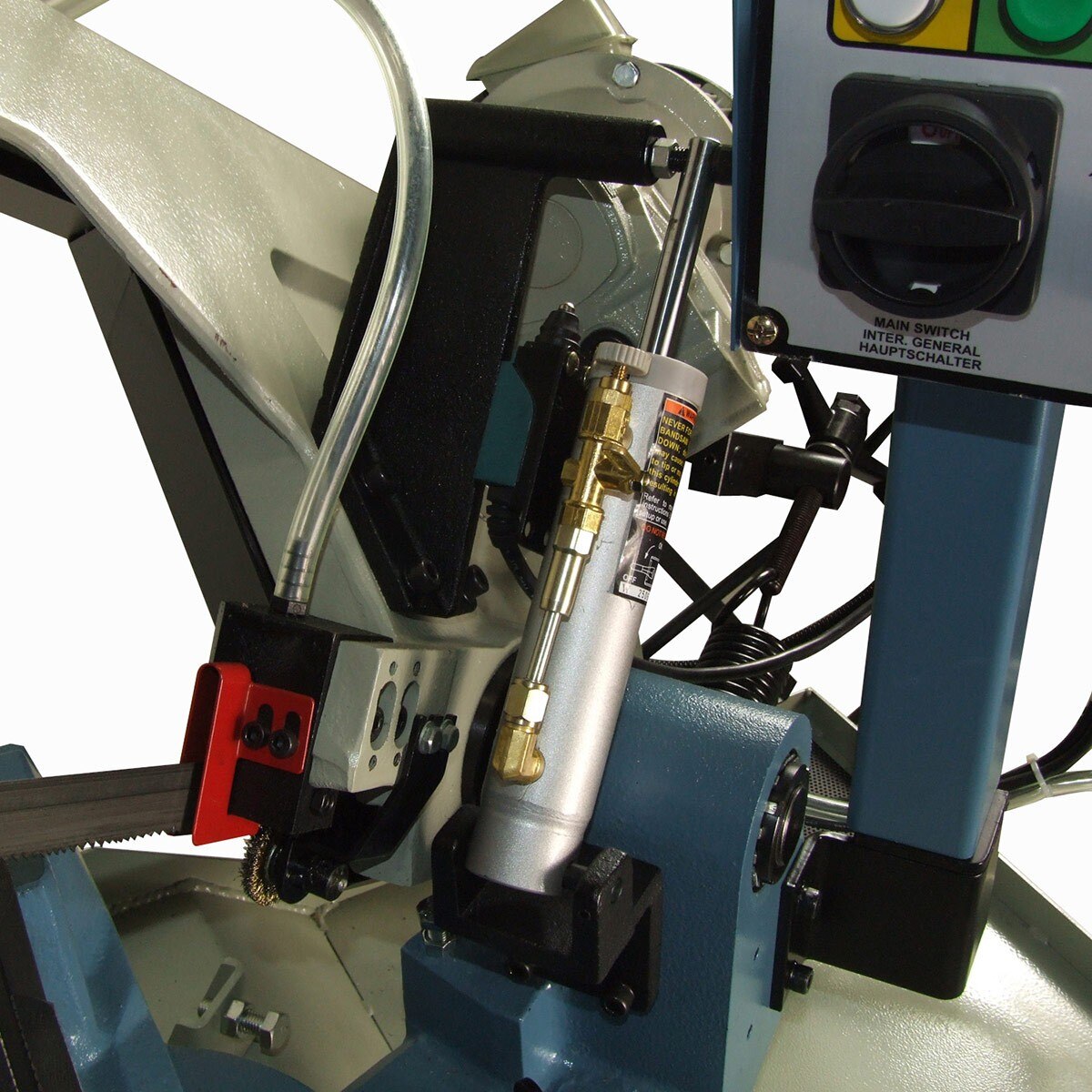

  • 2 operating modes: Manual descent mode for small production runs: Turn on the machine via the trigger switch, then manually guide the material. Perfect for small-to-medium-sized shops; Hydraulic descent for larger production runs: Increases blade life and reduces operator fatigue. The hydraulic descent has a downfeed adjustment for feed pressure.
  • Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life.
  • Fully-welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades.
  • Baileigh covers this small horizontal band saw with a 1-year parts warranty.

Baileigh Industrial 1001432 Specifications

Dimensions 69" x 44" x 45"
Horsepower 1.5 HP
Return Manual
Miter Adjustment Dual Swivel Head
Miter Angle 0 – 60°, 45°L
Motor High Torque 1.1Kw (AC)
Capacity Round 90 x 45 x 60 x 45L 8.66" / 5.9" / 3.5" / 5.31”
Capacity Rectangular 90 X 45 X 45L 10.25" x 4.13" / 6.1" x 2.75" / 6.3" x 1.77"
Capacity Square 90 X 45 X 60 X 45L 8.46" / 5.7" / 3.34" / 4.33”
Table Height 35"
