Baileigh Industrial BA9-1001438 Semi-Auto Bandsaw BS-260SA
Description
Description
Baileigh Industrial 1001438 Description

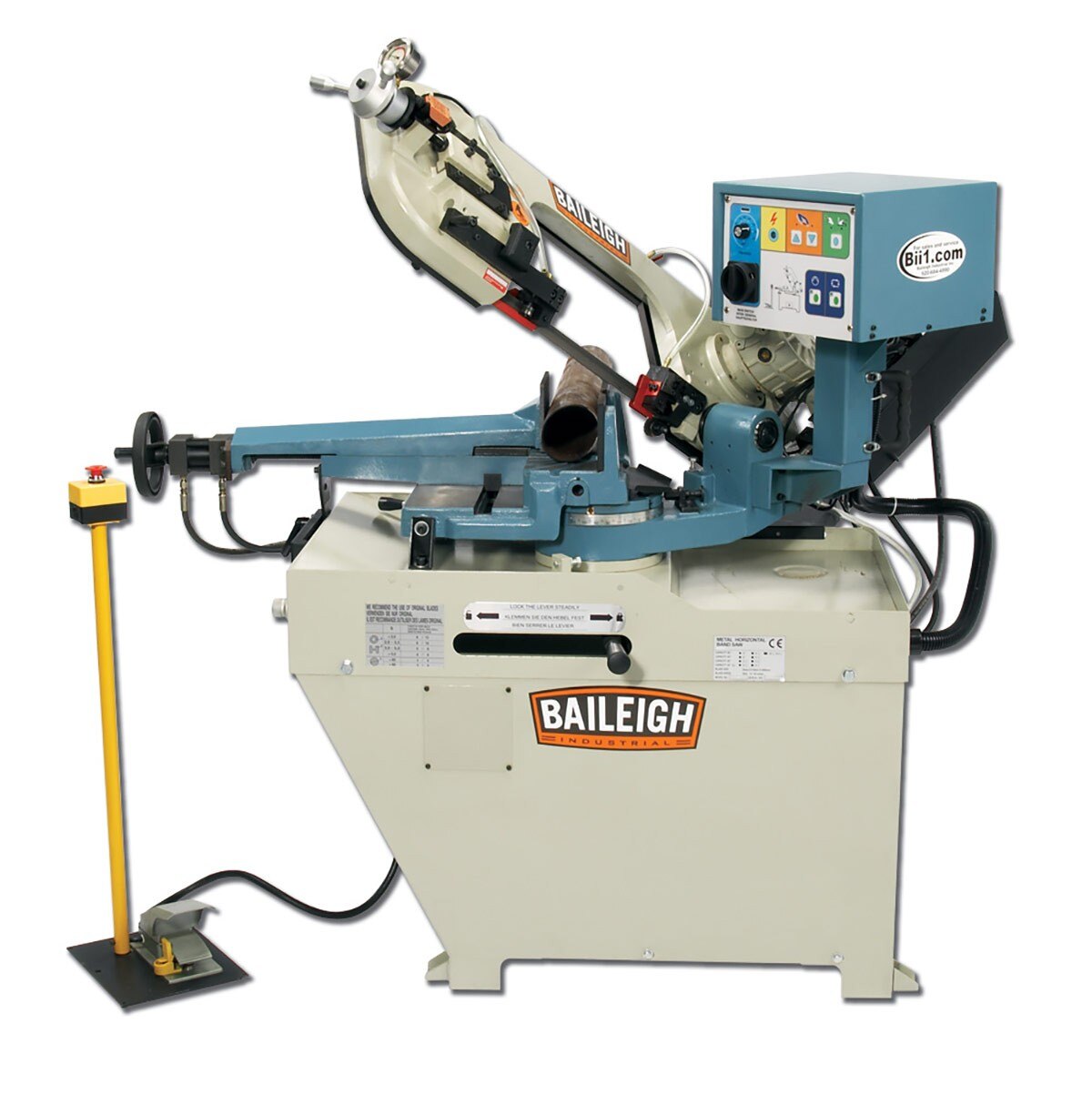

Based on the BS-260M, the BS-260SA semi-automatic band saw offers more production and faster turnaround times. The reason a semi-automatic saw is good for more production runs is that the clamping of the material as well as the raising a lowering of the saw head are automatic, and controlled by a foot pedal. This is all controlled by an industrial grade hydraulic system that runs on 220 volt, single phase power. The BS-260SA is a variable speed saw that has an AC inverter to control the speed of the motor. This is a big improvement over the old DC driver board set up. Inverters offer more reliability and longer life. The gear driven BS-260SA is a 9" band saw that is perfect for cutting at 90 degrees or miter angles. This saw has a dual angle head capable of cutting 0-60 degrees (R) and 0-45 (L), making it one of the most versatile saws on the market. Quick release head locks allow the operator to change the miter angle in seconds. Built rock solid, the BS-260SA has a full cast iron bow, pivot head, and heavy duty reinforced sheet metal base. When combined, these features make for an extremely rigid platform that will ensure the straightest cuts. A coolant system and hydraulic blade break switch are also standard on the BS-260SA.
Baileigh Industrial 1001438 Includes
- (1) Band Saw
Baileigh Industrial 1001438 Features
- Maximum capacity of 8.93” round at 90°.
- Dual-angle head cuts at up to 60° right and up to 45° left, making it one of the most versatile mitering band saws on the market.
- Quick-release head lock allows you to change the miter angle in seconds.
- Industrial-grade hydraulic system runs on 220-volt single-phase power.
- Foot pedal controls the clamping of material as well as the raising a lowering of the saw head (both automatic).
- AC inverter controls the speed of the 1.5 hp motor—a big improvement over the old DC driver board set-up. Inverters are more reliable and last longer.
- Adjust the variable speed from 66 to 280 fpm to fit the material and the application and extend blade life.
- Cast iron bow and pivot head plus a heavy-duty reinforced sheet metal base provide a rigid platform to ensure the straightest cuts.
- Hydraulic blade break switch automatically shuts the machine down if the blade should break.
- Comes standard with a coolant system, which will extend the machine’s lifetime of use.
- Baileigh covers this horizontal band saw with a 1-year parts warranty.
Baileigh Industrial 1001438 Specifications
| Dimensions | 63" x 29" x 64" |
| Horsepower | 1.5 HP |
| Return | Hydraulic |
| Miter Adjustment | Dual Swivel Head |
| Miter Angle | 0 – 60°, 45°L |
| Motor | High Torque 1.1Kw (AC) |
| Capacity Square 90 x 45 x 60 x 45L | 8.26” x 8.26” / 5.51” x 5.51” / 3.3” x 3.3” / 4.25” x 4.25” |
| Capacity Round 90 x 45 x 60 x 45L | 8.66" / 5.9" / 3.54" / 4.33" |
| Capacity Rectangular 90 X 45 X 45L | 10.23" x 4.25" / 5.7" x 4.92" / 6.3" x 1.77" |
| Table Height | 33.34" |
