Baileigh Industrial BA9-1001557 Dual Miter Band Saw BS-350M
Description
Description
Baileigh Industrial 1001557 Description

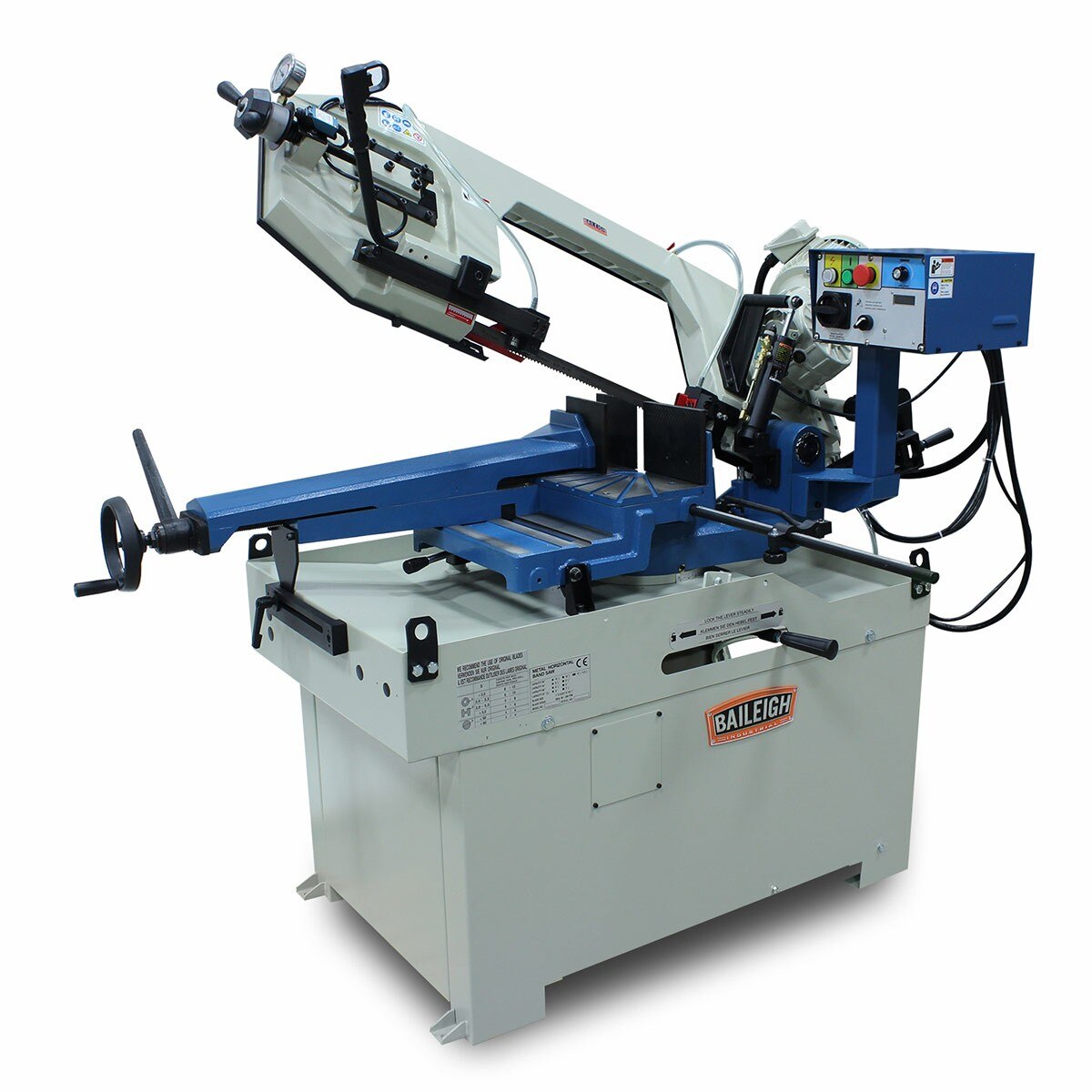

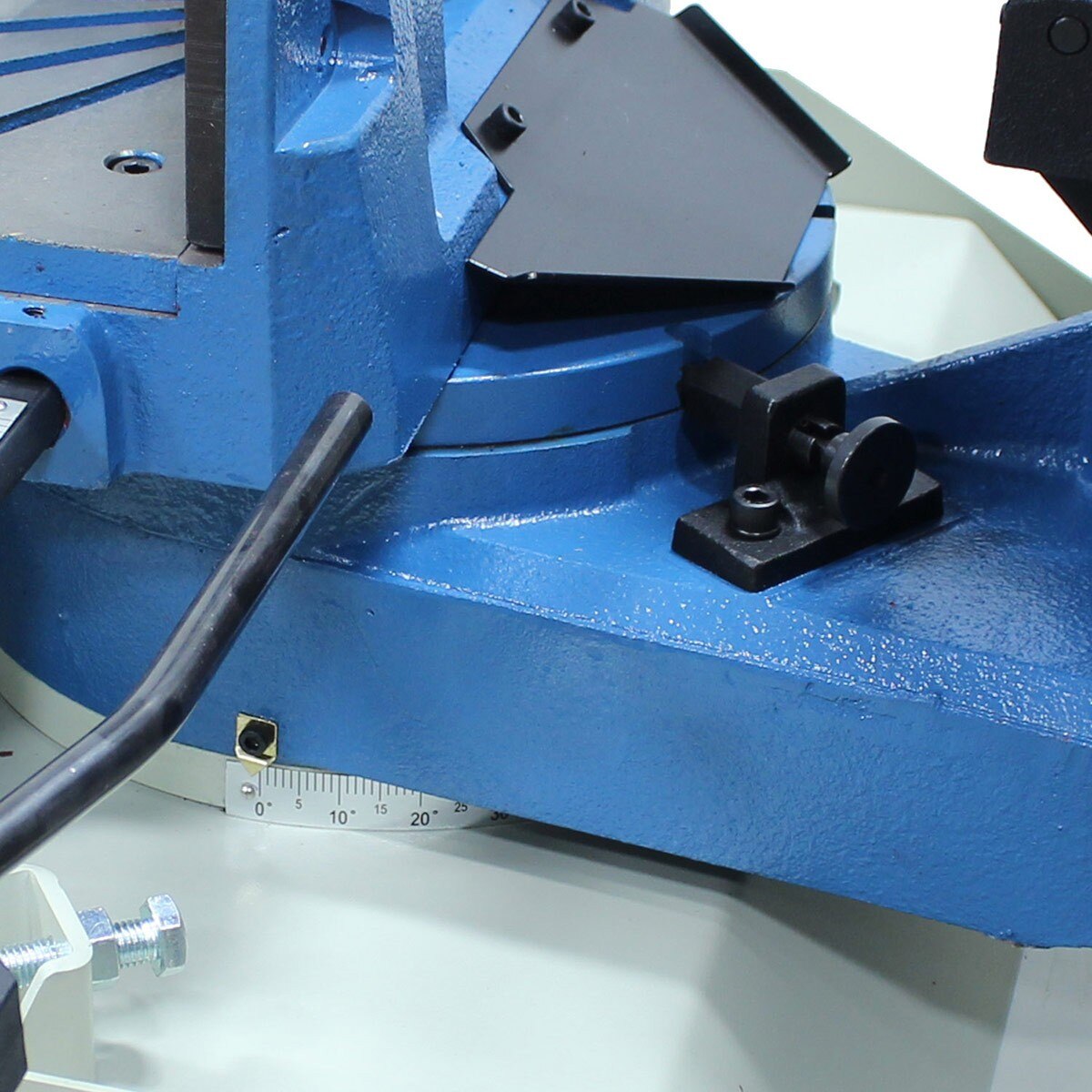

Need to cut at multiple angles in both directions? This dual-mitering band saw has a cast iron head and bow that can swivel 60° right and 45° left. Based on the BS-260M, the BS-260SA semi-automatic band saw offers more production and faster turnaround times. The reason a semi-automatic saw is good for more production runs is that the clamping of the material as well as the raising a lowering of the saw head are automatic, and controlled by a foot pedal. This is all controlled by an industrial grade hydraulic system that runs on 220 volt, single phase power. The BS-260SA is a variable speed saw that has an AC inverter to control the speed of the motor. This is a big improvement over the old DC driver board set up. Inverters offer more reliability and longer life.
Baileigh Industrial 1001557 Includes
- (1) Band Saw
Baileigh Industrial 1001557 Features
- 10.5” round capacity at 90°.
- Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere.

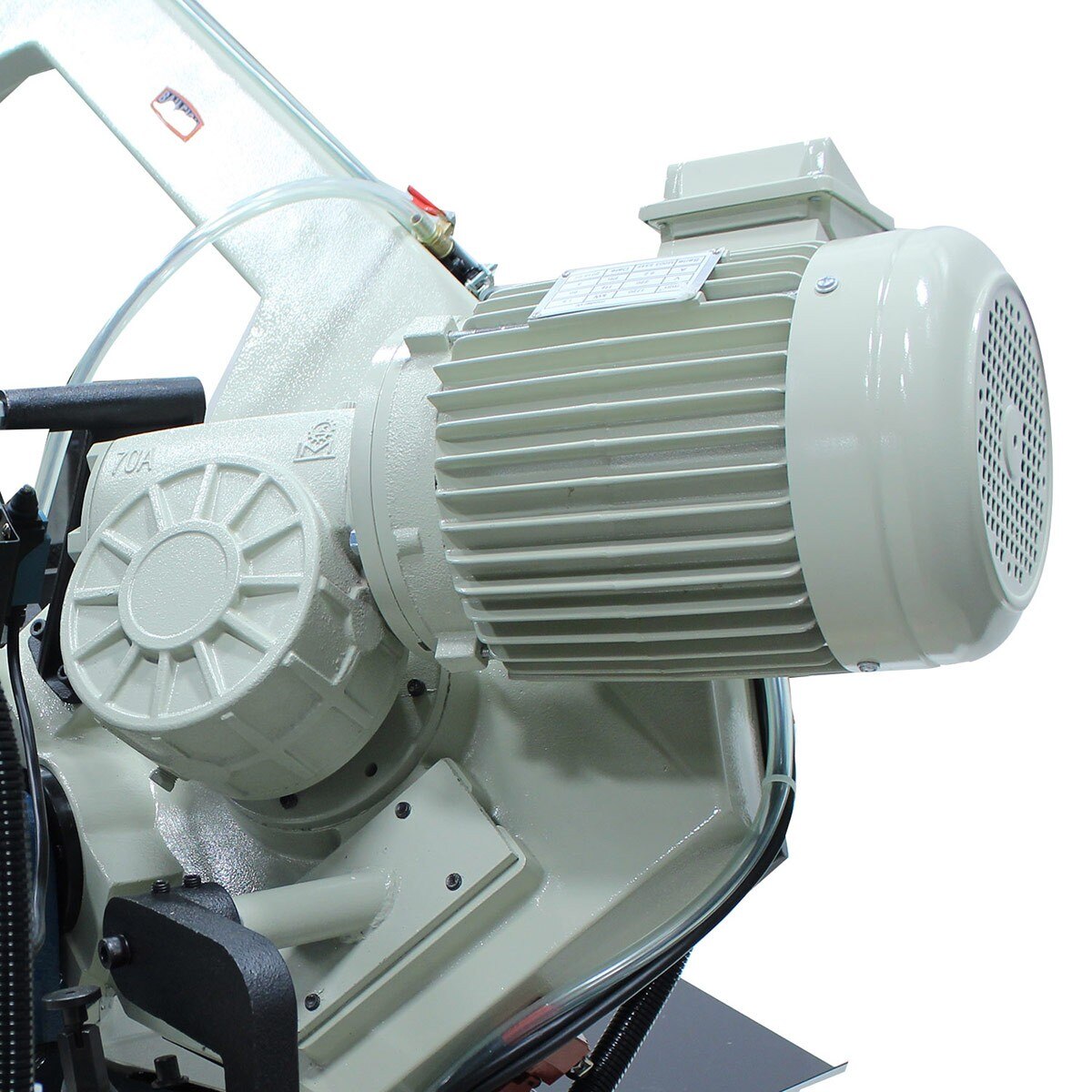

- 2 hp motor, driven by an AC inverter, makes the machine reliable.
- Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts!
- Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market.
- 1” blade width.

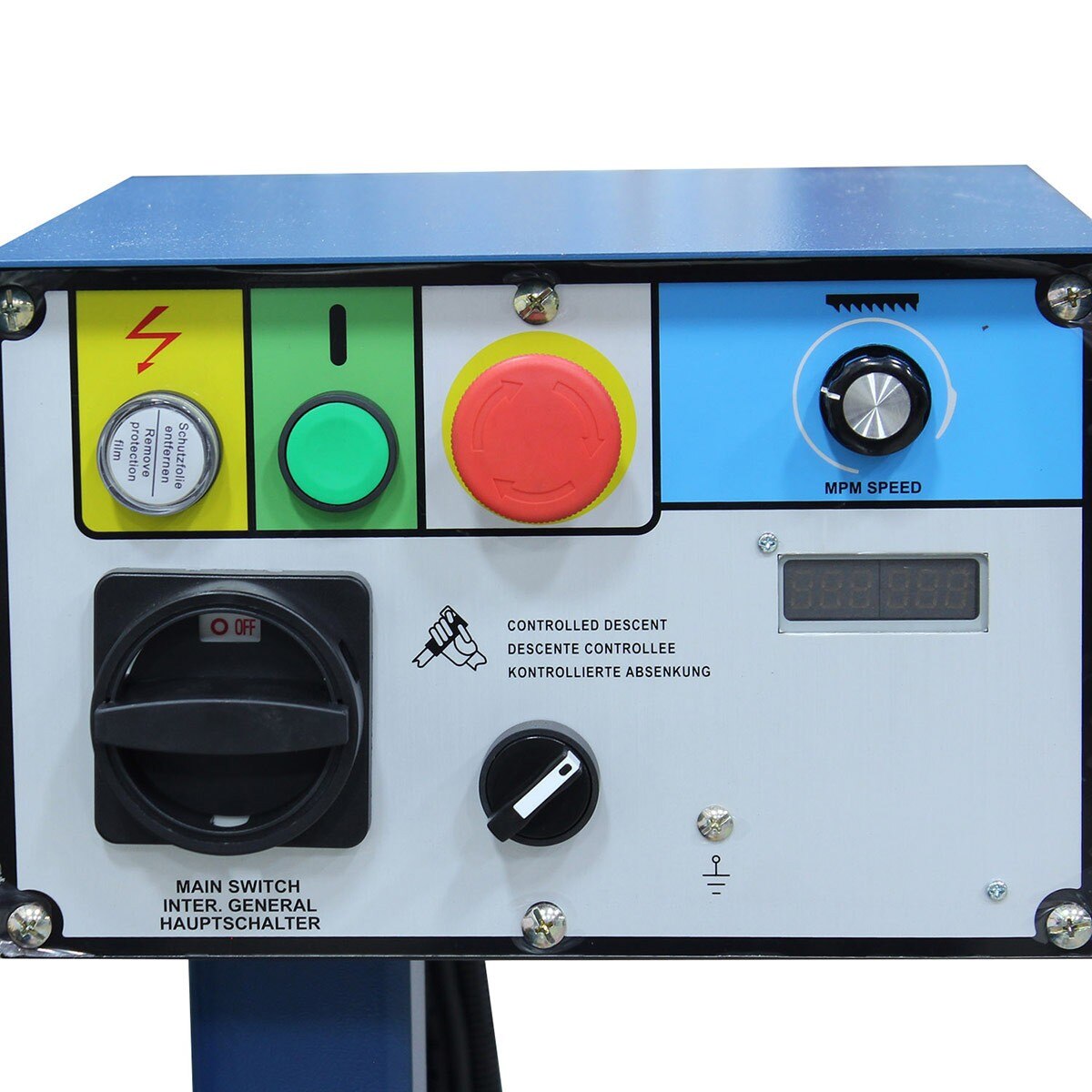

- Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application.

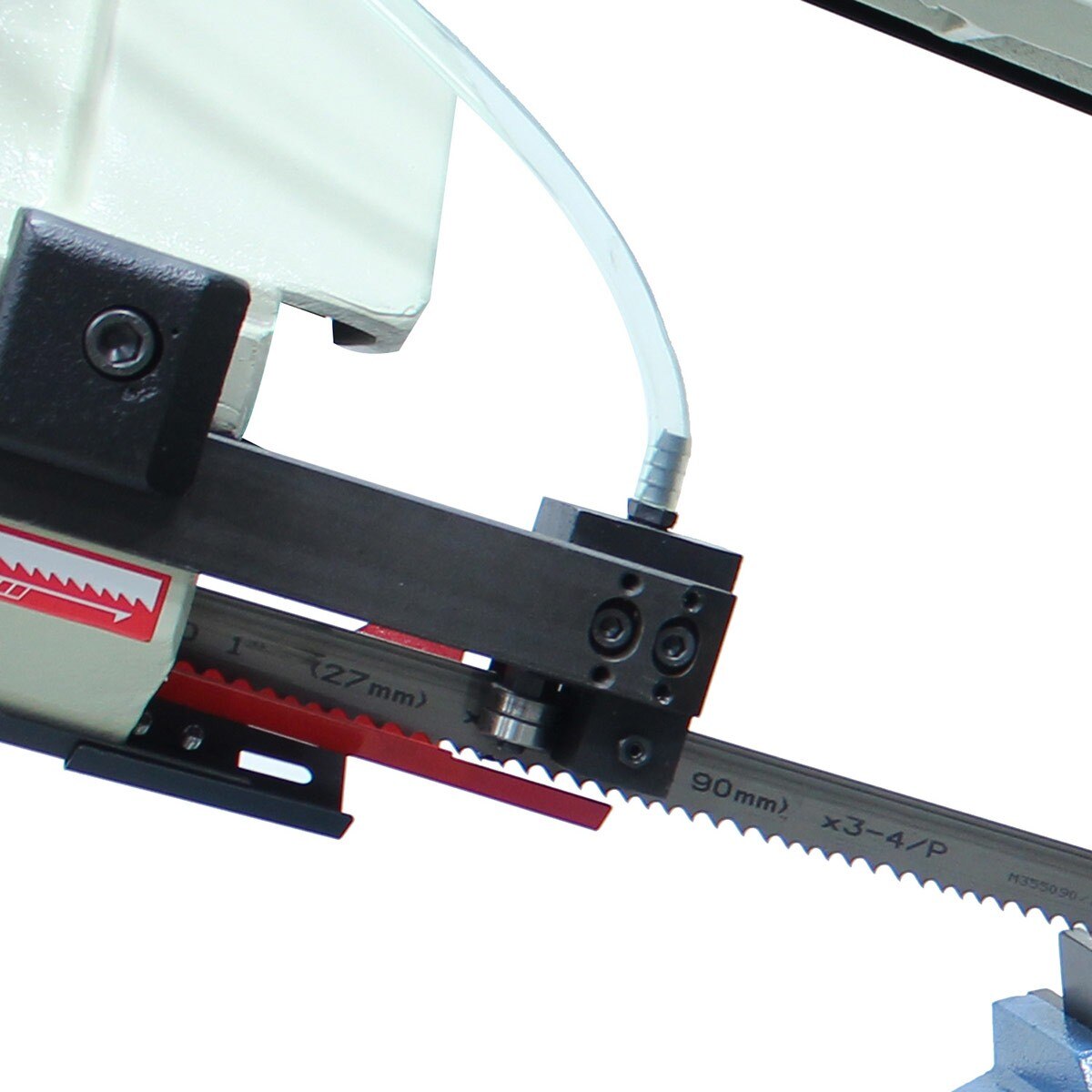

- Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life.

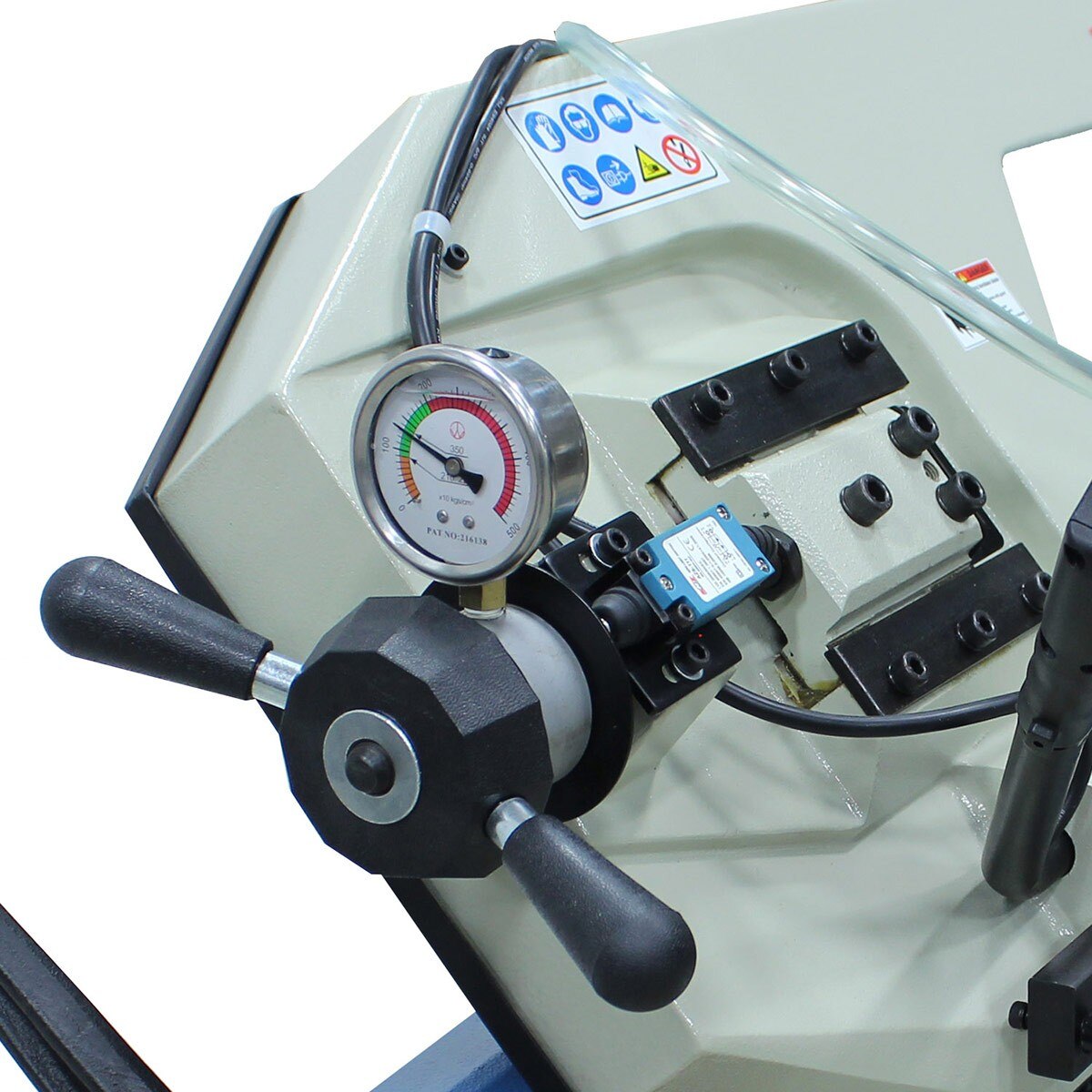

- Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension.

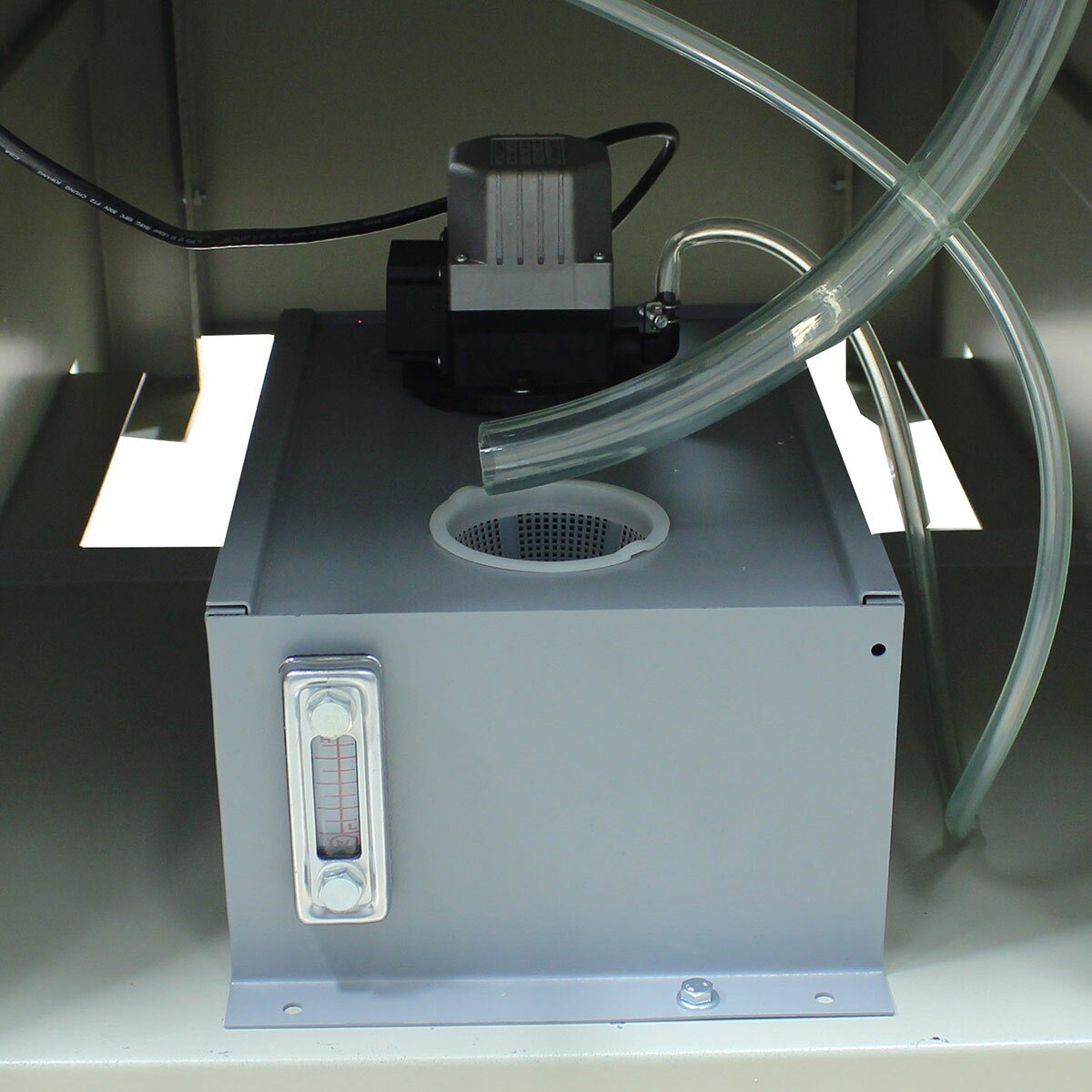

- Comes standard with a flood coolant system to wash away metal chips and help blades last longer.

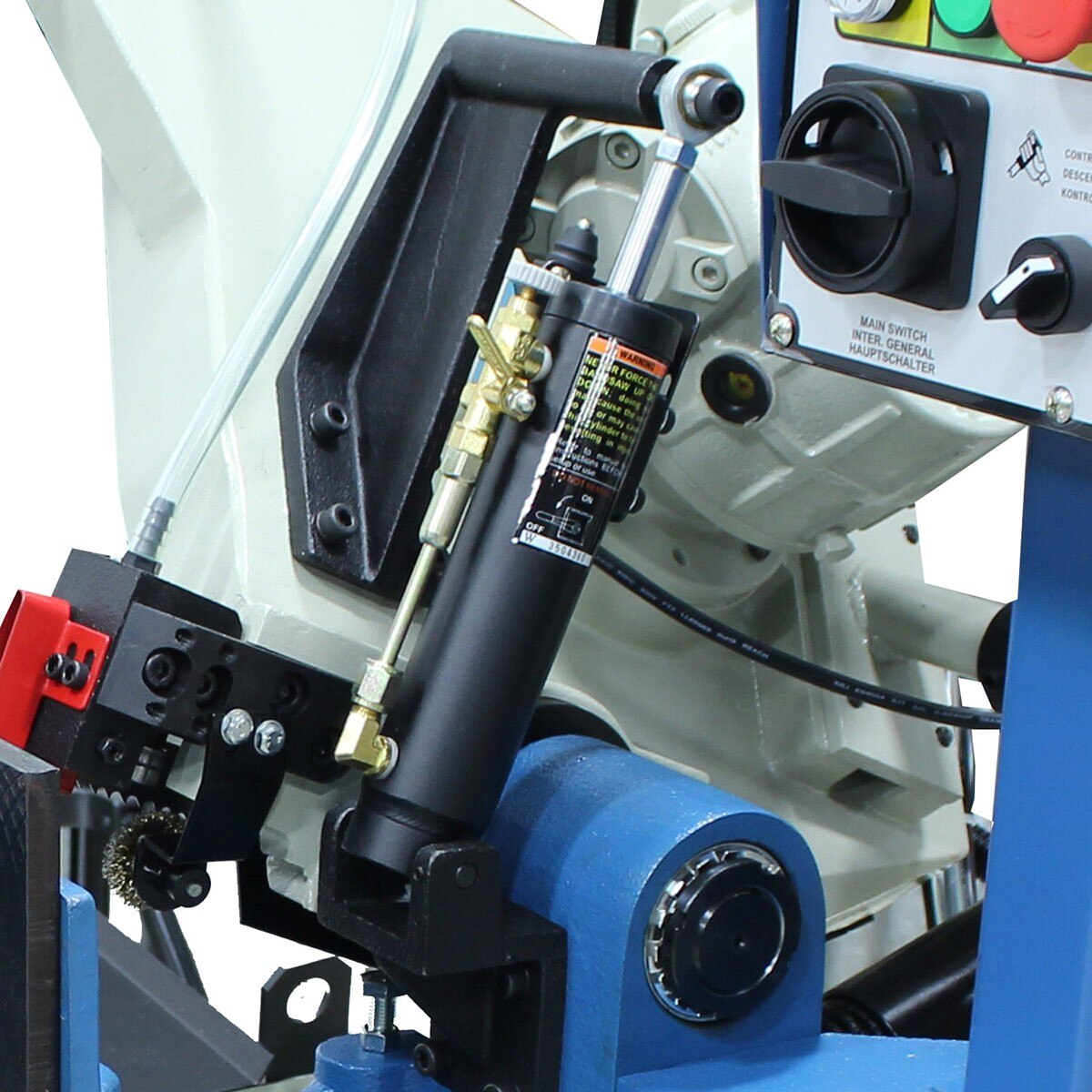

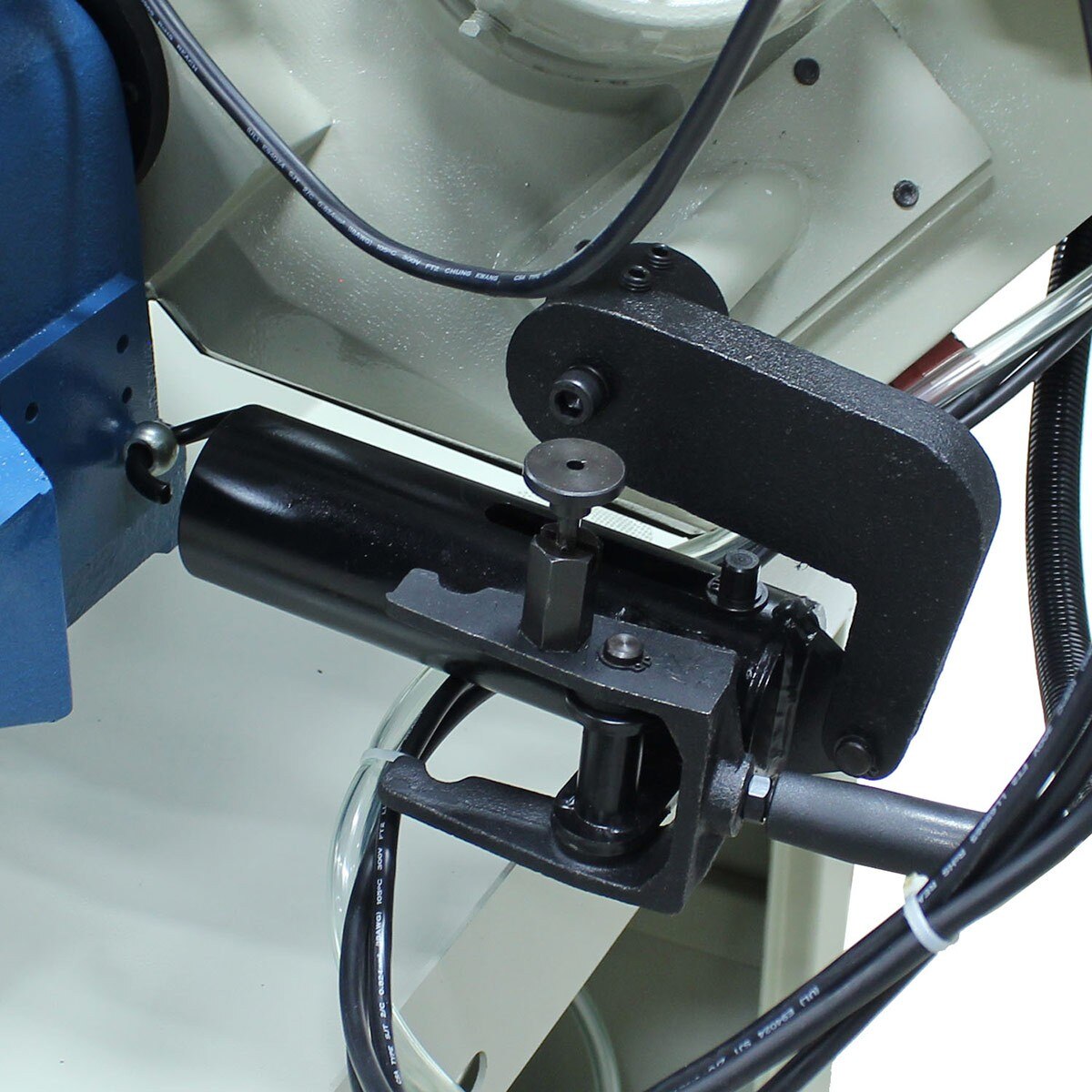

- Choose between 2 modes of operation, manual or hydraulic descent, depending on your preference and project. Manual descent mode: For small production runs, Perfect for small or medium sized fabricators’ needs, Turn on the machine via a trigger switch in the descent handle, Manually guide the band saw blade through the material. Hydraulic descent mode: For larger production runs, Increases blade life and reduces operator fatigue, Downfeed adjustment for feed pressure.
- We cover this horizontal band saw with a 1-year parts warranty.
Baileigh Industrial 1001557 Specifications
| Dimensions | 69" x 44" x 49" |
| Horsepower | 2 HP |
| Return | Manual |
| Miter Adjustment | Dual Swivel Head |
| Miter Angle | 0 – 60°, 45°L |
| Motor | High Torque 1.5Kw (AC) |
| Capacity Round 90 x 45 x 60 x 45L | 10.63" x 9.45" x 6.3" x 8.28" |
| Capacity Rectangular 90 X 45 X 45L | 13.77" x 8.66" x 9.45" x 6.3" 7.3" x 4.33" |
| Capacity Square 90 x 45 x 60 x 45L | 10.24" x 8.66" x 5.9" x 7.09" |
| Table Height | 35" |
