Baileigh Industrial BA9-1001570 Gear Driven Dual Miter Band Saw BS-350SA
Description
Description
Baileigh Industrial 1001570 Description

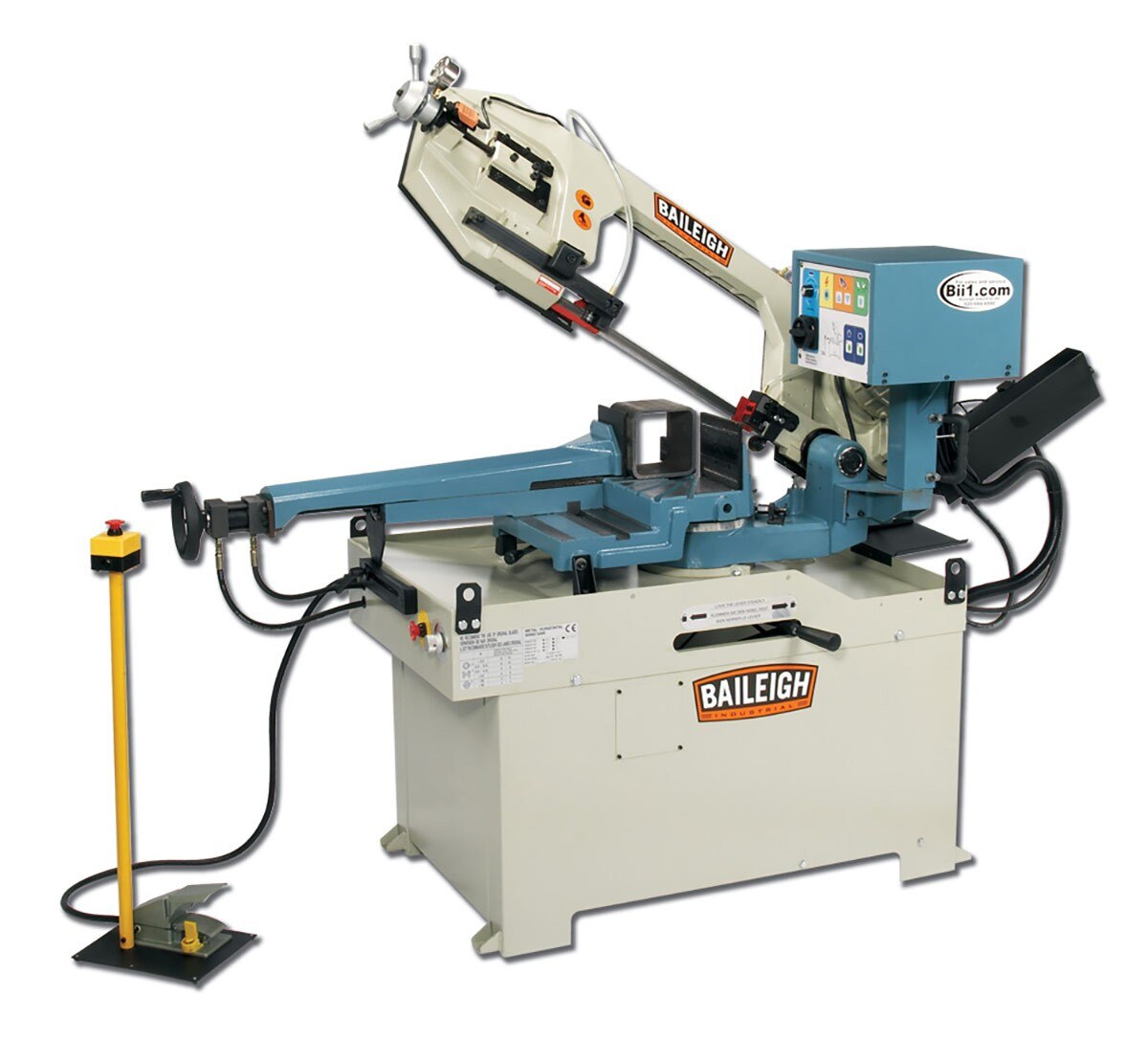

The BS-350SA semi-automatic band saw is the perfect saw for shops where light production is the normal. The BS-350SA runs on 220V, single phase power and has a cutting capacity of 10-1/2”. The best part of the BS-350SA is that it has a full cast iron bow and can miter 60 degrees right/45 degrees left. The BS-350SA blade drive features a 2hp motor which is driven by an AC inverter to deliver the reliability that most shops demand. The best thing about being inverter driven is that you can make speed changes, on the fly, from 66-280 fpm. Being able to change speeds helps blade life and gives the best possible cut. Other features of the BS-350SA that help achieve great cuts are: full cast iron head and bow machined to exact tolerances, precision ball bearing guides, and a large capacity flood coolant system. The BS-350SA uses an industrial grade hydraulic system to power all semi-automatic actions. These actions include: raising and lowering of the head along with clamping and releasing the vise. These actions are initiated with the use of a foot pedal. The other settings are set at the control panel.
Baileigh Industrial 1001570 Includes
- (1) Band Saw
- (1) Blade
Baileigh Industrial 1001570 Features
- 10.5” OD round capacity at 90°.
- Accepts a standard 1” blade (included).
- motor runs on 220-volt single-phase power.
- Adjust the variable speed control from 66 to 280 fpm to deliver the best possible cut for a given material and make blades last longer.
- Driven by an AC inverter to maintain a high standard of reliability.
- Head miters 60° right and 45° left.
- Cast iron head and bow, machined to exacting tolerances, keep vibrations to a minimum and produce accurate cuts.
- Industrial grade hydraulic system raises and lowers the head. It also clamps and releases the vise.
- Patented blade tension device lets you easily check the blade tension by looking at the liquid-filled gauge.
- Precision ball bearing guides move the blade as close to the material as possible to make clean, accurate cuts.
- Direct-drive gearbox saves you the trouble of adjusting pulleys and replacing broken belts.
- Start and stop the machine with the convenient foot pedal and change settings on the control panel.
- Electro-welded steel plate framework maintains accuracy and prevents the machine from wobbling.
- Comes standard with a large-capacity flood coolant system that washes away metal shavings and prolongs blade life.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1001570 Specifications
| Dimensions | 73" x 30" x 67" |
| Horsepower | 2 HP |
| Return | Hydraulic |
| Miter Adjustment | Dual Swivel Head |
| Miter Angle | 0 – 60°, 45°L |
| Motor | High Torque 1.5Kw (AC) |
| Capacity Round 90 x 45 x 60 x 45L | 10.63" x 9.45" x 6.3" x 8.28" |
| Capacity Rectangular 90 X 45 X 45L | 13.77" x 8.66" x 9.45" x 6.3" 7.3" x 4.33" |
| Capacity Square 90°/ 45° / 60° | 10.24" x 8.66" x 5.9" x 7.09" |
| Table Height | 35" |
